Panasonic KX-TPA50 Manuale utente

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

This unit is an additional handset compatible with the following

series of Panasonic SIP Cordless Phone:

KX-TGP500/KX-TGP550

You must register this handset with your base unit before it can

be used. This installation manual describes only the steps

needed to register and begin using the handset. For further

details, please read the base unit’s User Guide on the

Panasonic Web site at:

http://panasonic.net/pcc/support/sipphone/

Charge the batteries for about 6 hours before initial use.

Additional Cordless Handset

Installation Manual

Model No. KX-TPA50 B02

– 2 –

Accessory information

Supplied accessories

*1 Please read the replacement battery information section of the base

unit’s User Guide on the Panasonic Web site. See page 1 for

Panasonic URL.

*2 The handset cover comes attached to the handset.

Note:

LPlease read the additional/replacement accessory section of the base

unit’s User Guide on the Panasonic Web site. See page 1 for

Panasonic URL.

Setting up

Connections

Accessory item/Part number Quantity

Charger/PNLC1007ZB 1

AC adaptor/PNWE1P500B02 1

Rechargeable batteries*1 2

Handset cover*2 1

Belt clip/PNKE1029Z1 1

(220-240 V AC,

50/60 Hz)

Hooks

– 3 –

Note:

LUse only the supplied Panasonic AC adaptor PNWE1P500B02

(PQLV219E).

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

Battery installation/Battery charge

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted in the

base unit’s User Guide on the Panasonic Web site. See page 1 for

Panasonic URL.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 6 hours.

LWhen the batteries are fully charged, the charge indicator goes off.

Note:

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Confirm

“Charging”is

displayed.

Rechargeable

Ni-MH ONLY

Charge indicator

– 4 –

Registering a handset to the base unit

1Base unit:

NKX-TGP500 series

Press and hold {ALL}for about 4 seconds until the STATUS

indicator flashes in red.

NKX-TGP550 series

Press and hold {ALL}for about 4 seconds until the registration tone

sounds and the STATUS indicator flashes in red.

LIf all registered handsets start ringing, press the same button to

stop. Then repeat this step.

LThe next step must be completed within 90 seconds.

2Handset:

{OK

}

3Wait until “Enter Base PIN”is displayed. iEnter the base unit

PIN (default: “0000”). iPress {OK}, then wait until a long beep

sounds.

LIf you forget your PIN, contact your phone system dealer.

Note:

LIf an error tone sounds, or if _is still displayed, register the handset

according to the registering section of the base unit’s User Guide on

the Panasonic Web site. See page 1 for Panasonic URL.

Belt clip

NTo attach NTo remove

– 5 –

Wall mounting

1Drive the screws (not supplied) into the wall.

2Mount the charger (A), then slide it down (B) and to the right (C)

until it is secure.

Note:

LMake sure that the wall and the fixing method are strong enough to

support the weight of the unit.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact your phone system dealer.

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product to rain or

any type of moisture.

25 mm

Screws

– 6 –

LDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

Operating safeguards

LThe use of excessive sound volume through earphones, headphones, or

headsets may cause hearing loss.

CAUTION

Installation and relocation

LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet

is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement batteries

noted in the battery information section of the base unit’s User Guide on the

Panasonic Web site. See page 1 for Panasonic URL. USE ONLY rechargeable

Ni-MH batteries AAA (R03) size.

LDo not mix old and new batteries.

LDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

LExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

LCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

LOnly use a compatible charger to charge the batteries. Do not tamper with the

charger. Failure to follow these instructions may cause the batteries to swell or

explode.

Other information

LOperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

LUse only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

– 7 –

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

General information

LThis equipment is designed for use in the U.K.

LIn the event of problems, you should contact your service provider in the first

instance.

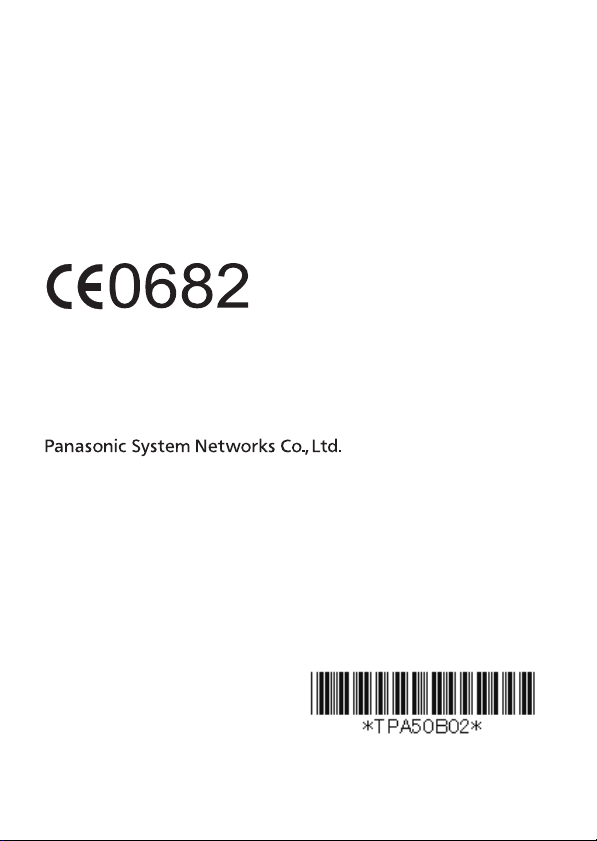

Declaration of Conformity:

LPanasonic System Networks Co., Ltd. declares that this equipment is in

compliance with the essential requirements and other relevant provisions of

Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/

EC. Declarations of Conformity for the relevant Panasonic products described in

this manual are available for download by visiting:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols (1, 2, 3) on the products, packaging, and/or accompanying

documents mean that used electrical and electronic products and batteries should

not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries,

please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

123

– 8 –

By disposing of these products and batteries correctly, you will help to save

valuable resources and prevent any potential negative effects on human health and

the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries,

please contact your local municipality, your waste disposal service or the point of

sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with

national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your

dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (1, 2, 3) are only valid in the European Union. If you wish to

discard these items, please contact your local authorities or dealer and ask for the

correct method of disposal.

Note for the battery symbol

This symbol (2) might be used in combination with a chemical symbol (3). In this

case it complies with the requirement set by the Directive for the chemical involved.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard these

items, please contact your local authorities or dealer and ask for the correct method

of disposal.

– 9 –

Notes

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

This material is copyrighted by Panasonic System Networks Co., Ltd.,

and may be reproduced for internal use only. All other reproduction, in

whole or in part, is prohibited without the written consent of Panasonic

System Networks Co., Ltd.

PNQX3051XA DM0810SY2012
