Panasonic KX-TGA800E Manuale utente

Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGA800E

Thank you for purchasing a Panasonic digital cordless phone.

Please read this installation manual before using the unit and

save it for future reference.

This unit is an additional handset for use with the following

series of Panasonic Digital Cordless Phone: KX-TG8021

You must register this handset with your base unit before it

can be used. This installation manual describes only the

steps needed to register and begin using the handset. Please

read the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

TGA800E(e).fm Page 1 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Supplied accessories

*1 Please read the base unit’s operating instructions for replacement

battery information.

*2 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

LThis equipment is designed for use in the U.K. and Republic of Ireland.

LIn the event of problems, you should contact your equipment supplier

in the first instance.

Sales and support information

Customer Care Centre

LFor customers within the U.K.: 0844 844 3898

LFor customers within the Republic of Ireland: 01289 8333

LVisit our website for product information: www.panasonic.co.uk

LE-mail: customer[email protected]

Direct Sales at Panasonic U.K.

LOrder accessory and consumable items for your product with ease and

confidence by phoning our Customer Care Centre Monday - Thursday

9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).

LOr go on line through our Internet Accessory ordering application at

www.panasonic.co.uk

LMost major credit and debit cards accepted.

Accessory item/Part number Quantity

Charger/PNLC1001X 1

AC adaptor for charger/PQLV209EU (PQLV209E) 1

Rechargeable batteries*1 2

Handset cover*2 1

TGA800E(e).fm Page 2 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

LAll enquiries transactions and distribution facilities are provided

directly by Panasonic U.K. Ltd.

LIt couldn’t be simpler!

LAlso available through our Internet is direct shopping for a wide range

of finished products, take a browse on our website for further details.

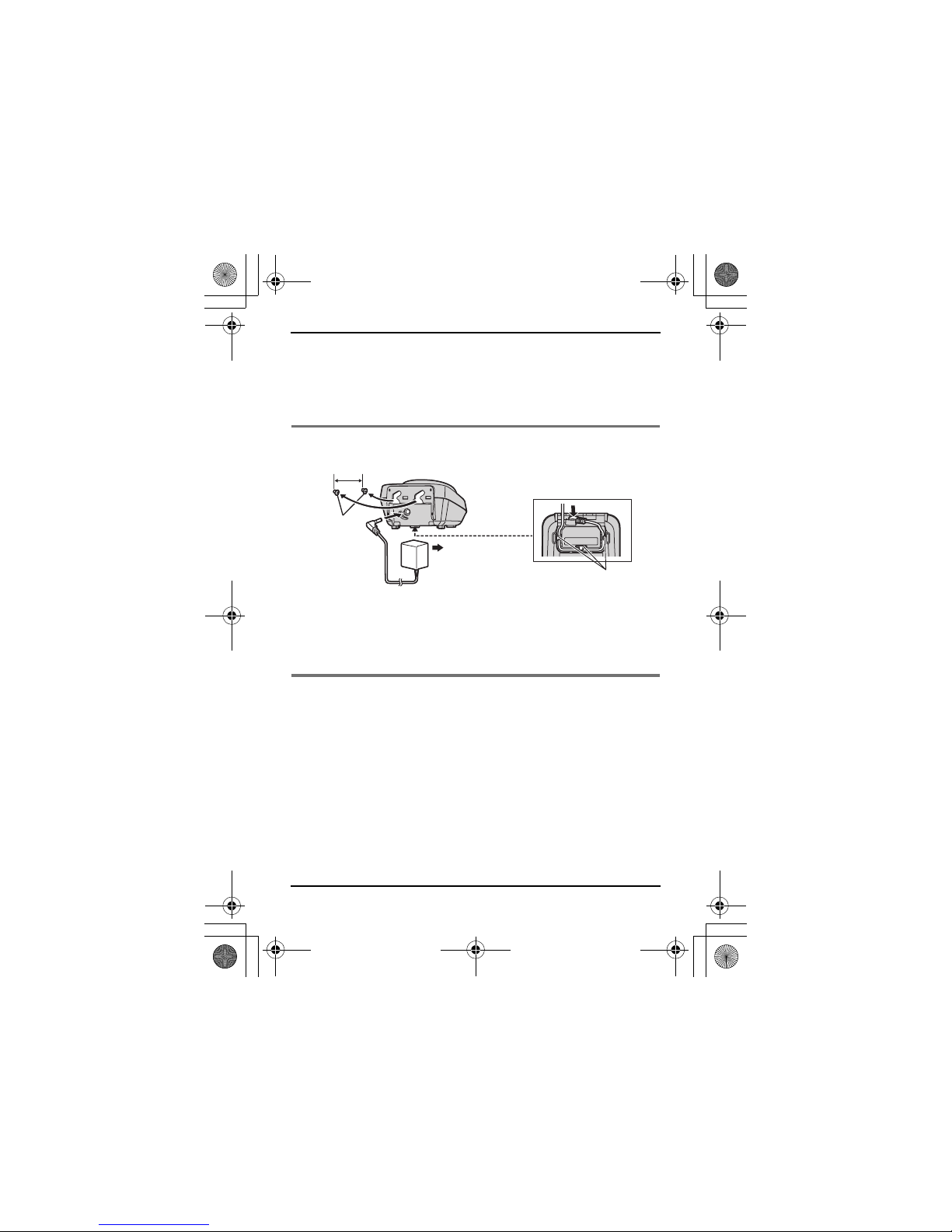

Connection/Wall mounting

Note:

LUse only the supplied Panasonic AC adaptor PQLV209E.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

Battery installation/Battery charge

Important:

LUse the supplied rechargeable batteries (Part No. HHR-55AAAB).

LWhen installing the batteries:

– Wipe the battery ends (S, T) with a dry cloth.

– Avoid touching the battery ends (S, T) or the unit contacts.

– Confirm correct polarities (S, T).

LWhen replacing the batteries:

– USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

– Do NOT use Alkaline/Manganese/Ni-Cd batteries.

(220-240 V AC,

50 Hz)

Hooks

25.4 mm

Screws

TGA800E(e).fm Page 3 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

– We recommend using the Panasonic rechargeable batteries noted

in the base unit’s operating instructions for replacement battery

information.

1Firmly press the notch on the handset cover and slide it in the

direction of the arrow.

2Insert the batteries negative (T) end first. Close the handset cover.

3Place the handset on the charger for about 7 hours before initial

use.

Note:

LThe handset display may show “Please Wait...”when the

handset is placed on the charger if it is not registered to the base unit.

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold

{ih} for few seconds to turn the handset on.

1Handset:

Lift the handset and press {ih}.

2Base unit:

Press and hold {x} for about 5 seconds, until the registration tone

sounds.

LIf all registered handsets start ringing, press the same button to

stop. Then repeat this step.

TGA800E(e).fm Page 4 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

3Handset:

Place the handset on the base unit.

LContinue the operation even when the handset display shows

“Please Wait...”.

4With the handset still on the base unit, wait until a confirmation tone

sounds and wstops flashing.

Note:

LIf an error tone sounds, or if wis still flashing, register the handset

according to the base unit’s operating instructions.

For your safety

To prevent severe injury and loss of life/property, read this section

carefully before using the product to ensure proper and safe operation of

your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet.

Failure to do so may cause electric shock and/or excessive heat

resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by

pulling it from the power outlet, then wiping with a dry cloth.

Accumulated dust may cause an insulation defect from moisture, etc.

resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal

smell, or makes an unusual noise. These conditions can cause fire or

electric shock. Confirm that smoke has stopped emitting and contact

an authorised service centre.

TGA800E(e).fm Page 5 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product

to rain or any type of moisture.

LDo not place or use this product near automatically controlled devices

such as automatic doors and fire alarms. Radio waves emitted from

this product may cause such devices to malfunction resulting in an

accident.

CAUTION

Installation and relocation

LThe AC adaptor is used as the main disconnect device. Ensure that

the AC outlet is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement

batteries noted in the base unit’s operating instructions for

replacement battery information. USE ONLY rechargeable Ni-MH

batteries AAA (R03) size.

LDo not mix old and new batteries.

LDo not open or mutilate the batteries. Released electrolyte from the

batteries is corrosive and may cause burns or injury to the eyes or skin.

The electrolyte may be toxic if swallowed.

LExercise care when handling the batteries. Do not allow conductive

materials such as rings, bracelets or keys to touch the batteries,

otherwise a short circuit may cause the batteries and/or the conductive

material to overheat and cause burns.

LCharge the batteries provided with or identified for use with this

product only, in accordance with the instructions and limitations

specified in this manual.

LOnly use a compatible base unit (or charger) to charge the batteries.

Do not tamper with the base unit (or charger). Failure to follow these

instructions may cause the batteries to swell or explode.

TGA800E(e).fm Page 6 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Other information

LOperating the product near electrical appliances may cause

interference. Move away from the electrical appliances.

LUse only the power cord and batteries indicated in this manual. Do not

dispose of batteries in a fire. They may explode. Check with local

codes for possible special disposal instructions.

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect

your privacy/confidentiality, we recommend that you erase the

information such as phonebook or caller list entries from the memory

before you dispose of, transfer, or return the product.

Information for Users on Collection and Disposal of Old Equipment

and used Batteries

These symbols (1, 2, 3) on the products, packaging, and/or

accompanying documents mean that used electrical and electronic

products and batteries should not be mixed with general household

waste.

For proper treatment, recovery and recycling of old products and used

batteries, please take them to applicable collection points, in accordance

with your national legislation and the Directives 2002/96/EC and

2006/66/EC.

123

TGA800E(e).fm Page 7 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

By disposing of these products and batteries correctly, you will help to

save valuable resources and prevent any potential negative effects on

human health and the environment which could otherwise arise from

inappropriate waste handling.

For more information about collection and recycling of old products and

batteries, please contact your local municipality, your waste disposal

service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in

accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact

your dealer or supplier for further information.

Information on Disposal in other Countries outside the European

Union

These symbols (1, 2, 3) are only valid in the European Union. If you

wish to discard these items, please contact your local authorities or

dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (2) might be used in combination with a chemical symbol

(3). In this case it complies with the requirement set by the Directive for

the chemical involved.

TGA800E(e).fm Page 8 Friday, May 30, 2008 11:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Declaration of Conformity:

LPanasonic Communications Co., Ltd. declares that this equipment is in

compliance with the essential requirements and other relevant

provisions of Radio & Telecommunications Terminal Equipment

(R&TTE) Directive 1999/5/EC.

Declarations of Conformity for the relevant Panasonic products

described in this manual are available for download by visiting:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

TGA800E(e).fm Page 9 Friday, May 30, 2008 11:18 AM

PNQX1349ZA DC0608DK0

Sales Department:

Panasonic Business Systems U.K.

Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP

Panasonic Communications Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

This material is copyrighted by Panasonic Communications Co., Ltd.,

and may be reproduced for internal use only. All other reproduction, in

whole or in part, is prohibited without the written consent of Panasonic

Communications Co., Ltd.

TGA800E(e).fm Page 10 Friday, May 30, 2008 11:18 AM

Indice

Altri manuali Panasonic Cornetta

Panasonic

Panasonic KX-TGA560B - Cordless Extension Handset Manuale utente

Panasonic

Panasonic KX-TGA572C Manuale utente

Panasonic

Panasonic KX-TG4321B Manuale utente

Panasonic

Panasonic KX-TGA410 Manuale utente

Panasonic

Panasonic KX-TGA551 Manuale utente

Panasonic

Panasonic KX-TGA717 Manuale utente

Panasonic

Panasonic KX-TWA51EX Manuale utente

Panasonic

Panasonic KX-TG5200C Manuale utente

Panasonic

Panasonic KX-TGA810EX Manuale utente

Panasonic

Panasonic KX-TGDA30E Manuale utente

Panasonic

Panasonic KXTGA272S - H/S FOR KXTG2700 Manuale utente

Panasonic

Panasonic KX-TGDA20C Manuale utente

Panasonic

Panasonic KX-TGA731E Manuale utente

Panasonic

Panasonic KX-HNH100FX Manuale utente

Panasonic

Panasonic KX-TGP60 Manuale utente

Panasonic

Panasonic CY-BT100N Manuale utente

Panasonic

Panasonic KX-HNH100 Manuale utente

Panasonic

Panasonic KX-TGFA97 Manuale utente

Panasonic

Panasonic TGP600 Manuale utente

Panasonic

Panasonic KX-TGEA20EX Manuale utente

Panasonic

Panasonic KX-TGA520C Manuale utente

Panasonic

Panasonic KX-TGMA44C Manuale utente

Panasonic

Panasonic KX-TGA807EX Manuale utente

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
