Thank you for purchasing a Panasonic cordless telephone.

Please read this Installation Manual before using the unit and

save it for future reference.

For assistance, visit our website:

http://www.panasonic.com/help for

customers in the U.S.A. or Puerto

Rico.

This unit is an additional handset for use with Panasonic

Digital Cordless Phones:

KX-TG8231/KX-TG8232

You must register this handset with your base unit before it can

be used. This installation manual describes only the steps

needed to register and begin using the handset. Please read

the base unit’s operating instructions for further details.

Charge the batteries for 7 hours before initial use.

Expandable Digital Cordless Handset

Model No. KX-TGA820

Installation Manual

PQQX16156ZA DC0707YK0

TGA820(e).fm Page 1 Thursday, June 28, 2007 5:07 PM

2For assistance, please visit http://www.panasonic.com/help

Supplied accessories

*1 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

Sales and support information

LTo order additional/replacement accessories, call 1-800-332-5368.

LTTY users (hearing or speech impaired users) can call 1-866-605-

1277.

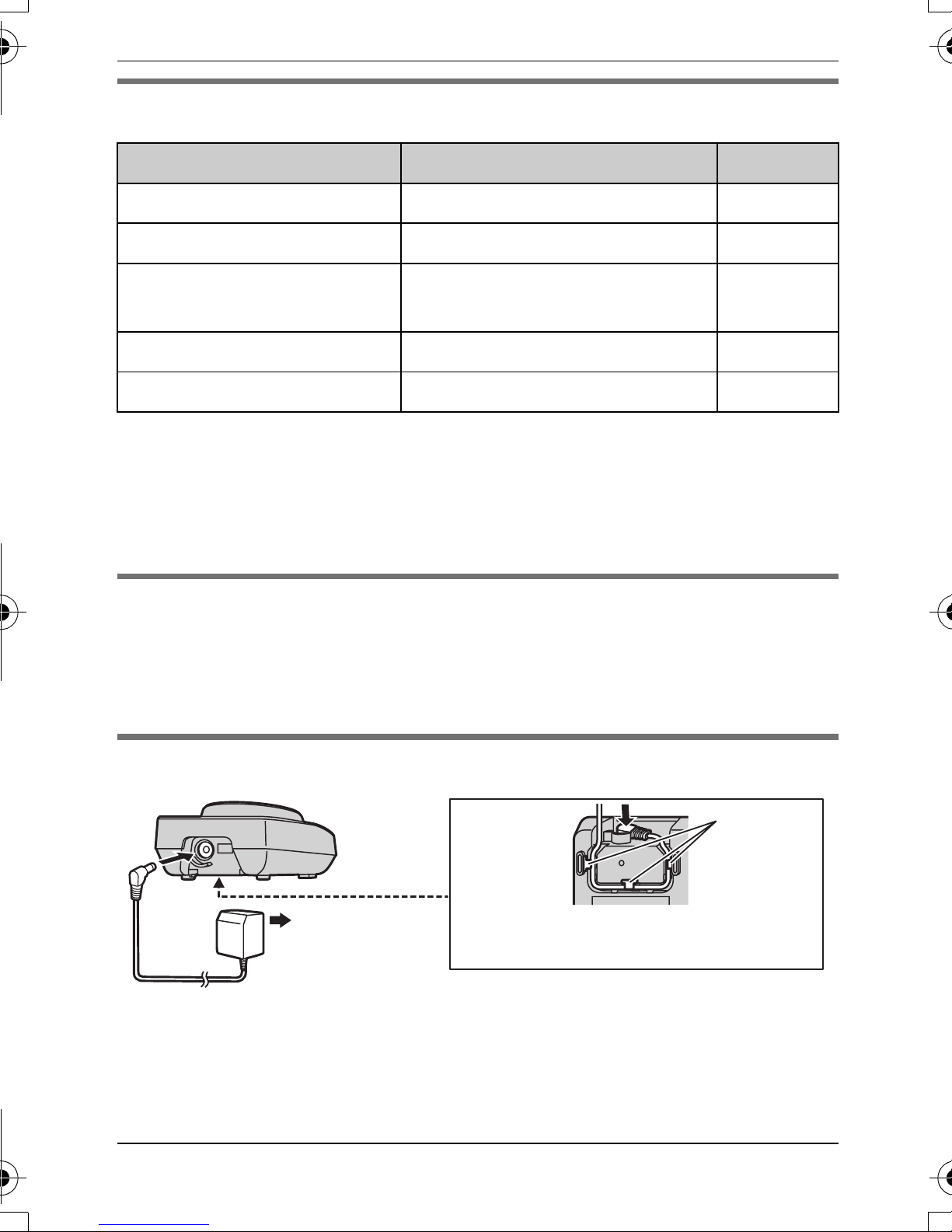

Connection

Note:

LUse only the supplied Panasonic AC adaptor PQLV209.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

Accessory item Order number Quantity

Charger PQLV30056Y 1

AC adaptor for charger PQLV209V 1

Rechargeable batteries

AAA (R03) size

HHR-4DPA

(Part No. HHR-55AAABU)

Handset cover*1 PQYNTG8200ER 1

Belt clip PQKE10481Z1 1

Hooks

(120 V AC,

60 Hz)

Fasten the AC adaptor cord to

prevent it from being disconnected.

TGA820(e).fm Page 2 Thursday, June 28, 2007 5:07 PM

For assistance, please visit http://www.panasonic.com/help 3

Battery installation/Battery charge

Important:

LUse only the supplied rechargeable batteries noted on page 2, 6.

LUSE ONLY rechargeable Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

LEnsure correct polarities (S, T) when installing the batteries.

LWipe the battery ends (S, T) with a dry cloth.

LWhen installing the batteries, avoid touching the battery ends (S, T)

or the unit contacts.

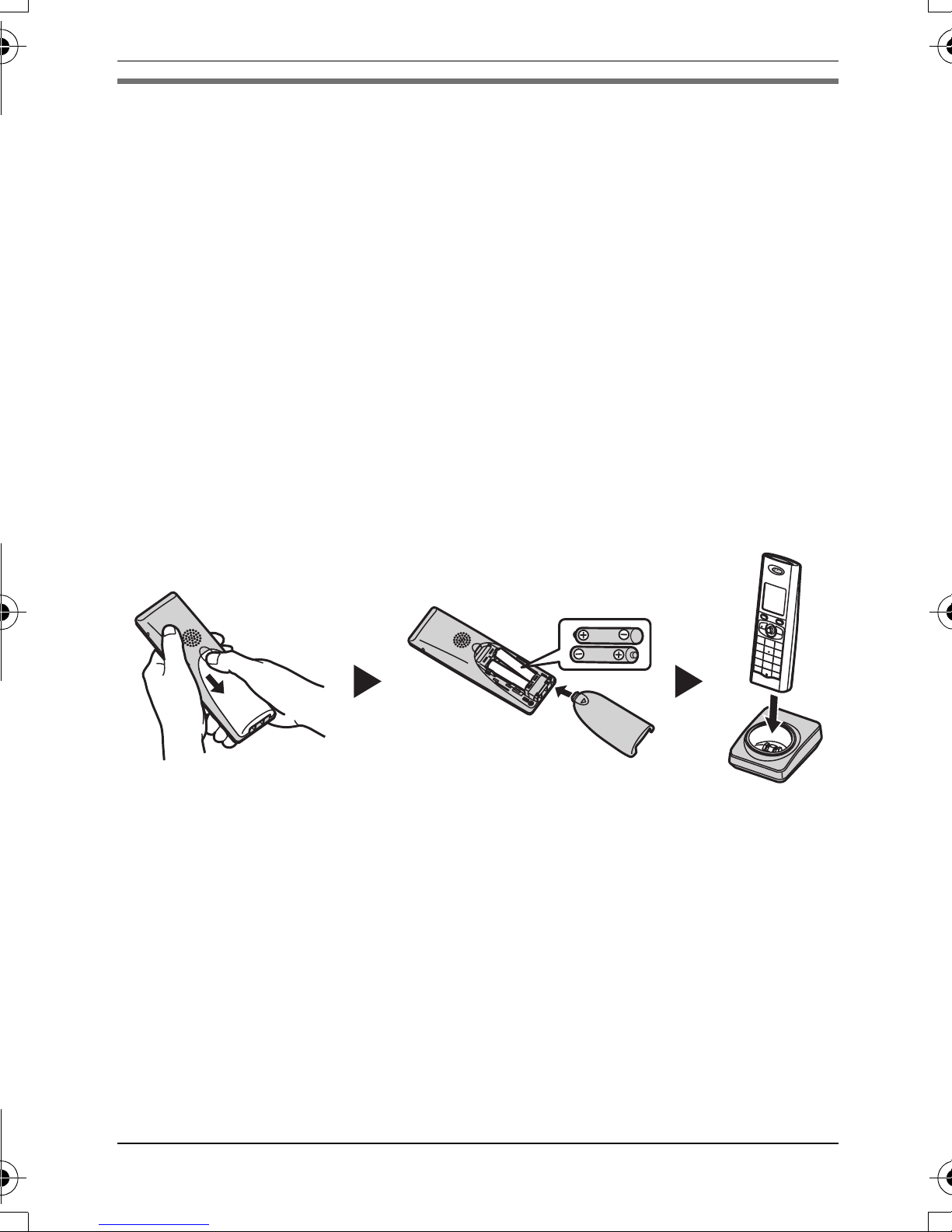

1Press the notch on the handset cover firmly, and slide it in the

direction of the arrow.

2Insert the batteries negative (T) end first. Close the handset cover.

3Place the handset on the charger for 7 hours before initial use.

Note:

LIf you fully charged the batteries, but the operating time seems to be

short, wipe the battery ends (S, T) and the unit contacts with a dry

cloth.

TGA820(e).fm Page 3 Thursday, June 28, 2007 5:07 PM

4For assistance, please visit http://www.panasonic.com/help

Attention:

base unit

1Lift the handset and press {OFF}. Place the handset on the base unit.

LContinue the operation even when the handset display shows

“Registering”.

2Press and hold {x} (LOCATOR) on the base unit for about 5

seconds, until the registration tone sounds.

LIf all registered handsets start ringing, press {x} (LOCATOR) to

stop, then repeat this step.

3With the handset still on the base unit, wait until a confirmation tone

sounds and wstops flashing.

Note:

LIf an error tone sounds, or if wis still flashing, register the handset

according to the base unit’s operating instructions.

Changing the display language

1{MENU}(center of joystick)

2Select Mby pushing the joystick in any direction. i{SELECT}

3Push the joystick up or down to select “Change language”. i

{SELECT}

4Push the joystick up or down to select the desired language.

5Press down the center of the joystick to save.

6{OFF}

A nickel metal hydride battery that is

recyclable powers the product you

have purchased.

Please call 1-800-8-BATTERY (1-

800-822-8837) for information on how

to recycle this battery.

TGA820(e).fm Page 4 Thursday, June 28, 2007 5:07 PM

For assistance, please visit http://www.panasonic.com/help 5

Belt clip

You can hang the handset on your belt or pocket using the supplied belt

clip.

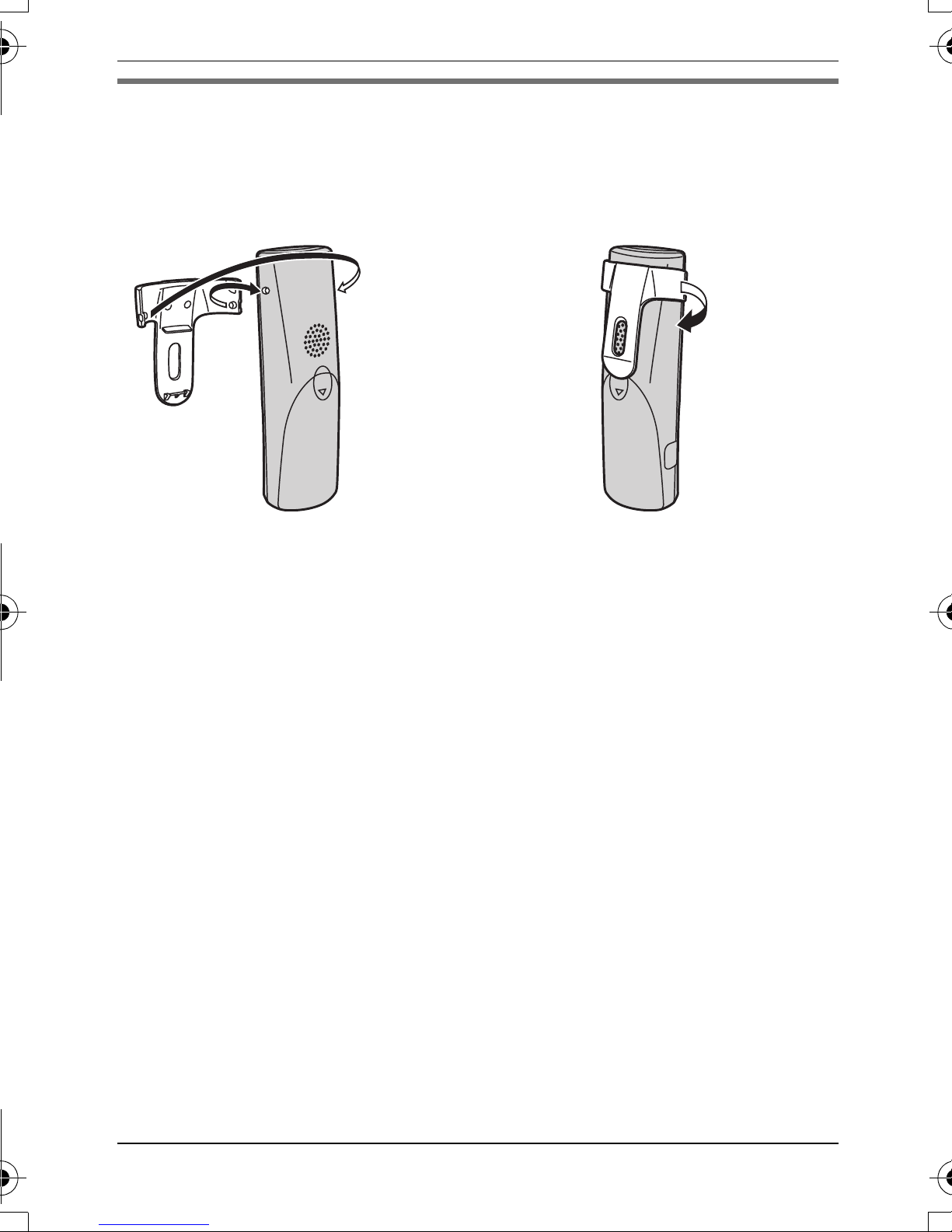

NTo attach the belt clip NTo remove the belt clip

TGA820(e).fm Page 5 Thursday, June 28, 2007 5:07 PM

6For assistance, please visit http://www.panasonic.com/help

Important safety instructions

WARNING:

LTo prevent the risk of fire or electrical shock, do not expose the product

to rain or any type of moisture.

LUnplug the product from power outlets if it emits smoke, an abnormal

smell, or makes an unusual noise. These conditions can cause fire or

electric shock. Confirm that smoke has stopped emitting and contact

the Panasonic Call Center at 1-800-211-PANA (1-800-211-7262).

LDo not place or use this product near automatically controlled devices

such as automatic doors and fire alarms. Radio waves emitted from

this product may cause such devices to malfunction resulting in an

accident.

LCompletely insert the AC adaptor/power plug into the power outlet.

Failure to do so may cause electric shock and/or excessive heat

resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by

pulling it from the power outlet, then wiping with a dry cloth.

Accumulated dust may cause an insulation defect from moisture, etc.

resulting in a fire.

CAUTION:

Installation

LOperating the product near electrical appliances may cause

interference. Move away from the electrical appliances.

LThe AC adaptor is used as the main disconnect device. Ensure that

the AC outlet is installed near the product and is easily accessible.

Battery

To reduce the risk of fire or injury to persons, read and follow these

instructions.

LWe recommend using the supplied battery(ies) or additional/

replacement battery(ies) noted on page 2. Use only rechargeable

battery(ies).

TGA820(e).fm Page 6 Thursday, June 28, 2007 5:07 PM

For assistance, please visit http://www.panasonic.com/help 7

LDo not mix old and new batteries.

LDo not dispose of the battery(ies) in a fire, as they may explode. Check

with local waste management codes for special disposal instructions.

LDo not open or mutilate the battery(ies). Released electrolyte is

corrosive and may cause burns or injury to the eyes or skin. The

electrolyte may be toxic if swallowed.

LExercise care when handling the battery(ies). Do not allow conductive

materials such as rings, bracelets or keys to touch the battery(ies),

otherwise a short circuit may cause the battery(ies) and/or the

conductive material to overheat and cause burns.

LCharge the battery(ies) provided with or identified for use with the

product only, in accordance with the instructions and limitations

specified in this manual.

LOnly use a compatible base unit (or charger) to charge the battery(ies).

Do not tamper with the base unit (or charger). Failure to follow these

instructions may cause the battery(ies) to swell or explode.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect

your privacy/confidentiality, we recommend that you erase the

information such as phonebook or caller list entries from the memory

before you dispose, transfer or return the product.

Routine care

LTo clean the product, use a dry soft cloth. The outer surface of the

product can be scratched by wiping or rubbing with a hard cloth.

LDo not use benzine, thinner, or any abrasive powder.

FCC and other information

This equipment is hearing aid compatible as defined by the FCC in 47

CFR Section 68.316.

When you hold the phone to your ear, noise might be heard in your

Hearing Aid. Some Hearing Aids are not adequately shielded from

TGA820(e).fm Page 7 Thursday, June 28, 2007 5:07 PM

8For assistance, please visit http://www.panasonic.com/help

external RF (radio frequency) energy. If noise occurs, use an optional

headset accessory or the speakerphone option (if applicable) when

using this phone. Consult with your audiologist or Hearing Aid

manufacturer about the availability of Hearing Aids which provide

adequate shielding to RF energy commonly emitted by digital devices.

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING

TEST CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for

the call.

2) Perform such activities in the off-peak hours, such as early morning or

late evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may

cause undesired operation.

Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

device.

NOTE:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

TGA820(e).fm Page 8 Thursday, June 28, 2007 5:07 PM

For assistance, please visit http://www.panasonic.com/help 9

to try to correct the interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Warning:

LThis product complies with FCC radiation exposure limits set forth for

an uncontrolled environment.

LThis handset may not be collocated or operated in conjunction with

any other antenna or transmitter.

LThe handset may be carried and operated with only the specific

provided belt-clip. Other non-tested belt-clips or similar body-worn

accessories may not comply and must be avoided.

Notice

LFCC ID can be found inside the battery compartment or on the bottom

of the unit.

Notice

Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ

࿖ౝߢߩ૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ

߅޿ߡߪේೣߣߒߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ

Lҏ౰ࠢட࣏୽ٺҢՄ೩Ȅӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋

ӴݲٽȄ

LThis product is designed for use in the United States of America.

Sale or use of this product in other countries may violate local laws.

LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique.

La vente ou l’emploi de cet appareil dans certains autres pays peut

constituer une infraction à la législation locale.

LEste producto está diseñado para usarse en los Estados Unidos de

América.

La venta o el empleo de este producto en ciertos países puede

constituir violación de la legislación local.

TGA820(e).fm Page 9 Thursday, June 28, 2007 5:07 PM

10 For assistance, please visit http://www.panasonic.com/help

Notes

TGA820(e).fm Page 10 Thursday, June 28, 2007 5:07 PM

Altri manuali per KX-TGA820EX

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Cornetta

Panasonic

Panasonic KX-TGA106M - Cordless Extension Handset Manuale utente

Panasonic

Panasonic KX-TGDA99 Manuale utente

Panasonic

Panasonic KX-TGA641E Manuale utente

Panasonic

Panasonic KX-TGMA44C Manuale utente

Panasonic

Panasonic KX-TPA60 Manuale utente

Panasonic

Panasonic KXTGA272S - H/S FOR KXTG2700 Manuale utente

Panasonic

Panasonic KX-TGDA30E Manuale utente

Panasonic

Panasonic KX-TGP550 Manuale utente

Panasonic

Panasonic KX-TGFA30N Manuale utente

Panasonic

Panasonic KX-TGEA20EX Manuale utente

Panasonic

Panasonic KX-TGA930C Manuale utente

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manuale utente

Panasonic

Panasonic KX-TPA60 Manuale utente

Panasonic

Panasonic KX-TGA470 Manuale utente

Panasonic

Panasonic KX-TGA731E Manuale utente

Panasonic

Panasonic KX-FKN550 Manuale utente

Panasonic

Panasonic KX-TD7685 - Wireless Digital Phone Manuale utente

Panasonic

Panasonic KX-PRWA13C Manuale utente

Panasonic

Panasonic KX-TCA130EX Manuale utente

Panasonic

Panasonic KX-TGFA87C Manuale utente

Panasonic

Panasonic KX-TCA181E Manuale utente

Panasonic

Panasonic KX-PRXA15E Manuale utente

Panasonic

Panasonic KX-TGFA30C Manuale utente

Panasonic

Panasonic KX-TGEA20E Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
