3/21/2013 1

Rev1

OnSIP ( Junction Networks) SIP Trunks

Configuration Guide

PBX Platform: KX-TDE/NCP

3/21/2013 2

Rev1

Overview

This document describes the configuration procedures required for the KX-TDE100/200/600 and

NCP500/1000 to make full use of the capabilities of OnSIP SIP Trunks Services.

The SIP trunks services of the TDE/NCP PBX are provided through virtual CO line cards (V-

SIPGW16) which are designed to be easily integrated into an Internet Telephony Service

provided by an ITSP (Internet Telephony Service Provider).

This guide describes the specific configuration items for the virtual SIP Gateway card in addition

to the PBX basic configuration related to SIP trunks functionality. It also describes basic Network

configuration to familiarize dealers with the network setup. It does not describe the purpose and

use of all configuration options on the virtual SIP Gateway card. For those details, see the KX-

NCP500/1000 and KX-TDE100/200/600 Programming Manual for Virtual SIP CO Line Card and

the KX-TDE100/200/600 and KX-NCP500/1000 Manuals available from Panasonic reseller

website.

DSP card and Activation keys

The PBX has to be equipped with a DSP card in order to provide

communication between the TDM side of the PBX and the SIP trunks.

Activation keys for SIP-Trunks has to be installed in the PBX to provide the

SIP-trunks functionality

To check the number of activation keys installed into the PBX and add new licenses

please refer to Page 12 in this guide

3/21/2013 3

Rev1

Architecture Overview

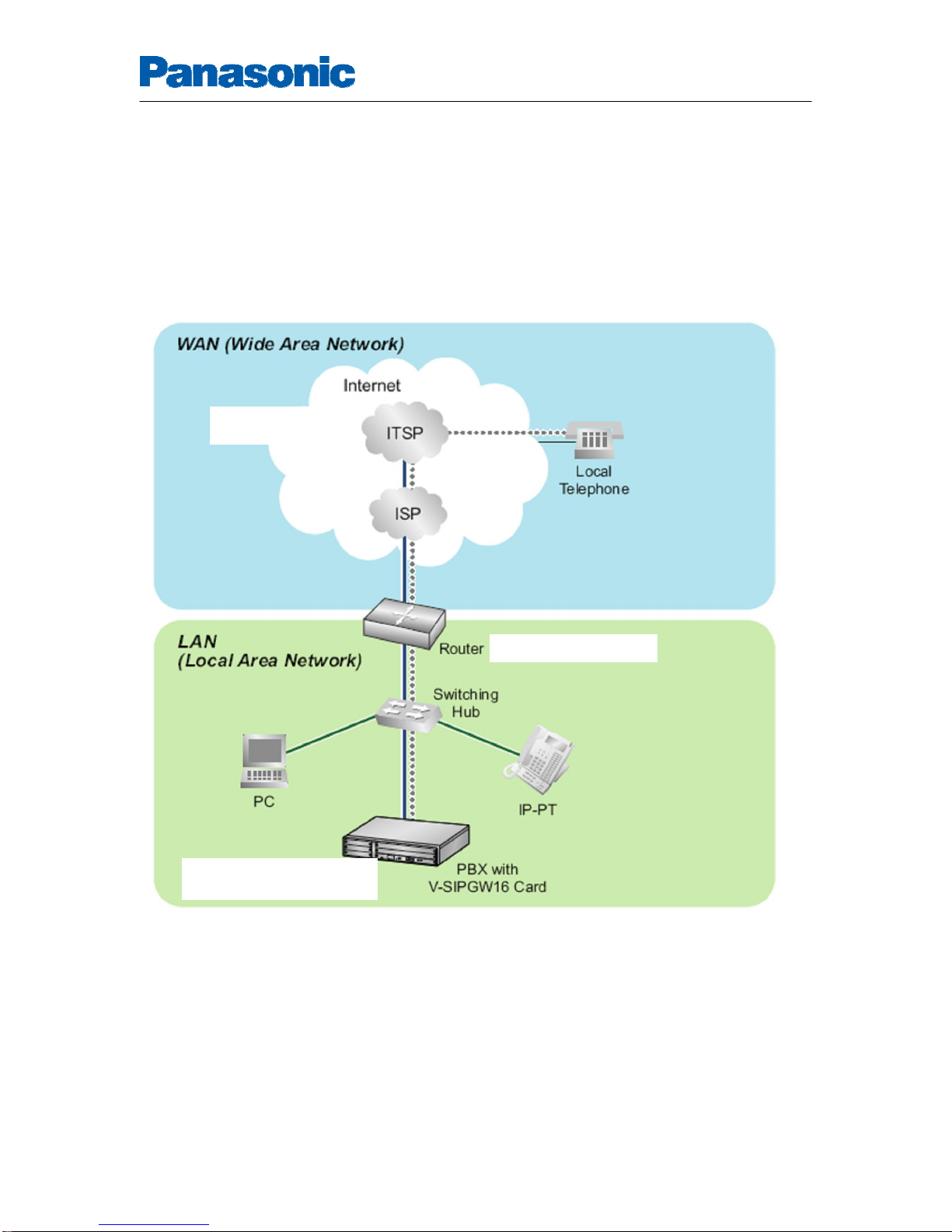

The following diagram illustrates simple VOIP networks connecting the TDE/NCP PBX:

The Case of OnSIP Setup: OnSIP will provide its services over the Public Internet

MPR IP Address 192.168.0.101

VOIP IP Address 192.168.0.102

Default GW 192.168.0.1

Sip.onsip.com

3/21/2013 4

Rev1

Basic V-SIPGW16 Settings for OnSIP Trunks

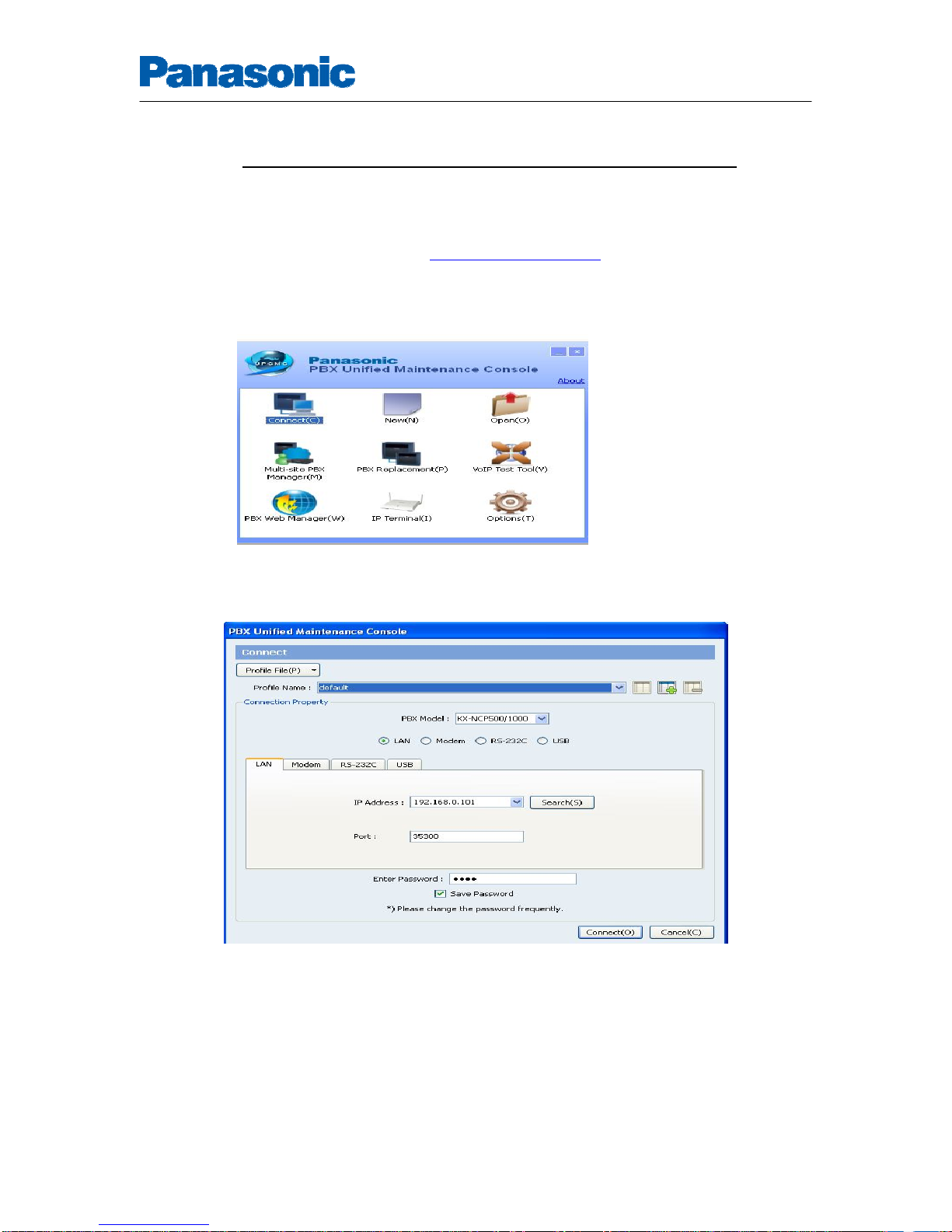

1-Install the PBX Maintenance console into your PC

The maintenance console should be available to certified dealers; Dealers can get the

latest version of the UPCMC from www.psnareseller.com (UPCMC version 7.2.1.0

or higher)

2- Connect to the PBX

oStart the UPCMC

oClick Connect and choose the method of connection using either LAN , RS-

232, or Modem to Connect to your PBX for interactive configuration

** We will be using the LAN method throughout this guide**

Provide the IP address of the MPR card and the password of the INSTALLER Level

3/21/2013 5

Rev1

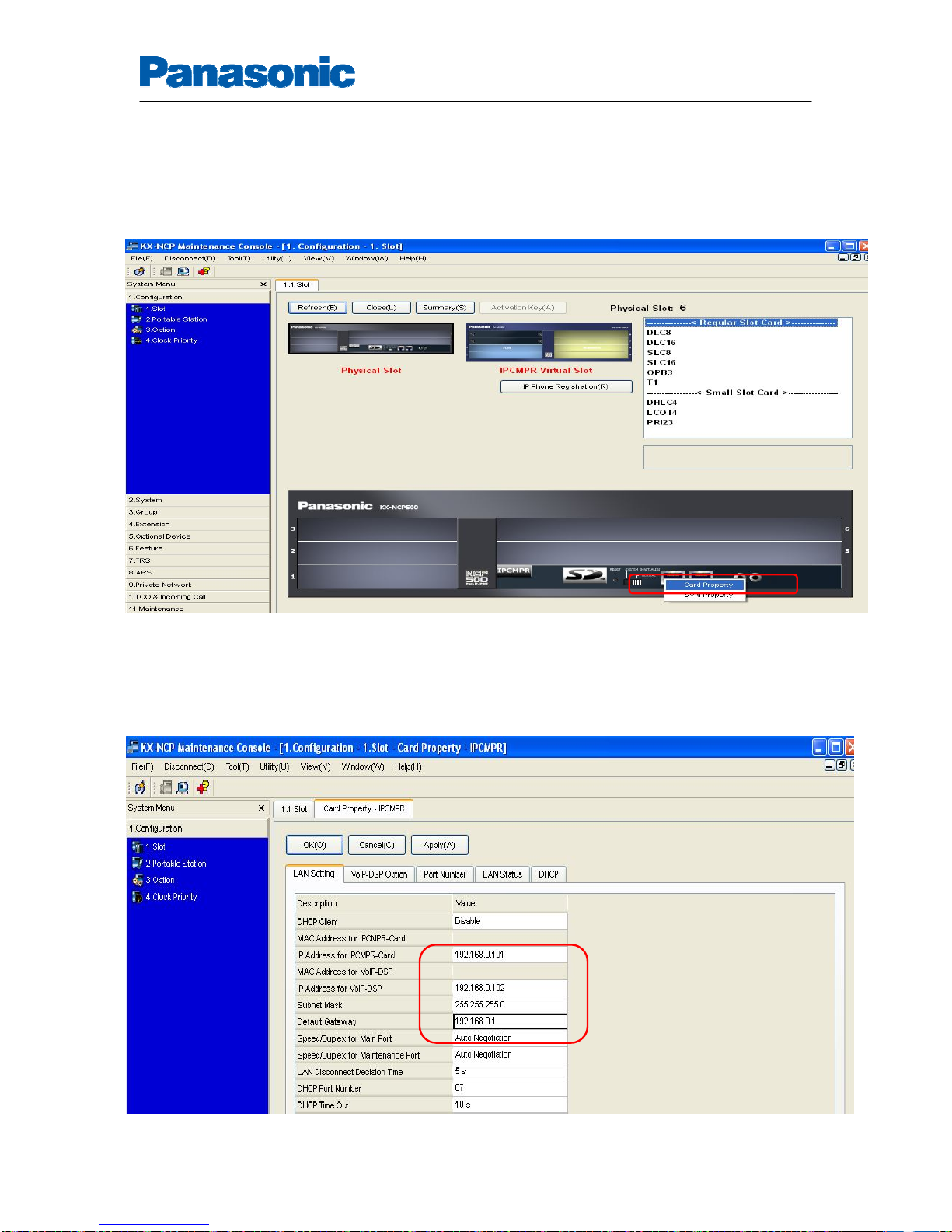

oGo to 1-Configuration, 1-Slot, move your mouse over the MPR card and

select the card property

Make sure that the default gateway should be the end router LAN IP address

Make sure that you have a valid DSP-VOIP LAN address

3/21/2013 6

Rev1

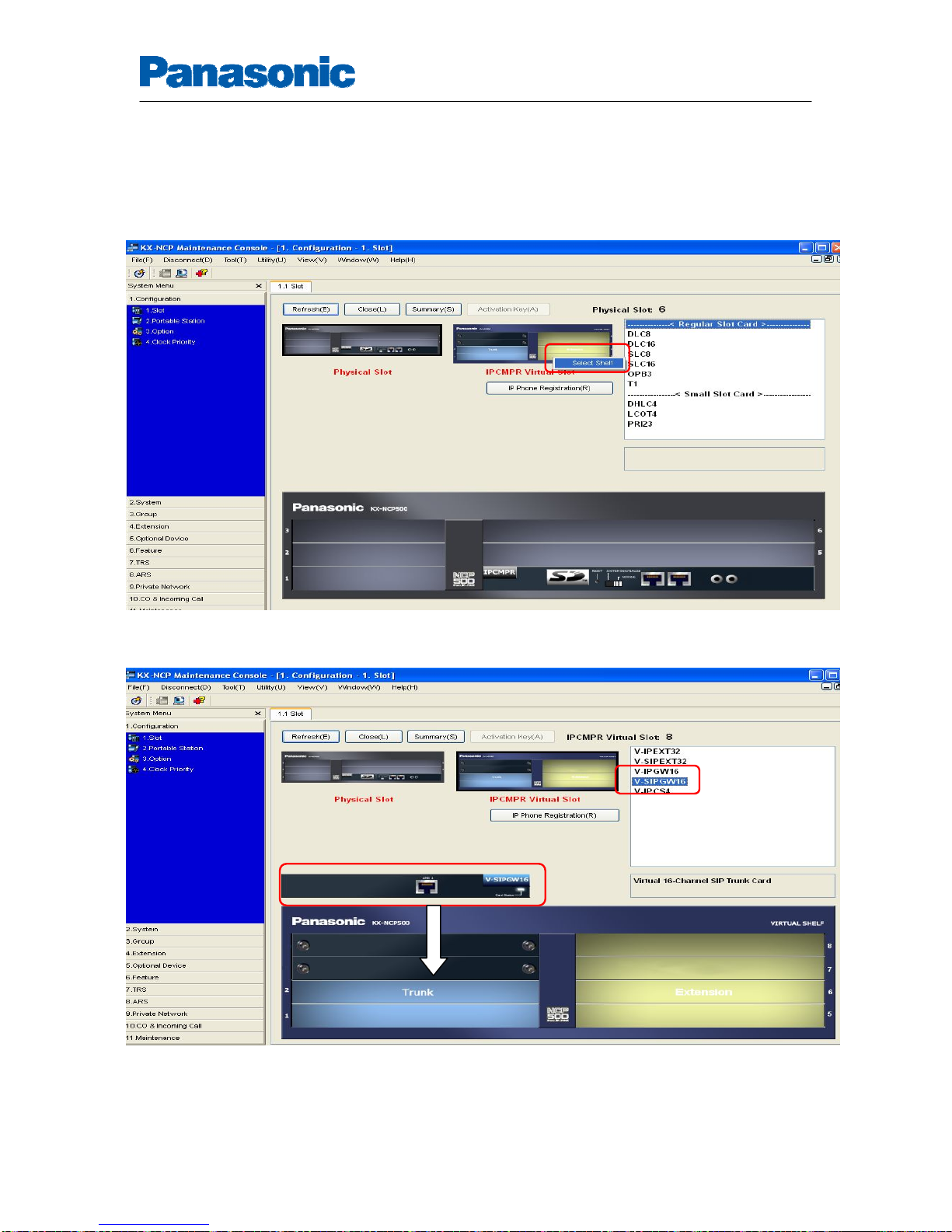

3- Installing V-SIP W16 card

oGo to 1-Configuration, 1-Slot, move your mouse towards the IPCMPR virtual

shelf and click on select shelf

Highlight the V-SIPGW16 card from the cards list in the left side

oDrag the VSIPGW16 card into the trunk portion of the virtual shelf by using

the PC mouse lift button

3/21/2013 7

Rev1

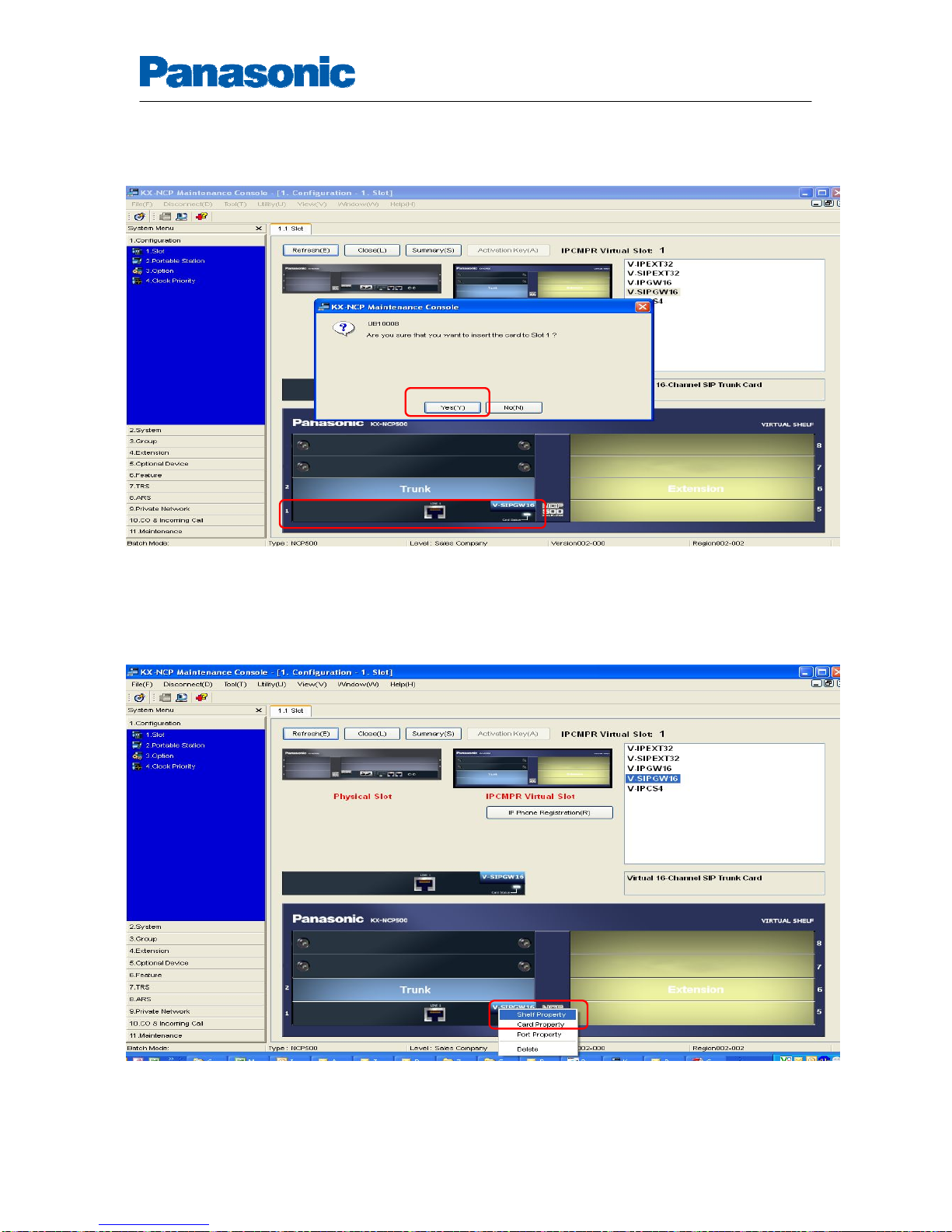

oRelease the Mouse lift button and click Yes on the dialogue box

oTake the V-SIPGW16 card OUS in order to be able to enter the following

settings

4-Configuring the VSIP-GW16 card

a- Shelf Property settings: Move the computer mouse over the VSIPGW16 card and

choose Shelf property

3/21/2013 8

Rev1

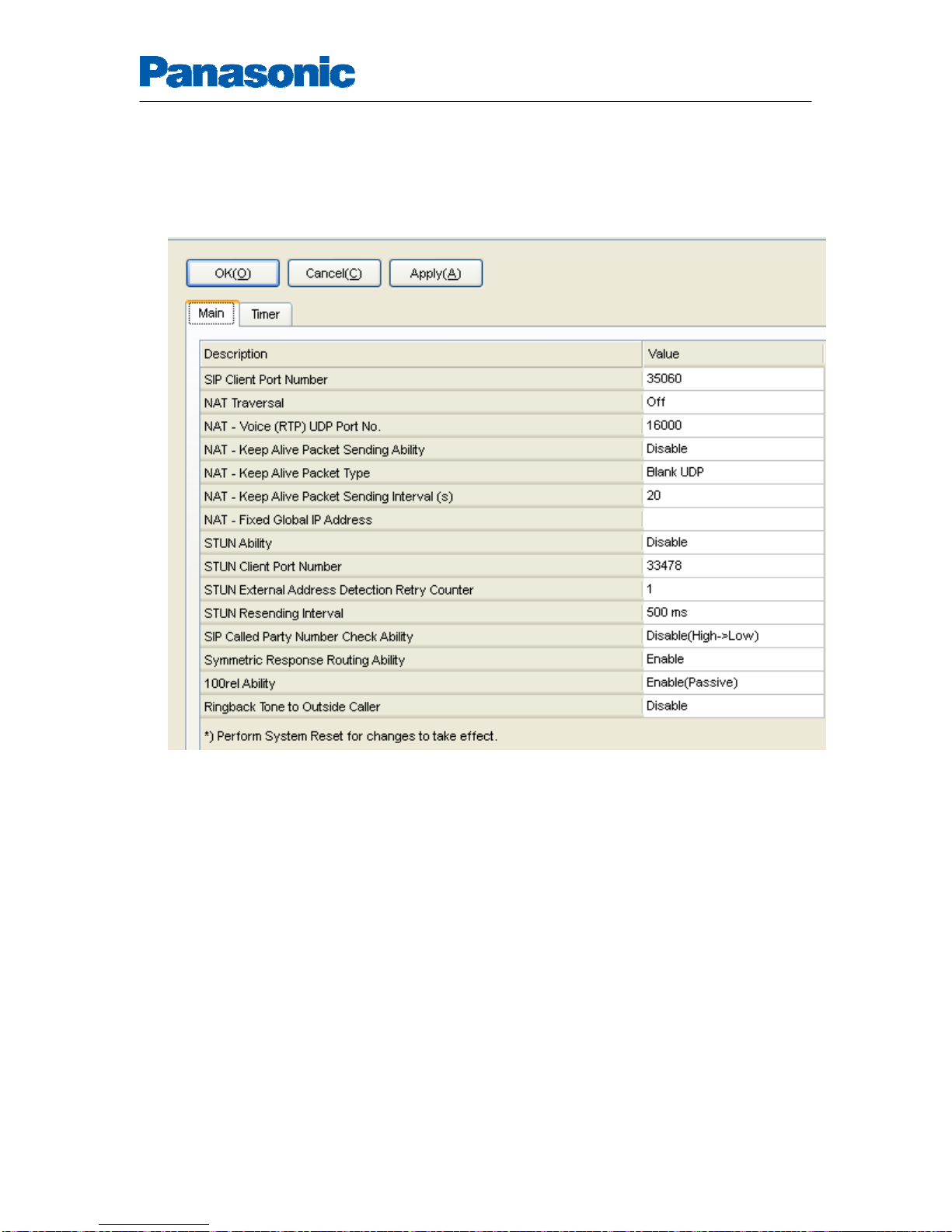

OnSIP SIP Trunks do NOT require additional settings of the shelf property, The

Default settings of the shelf property should be kept for OnSIP SIP trunk

Click Apply and then OK to exit the shelf property settings screen.

b- Card Property settings:

oMove the computer mouse over the VSIPGW16 card and choose Card property

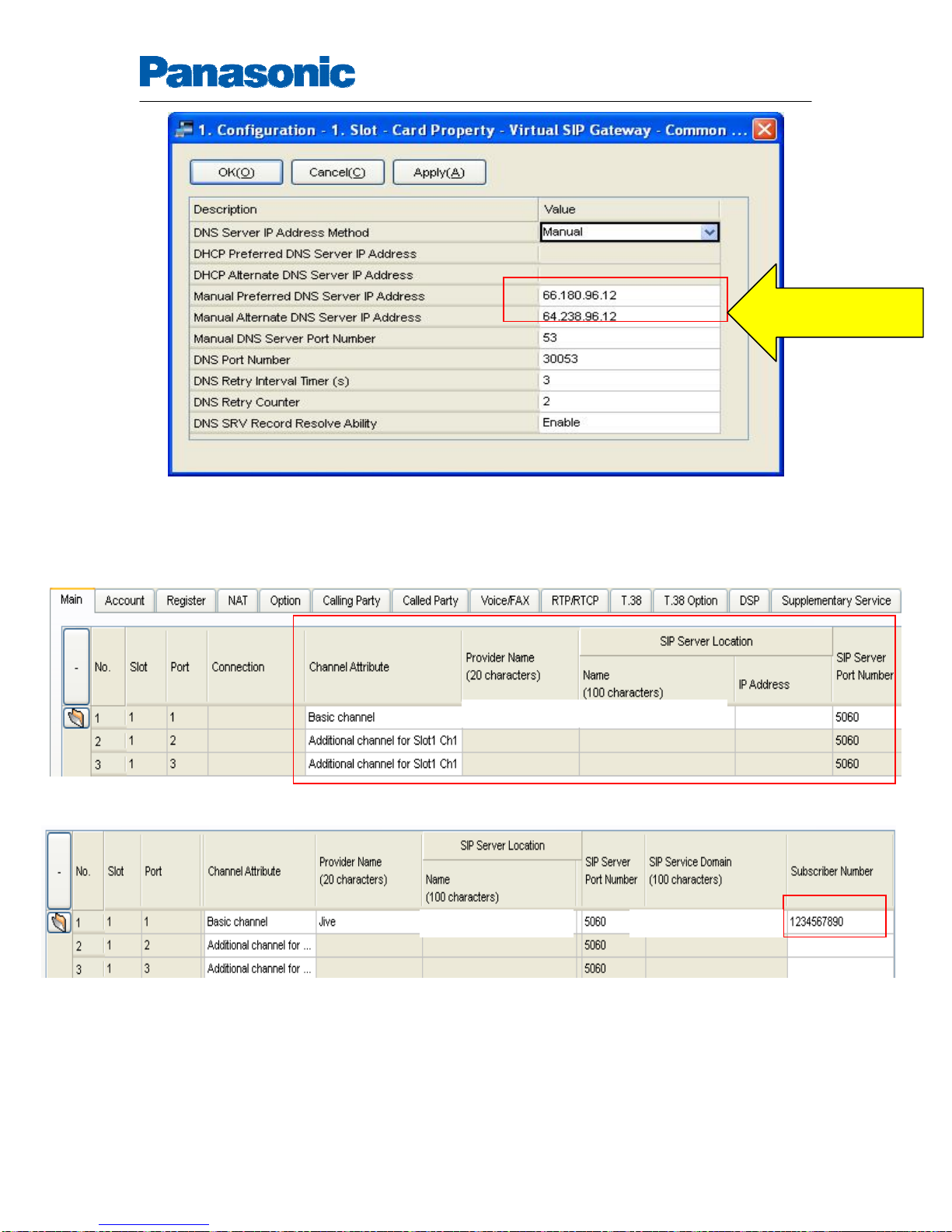

oClick on Common settings

oDNS Server IP address method is Manual

oProvide your ISP DNS serevers IP addresses. (Contact your ISP to obtain DNS IP addresses

if needed)

3/21/2013 9

Rev1

oClick Apply and then OK

oClick Cancel on the card property- Virtual SIP gateway screen to exit this screen

c- Port Property settings:

Move the computer mouse over the VSIPGW16 card and choose port property

These addresses are just

sample. Please use your ISP

provided information

OnSIP

ip.

sip

.com

ip.

sip

.com

[username].onsip.com

3/21/2013 10

Rev1

Basic Channel setup:

Please locate the OnSIP SIP Trunks account details from your OnSIP

account Welcome letter/email....

oMain tab:

According to the standard OnSIP SIP trunk account, we need to configure the Basic Channel Port

as follows:

“Please Note: the information provided below is just a sample, please locate

your account details in your OnSIP welcome letter/email”

1- Port 1 channel attribute = Basic channel

2- Provider name= OnSIP

3- SIP Server Name= “sip.onsip.com ”

4- SIP server port number =5060

5- SIP service Domain = “[username].onsip.com”example :

panasonic.onsip.com where panasonic is Username provided by OnSip

6- Subscriber number = 1234567890 (OnSIP Account DID/BTN)

oAccount tab:

1- user name == ( Please provide your account sip username) example=

panasonic

2- Authentication ID== same asUsername

3- Password == ( Please provide your account Authentication Password, Case

sensitive entry)

oRegister Tab:

Changes from Default settings:

1- Register server address= “[username].onsip.com”example :

panasonic.onsip.com where panasonic is Username provided by OnSip

oNAT Tab:

Same as default

oOption Tab:

Same as default

oCalling Party tab:

Same as default

oCalled party Tab:

Same as default
