Panasonic SB-VK62 Manuale utente

ORDERNO. MD0503051C3

Speaker System

SB-VK62GC

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Type 3way, 3speaker system (Bass

reflex)

Speaker unit(s)

Woofer 16 cm conetype

Tweeter 6 cm conetype

Super tweeter Piezotype

Impedance 4

Input power (IEC) 110 W(Max)

Output sound pressure 84 dB/W(1.0m)

Cross over frequency 5 kHz, 10 kHz

Frequencyrange 39 Hz - 21 kHz (-16 dB)

52 Hz - 20 kHz (-10 dB)

Dimensions(WxH xD) 227 x344 x234 mm

Mass 3.3kg

Notes :

1. Specificationsare subject tochangewithout notice.

2. Mass and dimensionsare approximate.

3. Thelabels“HIGH” and “LOW” on therear of thespeakers

refer toHigh frequencyand Lowfrequency.

System : SC-VK62DEE-S MusicCenter : SA-VK62DEE-S

Front Speaker : SB-VK62GC-S

System : SC-VK62DGC-S MusicCenter : SA-VK62DGC-S

Front Speaker : SB-VK62GC-S

System : SC-

VK62DGCSS

MusicCenter : SA-VK62DGCSS

Front Speaker : SB-VK62GC-S

System : SC-VK62DGS-S MusicCenter : SA-VK62DGS-S

Front Speaker : SB-VK62GC-S

Unauthorized copying and distribution isaviolation of law.

1. Connection of the Speaker Cables

-Besure to connect speaker cables before connecting the AC

power supplycord.

-The load impedance of anyspeaker used with thisunitmust be 4 .

-Besure to connect the cablefrom the right speaker to the right

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

terminal and the cablefrom the left speaker to the left terminal.

1. Stripoff the outer covering, and twist the center conductor. Make

sure the bare ends of the wires are not unravelled. (Iftheyare,

twist them tight again.)

2. Insert the wire to the rear panel of the unitand close the lever.

Notes :

-To prevent damage to circuitry, never short-circuitpositive (+)and

negative (-) speaker wires.

-Besure to connect onlypositive (red) wires to positive (+)

terminalsand negative (black) wires to negative (-) terminals.

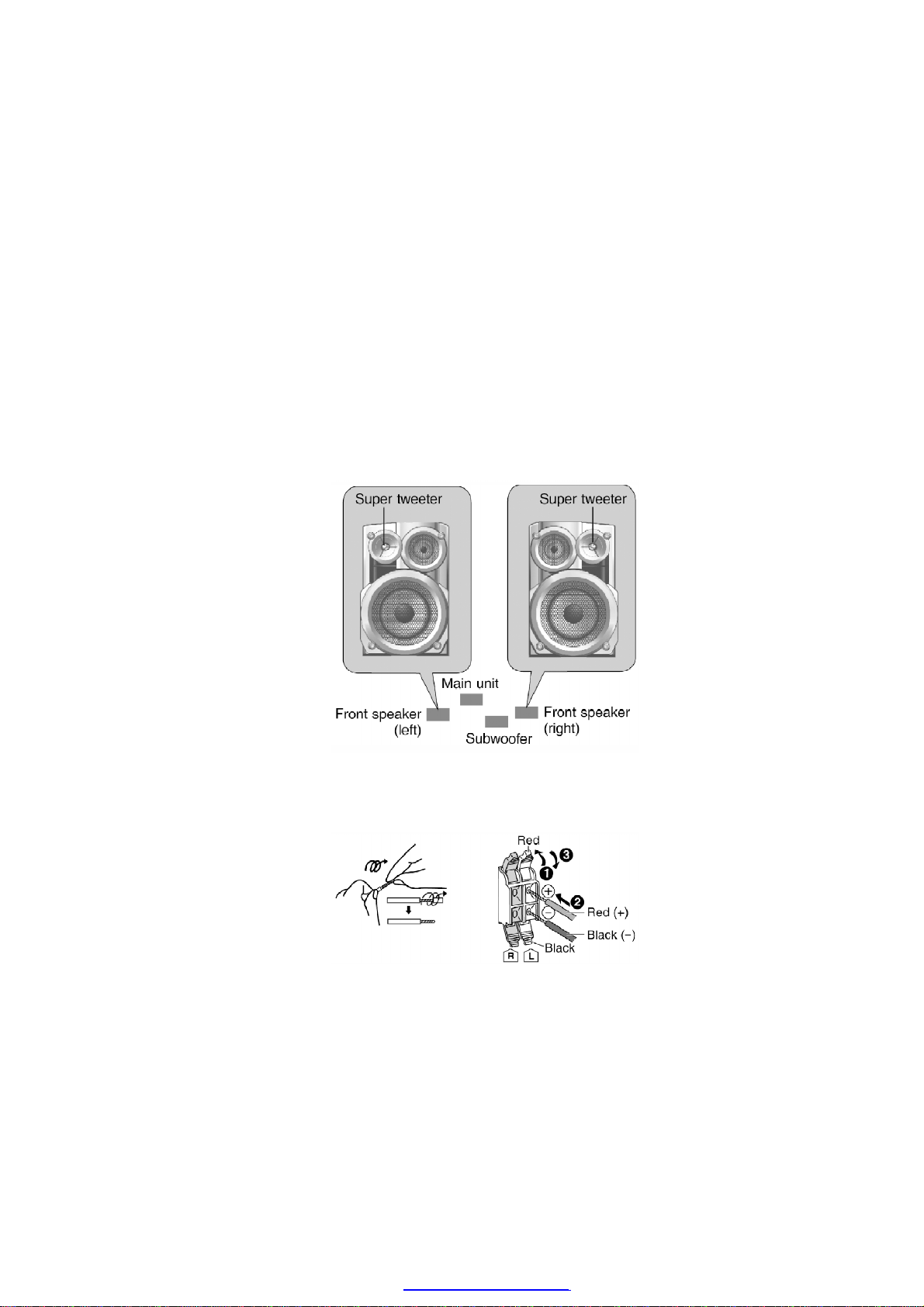

Placement

Place the speakersothat the supertweeteris on the outside.

Notes :

-You cannot take the front net off the speakers.

Connection

Use onlythe suppliedspeakers.

-Using other speakers can damage the unitand sound qualitywill

be negativelyaffected.

-Set the speakers up on an even surface to prevent them from

falling. Take proper precautions to prevent the speakers from

falling ifyou cannot set them up on an even surface.

Positioning forbest effect.

Howyou set up yourspeakers canaffect the bass and the sound field. Note the following points.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-Place speakers on flat secure bases.

-Placing speakers too close to floors, walls, and corners can result

inexcessive bass. Cover wallsand windowswith athick curtain.

-Keep your speakers at least 10 mm awayfrom the system for

proper ventilation.

Notes on speakeruse

-You can damage your speakers and shorten theiruseful life ifyou

playsound at high levelsover extended periods.

-Reduce the volume inthe following cases to avoiddamage.

-When playing distorted sound.

-When the speakers emitstrange noise (howling) from a

microphone or record player, noise from FM broadcasts, or

continuous signalsfrom an oscillator, test disc, or electronic

instrument.

-When adjusting the sound quality.

-When turning the uniton or off.

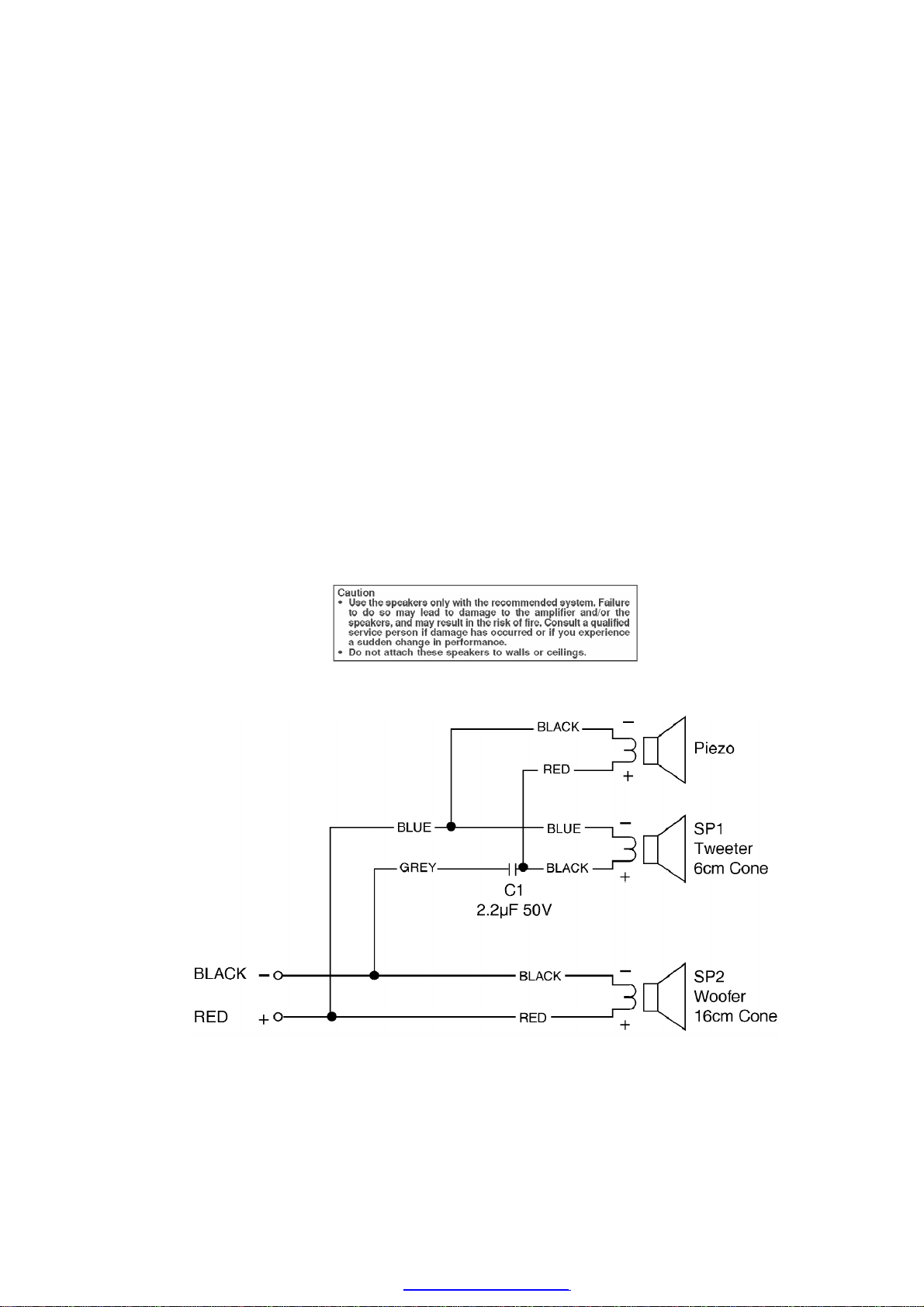

2. Connection of the Speaker Wiring

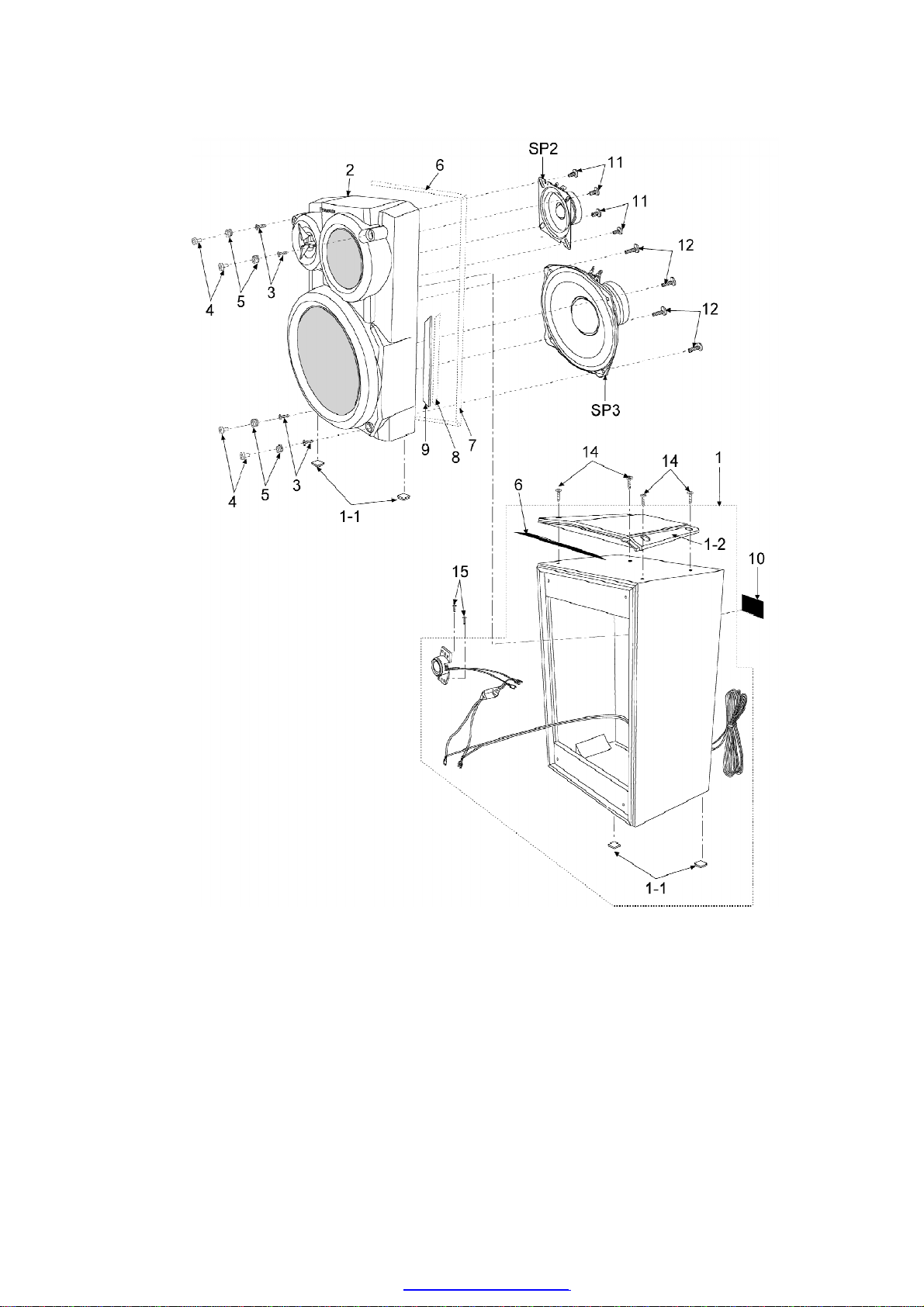

3. Cabinet Parts Location

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4. Replacement Parts List

Notes :

-Important safetynotice :

When replacing anyof these components, be sure to use only

manufacturer’sspecified parts showninthe parts list.

-[M] markings inthe Remarks columns indicates parts supplied by

PAVCSG.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Ref. No. PartNo. PartName& Description Remarks

CABINETAND CHASSIS

1RFKHBVK62GCA SPK CABINETASS’YL [M]

1RFKHBVK62GCB SPK CABINETASS’YR [M]

1-1 RKA0072-KJ LEG CUSHION [M]

1-2 RGPX0089A-S TOPPANEL R [M]

1-2 RGPX0089-S TOPPANEL L [M]

2RYBX0026A-S FRONTPANEL ASS’YR [M]

2RYBX0026-S FRONTPANEL ASS’YL [M]

3XTB4+16AFZ SCREW [M]

4RGK0985B-S ORNAMENTCAP [M]

5RMG0520-H CATCHER [M]

6RMQ0931 HEMILON (210MM) [M]

7RMQ0931M HEMILON (330MM) [M]

8RMQ0930N HEMILON (140MM) [M]

9RYFX0119-H SIDECOVER L [M]

9RYFX0119R-H SIDECOVER R [M]

10 RGNX0282-K SPEC. SHEET [M]

11 XTB4+6G SCREW [M]

12 XTB4+10GFZ SCREW [M]

14 XTB4+16AFN SCREW [M]

15 XTB3+10GFZ SCREW [M]

CAPACITOR

C1 ECEA1HAY2R2 2.2uf50V [M]

PACKING MATERIALS

P1 RPNX0329 POLYFOAM [M]

P2 RPFX0137 MIRAMATBAG [M]

SPEAKERS

SP2 EAST6PH11K6 TWEETER [M]

SP3 L0AA15A00004 WOOFER [M]

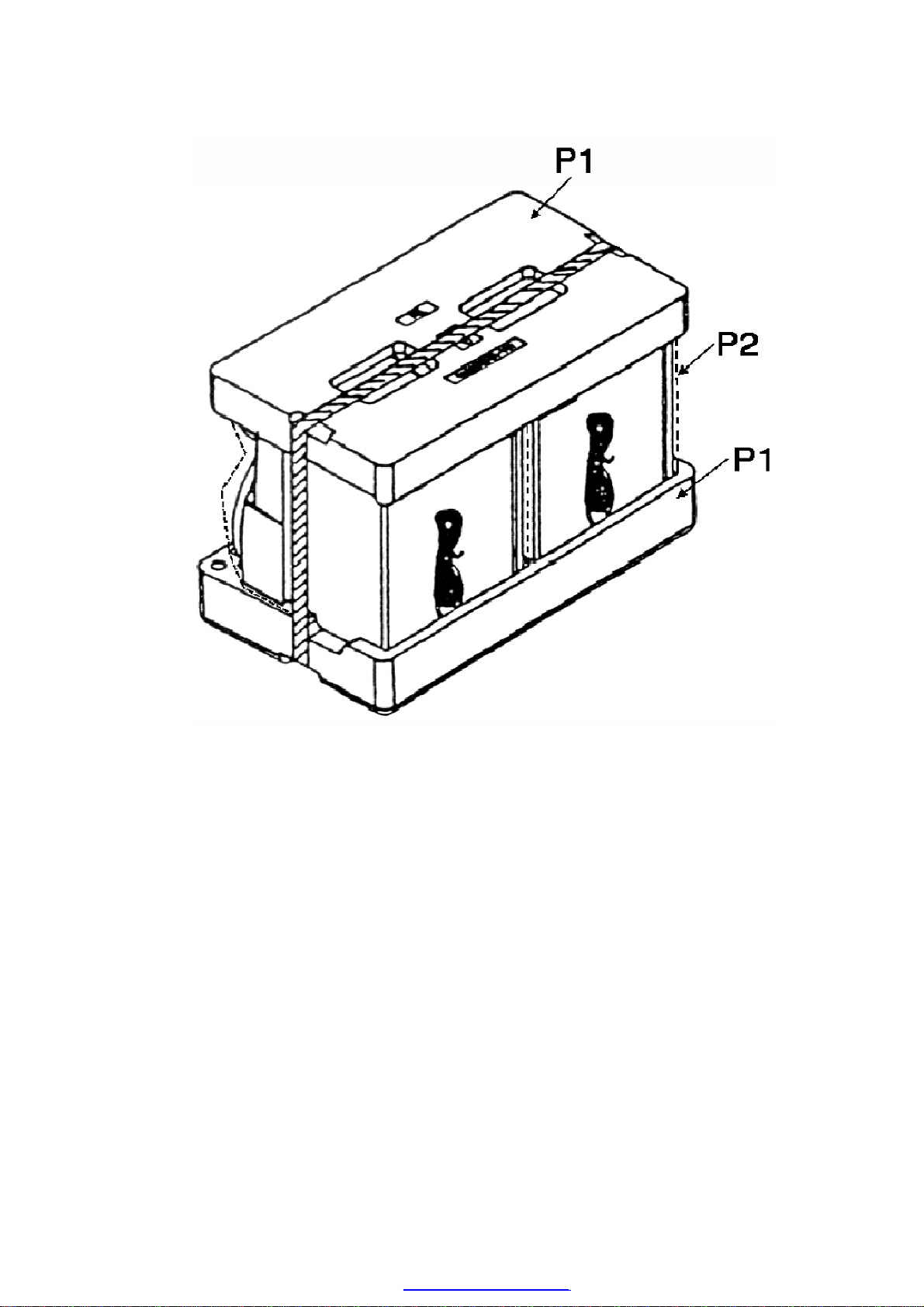

5. Packaging

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

FLE0503W/S

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
