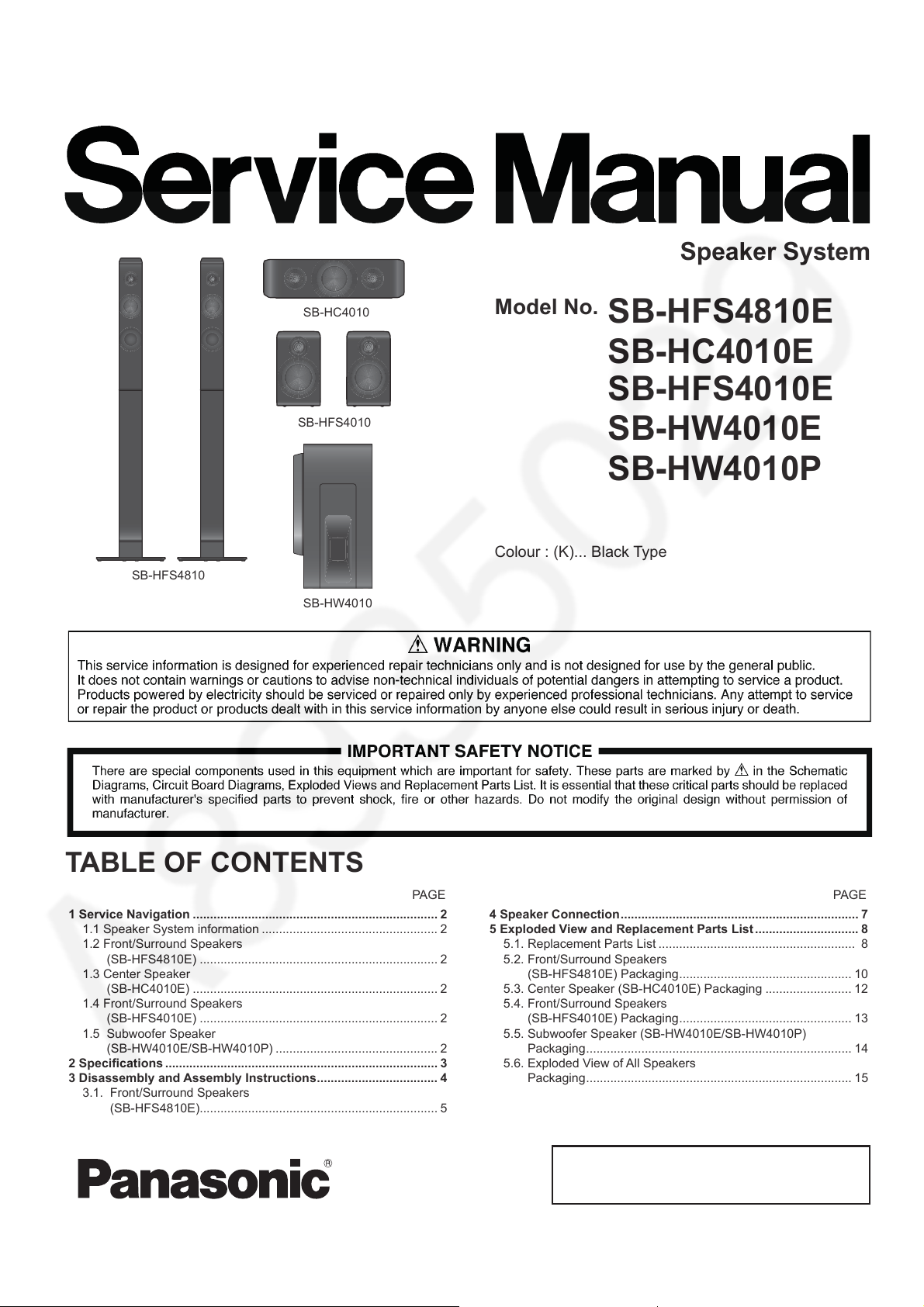

Panasonic SB-HFS4810E Manuale utente

Order No. AD1403015CE

Speaker System

Model No. SB-HFS4810E

Colour : (K)... Black Type

TABLE OF CONTENTS

1 Service Navigation ....................................................................... 2

1.1 Speaker System information ................................................... 2

1.2 Front/Surround Speakers

(SB-HFS4810E) ..................................................................... 2

1.3 Center Speaker

(SB-HC4010E) ....................................................................... 2

1.4 Front/Surround Speakers

(SB-HFS4010E) ..................................................................... 2

1.5 Subwoofer Speaker

(SB-HW4010E/SB-HW4010P) ............................................... 2

2 Speciﬁcations ............................................................................... 3

3 Disassembly and Assembly Instructions................................... 4

3.1. Front/Surround Speakers

(SB-HFS4810E)..................................................................... 5

PAGE PAGE

Unauthorized copying and distribution is a violation of

law.

4 Speaker Connection..................................................................... 7

5 Exploded View and Replacement Parts List.............................. 8

5.1. Replacement Parts List ......................................................... 8

5.2. Front/Surround Speakers

(SB-HFS4810E) Packaging.................................................. 10

5.3. Center Speaker (SB-HC4010E) Packaging ......................... 12

5.4. Front/Surround Speakers

(SB-HFS4010E) Packaging.................................................. 13

5.5. Subwoofer Speaker (SB-HW4010E/SB-HW4010P)

Packaging............................................................................. 14

5.6. Exploded View of All Speakers

Packaging............................................................................. 15

SB-HFS4810

SB-HC4010E

SB-HFS4010E

SB-HW4010E

SB-HC4010

SB-HFS4010

SB-HW4010

SB-HW4010P

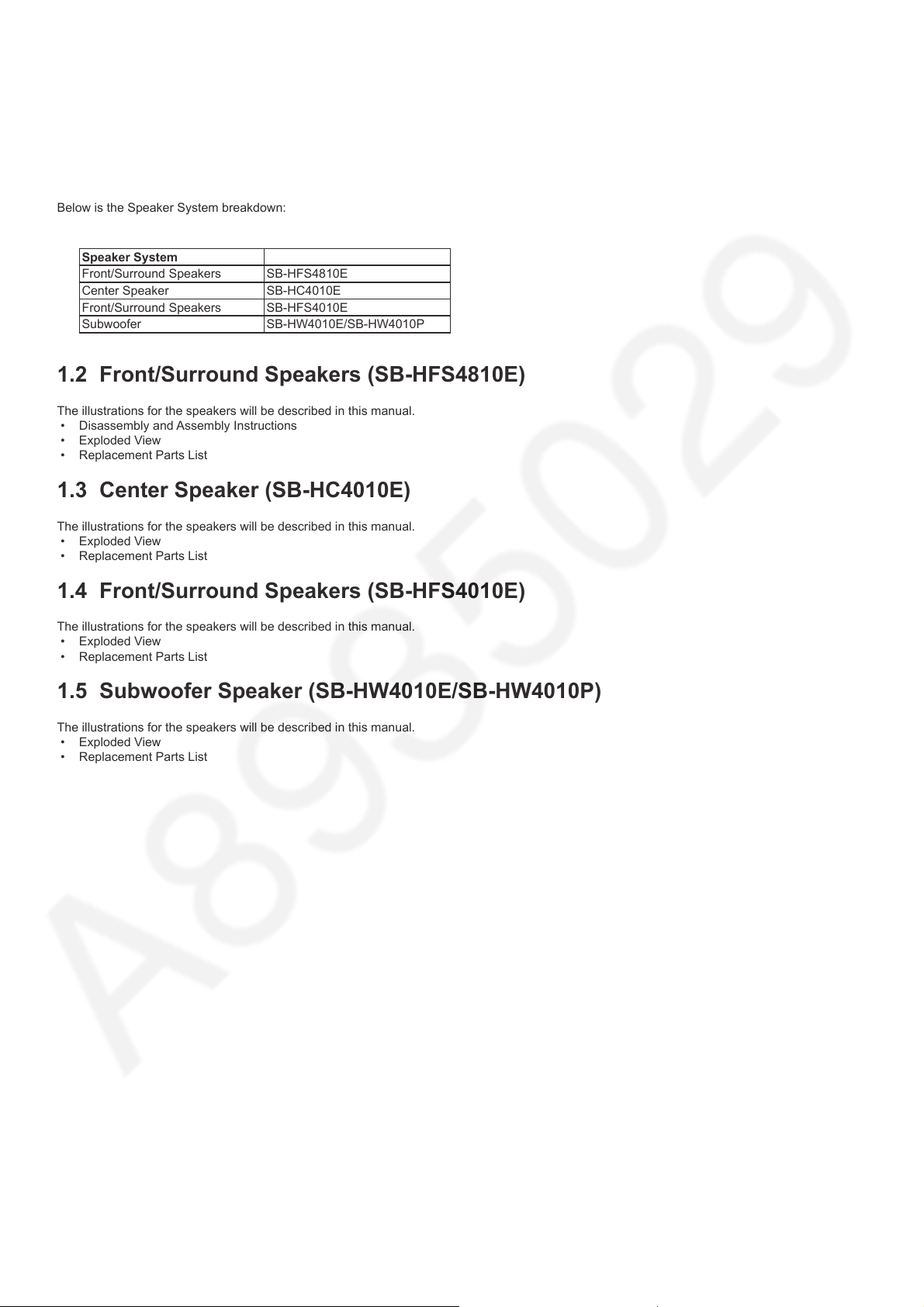

1 Service Navigation

1.1 Speaker System information

Below is the Speaker System breakdown:

Speaker System

Front/Surround Speakers SB-HFS4810E

Center Speaker SB-HC4010E

Front/Surround Speakers SB-HFS4010E

Subwoofer SB-HW4010E/SB-HW4010P

1.2 Front/Surround Speakers (SB-HFS4810E)

The illustrations for the speakers will be described in this manual.

• Disassembly and Assembly Instructions

• Exploded View

• Replacement Parts List

1.3 Center Speaker (SB-HC4010E)

The illustrations for the speakers will be described in this manual.

• Exploded View

• Replacement Parts List

1.4 Front/Surround Speakers (SB-HFS4010E)

The illustrations for the speakers will be described in this manual.

• Exploded View

• Replacement Parts List

1.5 Subwoofer Speaker (SB-HW4010E/SB-HW4010P)

The illustrations for the speakers will be described in this manual.

• Exploded View

• Replacement Parts List

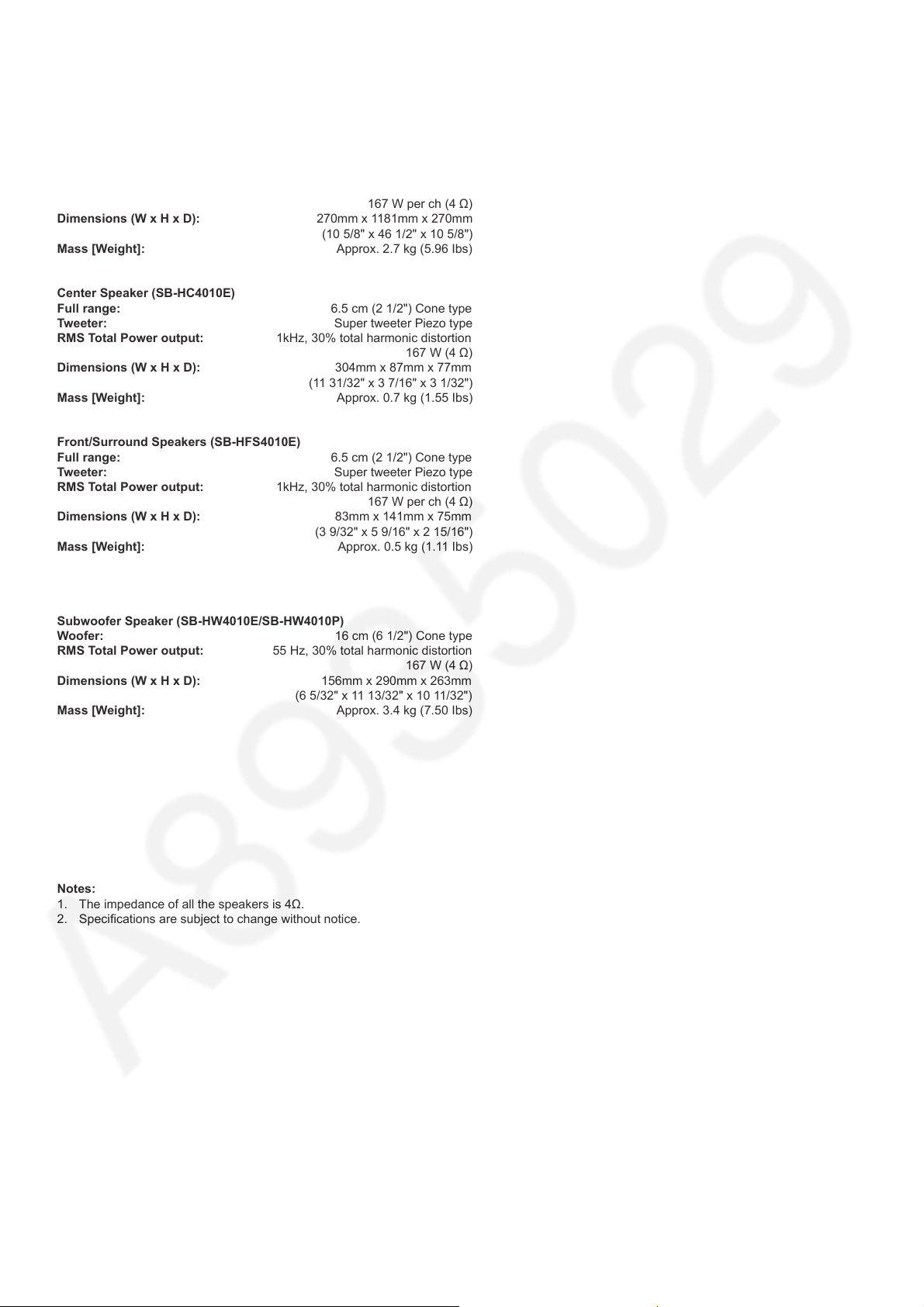

2 Speciﬁcations

Front/Surround Speakers (SB-HFS4810E)

Full range: 6.5 cm (2 1/2") Cone type

Tweeter: Super tweeter Piezo type

RMS Total Power output: 1kHz, 30% total harmonic distortion

167 W per ch (4 Ω)

Dimensions (W x H x D): 270mm x 1181mm x 270mm

(10 5/8" x 46 1/2" x 10 5/8")

Mass [Weight]: Approx. 2.7 kg (5.96 Ibs)

Center Speaker (SB-HC4010E)

Full range: 6.5 cm (2 1/2") Cone type

Tweeter: Super tweeter Piezo type

RMS Total Power output: 1kHz, 30% total harmonic distortion

167 W (4 Ω)

Dimensions (W x H x D): 304mm x 87mm x 77mm

(11 31/32" x 3 7/16" x 3 1/32")

Mass [Weight]: Approx. 0.7 kg (1.55 Ibs)

Front/Surround Speakers (SB-HFS4010E)

Full range: 6.5 cm (2 1/2") Cone type

Tweeter: Super tweeter Piezo type

RMS Total Power output: 1kHz, 30% total harmonic distortion

167 W per ch (4 Ω)

Dimensions (W x H x D): 83mm x 141mm x 75mm

(3 9/32" x 5 9/16" x 2 15/16")

Mass [Weight]: Approx. 0.5 kg (1.11 Ibs)

Subwoofer Speaker (SB-HW4010E/SB-HW4010P)

Woofer: 16 cm (6 1/2") Cone type

RMS Total Power output: 55 Hz, 30% total harmonic distortion

167 W (4 Ω)

Dimensions (W x H x D): 156mm x 290mm x 263mm

(6 5/32" x 11 13/32" x 10 11/32")

Mass [Weight]: Approx. 3.4 kg (7.50 Ibs)

Notes:

1. The impedance of all the speakers is 4Ω.

2. Speciﬁcations are subject to change without notice.

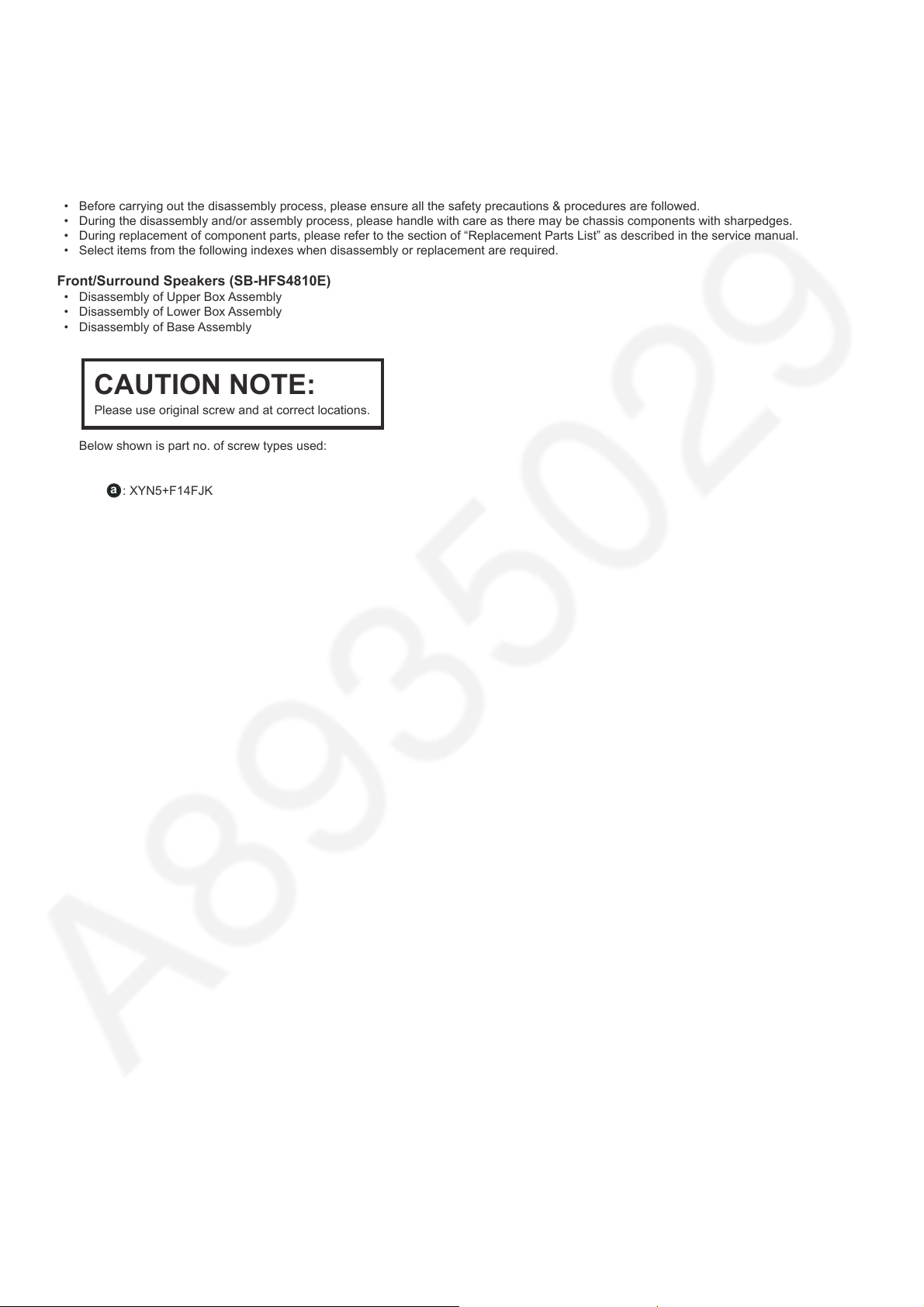

3 Disassembly and Assembly Instructions

Caution Note:

• This section describes procedures for checking the operation and replacing the main components.

• For reassembly after operation checks or replacement, reverse the respective procedures.

• Special reassembly procedures are described only when required.

• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.

• During the disassembly and/or assembly process, please handle with care as there may be chassis components with sharpedges.

• During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the service manual.

• Select items from the following indexes when disassembly or replacement are required.

Front/Surround Speakers (SB-HFS4810E)

• Disassembly of Upper Box Assembly

• Disassembly of Lower Box Assembly

• Disassembly of Base Assembly

Below shown is part no. of screw types used:

: XYN5+F14FJK

CAUTION NOTE:

Please use original screw and at correct locations.

3.1. Front/Surround Speakers

(SB-HFS4810E)

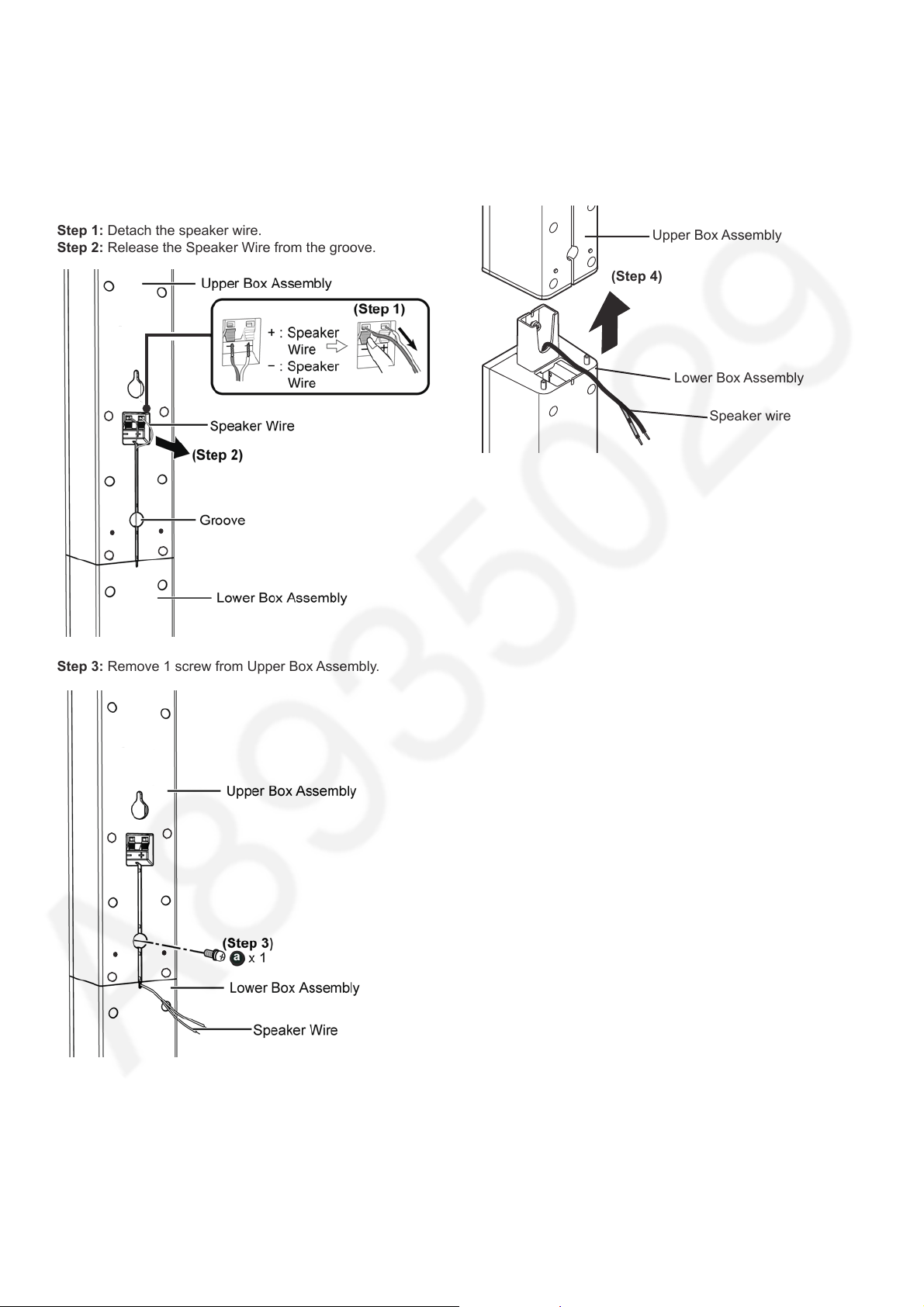

3.1.1 Disassembly of Upper Box

Assembly

Step 1: Detach the speaker wire.

Step 2: Release the Speaker Wire from the groove.

Step 3: Remove 1 screw from Upper Box Assembly.

Step 4: Detach the Upper Box Assembly

Upper Box Assembly

Lower Box Assembly

Speaker wire

(Step 4)

x 2

x 1

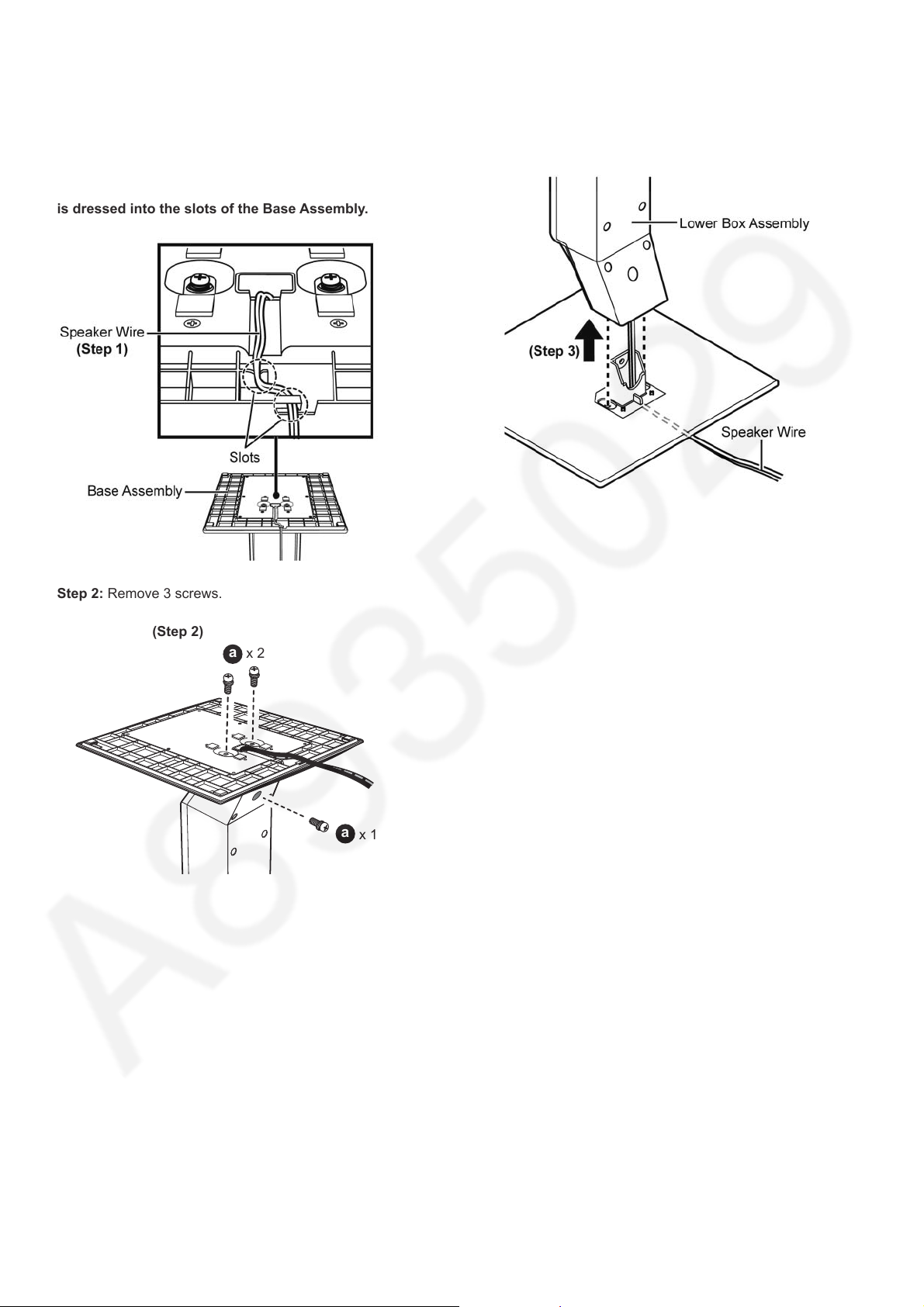

3.1.2 Disassembly of Lower Box

Assembly

• Refer to “Disassembly of Upper Box Assembly”

Step 1: Release the speaker wire from the slots.

Caution : During assembling, ensure the speaker wire

is dressed into the slots of the Base Assembly.

Step 2: Remove 3 screws.

(Step 2)

Step 3: Remove the Lower Box Assembly.

Caution : Speaker Wire is attached with Lower Box

Assembly, do not force to pull wire from the Lower Box

Assembly.

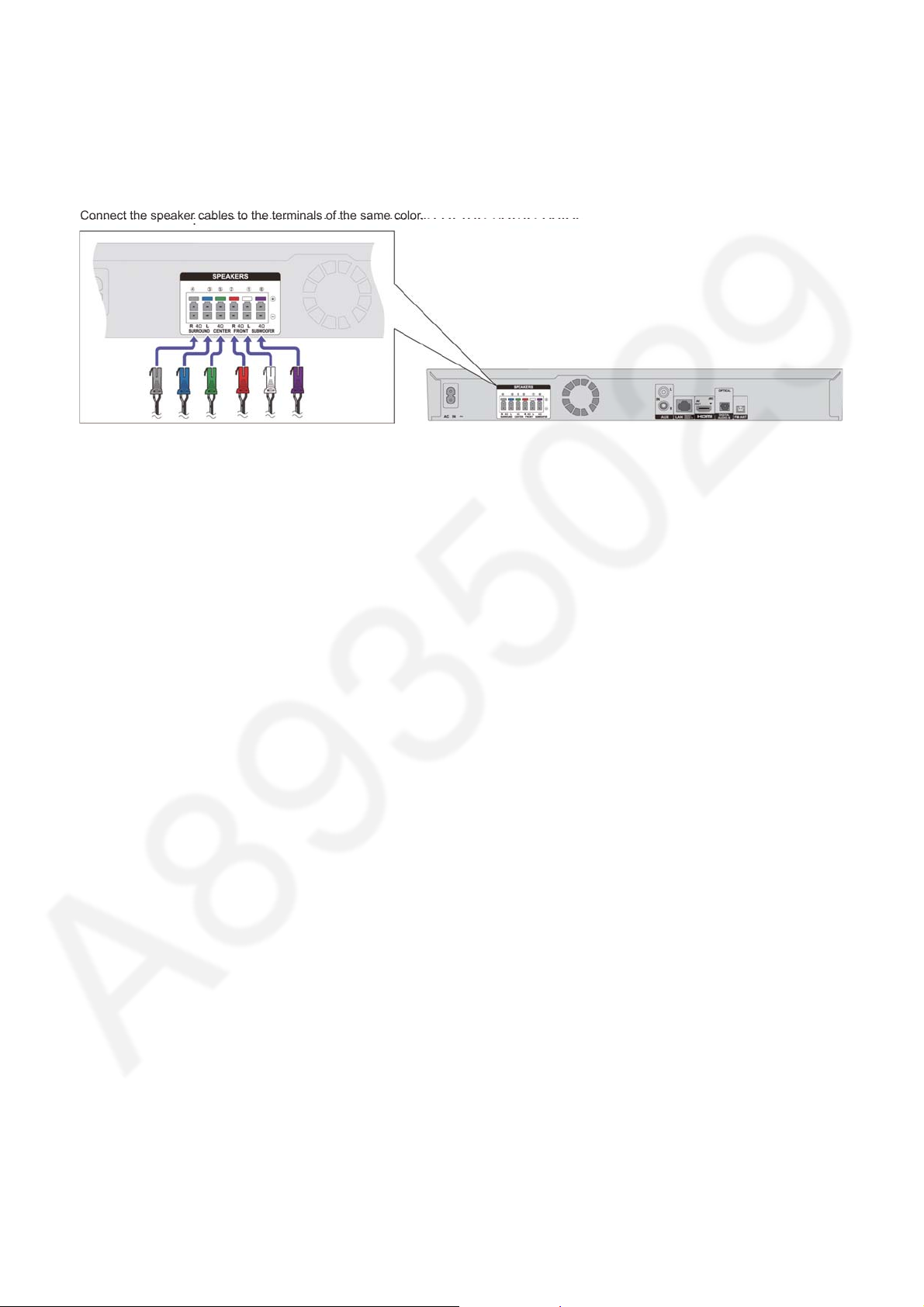

4 Speaker Connection

• Turn off all equipment before connection and read the appropriate operating instructions.

• Do not connect the AC power supply cord until all other connections are completed.

• The illustration shows the image of the unit SC-BTT466.

Connect the speaker cables to the terminals of the same color.

5 Exploded View and Replacement Parts List

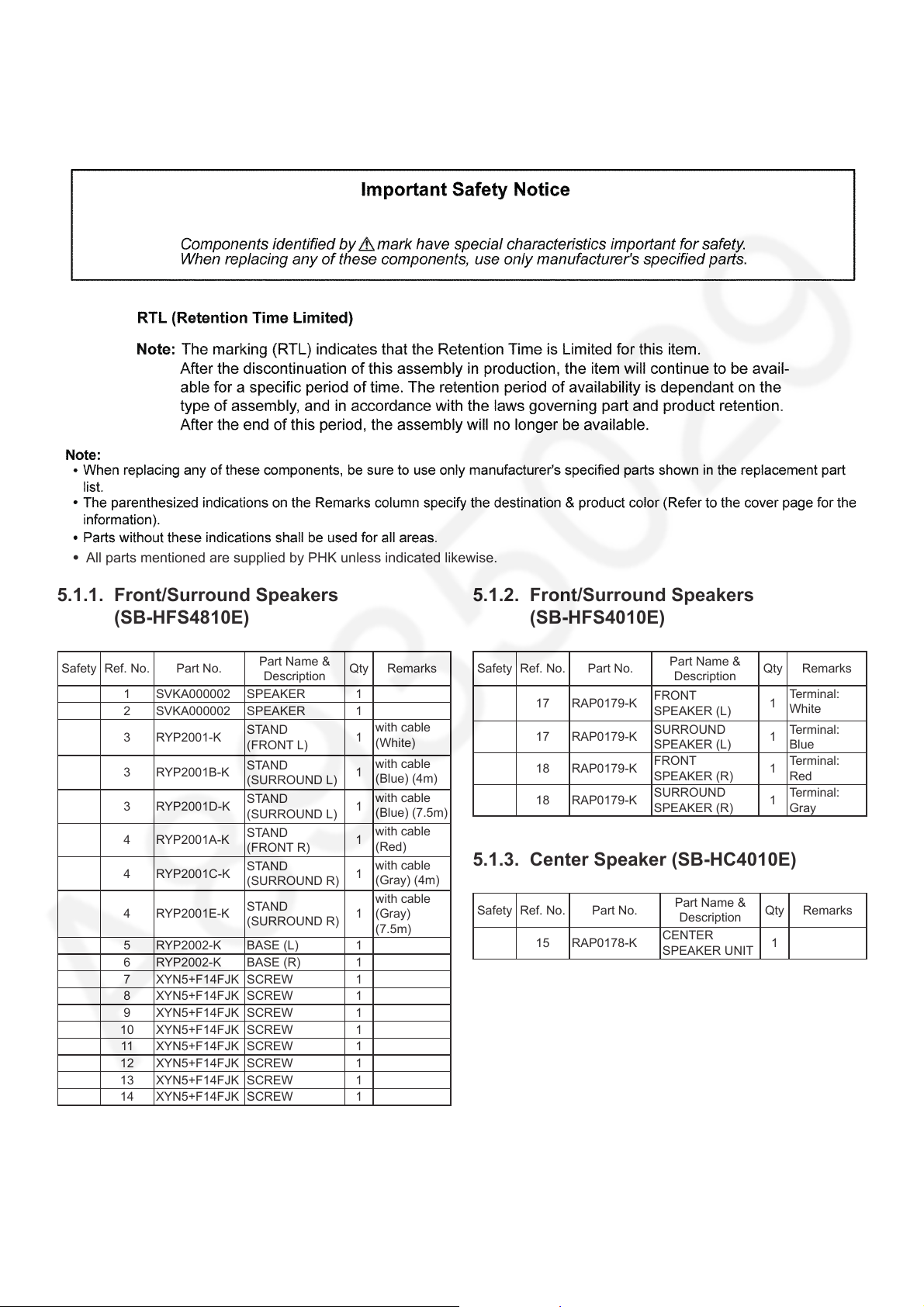

5.1. Replacement Parts List

5.1.1. Front/Surround Speakers

(SB-HFS4810E)

Safety Ref. No. Part No. Part Name &

Description Qty Remarks

1 SVKA000002 SPEAKER 1

2 SVKA000002 SPEAKER 1

3 RYP2001-K STAND

(FRONT L) 1with cable

(White)

3 RYP2001B-K STAND

(SURROUND L) 1with cable

(Blue) (4m)

3 RYP2001D-K STAND

(SURROUND L) 1with cable

(Blue) (7.5m)

4 RYP2001A-K STAND

(FRONT R) 1with cable

(Red)

4 RYP2001C-K STAND

(SURROUND R) 1with cable

(Gray) (4m)

4 RYP2001E-K STAND

(SURROUND R) 1

with cable

(Gray)

(7.5m)

5 RYP2002-K BASE (L) 1

6 RYP2002-K BASE (R) 1

7 XYN5+F14FJK SCREW 1

8 XYN5+F14FJK SCREW 1

9 XYN5+F14FJK SCREW 1

10 XYN5+F14FJK SCREW 1

11 XYN5+F14FJK SCREW 1

12 XYN5+F14FJK SCREW 1

13 XYN5+F14FJK SCREW 1

14 XYN5+F14FJK SCREW 1

•All parts mentioned are supplied by PHK unless indicated likewise.

5.1.2. Front/Surround Speakers

(SB-HFS4010E)

Safety Ref. No. Part No. Part Name &

Description Qty Remarks

17 RAP0179-K FRONT

SPEAKER (L) 1Terminal:

White

17 RAP0179-K SURROUND

SPEAKER (L) 1Terminal:

Blue

18 RAP0179-K FRONT

SPEAKER (R) 1Terminal:

Red

18 RAP0179-K SURROUND

SPEAKER (R) 1Terminal:

Gray

5.1.3. Center Speaker (SB-HC4010E)

Safety Ref. No. Part No. Part Name &

Description Qty Remarks

15 RAP0178-K CENTER

SPEAKER UNIT 1

5.1.4. Subwoofer

(SB-HW4010E/SB-HW4010P)

Safety Ref. No. Part No. Part Name &

Description Qty Remarks

16 RAP0180-K SUBWOOFER

UNIT 1 (E)

16 RAP0180A-K SUBWOOFER

UNIT 1 (P)

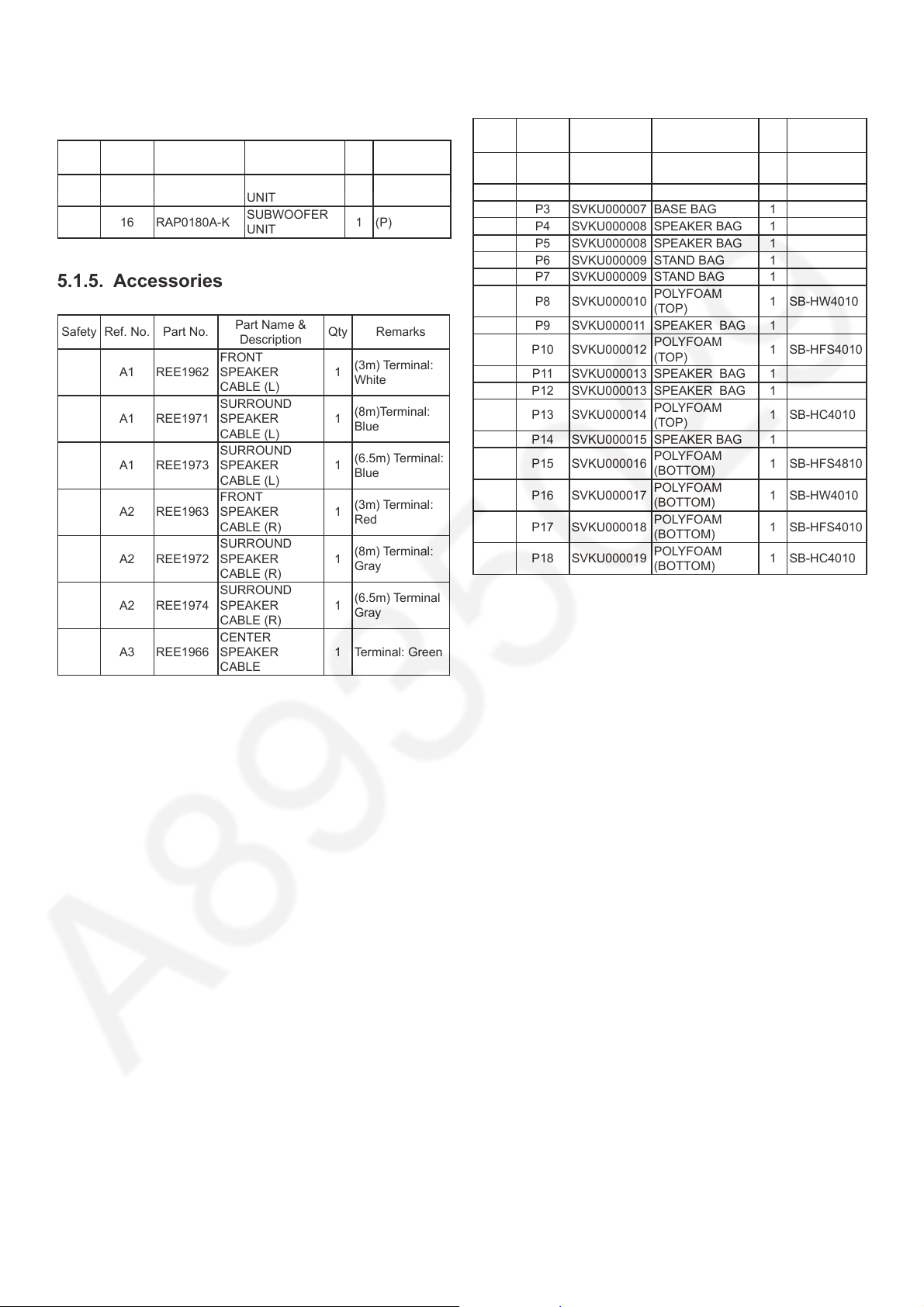

5.1.5. Accessories

Safety Ref. No. Part No. Part Name &

Description Qty Remarks

A1 REE1962

FRONT

SPEAKER

CABLE (L)

1(3m) Terminal:

White

A1 REE1971

SURROUND

SPEAKER

CABLE (L)

1(8m)Terminal:

Blue

A1 REE1973

SURROUND

SPEAKER

CABLE (L)

1(6.5m) Terminal:

Blue

A2 REE1963

FRONT

SPEAKER

CABLE (R)

1(3m) Terminal:

Red

A2 REE1972

SURROUND

SPEAKER

CABLE (R)

1(8m) Terminal:

Gray

A2 REE1974

SURROUND

SPEAKER

CABLE (R)

1(6.5m) Terminal

Gray

A3 REE1966

CENTER

SPEAKER

CABLE

1 Terminal: Green

5.1.6. Packing Materials

Safety Ref. No. Part No. Part Name &

Description Qty Remarks

P1 SVKU000006 POLYFOAM

(TOP) 1 SB-HFS4810

P2 SVKU000007 BASE BAG 1

P3 SVKU000007 BASE BAG 1

P4 SVKU000008 SPEAKER BAG 1

P5 SVKU000008 SPEAKER BAG 1

P6 SVKU000009 STAND BAG 1

P7 SVKU000009 STAND BAG 1

P8 SVKU000010 POLYFOAM

(TOP) 1 SB-HW4010

P9 SVKU000011 SPEAKER BAG 1

P10 SVKU000012 POLYFOAM

(TOP) 1 SB-HFS4010

P11 SVKU000013 SPEAKER BAG 1

P12 SVKU000013 SPEAKER BAG 1

P13 SVKU000014 POLYFOAM

(TOP) 1 SB-HC4010

P14 SVKU000015 SPEAKER BAG 1

P15 SVKU000016 POLYFOAM

(BOTTOM) 1 SB-HFS4810

P16 SVKU000017 POLYFOAM

(BOTTOM) 1 SB-HW4010

P17 SVKU000018 POLYFOAM

(BOTTOM) 1 SB-HFS4010

P18 SVKU000019 POLYFOAM

(BOTTOM) 1 SB-HC4010

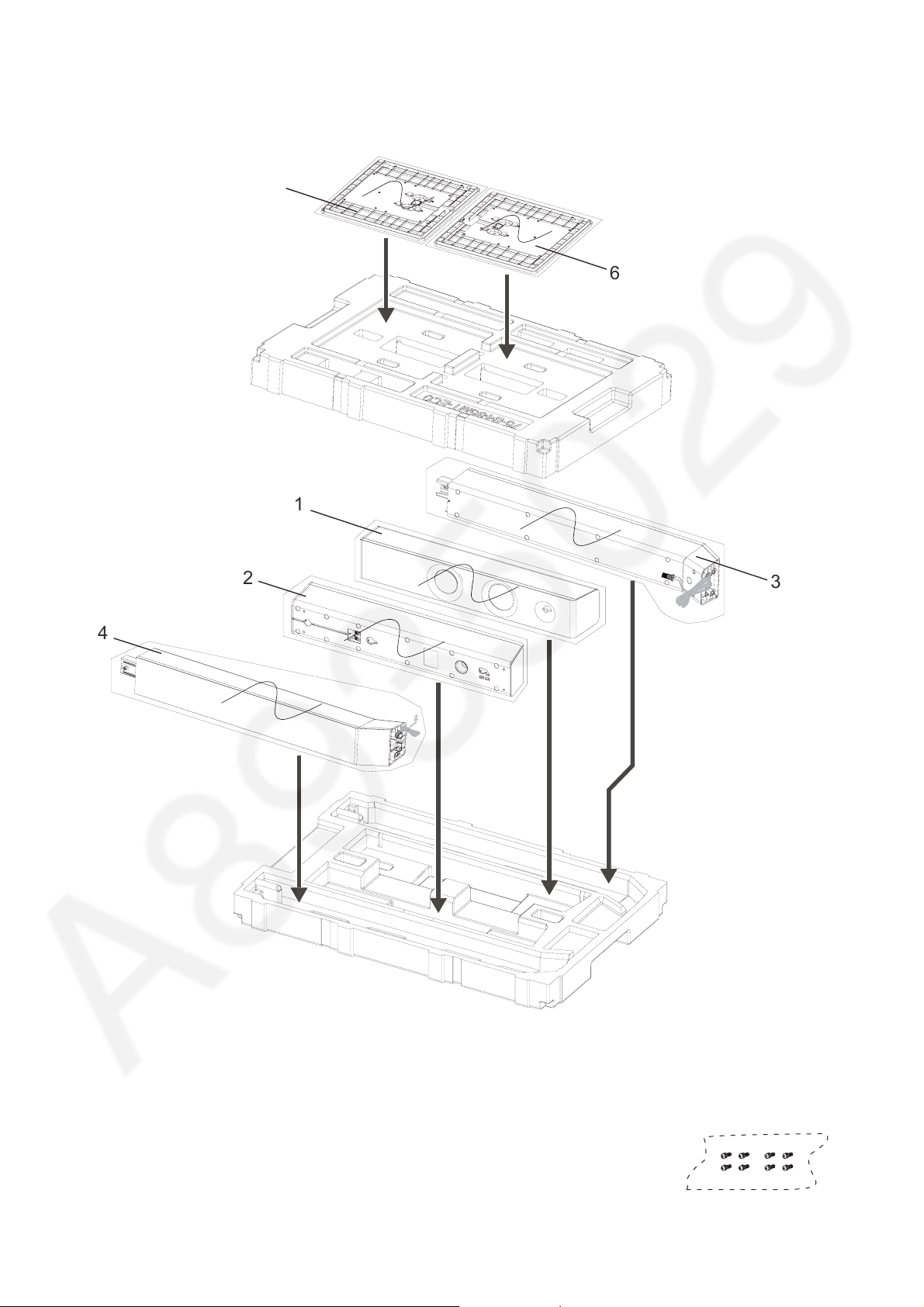

5.2. Front/Surround Speakers (SB-HFS4810E) Packaging

Please see next page for the concrete position that screws are used.

Screws for front speakers
