Quick Start Guide

Home Theater Audio System SC-HTB770

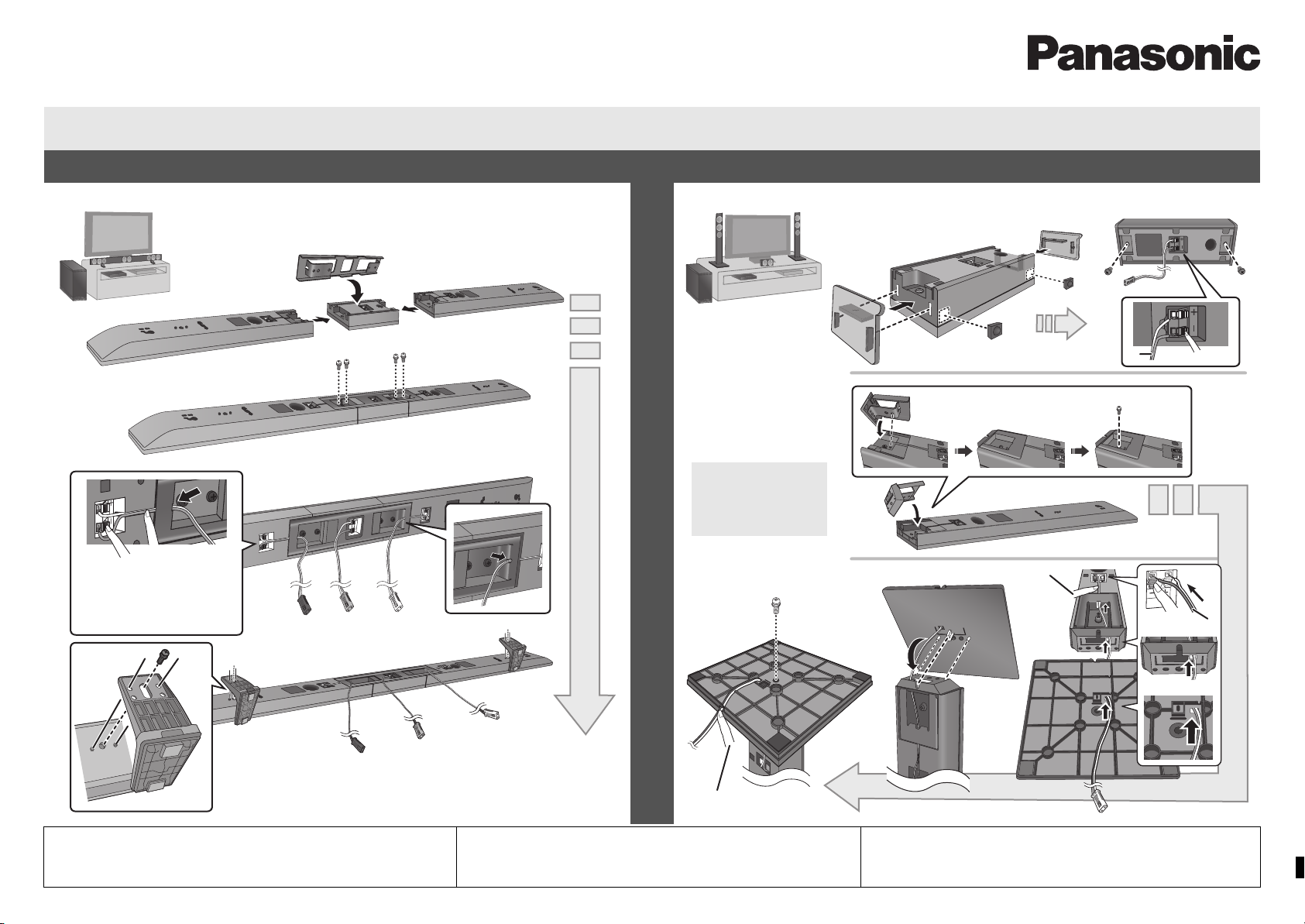

Step 1: Choose the configuration that is right for you

Place the speakers horizontally Place the front speakers vertically

Fully insert the wire.

r: White

s: Blue line

Red

White

To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

Push

Green

Press into the

groove.

≥Tighten screws securely.



1Fully insert the

wire.

r: White

s: Blue line

Push

Speaker placement

Speaker with,

Red connector:

To the right

White connector:

To the left

Green connector:

In the center

To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

Push

Green

≥Tighten screws securely.

Press the cable

into the groove.

Press the cable into the groove.

Red or White

If you have any questions, contact:

U.S.A. and Puerto Rico: 1-800-211-PANA (7262)

Mon-Fri: 9 ams9 pm (EST) Lunes-Viernes

Sat-Sun: 10 ams7 pm (EST) Sabado-Domingo

www.Panasonic.com/help

Canada:

Telephone: 1-800-561-5505

SC-HTB770PPC_RQCA2105_mst.fm Page 5 Friday, January 25, 2013 8:43 PM

HDMI (ARC)

Audio Return Channel:

Allows a home theater system to receive and play audio from the TV through a HDMI cable without

additional wiring.

HDMI cable is required for VIERA Link “HDAVI Control”.

Turn on the active subwoofer.

On the TV, select this home theater system as the TV’s speakers from the VIERA

Link menu.

Press [iVOL j] on the TV’s remote control to adjust the volume.

§Operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Turn on the main unit, active subwoofer and the TV.

Press [INPUT SELECTOR] to select the TV sound.

Press [iVOL j] to adjust the volume.

Step 2: Connect the cables

Do not connect the AC power supply cord to the main unit and the active

subwoofer until all other connections are completed.

When the TV is HDMI (ARC) compatible

When the TV is non HDMI (ARC) compatible

AC IN

DIGITAL

AUDIO

SPEAKERS/HAUT-PARLEURS

66 6

CENTER

(ARC)

AV OUT

(ARC)

AV OUT

HDMI IN

(ARC)

Main unit

HDMI cable

Be sure to connect to the

TV’s ARC compatible

terminal. (Refer to the TV’s

operating instructions.)

Red

White

Green

AC IN

DIGITAL

AUDIO

(OPT1)

SPEAKERS/HAUT-PARLEURS

66 6

CENTER

(ARC)

AV OUT

(ARC)

AV OUT

DIGITAL

AUDIO

(OPT1)

HDMI IN

OPTICAL

OUT

Main unit

HDMI cable

Optical digital

audio cable

Red

White

Green

Using this system

When the TV is VIERA LinkTM “HDAVI ControlTM” or

HDMI CEC compatible

≥If the TV is not a Panasonic TV, set the “Receiver” or “External speakers” to “On”.

When the TV is not VIERA LinkTM “HDAVI ControlTM”

or HDMI CEC compatible

≥If there is sound from the TV’s speakers too, then use the TV’s remote control to lower the volume to

minimum.

For wall mounting and other details, be sure to refer to the Owner’s Manual.

e.g. TV remote control

INPUT

SELECTOR

e.g. TV remote control
