Installation IQAN-LC5-C02, -C03

master module

IQAN-LC5-C02/C03

Publ.no: HY33-8405-IS/UK

Ed. 02/2013

For further information see:

HY33-8404-IB/UK Instructions IQAN-LC5-C0x

(2004/108/EC)

100

125

-20

-40

-40 - +85°C

WARNING

Eng.no: M5036041A

Rev. C

Command

+100%

-100%

-18° 18°

Neutral

position

Axis DAC

Deflection

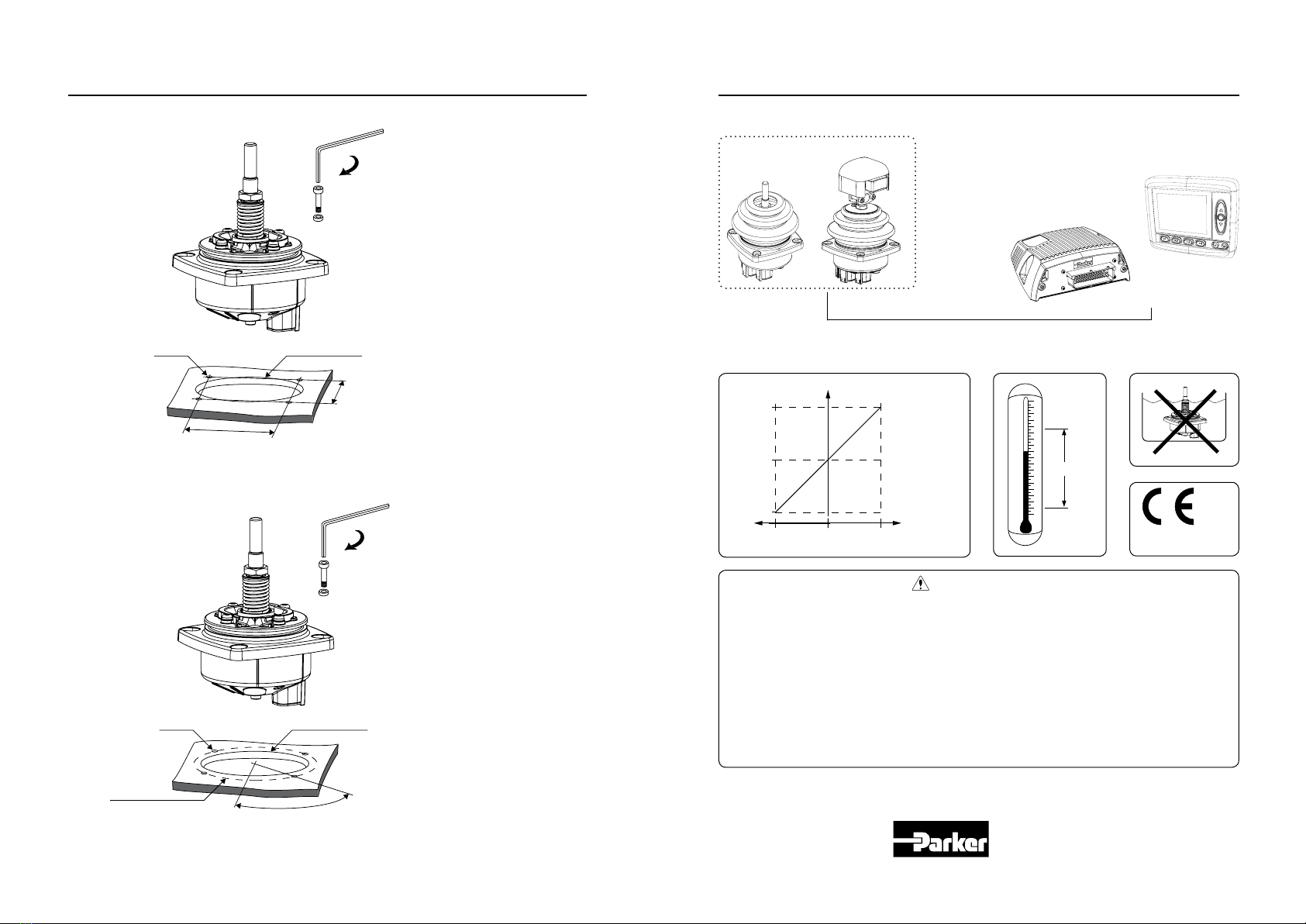

Mounting

Ø92 mm

Tt=1 Nm

Ø108 mm

45°

Ø92 mm

80 mm

Tt=1 Nm

Alternate hole dimensions

Mounting hole dimensions

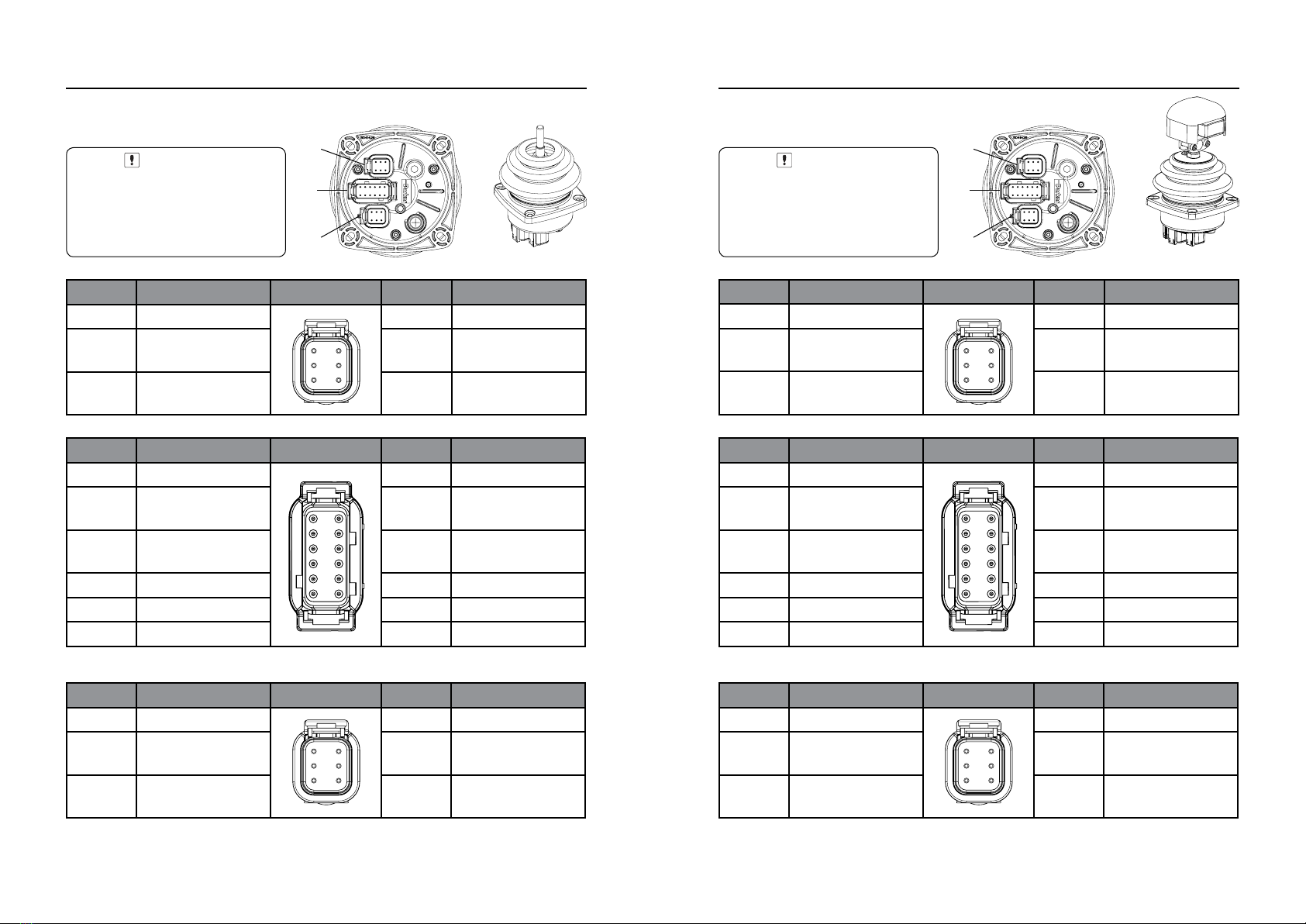

Wiring diagram, IQAN-LL-2U, -Nxx compatible

Pin Pos. Signal/Function C2 Pin Pos. Signal/Function

12 +VREF 1 -VREF

11 Not used 2 VIN-A

DIN-G**

10 DIN-F 3 VIN-B

DIN-H**

9 DIN-E 4 DIN-A

8 DIN-D 5 DIN-B

7 DOUT-A 6 DIN-C

Pin Pos. Signal/Function C1 Pin Pos. Signal/Function

6 +BAT (12/24Vdc) 1 GND

5 CAN-H 2 CAN-L

4 ADDR-H 3 ADDR-L

Pin Pos. Signal/Function C3 Pin Pos. Signal/Function

6 +VREF 1 -VREF

5* DIN-L

(DIN-J)

2* DIN-I

(DIN-G)

4* DIN-K

(DIN-I)

3* DIN-J

(DIN-H)

12 11 10 9 8 7

NOTICE

Connectors must be properly installed

to meet environmental speciﬁcation.

• Sealing plugs must be inserted in

all unused pin positions.

• All connectors must be installed.

Mating connectors kit: 5035007 * IQANdesign/(IQANdevelop) internal

channels, not used on IQAN-LL-2U

** used in IQANdesign only.

Wiring diagram, IQAN-LL-3G compatible

Pin Pos. Signal/Function C2 Pin Pos. Signal/Function

12 +VREF 1 -VREF

11 Not used 2 VIN-A

DIN-G**

10 DIN-F 3 VIN-B

DIN-H**

9 DIN-E 4 DIN-A

8 DIN-D 5 DIN-B

7 DOUT-A 6 DIN-C

Pin Pos. Signal/Function C1 Pin Pos. Signal/Function

6 +BAT (12/24Vdc) 1 GND

5 CAN-H 2 CAN-L

4 ADDR-H 3 ADDR-L

Pin Pos. Signal/Function C3 Pin Pos. Signal/Function

6 +VREF 1 -VREF

5* DIN-L

(DIN-J)

2 DAC-ZP

4* DIN-K

(DIN-I)

3 DAC-ZS

12 11 10 9 8 7

NOTICE

Connectors must be properly installed

to meet environmental speciﬁcation.

• Sealing plugs must be inserted in

all unused pin positions.

• All connectors must be installed.

Mating connectors kit: 5035007 * IQANdesign/(IQANdevelop) internal

channels, not used on IQAN-LL-3G

** used in IQANdesign only.

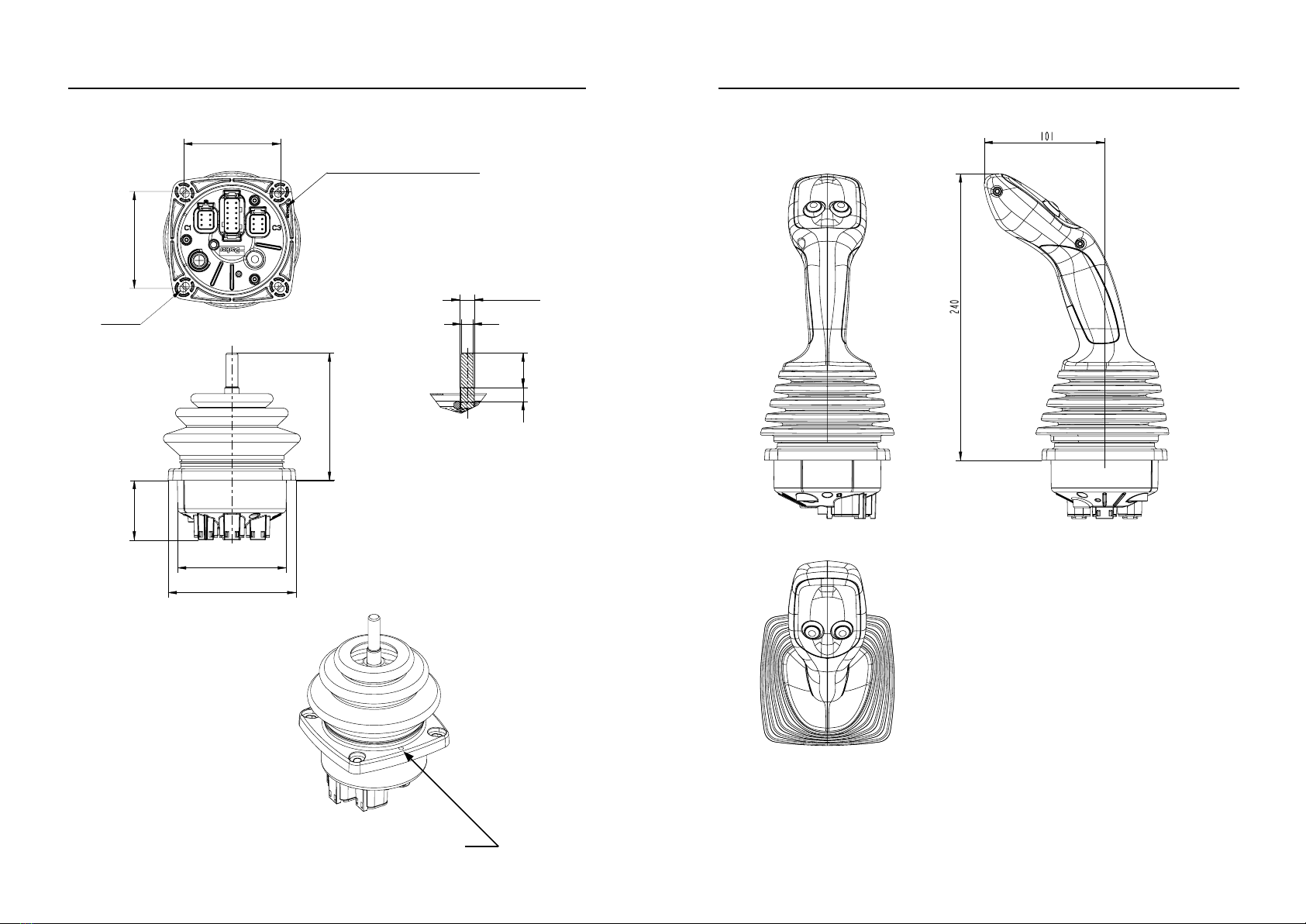

IQAN-LC5-C02-U2 IQAN-LC5-C03-G

IQAN-LC5-C02

105

49 80

Ø 6 (8x)

M12 x 1.25

(Ø 108)

Alternative mounting holes

unit = mm

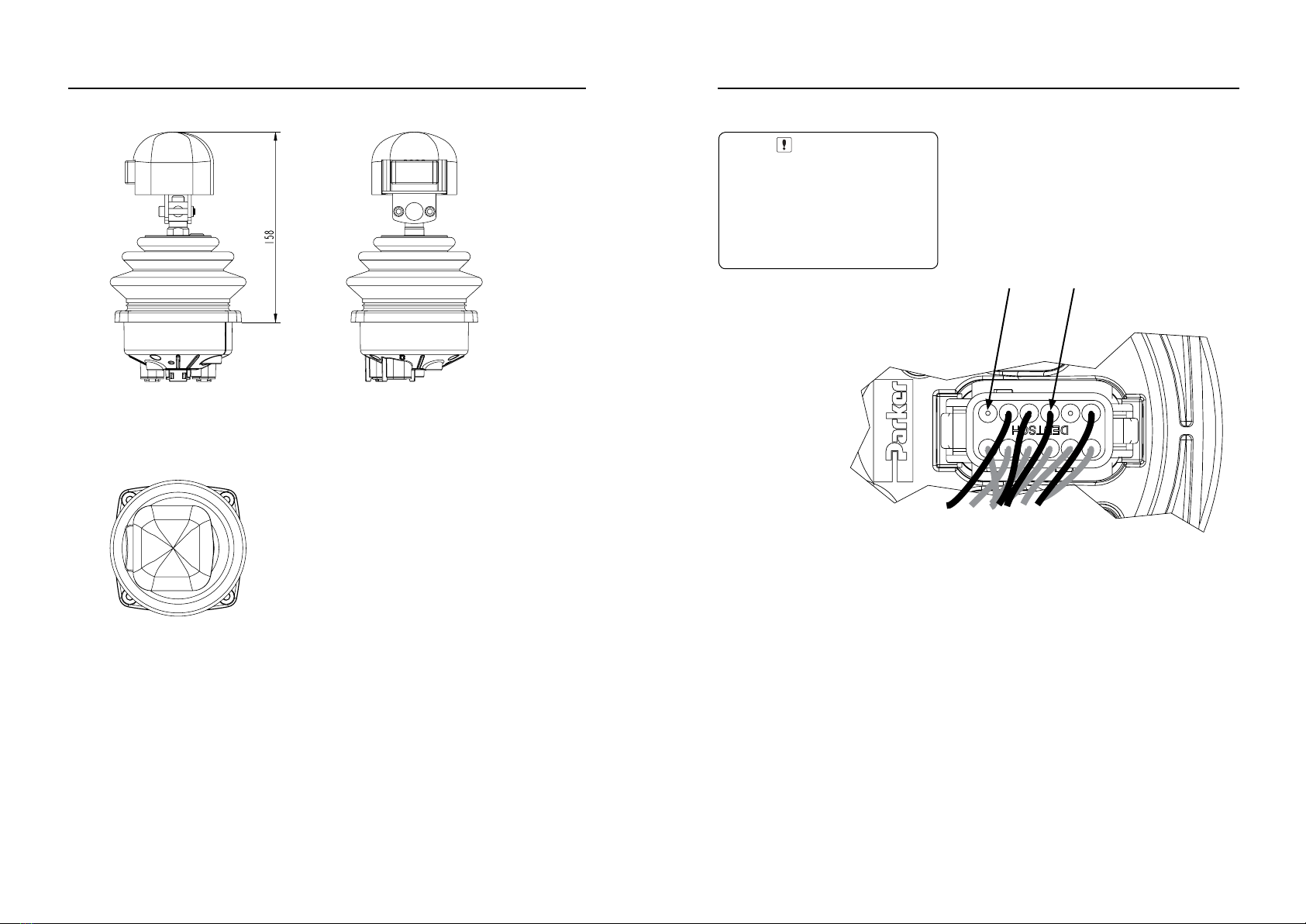

stem detail

IQAN-LC5-C02

-MPB2W0T0 handle shown

(option to replace IQAN-LL-N2)

unit = mm

Y+ direction indicator

Adapter cable default connection, position C2:10, DIN-F.

Move wire to position C2:7 to get DOUT function.

NOTICE

Adapter cable 2830018 will connect

IQAN-LC5-C02 or IQAN-LC5-C03 to

an IQAN-LL harness.

• Adapter cable is conﬁgured for

use of DIN-F.

• To use DOUT, move wire in 12

pos. connector C2.

78910 11 12

C2:7

DOUT

C2:10

DIN-F

IQAN-LL adapter cable

unit = mm

IQAN-LC5-C03-G

-G handle
