Patton electronics NanoServ Manuale utente

NanoServ™

Thin System/Ultra-Thin System

Setup Guide

1.0 What’s included with the NanoServ™

The following items are included with the NanoServ™:

NanoServ™

AC Power Adaptor

CD-ROM with User’s Manual

This Setup Guide

Note

Refer to the User Manual on the CD-ROM for complete information on installation.

2.0 Steps for setting up the NanoServ™

Note

This is a fanless system, so it must be properly mounted to allow for proper cooling. Be sure to use the

metal stand to hold the system upright with the blue LED on top, or mount the system at least 1 or 2

inches away from the ﬂat side surfaces of the system. This will help keep the NanoServ™ cool and

within operating limits.

Verify that the power supply switch is off (located on the back of the NanoServ™).

Plug the monitor into the VGA port.

Plug the keyboard into the PS/2 keyboard port.

Plug the mouse into the PS/2 mouse port.

Plug the printer into the DB-25 printer port (only available on the Thin NanoServ™ system).

Connect the power adaptor to the mains power.

Turn on the power supply switch located on the back of the NanoServ™.

Document Number: 09407U7-001, Rev. A

Part Number: 07M6070-QS

Revised:

August 2, 2006

Sales Ofﬁce: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

NanoServ Setup Guide

3.0 NanoServ™ Ultra-Thin System

Figure 1.

Ultra-Thin System - Front panel

Figure 2.

Ultra-Thin System - Back panel

Front panel

Power LED

The power LED lights up when the system is

turned on.

HDD LED

The HDD LED flashes when the system is working.

Please do not turn off the system when HDD

starts running.

Power Switch

Depress the switch to turn on and turn off the

system.

USB Port

The USB port is for a connection to external

devices with a USB interface (keyboard, mouse,

HDD, CD-ROM, Memory Stick, ect.)

Audio Line-Out

Mic-In

VGA Port

RJ-45 10/100 Ethernet Jack

USB Port

PS/2 Mouse (6-pin)

PS/2 Keyboard & Mouse (6-pin)

DC Power Jack (3-pin)

Power supply switch

DC-IN 5V

POWER SW

Back panel

NanoServ Setup Guide

4.0 NanoServ™ Thin System

Figure 3.

Thin System - Front panel

Figure 4.

Thin System - Back panel

Front panel

Power LED

The power LED lights up when the system is

turned on.

HDD LED

The HDD LED flashes when the system is working.

Please do not turn off the system when HDD

starts running.

Power Switch

Depress the switch to turn on and turn off the

system.

USB Port

The USB port is for a connection to external

devices with a USB interface (keyboard, mouse,

HDD, CD-ROM, Memory Stick, ect.)

POWER SW DC-IN 5V

COM1

Back panel

Audio Line-Out

Mic-In

Serial Port **

VGA Port

RJ-45 10/100 Ethernet Jack

USB Port

PS/2 Mouse (6-pin)

Parallel Port **

PS/2 Keyboard & Mouse (6-pin)

DC Power Jack (3-pin)

Power supply switch

** This feature is only

available for Model 6075.

NanoServ Setup Guide

5.0 Additional Information

Refer to the

NanoServ™ User Manual

located on the CD-ROM shipped with your NanoServ™ system and

available online at <

www.patton.com/manuals>

for detailed information about:

•

Installing, conﬁguring, operating, and troubleshooting.

•

Warranty, trademark & compliance

Note

Speciﬁcations are subject to change without notice.

Refer to the

Fedora Core Linux

website at

<http://fedora.redhat.com>

for information about Fedora

Core 5 including installation guides and tutorials.

A.0 Compliance & Safety Information

A.1 Compliance

EMC Compliance:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN55024

Safety Compliance:

•

IEC/EN 60950-1

A.2 Radio and TV interference (FCC Part 15)

This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in

strict accordance with the manufacturer's instructions—may cause interference to radio and television recep-

tion. This equipment has been tested and found to comply with the limits for a Class A computing device in accor-

dance with the speciﬁcations in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable

protection from such interference in a commercial installation. However, there is no guarantee that interference

will not occur in a particular installation. If the equipment causes interference to radio or television reception,

which can be determined by disconnecting the cables, try to correct the interference by one or more of the fol-

lowing measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna,

and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and

receiver are on different branches).

NanoServ Setup Guide

A.3 CE Declaration of Conformity

We certify that the apparatus identiﬁed in this document conforms to the requirements of Council Directive

1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication

Terminal Equipment and the mutual recognition of their conformity.

A.4 Safety Information

The safety advice in the documentation accompanying the products shall be obeyed.

The conformity to the above directive is indicated by the CE sign on the device.

•

This device contains no user serviceable parts. The equipment shall be

returned to Patton Electronics for repairs, or repaired by qualiﬁed ser-

vice personnel.

•

The external power adapter shall be a listed Limited Power Source.

Ensure that the power cable used meets all applicable standards for the

country in which it is to be installed, and that it is connected to a wall

outlet which has earth ground. The mains outlet that is utilized to

power the devise shall be within 10 feet (3 meters) of the device, shall

be easily accessible, and protected by a circuit breaker.

•

Hazardous network voltages are present in WAN ports regardless of

whether power to the unit is ON or OFF. To avoid electric shock, use

caution when near WAN ports. When detaching the cables, detach the

end away from the device ﬁrst.

•

Do not work on the system or connect or disconnect cables during peri-

ods of lightning activity.

In accordance with the requirements of council directive 2002/96/EC on Waste of

Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate

this product from other waste and scrap and deliver to the WEEE collection system in

your country for recycling.

The Interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, ﬂam-

mability, and mechanical serviceability

WARNING

CAUTION

NanoServ Setup Guide

The information in this document is subject to change without notice. Patton Electronics assumes no

liability for errors that may appear in this document.

•

To prevent shock or ﬁre hazard, do not expose your

NanoServ™ to rain or moisture.

•

Never install your NanoServ™ in wet locations.

•

To avoid electrical shock, do not open the case. Contact the fac-

tory ofﬁces for qualiﬁed personnel servicing.

•

Never touch un-insulated terminals or wire unless your power

adaptor and display monitor are disconnected.

•

When using the system, avoid using or installing the modem to

the serial port during a storm or lightning.

•

Do not use the modem or a telephone to report a gas leak in the

vicinity of the leak.

•

USB cables are not supplied.

WARNING

Altri manuali per NanoServ

Indice

Altri manuali Patton electronics Server

Patton electronics

Patton electronics NanoServ Manuale utente

Patton electronics

Patton electronics NetLink 2960 RAS Manuale utente

Patton electronics

Patton electronics 3120 Manuale utente

Patton electronics

Patton electronics 29XX Series Manuale utente

Patton electronics

Patton electronics ForeFront 6081RC EdgeRoute Manuale utente

Patton electronics

Patton electronics NetLink 2960 RAS Manuale utente

Patton electronics

Patton electronics EtherBITS 2285 Manuale utente

Patton electronics

Patton electronics EtherBITS 2285 Manuale utente

Patton electronics

Patton electronics EtherBITS 2211 Manuale utente

Patton electronics

Patton electronics Patton RAS 3120 Manuale utente

Patton electronics

Patton electronics Access Server Manuale utente

Patton electronics

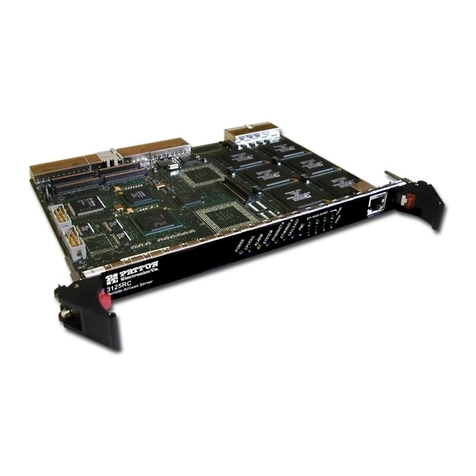

Patton electronics ForeFront 3125 Manuale utente
