Perlesmith PSLFK5 Manuale utente
PSLFK5
Installation Instructions V1.0
Thank you for choosing our product! We strive to provide the best
quality and services for our customers. Would you kindly share your
experience on Amazon if you are satisfied? Should you have any
issues, please don't hesitate to contact us.
Telephone：
1-800-556-6806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：
Max VESA:
600X400 mm/24X16 in.
02 x2
03 x4
04 x4
05 x8
06 x1
07 x1 08 x1
TV Bracket

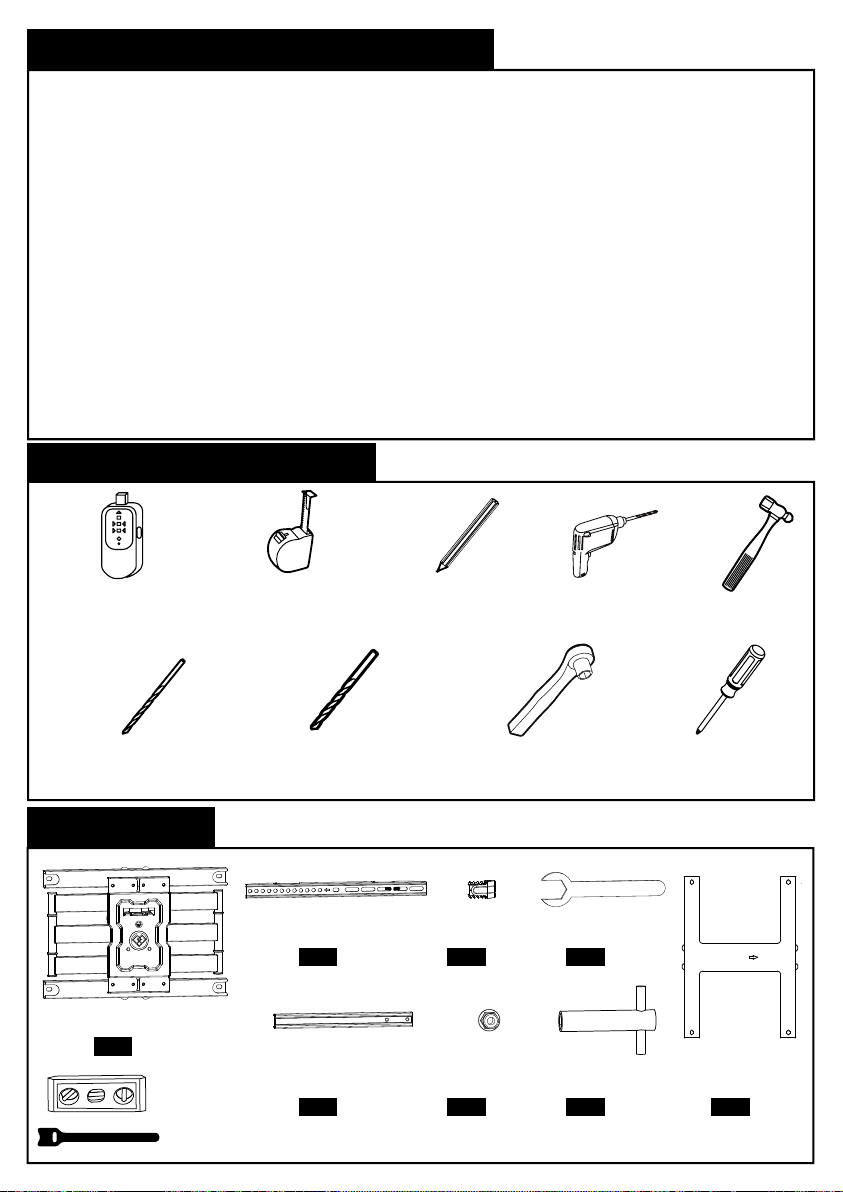

Supplied Parts
Tools Needed (Not lncluded)
Stud Finder Tape Measure Pencil Drill
5mm
Wood Drill
10mm
Concrete Drill
13mm
Socket Wrench Screw Driver
Hammer
IMPORTANT SAFETY INFORMATION
•Check package contents against Supplied Parts and Hardware Lists to assure that all
components were received undamaged. Do not use damaged or defective parts. lf you
•Not all parts and hardware included will be used.
•Carefully read all instructions before attempting installation. If you do not understand
the instructions or have any concerns or questions, please contact customer service at
•This product may contain moving parts. Use with caution.
•Do not use this product for any purpose or in any configuration not explicitly specified in
this instruction. We hereby disclaim any liability for injury or damage arising from
incorrect assembly, incorrect mounting, or incorrect use of this product.
•DO NOT INSTALL INTO DRYWALL ALONE.
•Please check www.perlesmith.com for more products and company information.
1
Arm assembly/Wall Plate
01 x1
UP
Level Extension Nut Socket Wrench
x1
x8
Decorative Cap Wrench
Wall Plate
Template
Cable Tie
2
x8 x4
10mm2.5mm
x4
22mm
Hardware for Attaching
Arm Assembly/Wall Plate
to Wall
Lag Bolts
M8X60
Washer
M8
x4 x4
x4
A1 A2
These anchors are
for concrete or brick
walls ONLY. DO NOT
use them in drywall or
wood studs.
CAUTION!
A3
Wall Anchor

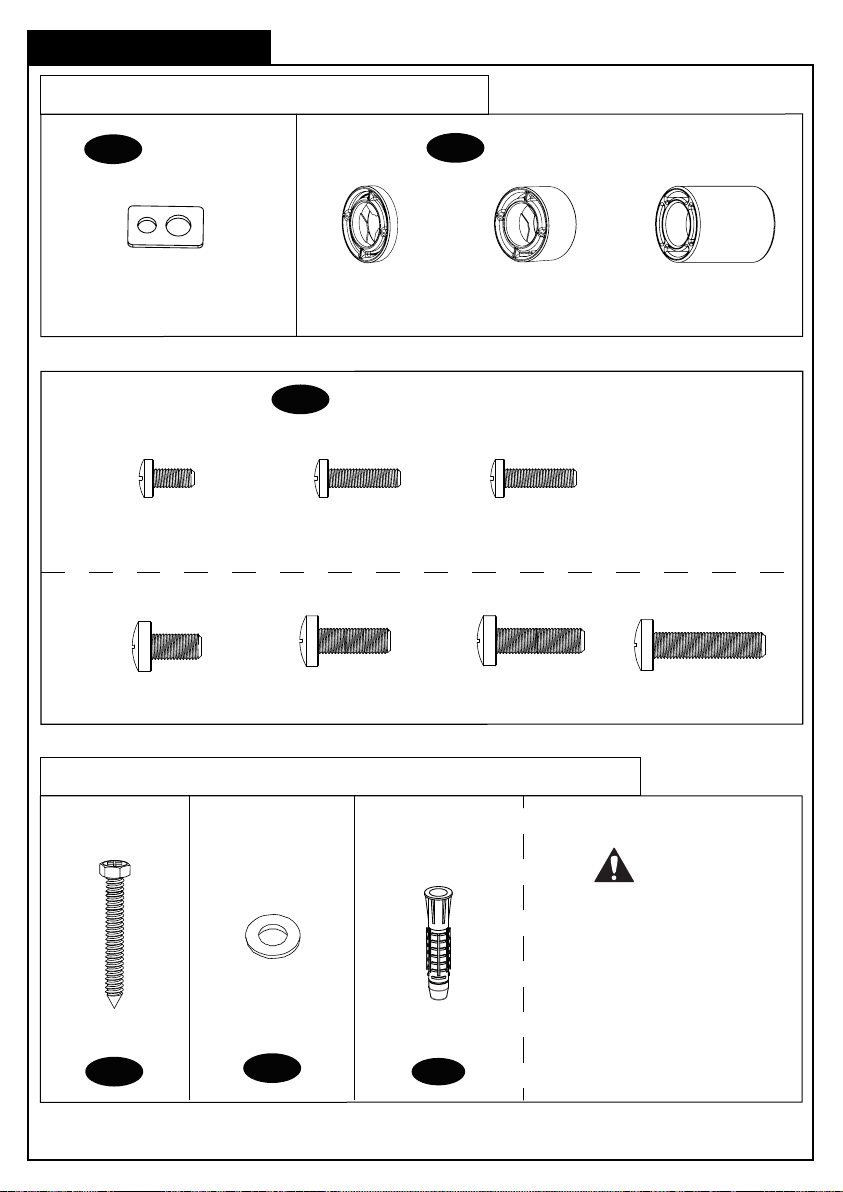

Supplied Hardware
Hardware for Attaching TV Bracket to TV
09 10
x4
M6/M8
M6 x 14mm
x4
M6 x 20mm
x4
M6 x 35mm
x4
M8 x 16mm
x4
M8 x 25mm
x4
M8 x 35mm
x4
M8 x 50mm
x4
M8
M6
Washers
Spacers
TV Screws
11
[Only one size fits your TV]
[If necessary]
WARNING:
● Any material covering the wall must not exceed 5/8 in. (16 mm).
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½
in. (38 x 89 mm).
● Stud center must be verified.
Step 2
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
Attach the Arm Assembly/Wall Plate [01] to Wall
Step 2A Wood Stud Option
X
●DONOT USE ANCHOR [A3] FOR THIS STEP!
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag bolts [A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled
firmly against the wall plate [01].
●Ensure the arm assembly/wall plate[01] is securely fastened to the wall
before continuing on to the next step.
Step 1
03
05
07
01
Install the Extensions [03] to Arm Assembly/Wall Plate[01]
Use a stud finder(not
included) to locate wood
studs. Mark the edge and
center locations.
2A-1
2A-2
2A-3
UP
Position the wall plate template[08] at
your desired height and line up the
holes with your stud center line. Level
the template and mark the holes.
Drill 4 pilot holes using a 5 mm
diameter drill bit. Make sure
the depth is not less than
60mm.
Install the arm assembly/wall
plate using lag bolts [A1] and
washer [A2]. Tighten the lag
bolts [A1] only until the washers
[A2] are pulled firmly against the
wall plate
13mm
Socket Wrench
(Not included)
08
ø5mm
60mm
2A-4
A1 A2
Ensure alignment
using the bubble level.
6
WARNING:
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts
[A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled firmly against the
wall plate.
●Ensure the arm assembly/wall plate[01] is securely fastened to the
wall before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm).
● Mount the arm assembly/wall plate [01] directly onto the concrete surface.
● Minimum solid concrete thickness: 203 mm (8 in.).
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.).
Wall
Anchor
A3
Step
2B Solid Concrete or Concrete Block Option
ø10mm
65mm
Drill 4 pilot holes using a 10mm
diameter drill bit. Make sure the depth is
not less than 65mm. Never drill into the
mortar between blocks.
2B-1 2B-2
UP
Position the wall plate template
[08] at your desired height, level
the template and mark the pilot
hole locations.
08
Ensure alignment
using the bubble level.
7
Step
3
13mm
Socket Wrench
Use the hammer to knock
anchors [A3] into the wall.
Install the arm assembly/wall plate [01] using lag bolts [A1],
washers [A2] and anchors [A3]. Be sure the anchors [A3] are
seated flush with the concrete surface. Tighten the lag bolts
[A1] only until the washers [A2] are pulled firmly against the
wall plate. DO NOT over-tighten the lag bolts [A1].
(Not included)
Add the Decorative Cap [04] to the Arm Assembly/Wall Plate[01]
04
A3
A1 A2
2B-3
WITH SPACER
3
For Rounded TV
For Flat TV with:
Inset Holes Cable Interference
aLong Screw
Short Screw
Washer
Washer
Spacer
TV Bracket
TV Bracket
EXTRA
11
11
09
10
09
NO SPACER b
For Flat TV
Spacer not necessary
SPACE
Step 5 Select Spacers (if needed)
MAX:600mm/23.6 in.
MAX:400mm/15.8
in.
Step 4
Check TV Hole Pattern and Select TV Screws
Only one screw size fits your TV.
M6 M8
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
100 mm ≈ 4 in.
300 mm ≈ 11 3/4 in.
600 mm ≈ 23 6/10 in.
8
Too Short Too Long
Step
7Hang the TV onto the
Arm Assembly/Wall Plate
[
01
]
Alternate Spacer
Setups
Step 6 Secure the TV Brackets [02] to Your TV
With Spacer
b
11 No Spacer
a
11 11
09
09
10
02 02
HEAVY! You may need
assistance with this step.

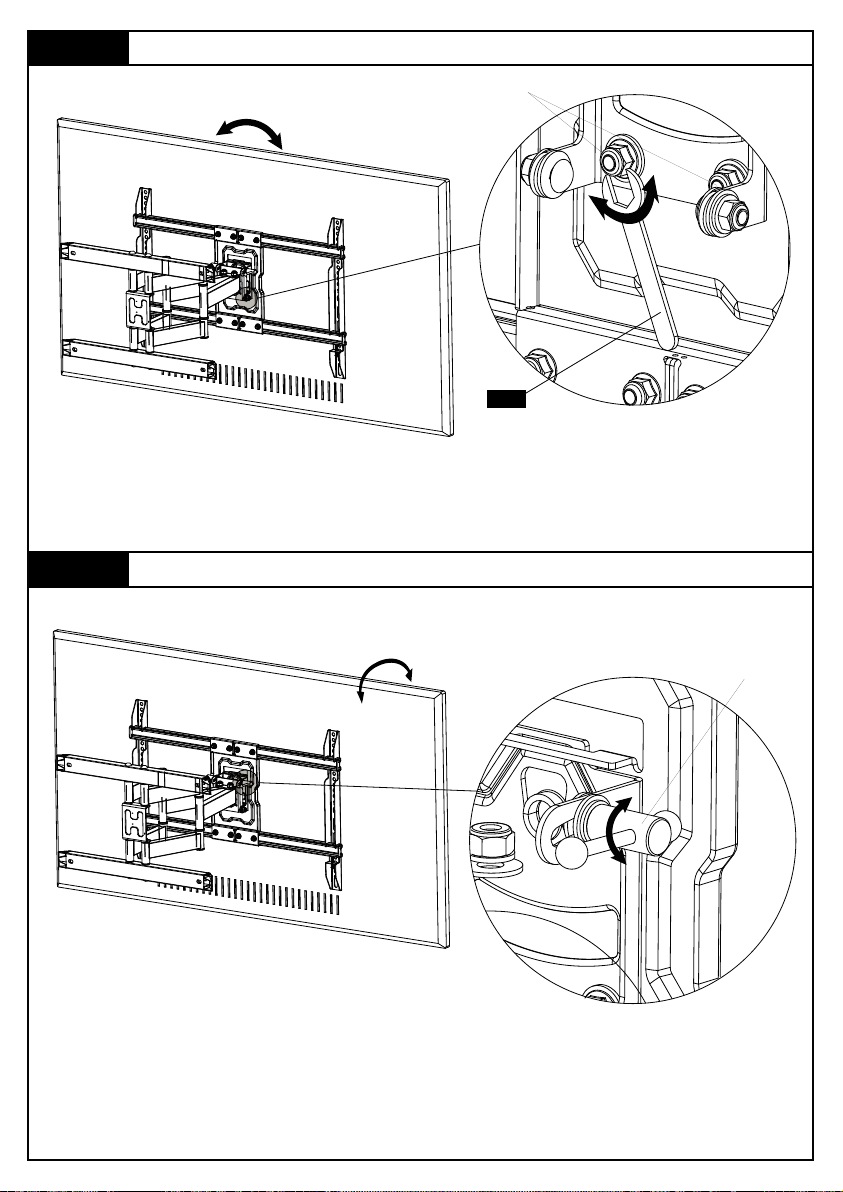

Step
8Level Adjustment
Step
9Tilt Adjustment
1. Loosen the two screws [S] on the rear of arm plate [01] , using the hex key.
2. Level your TV.
3. Retighten screws [S] to secure in place.
06
9
S
1. Loosen the tilt lever [T] on both sides.
2. Adjust the TV tilt position.
3. Tighten tilt lever [T] to secure the TV in place at your desired tilt angle.
T
Loosen
Loosen
Tighten
Tighten
