Perlesmith PSSM01 Manuale utente

Installation Instructions V1.0

PSSM01

Thank you for choosing our product! We strive to provide the best quality

and services for our customers. Would you kindly share your experience

on Amazon if you are satisﬁed? Should you have any issues, please don't

hesitate to contact us.

Telephone：1-800-556-6806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)

Email：[email protected] (US/CA/DE/UK/FR/IT/ES/JP/AU)

Wall Plate

Supplied Parts

Tools Needed (Not lncluded)

Stud Finder Tape measure Pencil Drill

4 mm

Wood Drill

10 mm

Concrete Drill Screw Driver

Hammer

IMPORTANT SAFETY INFORMATION

•Check package contents against Supplied Parts and Hardware List to assure that all

components were received undamaged. Do not use damaged or defective parts.lf you

require replacement parts, contact customer service at [email protected]

•Not all parts and hardware included will be used.

•Carefully read all instructions before attempting installation.If you do not understand

the instructions or have any concerns or questions, please contact customer service at

[email protected]

•This product may contain moving parts. Use with caution.

•Do not use this product for any purpose or in any conﬁguration not explicitly speciﬁed

in this instruction. We hereby disclaim any liability for injury or damage arising from

incorrect assembly, incorrect mounting, or incorrect use of this product.

•DO NOT INSTALL INTO DRYWALL ALONE.

•Please check www.perlesmith.com for more products and company information.

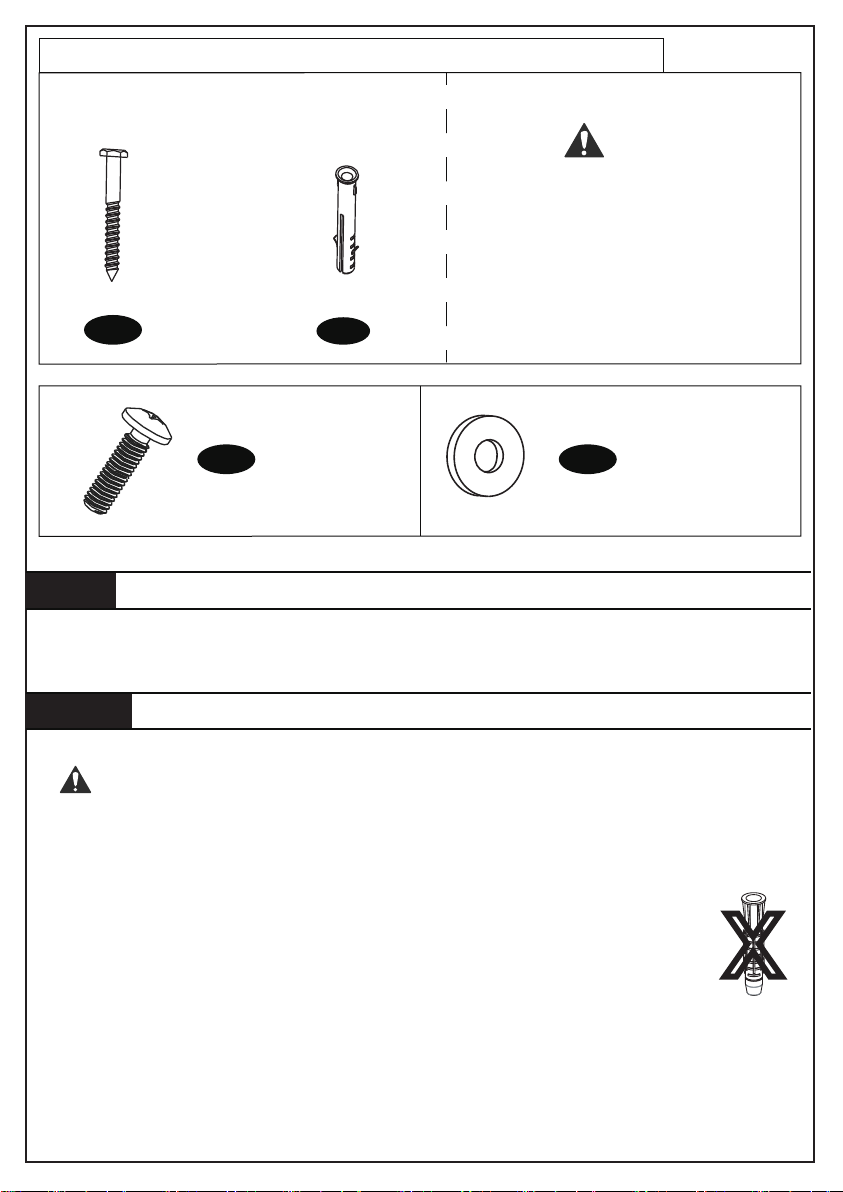

Hardware for Attaching the Arm Assembly/Wall Plate to Wall

These anchors are for

concrete or brickwalls

ONLY. DO NOT use them

in drywall or wood studs.

CAUTION!

Wall

Anchor

Lag Bolts

ST6.3*50

x1 x1

B1 B2

WARNING:

● Any material covering the wall must not exceed 5/8 in. (16 mm)

● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½

in. (38 x 89 mm)

● Stud center must be veriﬁed

Step 1

For wood stud installation, follow STEP 1A

For concrete installation, follow STEP 1B

Attach the Wall Plate [01] to Wall

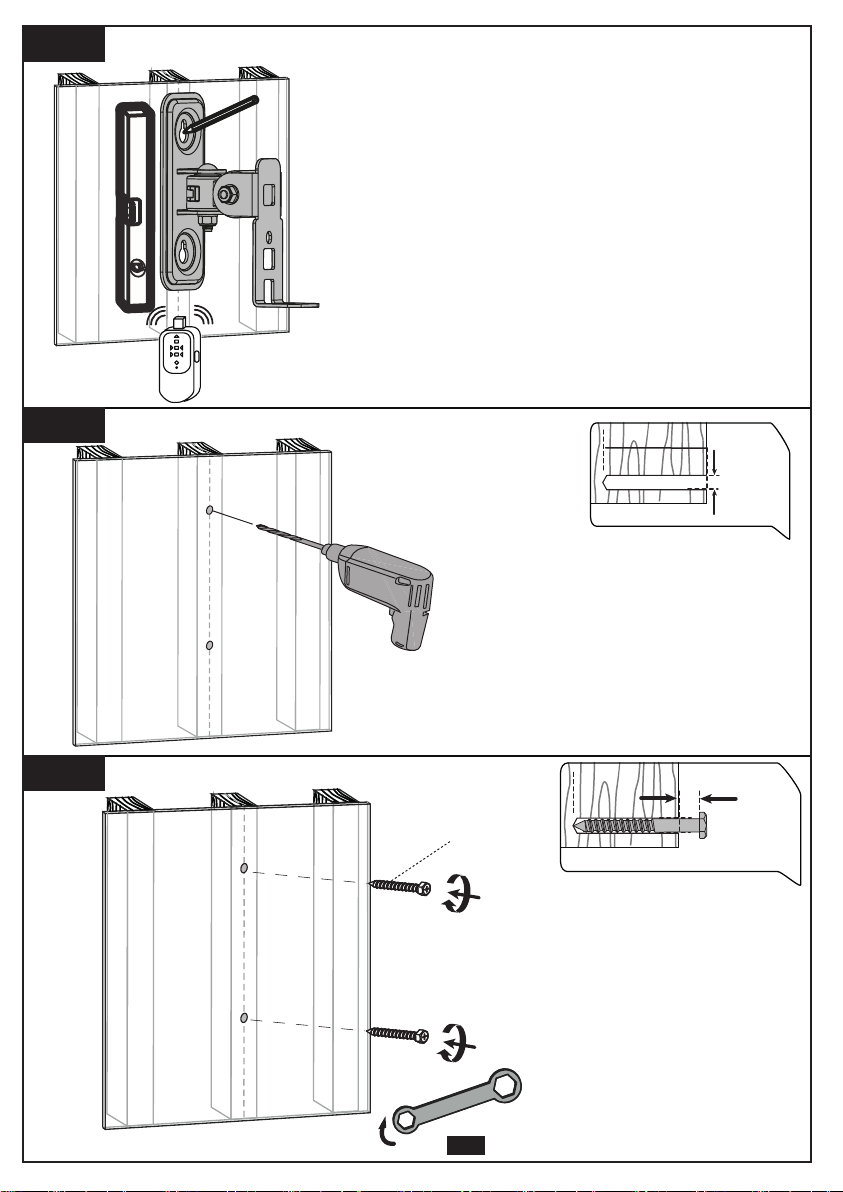

Step 1A Wood Stud Option

●Avoid potential personal injury or property damage!

● DONOT USE THE WALL ANCHORS [A2] FOR THIS STEP.

Drill 2 pilot holes using a 4 mm

diameter drill bit. Make sure the

depth is not less than 50mm

Use a stud ﬁnder(not included)to

locate wood studs. Mark the edge

and center locations.

Position the wall plate[01] at your

desired height and line up the

holes with your stud center line.

Level the wall plate and mark the

holes.

Screw the lag bolts [A1] into

the pilot holes using wrench

[02] until 4mm of the bolts are

left.

1A-1

1A-2

1A-3

50mm

4mm

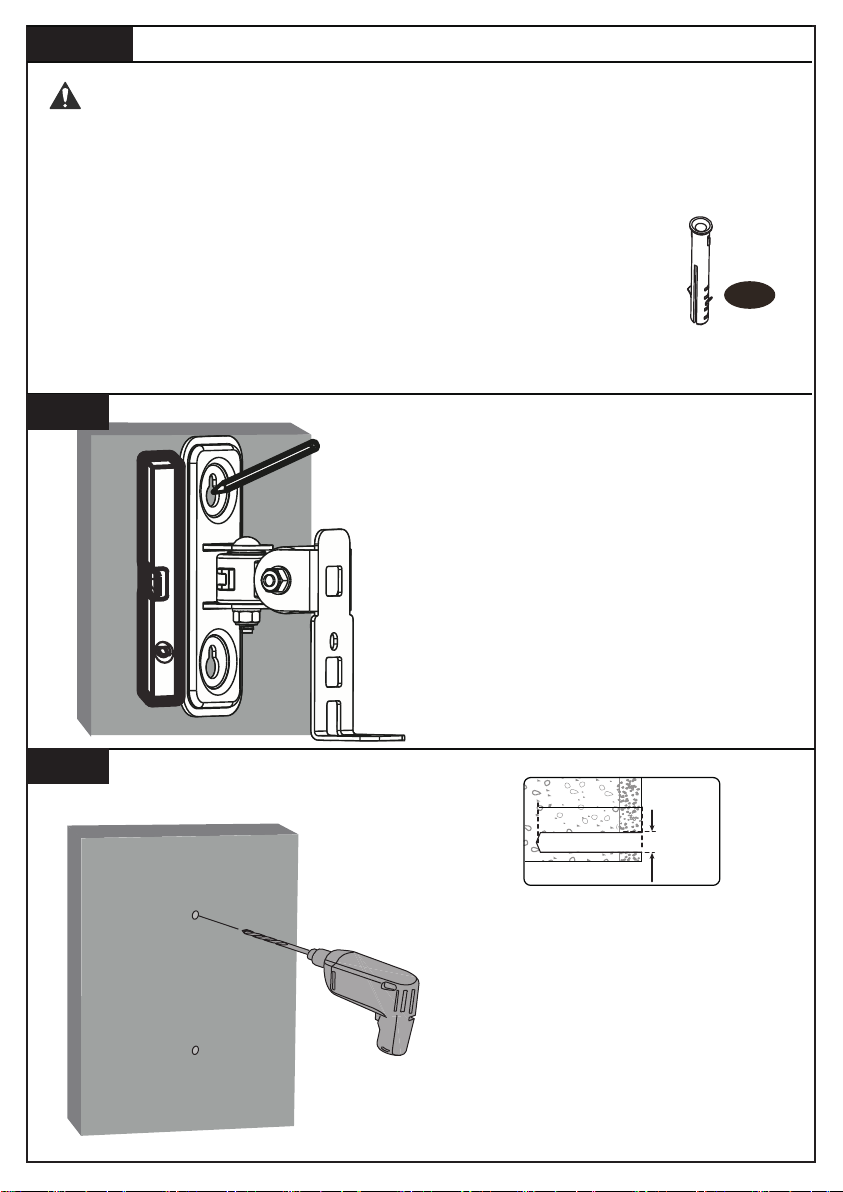

WARNING:

●Avoid potential personal injury or property damage!

● Any material covering the wall must not exceed 5/8 in. (16 mm)

● Minimum solid concrete thickness: 203 mm (8 in.)

● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)

Step 1B Solid Concrete or Concrete Block Option

Wall

Anchor

Position the wall plate[01] at your desired

height, level the wall plate and mark the pilot

hole locations.

Drill 2 pilot holes using a 10mm diameter

drill bit. Make sure the depth is not less

than 55mm. Never drill into the mortar

between blocks.

1B-1

1B-2

55mm

10mm

Step 2 Secure the Wall Plate [01] to Your Sonos PLAY: 1 Speaker

1B-3

B1 B2

Screw the lag bolts [A1] into

the pilot holes using wrench

[02] until 4mm of the bolts are

left.

4mm

Step 3 Hang your Speaker onto the Lag Bolt

Step 4

The speakers can be swivelled

and tilted using wrench [02] if needed

Tilt

Adjustment
