Perlesmith PSFS03 Manuale utente
Model: PSFS03
Thank you for choosing this PERLESMITH product! At PERLESMITH we
strive to provide you with the best quality products and services in the
industry. Please share your experience of our product with others at
www.perlesmith.com/pages/reviews if you are satisfied. Should you have
any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US)
[email protected] (CA)
Website:
www.perlesmith.com
TV Stand Instruction ManualV2.0
01
IMPORTANT SAFETY INFORMATION
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
• Check package contents against Supplied Parts and Hardware List to assure
that all components were received undamaged. Do not use damaged or
defective parts. If you require replacement parts, contact customer service at
• Not all parts and hardware included will be used.
• Do not use this product for any purpose or in any configuration not explicitly
specified in this instruction. We hereby disclaim any liability for injury or
damage arising from incorrect assembly, incorrect mounting, or incorrect use
of this product.
• Please check www.perlesmith.com for more products and company
information.

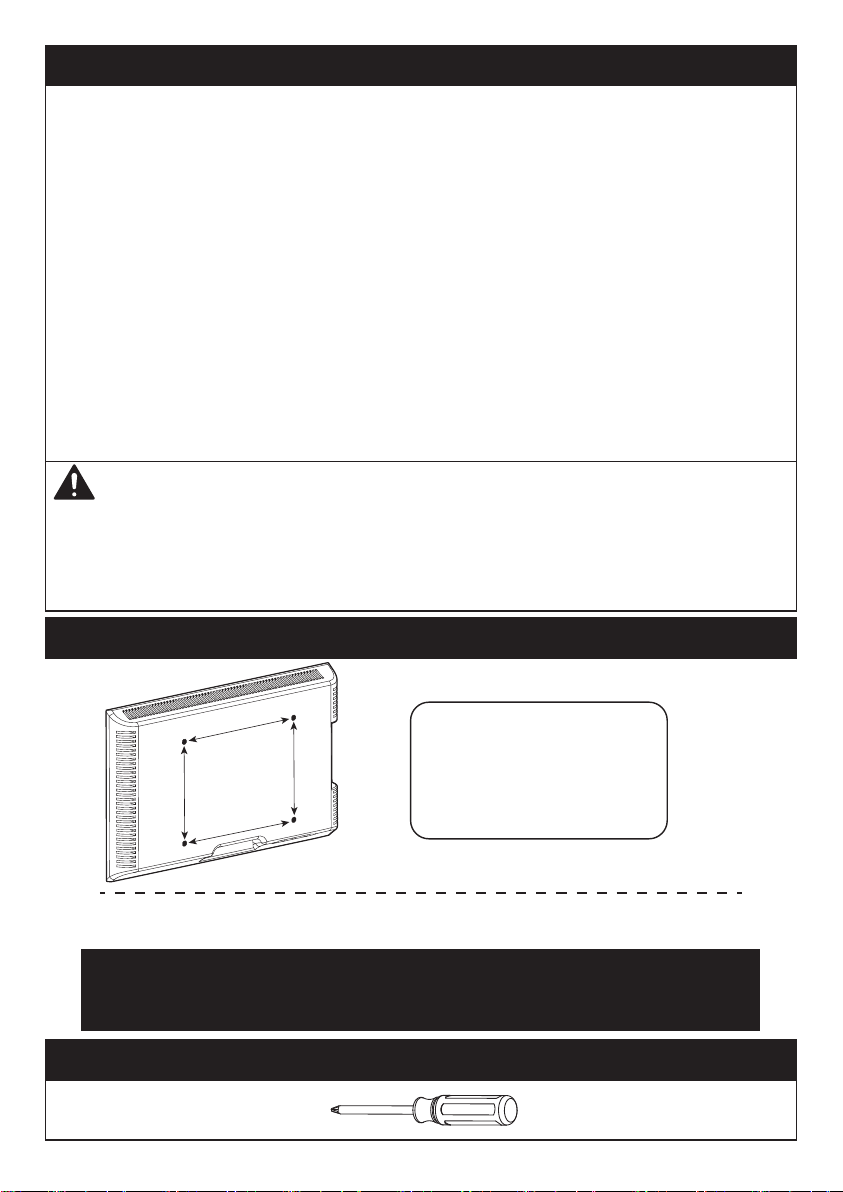

Check the VESA Pattern of TV before the Installation
75 mm ≈ 3 in.
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
300 mm ≈ 11 3/4 in.
400 mm ≈ 15 3/4 in.
Minimum VESA pattern: 75mm/3 in.(W)x75mm/3 in.(H)
If your TV VESA is greater than 400x400 mm/16x16in. or less than
VESA 75x75mm/3x3 in., this TV stand is NOT compatible.
If this TV stand is NOT compatible, please contact customer service
to find a compatible product.
MAX: 400mm/16in.
MAX: 400mm/16 in.
Serious or fatal crushing injuries can occur from tip over. To help prevent tip over:
● Never allow children to climb, stand, hang, or play on any part of TV or TV stand.
● Use tip over restraint or anchor stand to wall.
Use of tip over restraints may only reduce, but not eliminate risk of tip over.
Tip over Warning
Tools Needed (Not lncluded)
• Philips Screwdriver
02
Supplied Parts and Hardware
Supplied Parts
Tempered Glass
Base
Tempered Glass
Base
x1
1
Support Pillar
x2
3
x1
2
Foot
x2
4
Support Pillar
x1
5
Foot
x1
6
Support Pillar
x1
8
Support Pillar
x1
7
M6x450mm
Connecting Rod
x2
9
M8x445mm
Connecting Rod
x2
10
x2
11 x1
15
x2
14
x2
13
x2
12
TV Bracket TV PlateTransfer PlateFoot Cover
M10x620mm
Connecting Rod
Supplied Hardware for Assembling the TV stand
M8x22mm
Bolt
M8
Nut
M8x16mm
Bolt
M8
Rubber Washer
x2
A
M10 Nut
x2
D1
Decorative Cap
x2
D2
Cable Clip
x2
E
13# Wrench
x1
F
13/64 in. (5mm)
Allen Key
x1
B1
17#
Wrench
x1
B2 x2
C1 x2
C2 x2
C3
Supplied Hardware for Attaching TV Brackets to TV
M6x15mm
Bolt
x4
S1
M4x30mm
Bolt
x4
S7
Mounting Bracket
a x2
Steel Cable
b x1
Long Screw
c x1
Short Bolt
d x1
Plastic Anchor
e x1
M6x30mm
Bolt
x4
S2
M8x20mm
Bolt
x4
S3
M8x50mm
Bolt
x4
S4
M6/M8
Washer
x4
S5
L16mm
Spacer
x4
S6-1
L22mm
Spacer
x4
S6-2
Supplied Parts and Hardware for Attaching the TV stand to the wall (Optional)
03
x1
1
1
9
9
M6x450mm
Connecting Rod
Tempered Glass
Base
x2
1010
Step 1 Screw the Connecting Rods [9 and 10] to the Tempered Glass Base [1]
M8x445mm
Connecting Rod
x2
9
10
x2
3
Support PillarSupport Pillar x1
Step 2 Slide the Support Pillars to the Connecting Rods
5
Note: Make sure the side
with the small hole on the
support pillar [5] faces
the back of the stand No Spacer
3
3
5
Note: Make sure the two connecting rods can pass through the
two holes at the top of the support pillar [5]
Front
Back
04
1
12
2
x1
2
2
1
Foot
Tempered Glass
Base
x2
Step 3 Secure Tempered Glass Base [2] and the Feet [4 and 6]
to the Connecting Rods
4
4
x1
6
6
Foot Cover
Foot x2
x2 13/64 in. (5mm)
Allen Key
M8x22mm
Bolt
x1
12
12
A
A
B1
B1
x2
M10x620mm
Connecting Rod
Step 4 Secure the Connecting Rod [11] to the Tempered Glass Base [1]
Make sure matte
side of tempered
glass base [2]
faces upward as
shown in this figure
Turn Over
11
11
Down
UP
05
1
Step 5 Secure Support Pillar [7 and 8] to the Tempered Glass Base [1]
x1 Support PillarSupport Pillar x1
x2 17#
Wrench
Transfer Plate x1
x2 Decorative CoverM10 Nut x2
D1 D2
B2 D2
D1
8
8
7
7
13
13
13
x1
TV Plate
Step 6 Attach the Washer [C1] to TV Plate [15]
x2
M8
Rubber Washer
Attach the rubber washer [C1] to the center of top and bottom of the TV
Plate [15]. Make sure the hole of washer [C1] is align with the center hole on
the TV Plate [15].
Note: Make sure the side
with the small hole on the
support pillar [7] faces
the back of the stand
Please don’t fully tighten nuts [D1]
until Step 7 to fix all the bolts in the
right holes.
Side View
B2
15
15
C1
C1
C1 15
Back
Front
C1
06
x2 M8
Nut
M8x16mm
Bolt
x2
Step 7 Secure the TV Plate [15] Support Pillar
x1 13#
Wrench
13/64 in. (5mm)
Allen Key
x1
Make sure all the bolts are fully tightened before putting on your TV.
The hole on the TV Plate [15] should be aligned with the hole on the Transfer
Plate [13].
Side View
F
F
B1
C2
C2
C2
C3
C3
C3
C1
15
B1
07
M6x15mm
S1 x4
M4x30mm
S7 x4
M6x30mm
S2 x4
Note: The bolts are shown in accordance with the actual size
TV Bolts (Only one bolt size fits your TV)
M8x50mm
S4 x4
M8x20mm
S3 x4
Note: The spacers are shown in
accordance with the actual size
L16mm
Spacer
S6-1 x4
L22mm
Spacer
S6-2 x4
Select TV Bolts
Only one bolt size fits your TV.
Step 8 Secure the TV Brackets [14] to TV
M6
M4
M8
TV Bracket
x2
14
M6/M8
Washer
S5 x4
M4 M6 M8
08
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Long
Correct Correct
Too Short
Option A (For Flat Back TV)
S5
(If needed)
S7/S1/S3
S6-1
(If needed)
14
Please Note: The provided TV bolts meet most of today’s TVs design.
However, some TVs require special bolts which may not be in the hardware
bag. In this case we offer our “PSUHP" Universal Hardware Kit which
provides a large selection of bolts that can meet the demand of older and
unique applications.
Please Note: When using the spacers it is important to note that they can be
used in multi-layers (meaning stacked). If you have any difficulty understand-
ing how to install the TV bolts or spacers, please contact customer service at
CAUTION: Ensure the TV
brackets [14] are EQUALLY
CENTERED on your TV and
securely fastened in place.
Please note: The bolt hole
locations on your TV may vary in
accordance of the manufacturers
design of the TV. We are only
illustrating possible locations of
the bolt holes.

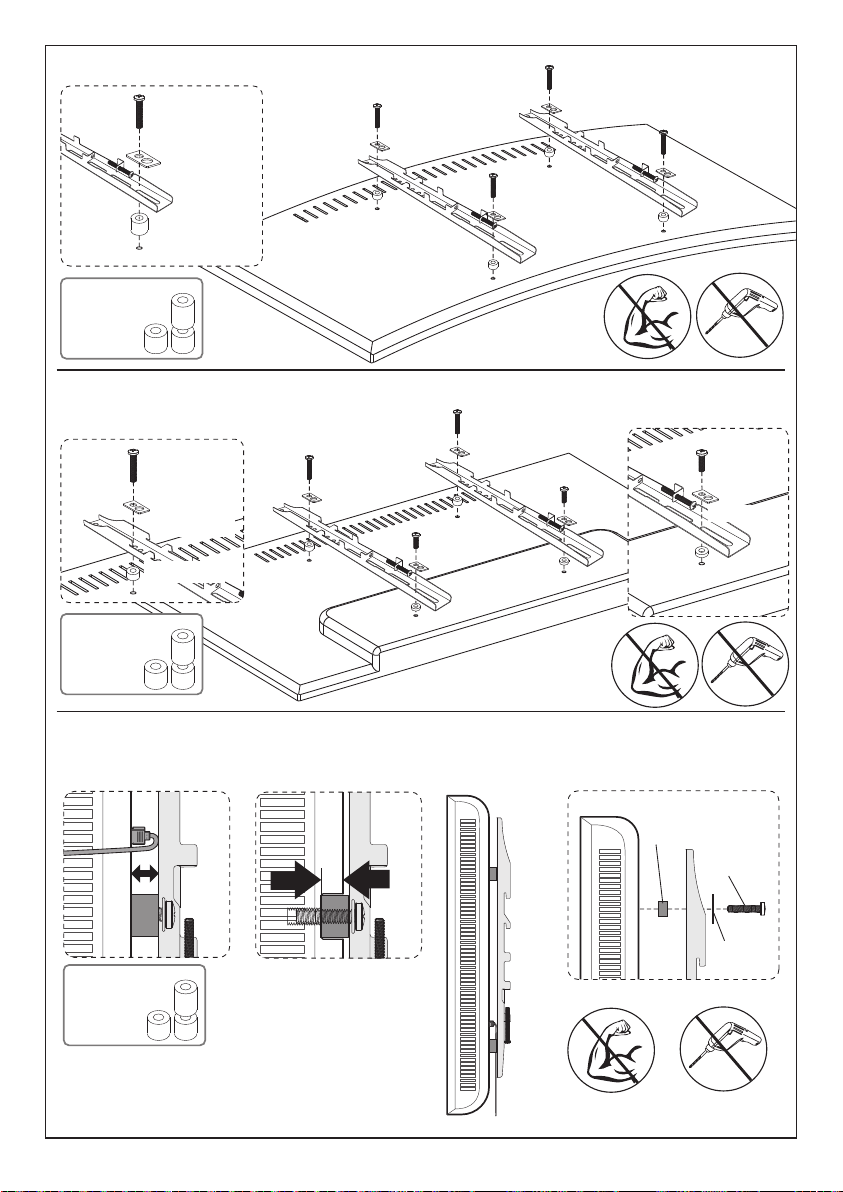

09
Option D
Option B (For Round Back TV)
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
For cable interference or inset holes, use spacers [S6-1] and [S6-2] to create extra
space between the TV and TV brackets
S5
S7/S2/S4
S6-1/S6-2
(If needed)
S7/S1/S3
S5
(If needed)
S6-1 (If
needed)
S7/S2/S4
S6-1/S6-2
S5
(If needed)
Alternate
Spacer
Setups
S5
(If needed)
S7/S2/S4
S6-1/S6-2
Alternate
Spacer
Setups
Alternate
Spacer
Setups
