Perlesmith PSTM2 Manuale utente

Model:PSTM2

Thank you for choosing this Perlesmith product! At Perlesmith

we strive to provide you with the best quality products and

services in the industry. Please share your experience of our

product with others at www.perlesmith.com/pages/reviews if

you are satisﬁed. Should you have any issues, please don't

hesitate to contact us.

Technical Support:

1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)

Other Info:

[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

Website:

www.perlesmith.com

V1.0

TV Tripod Stand

Instruction Manual

Minimum VESA pattern: 200mm/8 in.(W)x100mm/4in.(H)

If your TV VESA is greater than 600x400 mm/24x16 in. or less than VESA

100x100mm/4x4in., this TV tripod stand is NOT compatible.

If this TV tripod stand is NOT compatible, please contact customer

service at [email protected] to ﬁnd a compatible product.

MAX:600mm/24in.

MAX:400mm/16in.

• Check to assure that all components were received undamaged. Do

not use damaged or defective parts. lf you require replacement parts,

contact customer service at [email protected].

• Install and operate this product with care. Please read this instruction

before beginning the installation, and carefully follow all instructions

contained herein. Use proper tools during installation.

•

If you do not understand the instructions or have any concerns or

questions, please contact customer service at supportus@per-

lesmith.com.

• Do not use this product for any purpose that is not explicitly speci-

ﬁed in this manual. Do not exceed weight capacity. We cannot be

liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

TIP OVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIP OVER.

TO HELP PREVENT TIP OVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON

ANY PART OF TV OR TV STAND.

•USE TIP OVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIP OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT

ELIMINATE RISK OF TIP OVER.

Check the VESA Pattern of TV before the Installation

100mm ≈ 4in.

200mm ≈ 7 7/8in.

300mm ≈ 11 3/4in.

400mm ≈ 15 3/4in.

600mm ≈ 23 6/10 in.

Pole Assembly

Head Assembly with TV Plate

TV Bracket

Cable Tie

L(x3)

M4x30mm Bolt

A(x4)

M8x15mm Bolt

D(x4)

φ8.5x18x5mm Spacer

G(x8)

φ8.5x18x10mm Spacer

H(x8)

M8x50mm Bolt

E(x4)

Washer with 3 Holes

F(x4)

M6x15mm Bolt

B(x4)

M6x30mm Bolt

C(x4)

Allen Key

M(x1)

Wrench

N(x1)

Warning:

After adjusting the pole to

desired height, insert the latch

[S] to the holes on the upper

pole. Fasten the knob [K1] to

hold upper pole.

Tighten the knob

to secure the

head assembly.

in.

STEP 1 Adjust the Height of Pole

STEP 2 Secure the Head Assembly with TV Plate to Pole

Assembly

600mm

23.6in.

1. Loosen the lower knob.

2. Adjust the distance between each

feet to be 600mm/23.6in.

3. Tighten the lower knob

Note: It is recommended to

align the center of the TV

plate with one foot of the

tripod stand

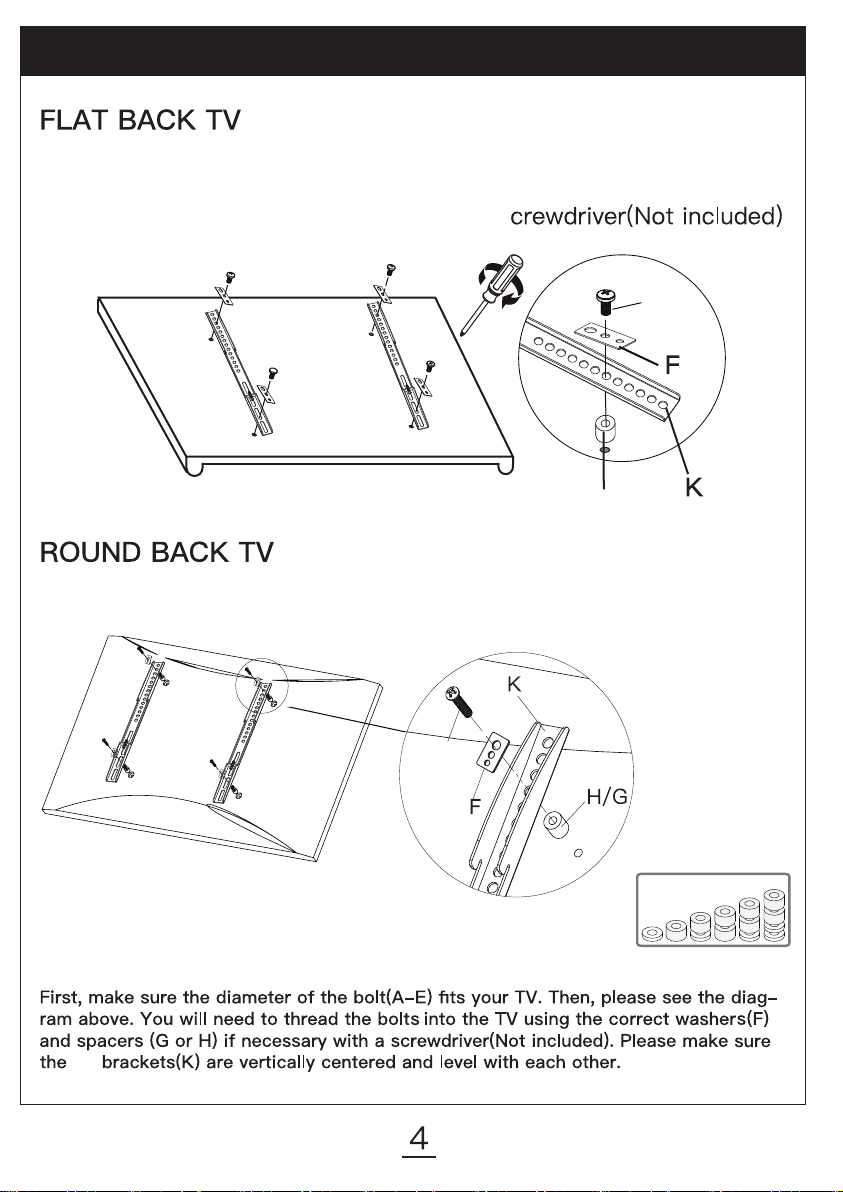

STEP 3 Secure the TV Brackets to Your TV

A/B/D

A/C/E

Alternate Spacer

Setups

(UNIVERSAL TV PLATE)

G+H

（If needed）

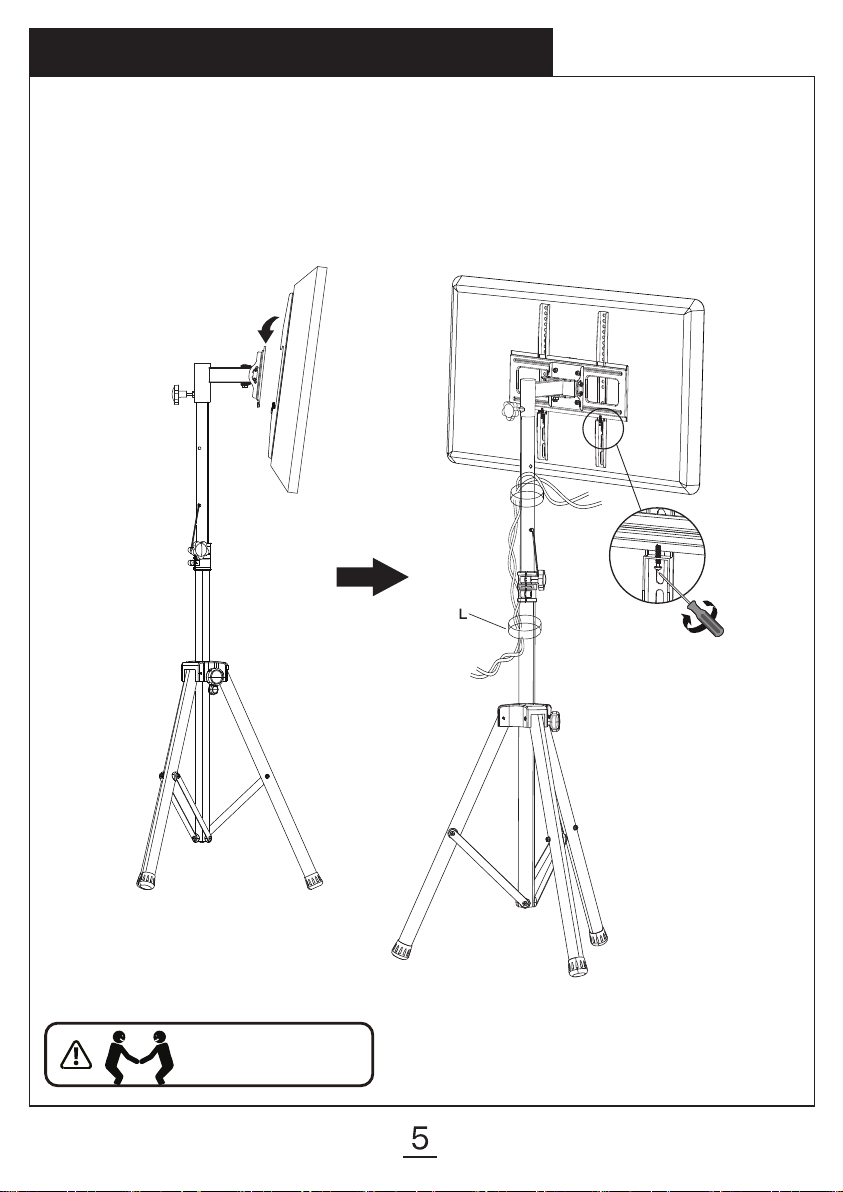

STEP 4 Secure the TV onto the Plate

Tighten the bolts to

secure the TV brackets

You may need

assistance with this step.

STEP 5 Adjust Level and Tilt Angles

1. Loosen the two level bolts.

2. Adjust the TV to the desired tilting angle.

3. Fasten the bolts to hold the tilting angle of

the TV.

Tilt Adjustment

1. Loosen the four nuts [N].

2. Level your TV.

3. Retighten both nuts [N] to hold TV

in place.

Level Adjustment

Warning: Do not over-loosen the nuts or

bolts to prevent the TV from falling

down.

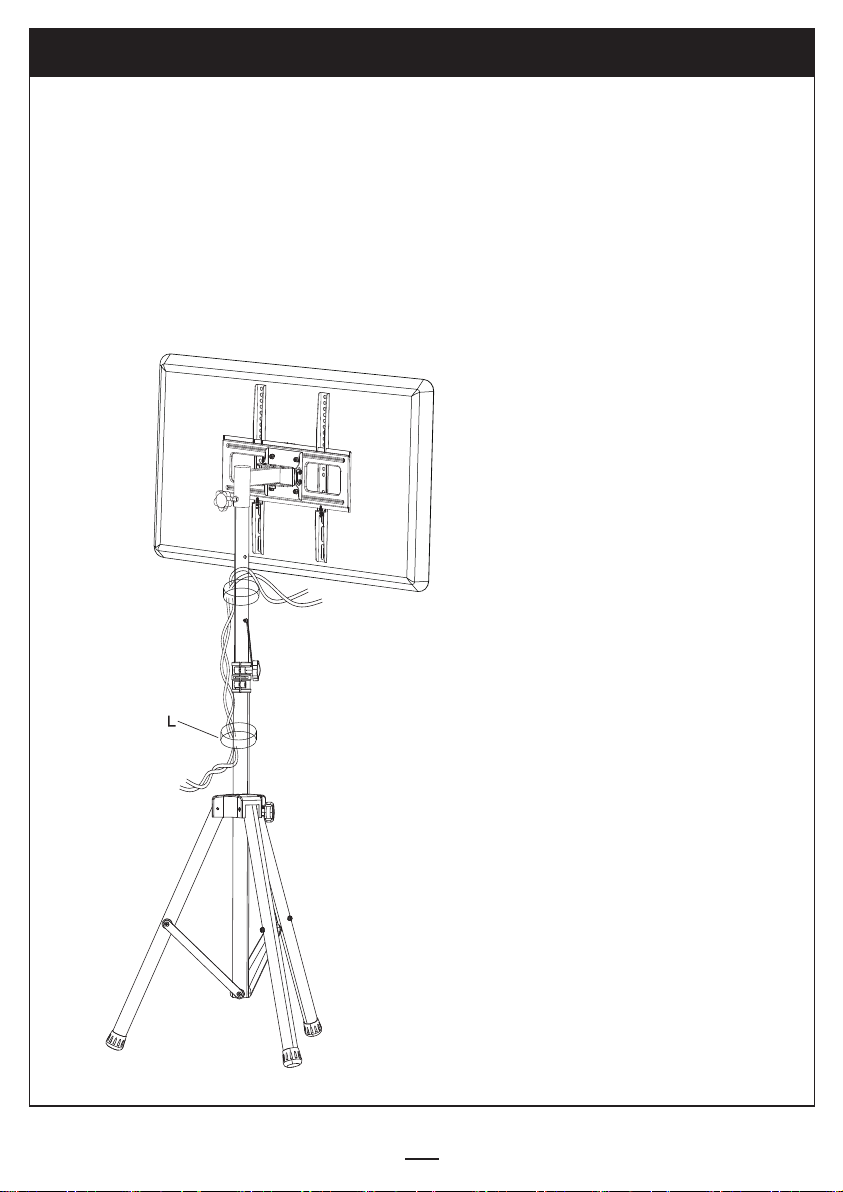

Cable organizers [L] are used

for cables management

STEP 6 Manage the Cables
