Philips LX Series Manuale utente

LX Series

HEAVY DUTY LED EXIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

of the exit stencil face is

accomplished with either

red or green high-output

Light Emitting Diodes (LEDs).

Hot spots and striations are

eliminated by a combination

of indirect and direct aiming

points covering the exit stencil

face.

Housing: Constructed of

three-piece, 20 gauge, cold

rolled steel. White powder

coat finish is standard, black

is optional. NFPA-compliant

field-selectable chevrons. UL

damp location listing is available

on the AC Only version.

Universal knockouts located

on the backplate allow for wall

mounting directly to standard

junction boxes. A mounting

canopy is provided for top and

end mount applications.

Operating Temperature

Range: Standard Location

65°F (19°C) to 85°F (30°C)

Damp Location

50°F (10°C) to 104°F (40°C)

Electronics: AC Only -

120/277 VAC dual voltage

input.

Self-Powered - 120/277 VAC

dual voltage input with surge-

protection, solid-state circuitry

provides for a reliable charging

system. Charging system is

complete with low voltage

disconnect, AC lockout,

brownout protection, AC

indicator lamp and test switch.

Electrical Specifications:

AC Only Red:

0.030 A (120 VAC)

0.013 A (277 VAC)

AC Only Green:

0.035 A (120 VAC)

0.015 A (277 VAC)

Self-Powered Red:

0.037 A (120 VAC)

0.016 A (277 VAC)

Self-Powered Green:

0.037 A (120 VAC)

0.016 A (277 VAC)

Code Compliance

UL 924 listed. Optional UL

damp location (AC only

versions) listed. NFPA 101,

NEC, BOCA, OSHA and IBC

illumination standards.

Warranty

Three year full electronics

warranty. Five year full,

five year prorated battery

warranty.

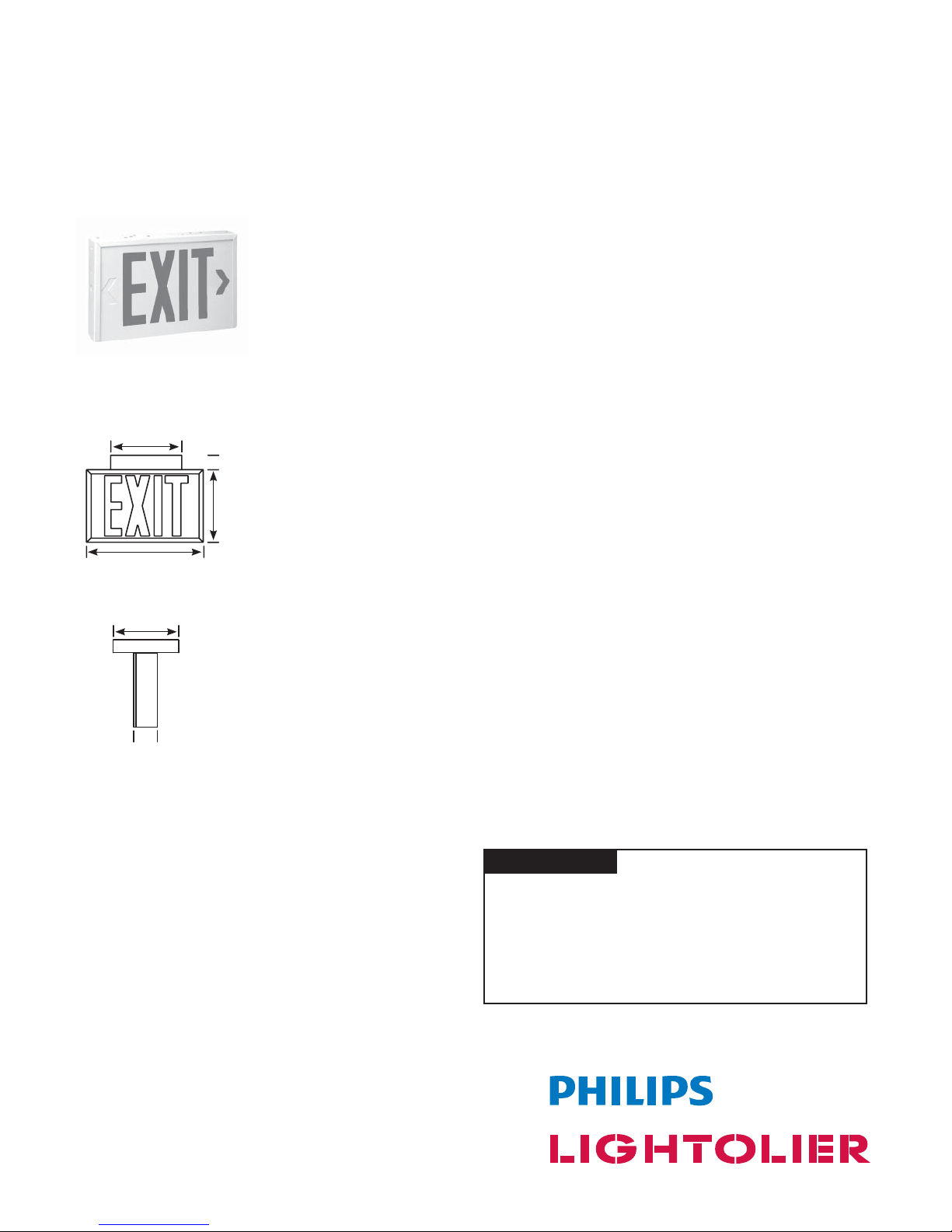

12.5"

(31.8 cm)

LXN1RW

7.8 "

(19.9 cm)

6.8"

(17.3 cm)

2.0"

(5.1 cm)

4.8"

(12.2 cm)

2.5"

(6.4 cm)

LX Series

HEAVY DUTY LED EXIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LX Series August 12, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LX = LX Series

Heavy Duty Steel

LED Exit

A= AC Only

N= Nickel Cadmium

Battery

B= Black

W= White

Housing Color

1= Single

2= Double

# of Faces

R= Red

G= Green

Letter Color

Accessories (order as a separate item)

XCKITW = Canopy Kit, White

DCKCE06 = DC Conversion Kit, 6 VDC, 5.4 W lamps

DCKCE22 = DC Conversion Kit, 12 VDC, 5.5 W lamps

XPKIT12W = Pendant Kit, 12”, White Finish

WG4 = Wire Guard for Exit Wall Mounting

WG10 = Wire Guard for Exit End Mounting

2CKT1 = 120 VAC Two Circuit Wiring

2CKT2 = 277 VAC Two Circuit Wiring

BF = Buzzer/Flasher (emergency units only)

BZ = Buzzer (emergency units only)

EX = Special Input Transformer (specify voltage

and frequency)

FA = 24 VDC Fire Alarm Interface

FL = Emergency Flasher

SW = Special Wording (consult factory)

Z= UL Damp Location Listing (AC only)

Factory Installed Options1

Note

1) Some option combinations may impact UL listing. Consult factory for specifics.
