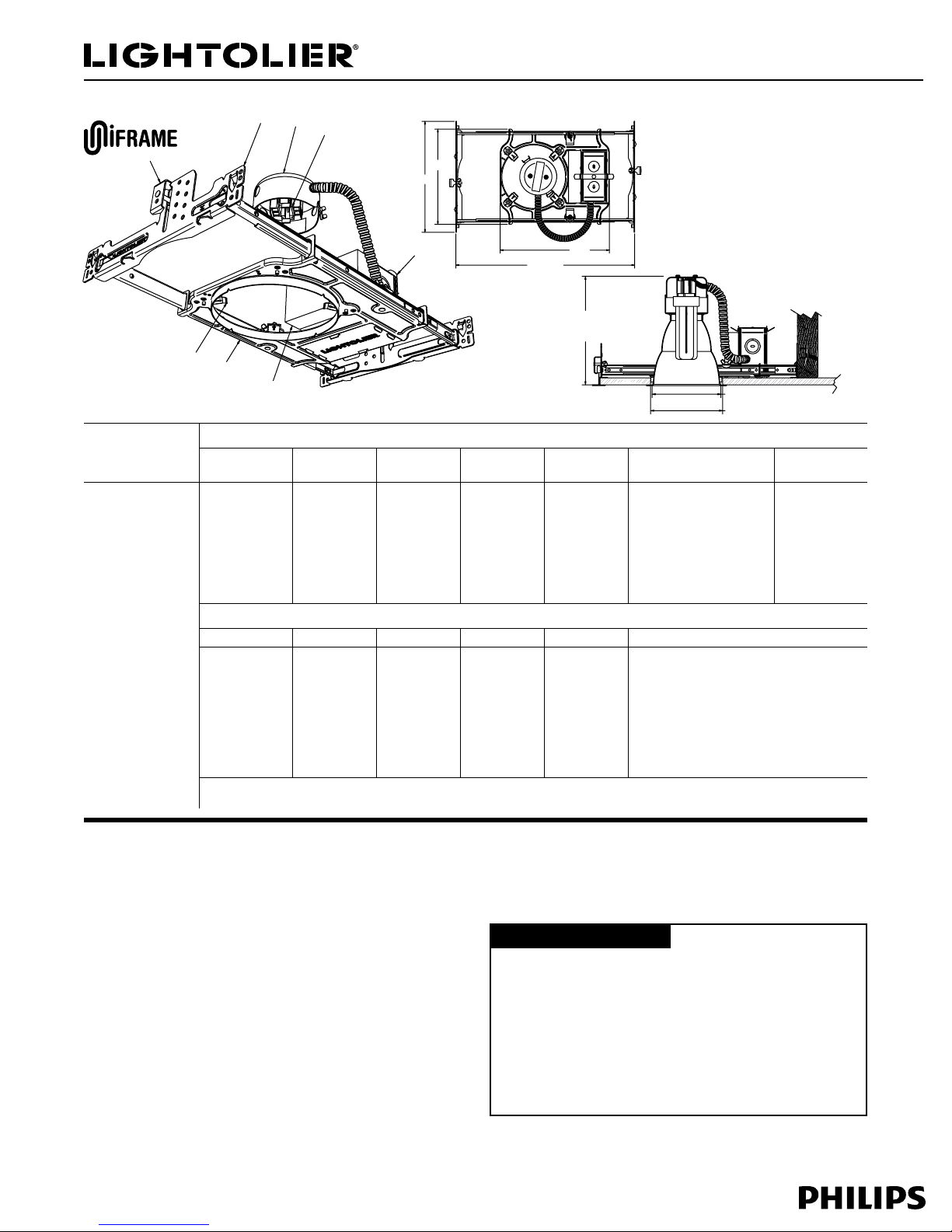

Performance Recessed CFL Downlighting 1001FDL

Page 1 of 1 5" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit

Lightolier is a Philips group brand

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Mounting Frame: 036" (#20ga.) Galvanized Steel. Accommodates all

ceilings up to 1-1/2" thick; including existing or inaccessible areas.

2. Trim Clips: “Push In / Twist Out” Stainless Steel clips hold reflector flush to

ceiling.

3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL

Listed for maximum of 8 (#12ga.) through branch circuit conductors.

4. UniFrame™ Mounting System – Grid Ceiling: Tool free mounting in grid

ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to

24-1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps

for positive attachment to grid ceiling systems.

5. UniFrame™ Mounting System – Wood Joist Ceiling: Integral nailing

tabs, alignment guides, fastener holes and bendable strapping guides for

wood joist installation. Galvanized Steel interlocking slide bars adjust from

12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C. joist spacing, with

or without strapping.

6. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life

protection, class “P” thermally protected, class “A” sound rating.

7. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

8. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to

reflector trim by spring clip for precise optic alignment.

Labels

cULus Listed. Suitable for Damp Locations.

Accessories

1967B Extra Thick Ceiling Adapter (1 1/2" to 2" thk)

FOR O.A. HEIGHT

SEE TRIM

SPECIFICATION

5" FRAME APERTURE

5 1/4" CEILING CUTOUT

8 7/8"

7 3/4"

12 15/16" MIN

24 1/8" MAX

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™

Frame-In Kit

Uniframe™Compact Fluorescent Performance Series Reflector Trims

Vertical Open Vertical Wall

Wash - Single

Vertical Wall

Wash - Double

Horizontal Open Horizontal Wall

Wash - Single

Horizontal Wet Location

Lensed / Diffused

Horizontal Cross

Blade

1001FD26L1

(Lutron**26w – 120v)

26w Triple

GX24q-3 Base

120v – 0.26amp max

1001FD26L2

(Lutron**26w – 277v)

26w Triple

GX24q-3 Base

277v – 0.12amp max

1001CL

1001CD

1001WH

1001CLSW

1001CDSW

1001WHSW

1001CLDW

1001CDDW

1001WHDW

1001HCL

1001HCD

1001HWH

1001HCLSW

1001HCDSW

1001HWHSW

Clear Lens Fresnel

1001HCLC 1001HCLF

1001HCDC 1001HCDF

1001HWHC 1001HWHF

Opal Lens

1001HCLO

1001HCDO

1001HWHO

1001HACB

1001HWHCB

Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)

Performance Cone Cone Satin Cone Bafe Wet Location

1013CFL

1013CDCFL

1012*

1013*

1013BK*

1013WH

1013CD*

1071

1045

1046

1046CD

1008*

1010*

1005*

1005BNM

1005WH

1076

1076WH

1024

1078

**Lutron Compact SE 5%

*Add NM sufx to catalog number for Natural Metal ange and nish.
