Philips PTS7-1 Manuale utente

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lighting Systems PTS7-1

1BHFPG 1FSJNFUFS5SPVHI3FDFTTFE%JSFDU-PVWFS-JHIU51FS'PPU4FDUJPO

$

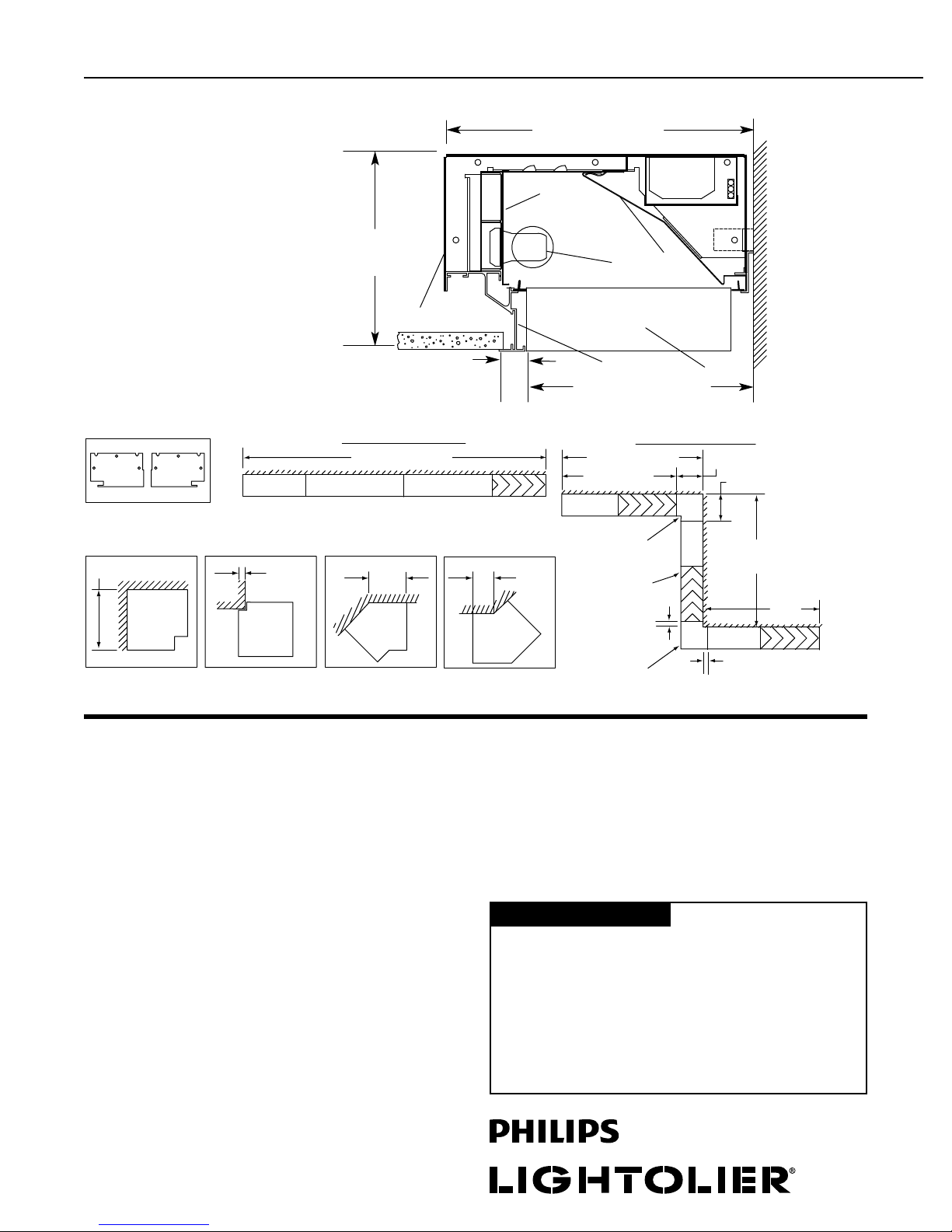

Sample Run, End Plate and Corner Block Accessories

Quarter Scale

Complete ordering instructions on back.

Example of Straight Run

Lighted

Telescoping

Unit

84"

60"

Example of Pattern Run

Telescoping

Unit

90°Inside Corner

48"

60"

48"

(3 places)

135° Outside

PTS7C1350 Standard

PTS7C1350A Air

8 -1/2” (245.11cm)

135° Inside

PTS7C1351 Standard

PTS7C1351A Air

90° Outside

PTS7C900 Standard

PTS7C900A Air

90° Inside

PTS7C901 Standard

PTS7C901A Air

End Cap Set

PTS7EP Standard

PTS7EPA Air

14” (35.56cm)

Features

2. Lamping: One T8 fluorescent lamp, as specified. Provided by others.

3. Reflector: Die-formed semi-specular aluminum.

4. Louver: Semi-specular anodized aluminum, 40° lengthwise by 30° minimum

crosswise shielding. Supported along both edges by concealed frame of

extruded aluminum. Bold baffle, prismatic lens, gold anodized louver, open or

egg crate louver available, consult factory.

5. Socket Channels: Die-formed, pre-painted steel held by support brackets and

allows for up to 6” (15.24cm) lamp overlap.

Electrical

Specify 120 volt or 277 volt. 3 conductor, 18 gauge wire. Color-coded quick

connectors allow ease of connection for joiner modules. For special circuiting,

consult factory. Factory installed ballast disconnect allows the ballast to be

disconnected fromand reconnected to incoming power under load without turning

the entire circuit off.

Dimming: Advance Mark X, use Advance compatible two-wire control (no extra

control lead required).

Mountings

Wall Adjustment Bracket - Allows for inconsistencies in wall straightness.

Die-formed steel used to mount systemto the wall.

Finish

Ceiling trimpainted baked enamel semi-gloss white.

Options and Accessories

90° inside, 90° outside, 135° inside, and 135° outside corerns available.

Labels

UL, cUL and I.B.E.W.

11-1/4” (28.58cm)

7 -1/16”

(19.94cm)

1-5/16” (3.33cm)

8-1/4” (20.96cm)

1-1/2” (3.81cm)

1-1/2”

(3.81cm)

4-3/4” (12.07cm)

1-1/2” (3.81cm)

Housing: Die-formed steel, slotted for air return. Integral flanges at each end

strengthen the housing and permit housings to be bolted together in continuous

runs and facilitate suspension of fixture. Concealed openings for heat extraction

and air return.

Ceiling Trim: Extruded aluminumwith integral aligner splines.

90° Outside Corner

8' 1/2”

(245.11cm)

8' 1/2”

245.11cm

14" (35.56cm)

10' 2-1/4” (310.52cm)

9' 0” (274.32cm)

21' 10-3/4” (677.39cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems PTS7-1

1BHFPG 1FSJNFUFS5SPVHI3FDFTTFE%JSFDU-PVWFS-JHIU51FS'PPU4FDUJPO

$

Performance & Quick Calculators

85˚

75˚

65˚

45˚

55˚

0˚ 5˚ 15˚ 25˚ 35˚

600

750

450

900

050

300

0 deg

deg

180

deg

CANDLEPOWER CURVE

REPORT NO: LRL 499-5D

LAMPS: 1-FO32T8

EFFICIENCY: 46.7%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

50 30 10 50 30 10 50 30 10

0565656 54 5454 525252

1504947 49 4846 474645

2454341 44 4240 434139

3413835 40 3735 393634

4373431 36 3331 353330

5333027 33 3027 322927

6302724 30 2724 292624

7282421 27 2421 272421

8252119 25 2119 242119

9231917 22 1917 221917

10 21 17 15 21 17 15 20 17 15

CANDLEPOWER SUMMARY

ZONE

Deg

0 45 90 135 180

180 00000

175 00000

165 00000

155 00000

145 00000

135 00000

125 00000

115 00000

105 00000

95 00000

90 00000

85 39 15 2 2 2

75 153 90 5 3 3

65 440 120 13 8 9

55 560 338 79 34 14

45 669 532 288 64 32

35 754 705 512 103 55

25 885 833 677 225 104

15 969 949 778 386 285

5 950 920 837 704 620

0 833 833 833 833 833

ZONE LUMENS % BARELAMP % LUMINAIRE

0-90 1354 46.7 100.0

90-180 0 0.0 0.0

0-180 1354 46.7 100.0

Quick Calculators

ONE SIDE MOUNTING

NO OPPOSITE WALL

1.5 63

2.5 33

3.5 22

4.518765133231815

5.5 16

6.5 15

7.514514535282319

8.5 12

9.512403833272320

024681012

DISTANCE FROM WALL, FEET

TWO SIDE MOUNTING

12 FT BETWEEN WALLS

1.5 76 76

2.5 50 50

3.5 41 41

4.5 38 92 73 65 73 92 38

5.5 37 37

6.5 35 35

7.5 34 72 71 69 71 72 34

8.5 33 33

9.5 32 63 66 65 66 63 32

024681012

DISTANCE FROM WALL, FEET

ONE SIDE MOUNTING

6 FT BETWEEN WALLS

1.5 72 39

2.5 43 45

3.5 33 45

4.5 28 85 68 43

5.5 26 40

6.5 24 37

7.5 22 60 55 33

8.5 21 30

9.5 19 49 48 28

0246

DISTANCE FROM WALL, FEET

HORIZONTAL FC

VERTICAL FC

DISTANCE FROM CEILING, FT

NOTE: Add to end of catalog number for desired ballast.

E81 = T8 Electronic 120v

E82 = T8 Electronic 227v

M71 = T8 Electronic Dimming Ballast 120v

M72 = T8 Electronic Dimming Ballast 277v

Ordering Instructions

Individual Fixtures:

1. Order number of FIXTURES.

2. Order one END PLATE SET per fixture.

Continuous Rows:

1. Determine run length.

2. Use chart above to find catalog numbers. Each run ends with a telescoping unit.

3. Order END PLATE SET for each open run.

Square/Rectangle Patterns:

1. Consult plans and mark locations for corners.

2. Calculate net footage of each run.

3. Deduct corner dimension fromeach corner.

4. Determine catalog numbers the same way as a straight run.

Cat No. PTS7T148 PTS7184 PTS7160 PTS7148 PTS7136 PTS7124

Size 27" to 48" 84" 60" 48" 36" 24"

Lamps 1-4 Foot 2-4 Foot 2-3 Foot 1-4 Foot 1-3 Foot 1-2 Foot

Type Tele Module Module Module Module Module

4 '3"-6'0" 1 1

5'3"-7'0" 1

6'3"-8'0" 1

7'3"-9'0" 1

8'3"-10'0" 1 1

9'3"-11'0" 1 1

10'3"-12'0" 1 1

11'3"-13'0" 1

12'3"-14'0" 1 1 1

13'3"-15'0" 1 1 1

14'3"-16'0" 1

15'3"-17'0" 1 1 1

16'3"-18'0" 1 2

17'3"-19'0" 1 1 1

18'3"-20'0" 1 2 1

19'3"-21'0" 1 2 1

20'3"-22'0" 1 2 1

21'3"-23'0" 1 2 1

22'3"-24'0" 1 2 1

23'3"-25'0" 1 3

24'3"-26'0" 1 2 1

25'3"-27'0" 1 3 1

26'3"-28'0" 1 3 1

27'3"-29'0" 1 3 1

28'3"-30'0" 1 3 1

29'3"-31'0" 1 3 1

30'3"-32'0" 1 4

31'3"-33'0" 1 3 1

32'3"-34'0" 1 4 1

33'3"-35'0" 1 4 1

34'3"-36'0" 1 4 1

35'3"-37'0" 1 4 1

36'3"-38'0" 1 4 1

37'3"-39'0" 1 5

38'3"-40'0" 1 4 1

39'3"-41'0" 1 5 1

40'3"-42'0" 1 5 1

41'3"-43'0" 1 5 1

42'3"-44'0" 1 5 1

43'3"-45'0" 1 5 1

44'3"-46'0" 1 6

45'3"-47'0" 1 5 1

46'3"-48'0" 1 6 1

47'3"-49'0" 1 6 1

48'3"-50'0" 1 6 1

49'3"-51'0" 1 6 1

50'3"-52'0" 1 6 1

51'3"-53'0" 1 7

52'3"-54'0" 1 6 1

Ordering Information

ONE LIGHT

180

deg 0 deg

deg

% WALL REFLECTANCE

ROOM CAVITY RATIO

ZONAL LUMEN SUMMARY
