ANZ 200
Operation Manual
This manual covers ANZ 200 indicator (hereinafter referred to as "device"); it contains technical data,
description of design and other information necessary for proper application and maintenance of the device.
There are several versions of the device. Refer to specifications (www.piezus.ru), full code of the device, for
the version information.
Production regulated by TOR 4212-000-7722857693–2015.
Terms and abbreviations used in the manual: Span – measurement range; URL – upper range limit (a.k.a
URV).
1 Purpose of the device
1.1 The device converts unified current signal (4 ... 20 mA) into present value of the parameter controlled
and delivers it to the display; it is also capable of controlling an external electric circuit from the built-in
switch.
1.2 The device is a local indicator for any general purpose industrial transmitter that outputs a unified signal
of 4...20 mA (2 wire) through a DIN 43650 connector.
1.3 Applications: control, safety, signaling and supervision systems in various industrial environments and at
public utilities.
2 Technical specifications
2.1 General technical data
2.1.1 The device:
- displays current values of the parameter measured by the connected transmitter in a user-friendly form
(units of measurement selected by user);
- stores peak values registered and shows graphs covering last hour, day, month, quarter;
- activates switch output when the controlled parameter reaches a set threshold;
- accepts operating mode adjustments made with control buttons (on the front panel).
- prevents unauthorized access to settings with a password.
2.1.2 The device is mounted onto a transmitter with a DIN 43650 connector; it is powered by the
transmitter's current loop (resulting voltage is 6.5 V).
2.1.3 Resolution of the OLED display is 128 × 64 pixels; it measures 30 × 16 mm (see Table 1 for its basic
specifications).
Table 1 - Display parameters
Range of displayed values
Displayed accuracy
0.1 % of span ± low-order digit as %
of span
Readings display time (with pressure snubbing off) ≤1 s
Displayed readings change delay (programmable)
2.1.4 The switch output is based on an NPN transistor key (open collector); see Table 2 for its parameters.
Table 2 - Switch output parameters
Max switching current
30 mA, short-circuit protection
Voltage drop when functioning, max
Switch output action repeatability
≤ ± 0.1% of span
≤ ± 0.5% of span
Switching outputs resource
* Accuracy includes non-linearity, hysteresis and repeatability (under IEC 60770).
2.1.5 Housing of the device is plastic (see Supplement A). The display rotates for 330° in one plane (relative
to the connector).
2.1.6 Housing dimensions, mm, max: 81 × 69 × 48 mm.
2.1.7 Weight, max: 0.11 kg.
2.1.8 Housing ingress protection (GOST 14254) - IP65.
2.2. Operating conditions:
- enclosed explosion-proof spaces free from aggressive vapors and gases;
- ambient air temperature from -25 to +85 °С, relative humidity from 5 to 95% (no moisture condensation);
- atmospheric pressure from 84 to 106.7 kPa (group P1 under GOST R 52931, max height above sea level -
1000 m).
Resistance to mechanical attack puts the device in group F3 under GOST R 52931: resistant to sinusoidal
vibration with acceleration of 49 m/s2, frequency (10 ... 500) Hz and amplitude of 0.35 mm.
2.3 Electromagnetic interference resistance and emission
Electromagnetic emission: the device is a Class A equipment under GOST R 51318.22.
Electromagnetic interference resistance: the device is a class 3 equipment under GOST R 51317.4.3.
3 Safety precautions
3.1 The electric shock hazard class of the device is III (no dangerous voltage); see GOST 12.2.007.0 for full
classification.
3.2 Take measures to prevent moisture from getting into the housing and onto connector pins.
4 Installation instructions
4.1 Install the device with maintenance convenience (incl. mounting, dismantling) in mind. Rotate the display
to position it for convenient reading.
4.2 Always cut off power when connecting the device's circuits.
4.3 Connect circuits through the connector as prescribed by Appendix B.
5 Setup
5.1 General information
5.1.1 There are control buttons and a display on the front panel of the device. Press any button to cycle
through displayed information (see Figures 1-4).
Figure 1 - Switchable screens displaying the measured value
Figure 2 - Switch screen showing current switch output parameters
Figure 3 - MIN/MAX screen showing minimal and maximal values for 1 hour (press a button to cycle through
other interval options: 24 hours, 30 days, 90 days)
Figure 4 - Graph screen showing the signal change graph (vertical axis adjusts automatically to fit into the
display)
Factory settings of the switch: mode - hysteresis; switching-on threshold - 55% of URL;
switching-off threshold - 45% of URL; switching-on delay - 0 s; switching-off delay - 0 s.
5.2 Setup access

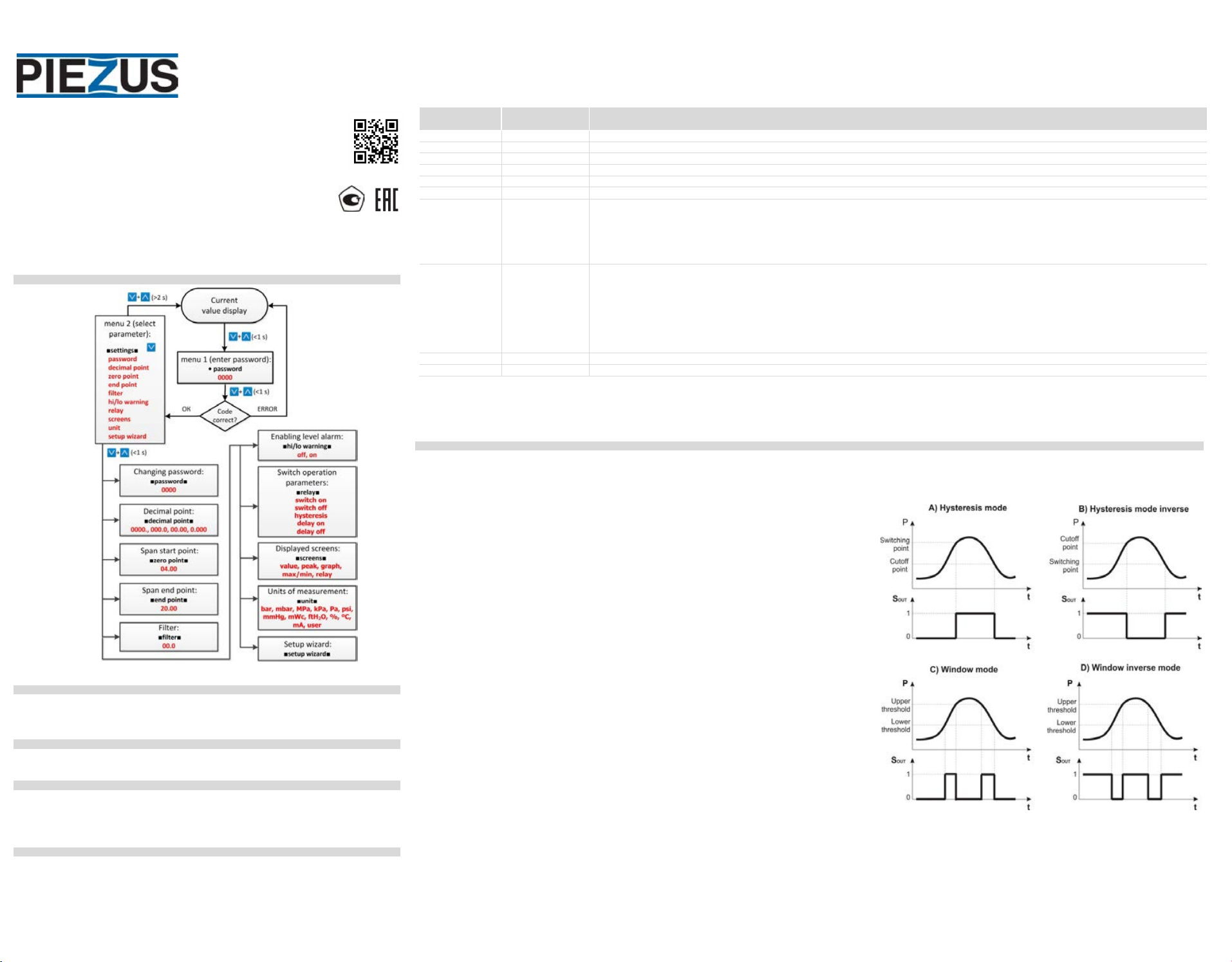

5.2.1 You can change operation parameters of the device in the special menu. To access this menu:
1) press both control buttons simultaneously;
2) enter password (using control buttons) in the dialog box;
3) press both control buttons simultaneously to confirm the password; if it is correct, you access the setup
menu.
5.2.2 To return to the operation mode, press and hold (2 seconds) both control buttons.
5.2.3 Refer to the Programming manual for menu description and programming instructions.
6 Maintenance
Routine maintenance frequency - at least once a year; it includes checking reliability of mounting and removal
of dust and dirt.
Always follow safety precautions described in section 3 when doing maintenance.
7 Marking
The device bears a label (sticker on the back of the housing) that contains the following information:
- name of the manufacturer, bar code (QR code); name and code of the device;
- type of connector, numbers of electrical contacts (for connector);
- input signal range; rated supply voltage and its type;
- electric shock protection class (GOST 12.2.007.0);
- ingress protection (IP code) under GOST 14254; serial number, month and year of manufacture.
8Package contents
1 copy
* 1 copy per 10 transmitters for batch supplies to the same address. The paper can be downloaded
from the manufacturer's website.
9 Transportation and storage
9.2 Transport in packaging; permissible temperature from -40 to +85 °C, relative humidity below 95% (at
+35 °C).
9.2 Use roofed transport to deliver the device.
9.3 Store in packaging in closed warehouses; permissible temperature from 0 to +55 °C, relative humidity
below 95% (at +35 °C). The air in the warehouse should be free from aggressive vapors and gases.
10 Resource and service life
10.1 Operating mode: continuous.
10.1 Mean time between failures: 120,000 h.
10.3 Service life - 12 years (normal working conditions: non-aggressive medium, temperature at +23 ± 3 °С,
no vibrations and shaking).
11 Disposal
11.1 The device contains no precious metals.
11.2 Dispose of as prescribed by regulations adopted by the operator.
Supplement A Housing and control elements
Supplement B Wiring diagram
Figure B.1 - Connection of version with switch output
Figure B.2 - Connection of version without switch output
--------------------------------------------------------------------------------------------------------------------------
