Plantronics CS10 Manuale utente

Cordless

Telephone

Headset

System

Product Information Booklet

Power

Charge

Tal k

Page

VOLUME

CHANNEL MUTE

TALK

Includes:

safety

instructions

specific

operating

instructions

alternate

headset

configurations

troubleshooting

warranty

and other

information

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 1

Thank you for purchasing

the CS10 Cordless Telephone

Headset System. This Product

Information Booklet provides

additional product details

once you have used the

Quick Start Guide to set up

and test your system.

Power

Charge

Talk

Page

– +

VOLUME

CHANNELMUTE

TALK

WELCOME

Table of Contents

Safety Information 1

Operating Instructions 5

Re-configure Headset 7

Features 9

Troubleshooting 11

Accessories 14

Warranty & Service 15

FCC Information 17

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 2

WELCOME

5Do not place this product

on an unstable cart,

stand or table. The prod-

uct may fall, causing

serious damage.

6This product should never

be placed near or over

a radiator or heat regis-

ter. It should not be

placed in a built-in

installation unless proper

ventilation is provided.

7This product should be

operated only from the

type of power source

indicated on the marking

label. If you are not sure

of the type of power sup-

ply to your home, consult

your dealer or local

power company.

8Do not allow anything to

rest on the power cord.

Do not locate this product

where the cord will be

damaged by persons

walking on it.

SAFETY INSTRUCTIONS

When using your telephone

equipment these basic

safety precautions should

be followed to reduce the

risk of fire, electric shock,

and injury to persons.

1Read and understand

all instructions.

2Follow all warnings and

instructions marked on the

product. The symbol

identifies and alerts the

user to the presence of

important operating and

service instructions.

3Unplug this product from

the wall outlet before

cleaning. Do not use

liquid cleaners or aerosol

cleaners. Use a damp

cloth for cleaning.

4Do not locate this product

near water, for example,

near a bathtub, wash

bowl, kitchen sink, or

laundry tub, in a wet

basement or near a

swimming pool.

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 3

trical storm. There may be

a remote risk of electric

shock from lightning.

13 Do not use telephone

equipment to report a

gas leak in the vicinity

of the leak.

14 Unplug this product from

the wall outlet and refer

servicing to qualified serv-

ice personnel under the

following conditions:

a) When the power

supply cord or plug is

damaged or frayed.

b) If liquid has been

spilled into the product.

c) If the product has been

exposed to rain or water.

d) If the product does

not operate normally by

following the operating

instructions. (Adjust only

those controls that are

covered by the operating

instructions because

improper adjustments of

other controls may result

9Do not overload outlets

and extension cords as

this can result in risk of

fire or electric shock.

10 Never push objects of

any kind into this product

as they may touch dan-

gerous voltage points or

short out parts that could

result in a risk of fire or

electric shock. Never

spill liquid of any kind

on the product.

11 To reduce the risk of

electric shock, do not

disassemble this product,

but take it to qualified

service personnel when

service or repair work

is required. Opening or

removing covers may

expose you to dangerous

voltages or other risks.

Incorrect reassembly

can cause electric shock

when the product is

subsequently used.

12 Avoid using telephone

equipment during an elec-

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 4

in damage and will often

require extensive work

by a qualified technician

to restore the product to

normal operation.)

e) If the product has been

dropped or the base unit

has been damaged.

f) If the product exhibits

a distinct change in

performance.

15 Never install telephone

wiring during a lightning

storm.

16 Never install telephone

jacks in wet locations

unless the jack is specifi-

cally designed for wet

locations.

17 Never touch uninsulated

telephone wires or termi-

nals unless the telephone

line has been disconnect-

ed at the network inter-

face.

18 Use caution when

installing or modifying

telephone lines.

19 This product is intended

to be supplied by a Listed

Class 2 Direct Plug-In

Power Unit rated 9VDC

800mA. Plantronics Part

No. 45669-01, rated at

an input voltage of 120

VAC, 60Hz and an

output voltage of 9 VDC

at 800mA.

20 This product requires

AC power in order to

operate. In order to have

phone service during

a power outage, have

another telephone avail-

able that is powered only

by the telephone line.

21 Keep all product cords

and cables away from

operating machinery.

Save these instructions

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 5

4Exercise care in handling

the battery pack in order

not to short the battery

contacts with conducting

materials such as rings,

bracelets,and keys. The

battery or conductor

may overheat and

cause burns.

5Charge the battery pack

in accordance with

instructions supplied

with this unit.

6Observe proper orienta-

tion between battery

pack and charger

contacts.

BATTERY

PRECAUTIONS

To reduce the risk of

fire or injury to persons,

read and follow these

instructions.

1Use only the battery

pack supplied with this

product.

2Do not dispose of battery

pack in a fire. The cells

may explode. Check with

local codes for possible

disposal instructions.

3Do not open or mutilate

battery pack. Released

electrolyte is corrosive

and may cause damage

to eyes or skin and may

be toxic if swallowed.

Save these instructions

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 6

If you do not sound loud

enough, move the transmit

level switch (located on

the back side of base) to

position 1.

If you sound too loud, move

transmit level switch to posi-

tion 3. You can further fine-

tune the transmit level with

the talk volume control locat-

ed on side of the base.

Adjust the volume of your

co-worker’s voice by using

the listen volume control on

the remote.

Replace the handset upon

completion of the call and

press the talk button on either

the remote or the base. The

in-use indicator lights will

go out.

Placing a Call

With your headset in

position move the telephone

handset off its cradle.

Press the talk button on

either the remote or the base

unit. The in-use indicators

light and you will hear a

dial tone.

If you do not hear a dial

tone, move the configuration

switch (A/B) to the opposite

setting.

If you still do not hear a dial

tone see the Troubleshooting

section.

Dial a co-worker. When

your party answers, speak

normally and ask how your

voice sounds.

OPERATING

INSTRUCTIONS

A B

123

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 7

Receiving a Call

When your telephone notifies

you of an incoming call, put

on your headset and lift the

telephone handset off its

cradle.

Press the talk button on either

the remote or the base. The

in-use indicator lights will

go on. Begin speaking.

Replace the handset upon

completion of the call and

press the talk button on either

the remote or the base. The

in-use indicator lights will

go out.

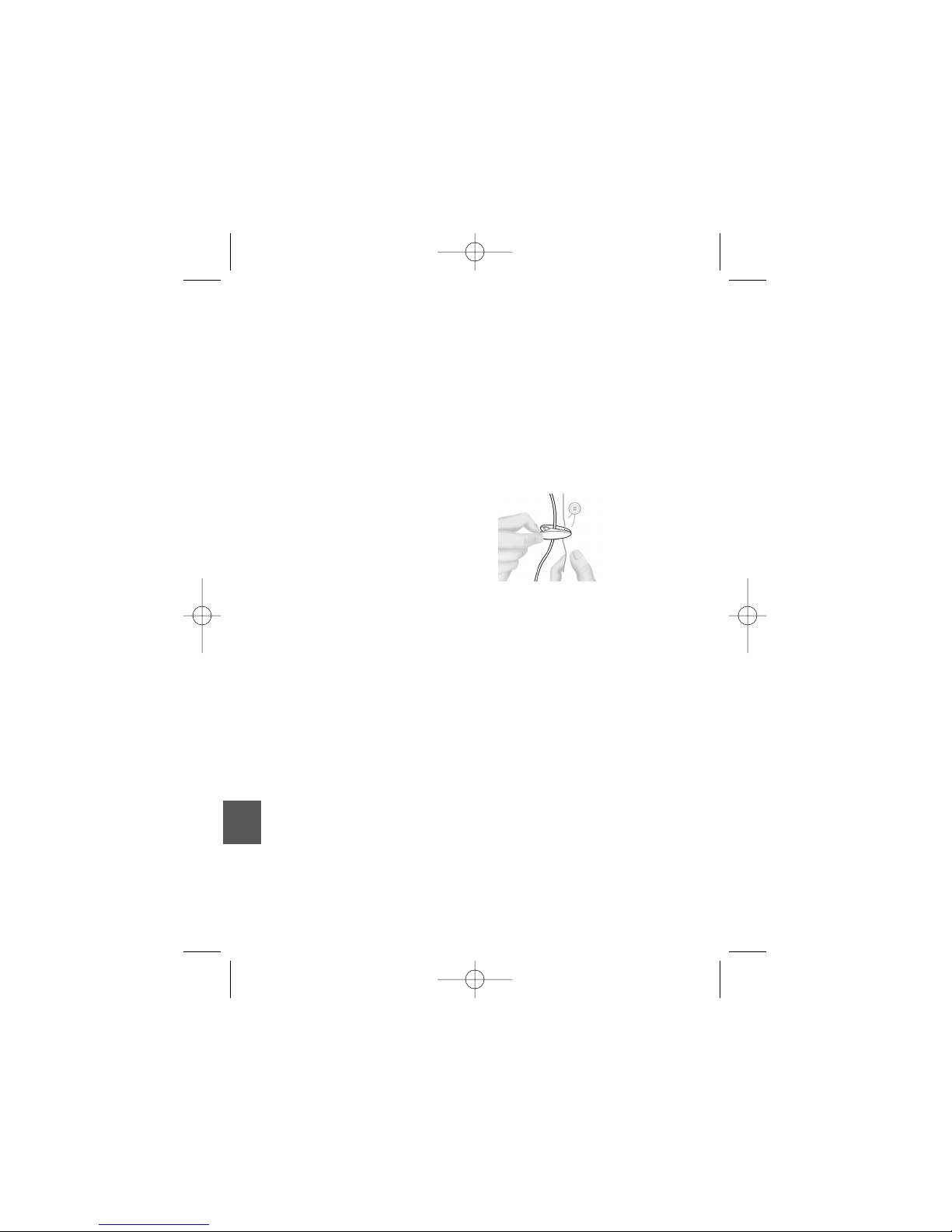

Securing Your

Headset

Attach the clothing clip at

about the chest level. Using

the clip keeps the weight

of the headset cable off the

headset and allows you to

move freely.

This is particularily important

when configured in the Over-

the-Ear configuration.

Optional

Handset Lifter

The lifter allows either the

remote or base unit’s talk

buttons to automatically lift

or replace the telephone’s

handset. See the accessories

section of this booklet.

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 8

HOW TO

RE-CONFIGURE

YOUR HEADSET

Your CS10 system comes

with the Plantronics Convert-

ible headset. This headset

allows for use in the Over-

the-Head or Over-the-Ear

configuration on the right

side or left side.

The headset is shipped in the

Over-the-Head configuration.

You can adjust for the right

ear or left ear by simply

rotating the voice boom

180 degrees.

Adjust the voice boom to

be about one inch from the

corner of your mouth.

Disassemble

for Other

Configurations

Unsnap the headband from

the headset assembly and

pull off the ear cushion

assembly as shown.

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 9

Over-the-Ear

Configuration

Right Ear

Reassemble components as

shown 1and 2.

1. Push pivot ball ring over

the headset assembly.

2. Push pin portion of the

flexible earloop through hole

in pivot ball ring. Reverse the

pin direction for left ear.

assembly to allow the ear-

loop to be stretched open to

slide easily over the ear. Use

your thumb in the thumb loop

and forefingers to stretch the

earloop.

Once the earloop is over

your ear, push the speaker

toward your ear.

Adjust voice boom to a

position one inch from the

corner of the mouth.

Note: For added stability,

press the headset cord under

the cord retainers on the ear-

loop.

Move the flexible earloop

away from the headset

CS10Prdct Info Bklt13.R2 12/27/01 4:23 PM Page 10

Altri manuali per CS10

Indice

Altri manuali Plantronics Cuffia

Plantronics

Plantronics Blackwire 3200 Series Manuale utente

Plantronics

Plantronics .Audio 920 Manuale utente

Plantronics

Plantronics SupraPlus CS361N Manuale utente

Plantronics

Plantronics Voyager Edge Series Manuale utente

Plantronics

Plantronics Voyager Legend UC Manuale utente

Plantronics

Plantronics DUOSET 2 Manuale utente

Plantronics

Plantronics GameCom 780 Manuale utente

Plantronics

Plantronics SB2010 Guida di riferimento

Plantronics

Plantronics Plantronics Explorer 360 Manuale utente

Plantronics

Plantronics Marque 2 M165 Manuale utente

Plantronics

Plantronics Blackwire 310-M Manuale utente

Plantronics

Plantronics PULSAR 590A Manuale utente

Plantronics

Plantronics BackBeat 100 series Manuale utente

Plantronics

Plantronics Pulsar 590 series Manuale utente

Plantronics

Plantronics Savi 8200 Series Manuale utente

Plantronics

Plantronics CS540A Manuale utente

Plantronics

Plantronics VOYAGER PRO UC 200B Manuale utente

Plantronics

Plantronics Voyager 510S Manuale utente

Plantronics

Plantronics Discovery 610 Manuale utente

Plantronics

Plantronics VOYAGER PRO Manuale utente

Plantronics

Plantronics RIG 800HS Manuale utente

Plantronics

Plantronics Savi Office WO100 Manuale utente

Plantronics

Plantronics .Audio 920 Manuale utente

Plantronics

Plantronics .Audio 995 Manuale utente

Manuali Cuffia popolari di altre marche

Sena

Sena SMH10 Manuale utente

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuale utente

Sennheiser

Sennheiser EPOS ADAPT 230 Manuale utente

Doro

Doro Flexus HS2005 Manuale utente

GE 98971 Manuale utente

Hama

Hama 00184070 Manuale utente

Blue Tiger

Blue Tiger Advantage PLUS Manuale utente

Jawbone

Jawbone Icon Manuale utente

Jabra

Jabra FR 20 Manuale utente

Roxcore

Roxcore Flow A+ Manuale utente

Turtle Beach

Turtle Beach XP 510 Manuale utente

Philips

Philips SHB6101 Manuale utente

Jabra

Jabra PRO 9460 Duo Manuale utente

HyperX

HyperX HyperX Cloud Flight Manuale utente

Bose

Bose MIE2 Mobile Manuale utente

Jabra

Jabra Steel Manuale utente

HyperX

HyperX cloud ii Manuale utente

Southwing

Southwing SA505 Manuale utente
