HT-4712 PB-4700/4700DVI
Package Contents
HT-4712 POS terminal or PB-4700/4700DVI POS box x 1
Power adaptor x 1
Power cord x 1
Quick installation guide x 1
Recovery or information CD x 1
Product Features
Standard Features
System
Intel Haswell CPU, LGA 1150 package
Intel H81 or optional Q87 supporting RAID
Dual-channel DDR3 SO-DIMM x2, 1600MT/s, Max 16GB
Mechanical Structure
Gear button to adjust LCD tilt angle from 40°to 75°
Gear button to adjust LCD swivel angle from 0°to 16°
Display (for HT-4712 ONLY)
12" LCD touch panel, 1024x768 resolution
5 wires, touch panel
15570900020 Ver. A0
http://www.posiflex.com
HT-4712 / PB-4700 / PB-4700DVI
POS Terminal / POS Box
User Manual
2
Optional Items
System
SSD, through SATA interface
POSReady 7, Windows 7, Windows Embedded 8.1 Industry,
Linux per request
WIFI
802.11 b/g/n, through external USB dongle
Views of the HT-4712/PB-4700/PB-4700DVI
Front View of HT-4712/PB-4700/PB-4700DVI
Rear View of HT-4712/PB-4700/PB-4700DVI
Ventilation Grids
12-inch LCD Touch Panel
LAN LED Indicator
Power LED Indicator
Ventilation Grids
Side Mount Upgrade Kit
Mounting Portion (Optional)
3
Left Side View of HT-4712/PB-4700/PB-4700DVI
Right Side View of HT-4712/PB-4700/PB-4700DVI
Top View of HT-4712/PB-4700/PB-4700DVI
I/O-Port Protective Cover
Release Button
Power Button
Extended USB Port Cover
Customer Pole Display
Mounting Portion (Optional)
Up-Down Viewing Angle
Adjustment Button
Left-Right Viewing Angle
Adjustment Button
Upper Cover
4
Bottom View of HT-4712/PB-4700/PB-4700DVI

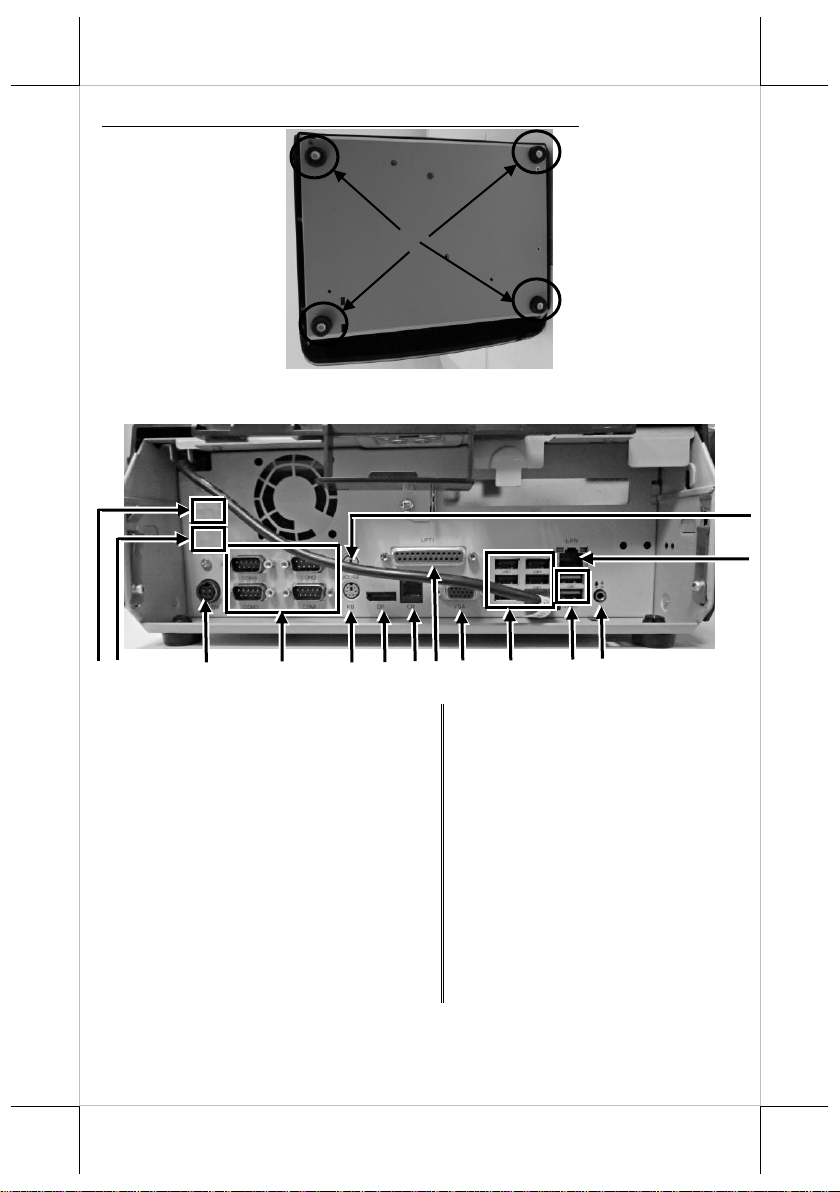

View of I/O Interfaces of HT-4712/PB-4700
1
(Reserved for optional
PoweredUSB Port or COM port)
2
(Reserved for optional
PoweredUSB Port or
COM port)
3
12V DC-IN Power Jack
4
COM1 ~ COM4
5
PS2 Port for Keyboard
6
DisplayPort
7
Cash Drawer Port
8
Parallel Port
9
VGA Port
10
USB2.0 Port
11
USB3.0 Port
12
MIC-IN / Line-Out for
Combo Jack
13
RJ45 LAN Port
14
PS2 Port for Mouse
Rubber
Cushion
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5
View of I/O Interfaces of PB-4700DVI
1
(Reserved for optional
PoweredUSB Port or COM port)
2
(Reserved for optional
PoweredUSB Port or
COM port)
3
12V DC-IN Power Jack
4
COM1 ~ COM4
5
Cash Drawer Port
6
Parallel Port
7
VGA Port
8
DVI Port
9
USB2.0 Port
10
USB3.0 Port
11
MIC-IN / Line-Out for Combo
Jack
12
RJ45 LAN Port
3
4
5
6
10
12
1
2
7
11
9
8
6
Connecting Power Adapter and I/O Cables
Follow the steps listed below to open the rear I/O-port protective
cover and connect cables.

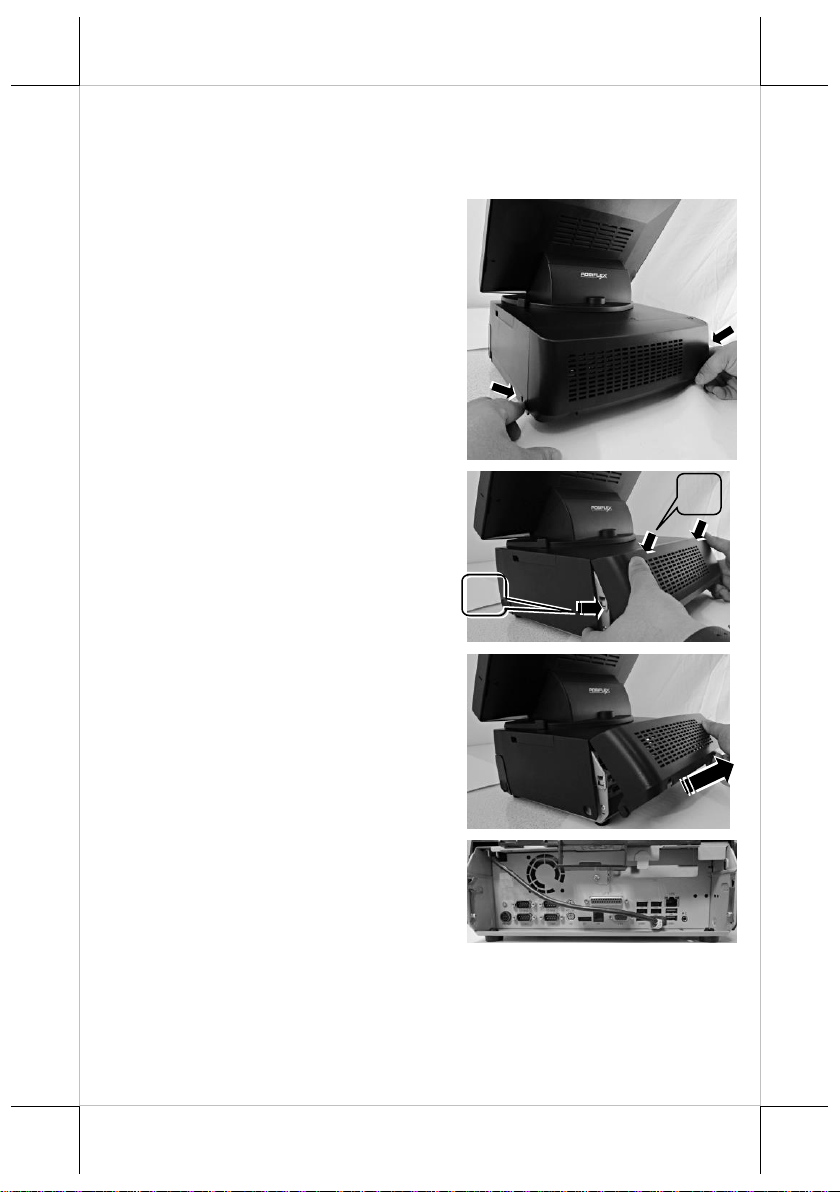

1. Press the release buttons, with
forefingers, on the left and
right sides of the upper cover
of the POS box.
2. Press and hold the upper right
and upper left sections of rear
I/O-port protective cover with
thumbs, and pull outwards the
cover.
3. Remove the rear I/O-port
protective cover.
4. Connect power adapter and
I/O cables to the I/O interface
of the POS box.
1
2
7
Close the rear I/O-port protective cover
Remember to close the rear I/O-port protective cover after
completing in the power adapter and I/O cable connection.
Follow the steps listed below to close the cover.

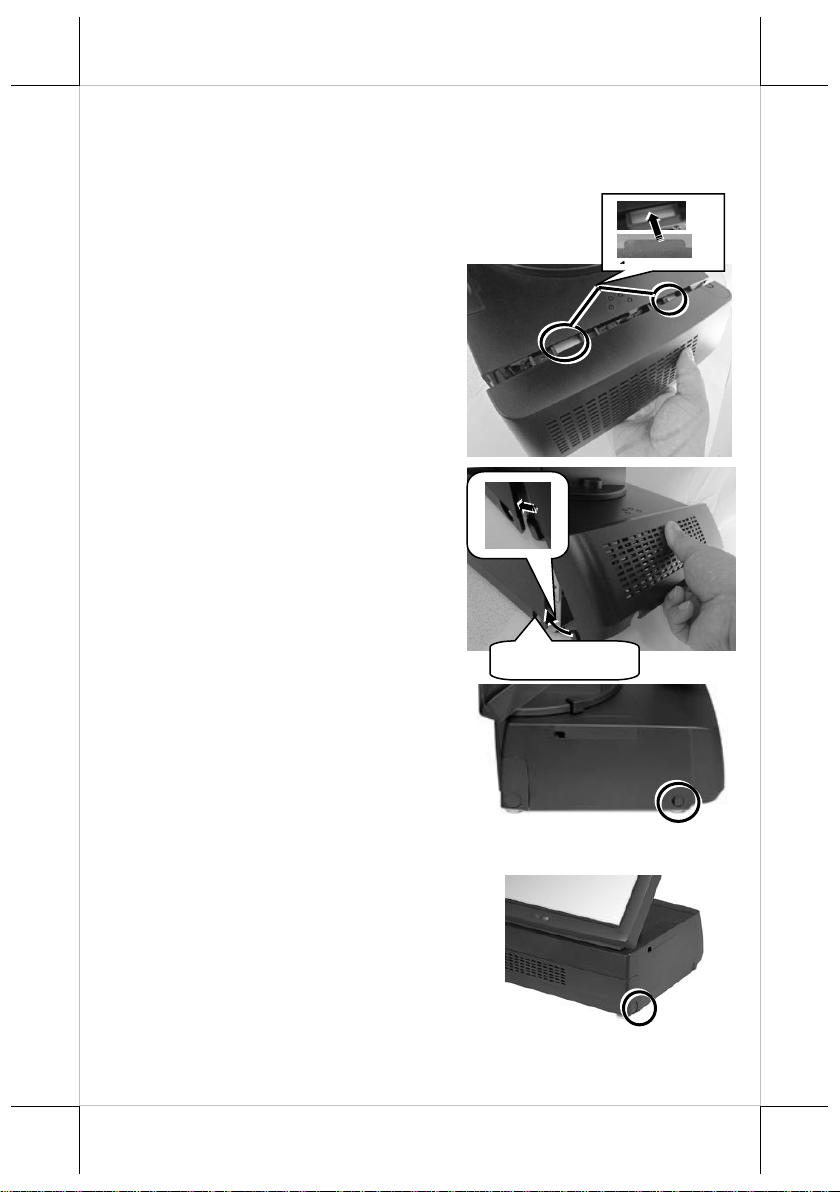

1. Align the two wedges of the top
of the rear I/O-port protective
cover with the two wedged
portions of the upper cover of the
POS box.
2. Press and hold the upper right
and upper left sections of rear
I/O-port protective cover with
thumbs, and push the release
button of I/O-port protective
cover into the section between
the upper cover and chassis of
the POS box.
3. When the release button is
wedged to the wedged hole of
the upper cover, you will hear a
click sound, indicating that the
rear I/O-port protective cover is
well closed.
Powering ON the HT-4712/PB-4700/PB-4700DVI
Then press the power button to power on
the main unit. To power it off, press the
button again.
Once powering off the system, if you want
to power it on again, please wait for at
least 3 seconds.
1.
Wedged Hole
8
If the system hangs due to a reason, such as software resource
conflict, please press and hold the power button for 10 seconds
around to forcedly shut down the system.
Status LED Indicator
After powering ON the HT-4712/PB-4700/PB-4700DVI and
connecting to the LAN port, you can read the system operation
status from the power and LAN LED indicators. The LED status
is described below.
LED
Status
Description
POWER
Solid blue
System power ON
Solid orange
System standby
LAN
Solid green
LAN link
Flickering green & yellow
Data transmission
Installing an Operating System
This product is highly professional equipment. Therefore, we do
NOT encourage you to install any operating system into this
machine without professional assistance. Posiflex Technology,
Inc. shall not be responsible for any technical support to
questions on this aspect. We suggest that you contact your dealer
for OS installation.
Operating System Recovery
For the HT/PB-4700/PB-4700DVI main system preloaded with
an operating system on HDD, Posiflex provides a recovery CD
shipped with the main system for the preloaded operating system.
The system integrator shall take care of software restoration after
the OS is recovered.
If you plan to recover your operating system, we do NOT
encourage you to recover any operating system. Please contact
your service center for operating system recovery.
9
Adjustment of LCD Monitor for A Better Viewing Angle
(For HT-4712 Only)
For an optimal viewing angle, follow the steps listed below to
adjust the LCD monitor of the HT-4712.

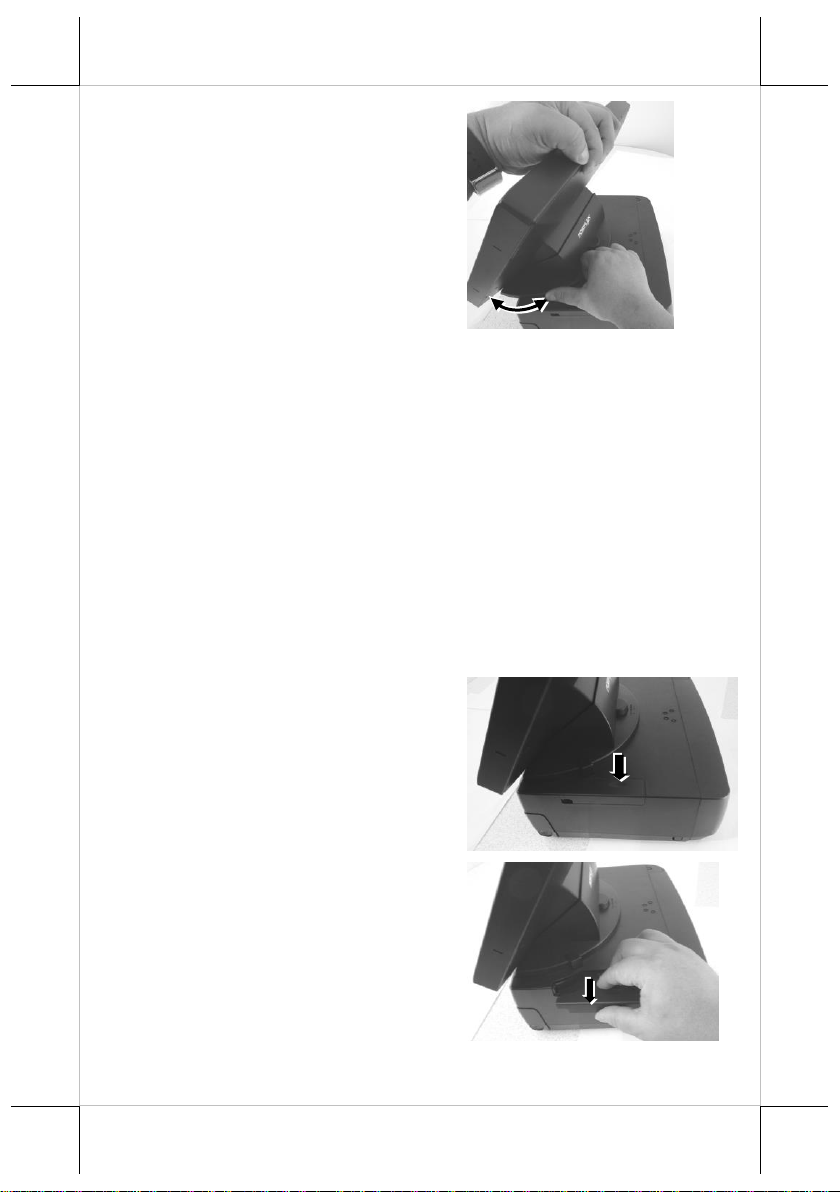

Vertical Adjustment
1. Press and hold the up-down
viewing angle adjustment
button.
2. Adjust the LCD monitor up
and down around the
directions A and B.
Horizontal Adjustment (from 0°to 16°)
1. Press and hold the left-right
viewing angle adjustment
button.
A
B
10
2. Horizontally adjust the LCD
monitor left and right around
the directions A and B.
Optional Upgrade Kits
Posiflex HT-4712/PB-4700/PB-4700DVI can work with multiple
optional upgrade kits, such as 2nd LCD monitor, customer pole
display, side-mount MSR, keyboard and the like. For the detailed
instruction, refer to the technical manual of HT-4712/PB-
4700/PB-4700DVI or each of the user manuals of the optional
upgrade kits.
Extended USB Port
The extended USB port is provided for connection of the side
mount upgrade kit to the POS box. To open the extended USB,
follow the steps listed below.
1. Press the extended USB port
with thumb or forefinger.
2. Pull and move the cover in the
direction A.
A
B
A
