PowerWalker VI 1000RT/LE Manuale utente

–

Pure Sine Wave Line Interactive UPS

PowerWalker VI 1000RT/LE

PowerWalker VI 1500RT/LE

Manual

Uninterruptible Power Supply System

–

SAFETY INSTRUCTION –CAUTION

1 IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS - This manual contains important

instructions that should be followed during installation and maintenance of

the UPS and batteries.

WARNING: Do not attempt to perform repair or service with this UPS.

This UPS contains high voltage which could cause electrical shock

even when the unit is disconnected from the mains outlet; the

dangerous voltage may still be present through the battery. All

maintenance and battery replacement should be performed by

qualified service personnel only.

1. This UPS should be placed indoors with adequate airflow and free of

contamination. To install or operate it in a clean and indoor environment,

free from moisture, flammable liquids, and direct sunlight. Ambient

temperature range must be 0°C to 40°C (32°F to 104°F).

2. This UPS is designed for Commercial/Industrial use only. It is not intended

for use with life support application and other designated “life-critical”

devices.

3. Do not remove the input power cord when this UPS is turned on. Remove

the safety ground from this UPS and the equipment connected to the UPS.

4. Turn off this UPS and disconnect input power cord before battery

replacement.

5. Battery contains high short-circuit current. Replacing or servicing the

battery should be performed and supervised by qualified service personnel

who are knowledgeable of batteries and requires precautions.

Remove watches and jewelries

Use tools with insulated handles

Wear rubber gloves and boots.

Do not lay tools or metal parts on top of batteries.

Disconnect charging source prior to connecting or disconnecting

battery terminals.

6. When replacing the batteries, use the appropriate replacement battery kits,

same number and type of battery are MUST.

7. Do not open or mutilate the battery. Released electrolyte is harmful to skin

and eyes that may be toxic.

8. Do not dispose of battery in a fire. Battery may explode. Proper disposal of

battery is required. Please refer to your local laws and regulations for

disposal requirements.

9. This UPS contains high voltages which may cause the risk of electric shock.

Do not remove cover. There are no user replaceable parts inside this UPS.

Please contact your local dealer or distributor for service.

10. This pluggable type equipment with battery already installed by the

supplier is operator installable and may be operated by laymen.

11. During the installation of this equipment it should be assured that the sum

of the leakage currents of the UPS and the connected loads does not

exceed 3.5mA.

12. Attention, hazardous through electric shock. Also with disconnection of

this unit from the mains, hazardous voltage may still be accessible

through supply from battery. The battery supply should be therefore

disconnected in the plus and minus pole of the battery when maintenance

or service work inside the UPS is necessary.

13. The wall outlet must be within 2 meters of the equipment and accessible

to the operator.

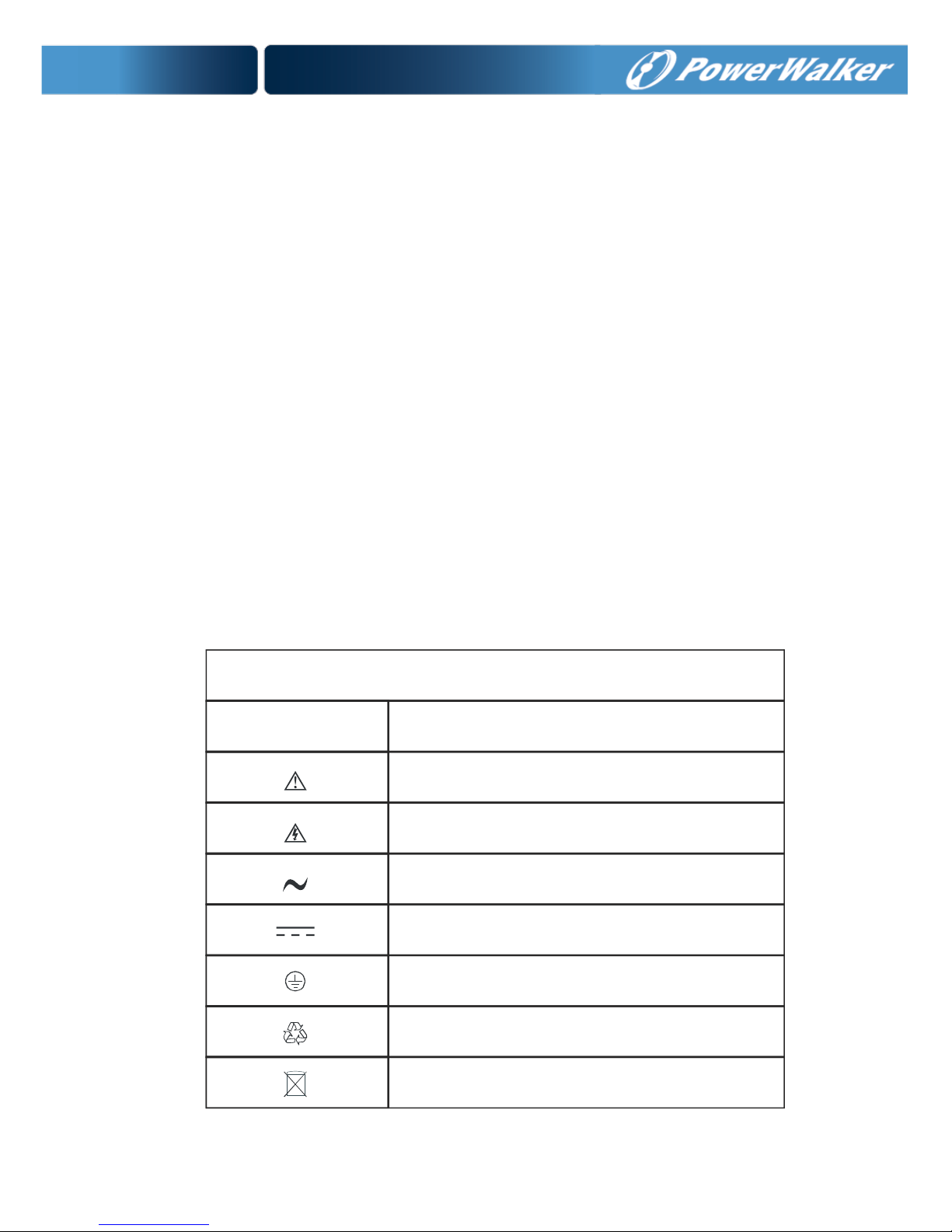

2 Description of Commonly Used Symbols

Symbol & Description

Symbol Description

Alert you to pay special attention

Caution of high voltage

Alternating current source(AC)

Direct current source(DC)

Protective ground

Recycle

Keep UPS in a clear area

–

1. INTRODUCTION

1.1 General Introduction

This series UPS is pure sine wave line interactive uninterruptible power

system with compact design, and it is designed for critical application and

environment, such as desktops, servers, workstations, and other networking

equipments. The capacity range is available for 1000VA, and 1500VA. This

series protects your sensitive electronic equipments against power problems

including power sags, spike, brownouts, line noise, and blackouts.

This series is powered from the AC mains and supply also AC power backup.

Communication and control to the unit is available through serial or USB

ports located on the rear panel. The serial port will support communications

directly with a server. The communications protocol for the serial ports shall

conform to true RS232 interface.

This series is designed with outstanding performance and reliability. The

unique features include the following:

Microprocessor control guarantees high reliability

High frequency design

Built-in boost and buck AVR

User replaceable design for 1000VA /1500VA models

Selectable output range and line sensitive

Cold startup capability

Built-in Dry contact/RS-232/USB communication port

Overload, Short-circuit, and overheat protection

Rack/Tower 2 in 1 Design for 1000VA/1500VA models

Network Transient Protector guards your network communications

equipment from surges.

1.2 Front Panel

The UPS front panel indicates the UPS status and also identifies potential

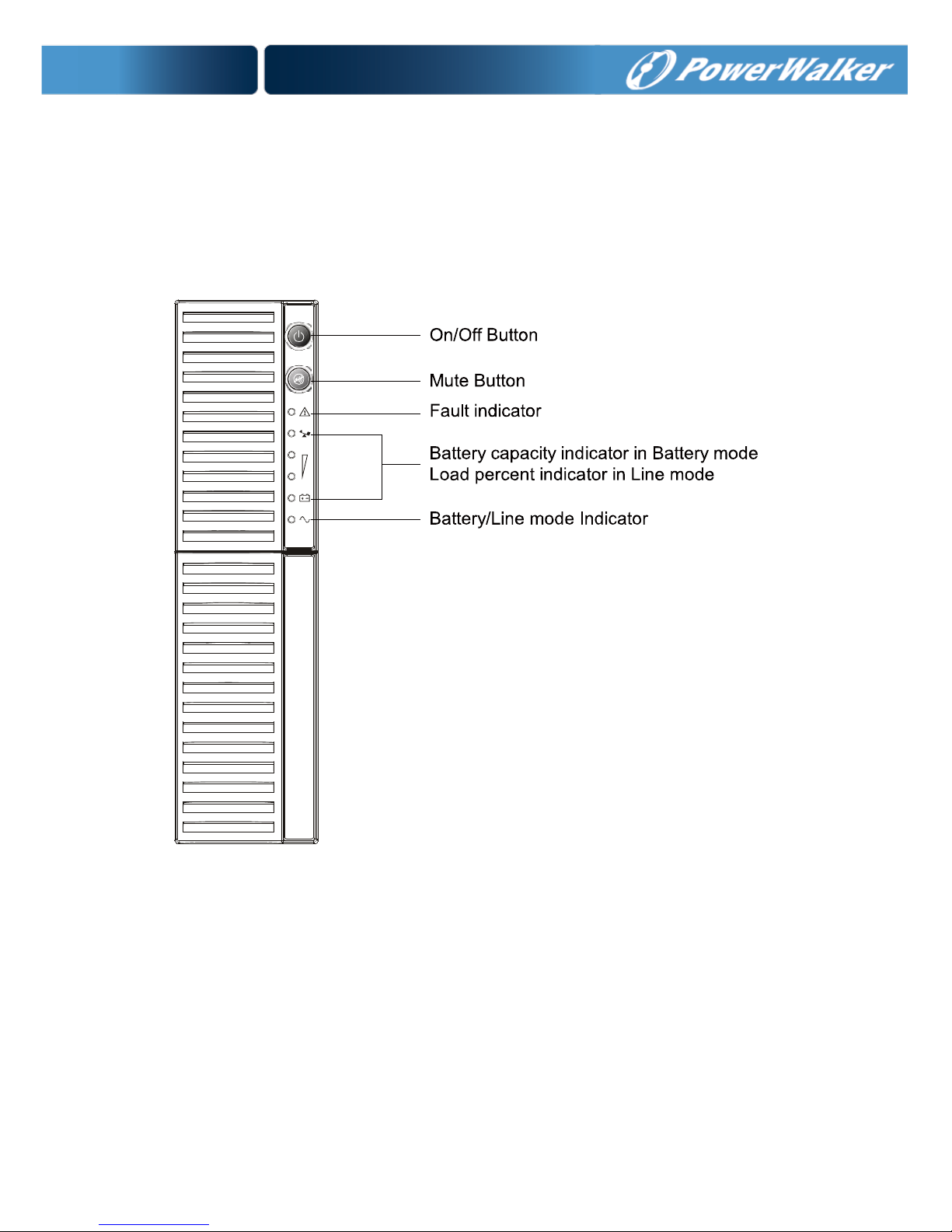

power problems. Figure 1 shows the UPS front panel indicators and controls.

Figure 1. Front Panel Description

The UPS has a visible indication about the load level in line mode and the

battery capacity in Battery mode. The indicating setting is described in Table

1000VA/1500VA

–

Table 1. LED IndicatorAssignment

Line

mode

The 5th Green Led Lighting.

Optional -- (The 1st to 4th green Led lighting to indicate load

level)

LED1 (green): ≥75% load level.

LED2 (green): ≥50% load level.

LED3 (green): ≥25% load level.

LED4 (green): ≥00% load level.

Battery

mode

The 5th Green Led blinking.

Optional –(The 1st to 4th green Led lighting to indicate battery

capacity)

LED1 (green): battery voltage ≥12.5V / BAT.

LED2 (green): battery voltage ≥11.5V / BAT.

LED3 (green): battery voltage ≥11.0V / BAT.

LED4 (green): battery voltage ≥10.5V / BAT.

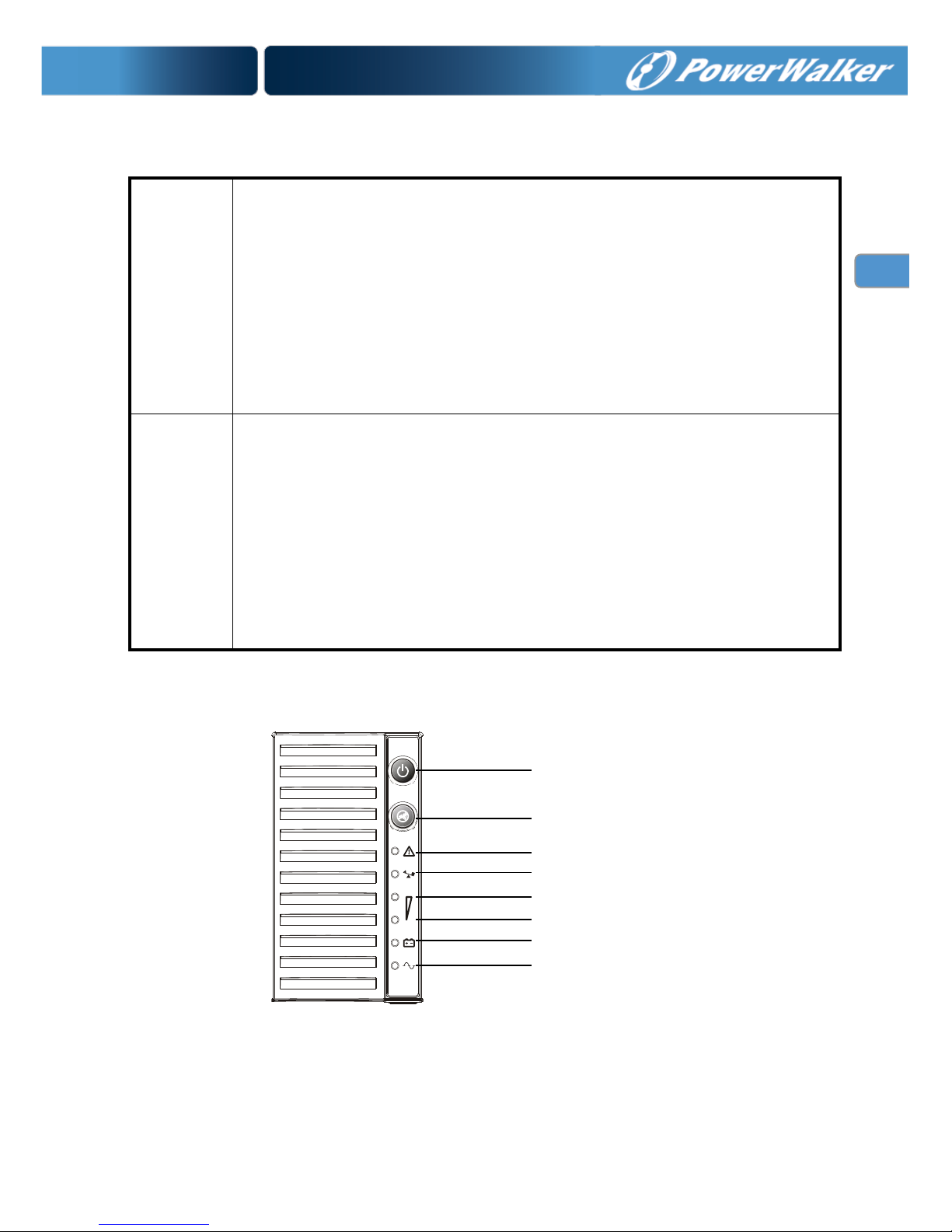

The sequence of LED, please refer to the front panel below:

Figure 2. UPS front panel LED

If the alarm beeps or a UPS fault indicator stays on, see the tables on page

25 to identify and correct the problem.

On/Off Button

Mute Button

Fault LED

LED 1

LED 2

LED 3

LED 4

LED 5

1.3 UPS Rear Panels

This section shows the detailed information about the UPS rear panels

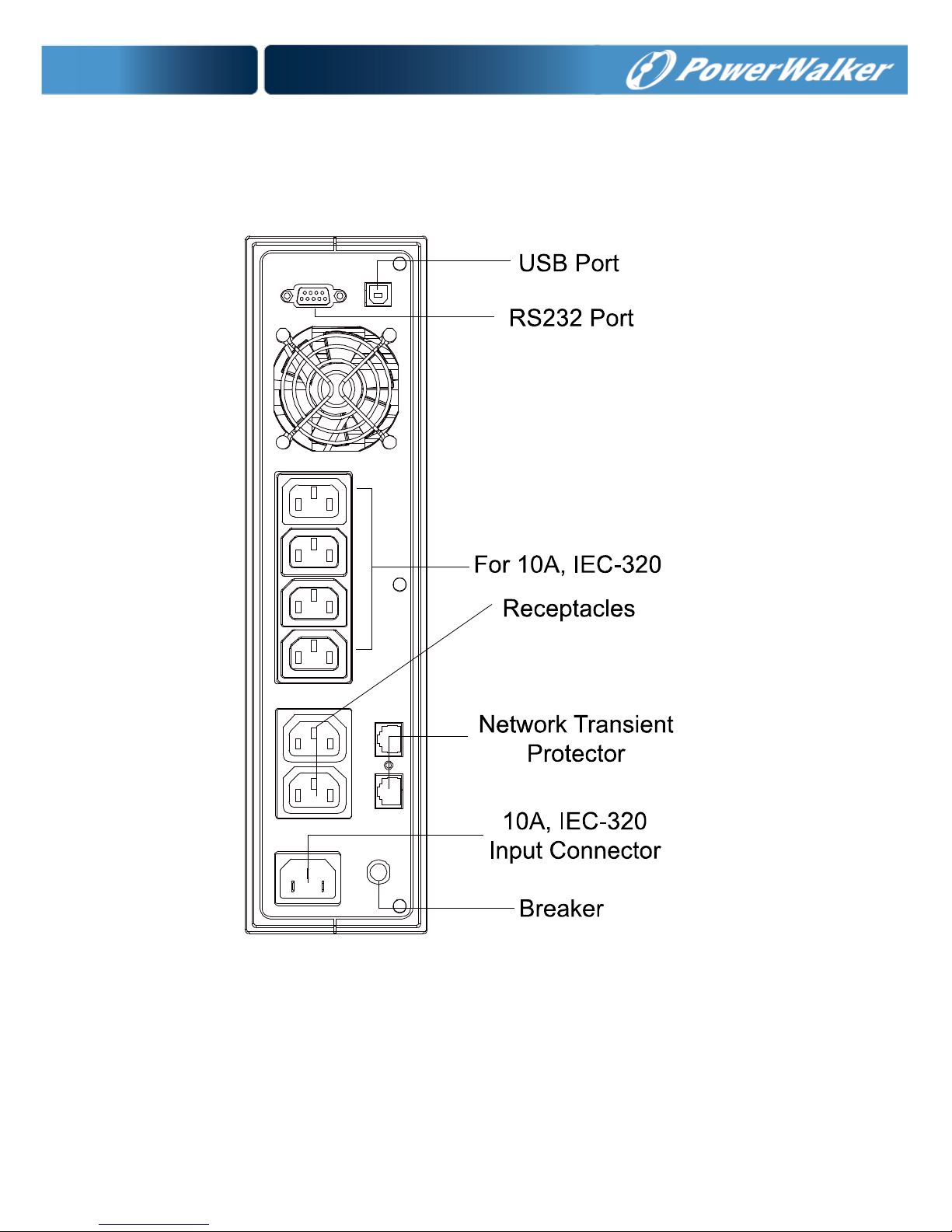

Figure 3. Rear Panel Description

1000VA/1500VA

–

2. INSTALLATION

2.1 Inspecting the Equipment

If any equipment has been damaged during the shipping process, keep the

shipping cartons and packing materials for the carrier or place of purchase

and file a claim for shipping damage. If you discover damage after

acceptance, file a claim for concealed damage.

To file a claim for shipping damage or concealed damage: 1) File with the

carrier within 15 days of receipt of the equipment; 2) Send a copy of the

damage claim within 15 days to your service representative.

ATTENTION Check the battery recharge date on the shipping carton label. If

the date has expired and the batteries were never recharged, do not use the

UPS. Contact your service representative.

2.2 Installing the UPS

The following steps explain how to install the UPS. Figure 4 shows a typical

installation only. See “UPS Rear Panels” on page 8 for the rear panel of each

model.

1. If you are installing power management software, connect your

computer to the USB port or UPS communication port using the

supplied cable (see page 16).

2. On 230V models (factory-set default), plug the detachable power cord

into the input connector on the UPS rear panel.

3. Plug the UPS power cord into a power outlet.

4. Plug the equipment to be protected into the UPS output receptacles.

DO NOT protect laser printers with the UPS because of the

exceptionally high power requirements of the heating elements.

5. Press down the button, then the indicator illuminates

indicating that power is available from the UPS output receptacles.

If the alarm beeps or a UPS fault indicator stays on, see page 25-26.

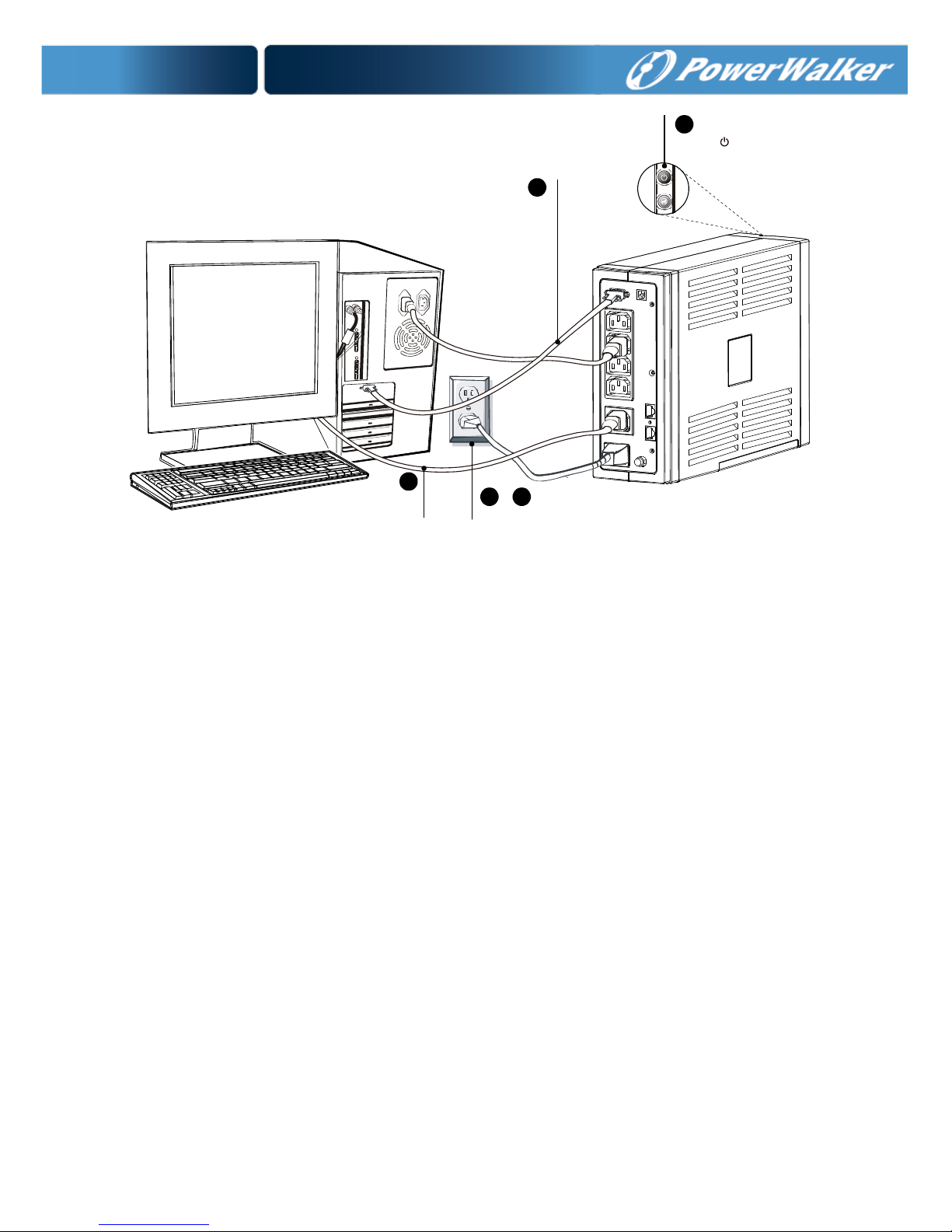

Figure 4. Typical UPS Installation

2.3 1000VA/1500VA Setup in Tower or Rack configurations

CAUTION

The1000VA/1500VA models can be applied to rack configuration (with

optional rack mount kits). For 1000VA/1500VA models, please follow the

following instructions of Tower Configuration Setup & Rack-Mount

Configuration Setup.

1. Tower Configuration Setup

There are four pieces of plastic stand components accompanied with

1000VA/1500VA models. Two pieces can be assembled to one

complete stand. In tower configuration, use the two stands for

stabilizing the UPS when it’s in vertical position. The two UPS stands

must be attached to the bottom of the UPS unit.

1) Assemble the two stand components together

Connect UPS to power

Connect communication

cable from computer to

UPS(optional)

2 3

Connect equipment

to UPS

Press the button

(on the front panel)
