Poynting WLAN-61 Manuale utente

Version: 1.0

WLAN-61

User Guide

South Africa

Unit 4, N1 Industrial Park

Landmarks Ave

Samrand, 0157,

South Africa

Tel: +27 12 657 0050

[email protected]

Europe

Kronstadler Straße 4,

81677 München

Germany

Tel: +49 89 2080 265 38

Mob.: +49 176 529 733 50

[email protected]

www.poynting.tech

2 A-WLAN-0061_PCL

Version: 1.0 3

Index

1. Packing Check List

2. Tools Required

3. MountingConguration

4. Antenna Mounting

Precautions

5. Cable Gland Preparation

6. Cable Routing

7. Safety

4 A-WLAN-0061_PCL

Packing Check List

Item Description Quantity

1. A-WLAN-0061

Antenna only

2. Cast U-shape 1

3. M6 x 60mm U-bolt

-ss*

4. Cast connector rod 1

5. Cast square base 1

6. M6 washers -ss* 10

7. M6 nylock nut-ss* 2

8. M6x12mm hex bolt-

ss*

9. M6x16mm hex bolt

– ss*

10. M6 nuts-ss* 4

11. M6x25mm hex bolt

–ss*

12. Rubber seal barrel 1

Version: 1.0 5

Packing Check List

Item Description Quantity

13. Main body with

back housing

14. Rubberatseal 1

15. Rubber conical seal 1

16. Plastic wrench 1

* Stainless Steel

6 A-WLAN-0061_PCL

The appearance of each component

Antenna Unit

Stainless steel bracket assembly

Bracket mounting kit

Cable gland components

Packing Check List

A-BRKT-016

Schematic Diagram

SCALE 1 : 1

143

Version: 1.0 7

Tools Required

Tools that may be required:

6mm Masonry drill bit

Impact drilling machine

Screw driver-Cross slot/Philips

Hammer

Safety goggles

Spanner/Wrench

8 A-WLAN-0061_PCL

MountingConguration

1. Pole Mounting

• Lay the antenna out at the installation site.

• Attach the cast U-shape bracket component

to the antenna by means of four M6 washers,

three M6 x16mm hex bolts and one M6x12mm

hex bolt-which goes into a point marked

earthing point.

• Use two M6 x 25mm hex bolts, two M6 nylock

nuts, two M6 washers to attach Cast-U-shape

and Cast square on two opposite ends of the

Cast connector rod.

• Attach the assembly to a mast (diameter

32 ~50mm) using the Cast square base, two

U-bolts, four washers and four M6 nuts.

• Point the antenna in the desired orientation

by swivel adjustment of azimuth and/or ele-

vation in two points.

• Do not overtighten the nuts/bolts onto the

bracket components in all places.

• Mount the antenna so that there is at least

1meter of clearance in all directions around

it and unobstructed line of sight to the cell

tower’s strongest signal.

• Earth the pole.

WLAN-0061 is a pole mountable dual band WiFi

antenna. It can be mounted outdoors on a

pole of up to 50mm in diameter or wall mount.

Follow the instructions below for installation.

Version: 1.0 9

MountingConguration

2. Wall Mounting

• This antenna should be mounted on a wall

usingthewallplugsasshowninthegure

below

• Strain relieve the cable to the wall with

• saddles or cable tie to the closest structure.

• Connect the end of cable to radio device

10 A-WLAN-0061_PCL

Antenna Mounting Precautions

• Place the antenna at the highest point

possible and ensure that there aren’t

any surrounding obstructions to the

antenna.

• In order to avoid communication

interference, ensure that the antenna

is placed at least 0.5m away from other

antennas and metal objects.

• Avoid installing the antenna near

a chimney, as the smoke and soot

emitted by the chimney can obstruct

the signal level achieved by the

antenna.

• Install the antenna away from heat

sourcesandammablegases.

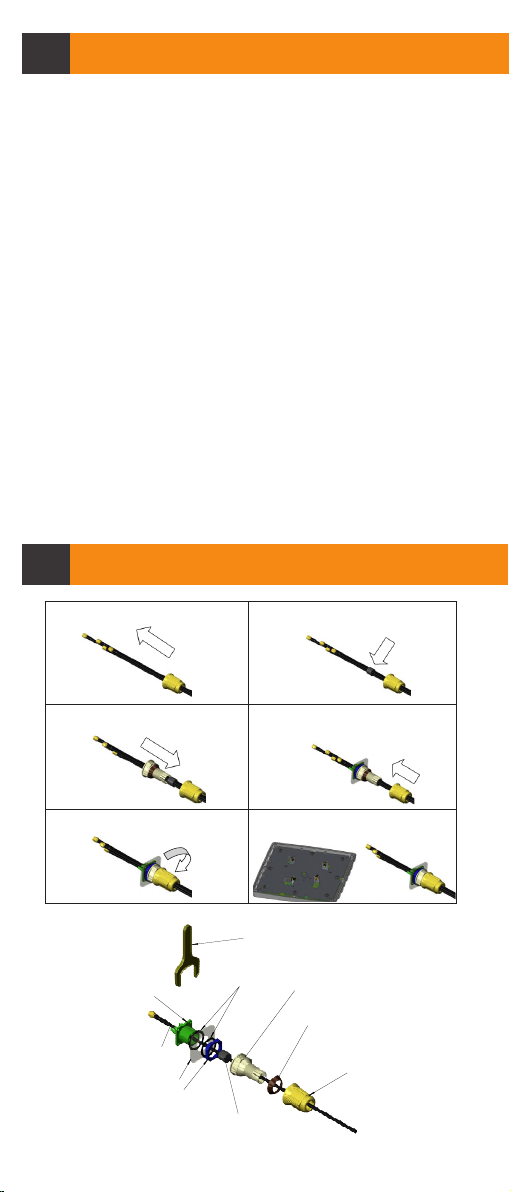

Cable Gland Preparation

1. Insert back housing over 2/3/4x

cable

2. Fit the rubber seal over cable by fitting the

cable through the slot.

3. Insert main body with black housing conical

seal, over cable

4. Push rubber seal into the housing main body

until flush.

5. Finally screw back housing on to main body

6. Terminate SMA(m) to SMA(f) located on the

antenna as required.

Connector

housing

Gland seal

Nut

Main Body

Back housing connical seal

Back housing

Enclosure Wall

RF Coaxial cable

SMA(m) conn.

Spanner

Rubber Seal with slot
