Pramac S5500 Manuale utente

10/13 0070661

Enter the Model and Serial numbers of your generator in the

spaces provided below. Retain these numbers for future

reference. The Model and Serial numbers are located on the

generator data plate on the alternator case or generator frame,

along with other important information.

Model Number _____________________

Serial Number _____________________

GENERATOR USER

MANUAL

odel Number

S5500

ODEL & SERIAL NU BER

0070661

CONTACT INFOR ATION

For Parts, Service or your nearest distributor call:

U.S. and Canada

(800) 445-1805

Latin America

(305) 888-9911

Contents

ENGLISH INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SAFETY R LES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

BEFORE START- P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

GENERATOR APPLICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LOADING YO R GENERATOR SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

ENGINE LIMITATIONS ON GENERATOR PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

GENERATOR CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

GENERAL STORAGE G IDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

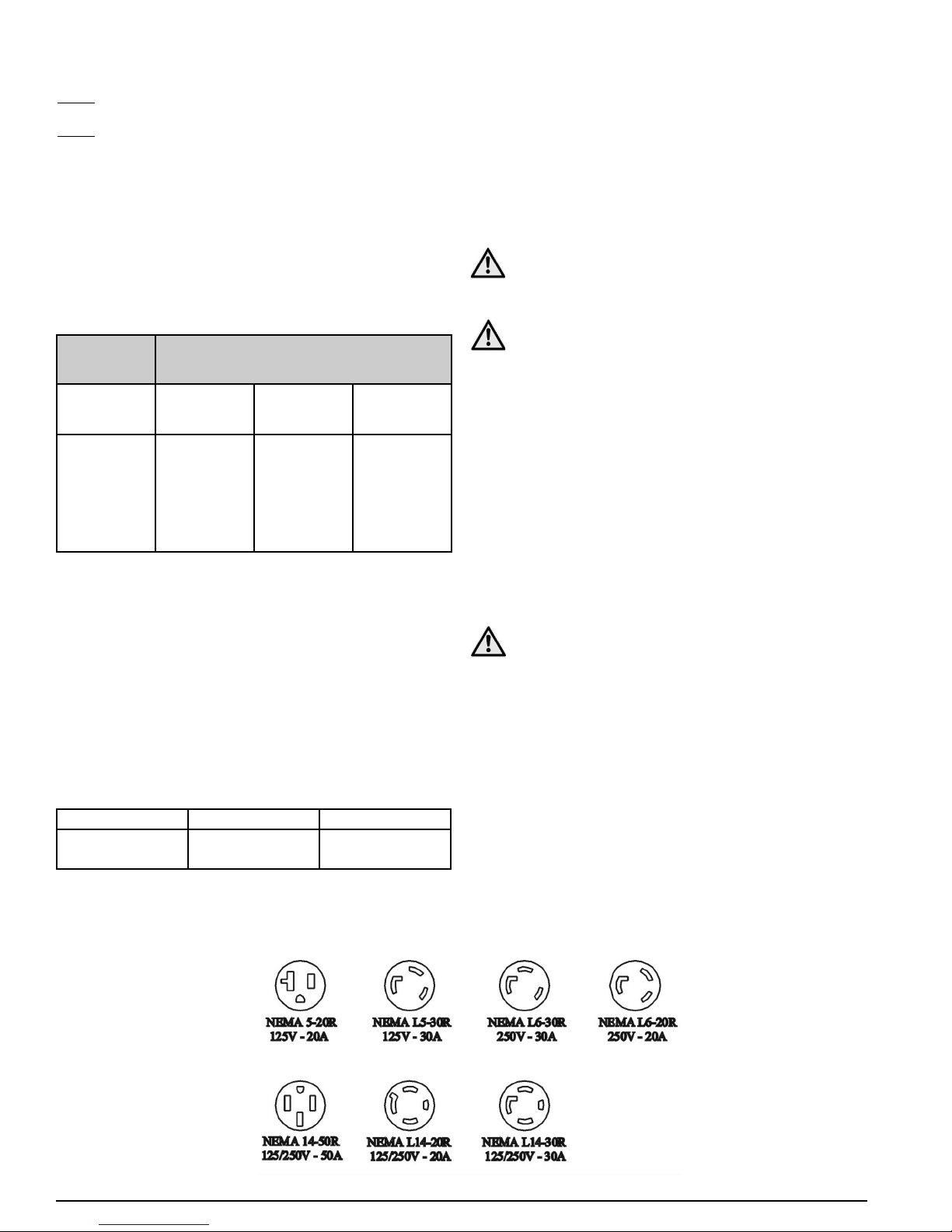

RECEPTACLE DETAILS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

GENERAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Oil Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

DAILY INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FA LT FINDING G IDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

PARTS ORDERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SECTION 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

S5500 GENERATOR PARTS AND PART LISTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

S5500 A.C. Wiring Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

FRENCH INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

INFORMATION GENERALE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

règles de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

GARANTIE LIMITÉE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

ENREGISTREMENT DE LA PRODUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

0070661

Contents

UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

INFORMATION GÉNÉRALE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

AVANT LE DÉMARRAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

TILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

SAGE DE LA GÉNÉRATRICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

charger votre génératrice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Limite du moteur sur la performance de la génératrice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Nettoyage de la génératrice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Règles générales d'entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Détails des réceptacles (prise femelle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ENTRETIEN GÉNÉRAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Sélection d'huile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSPECTION quotidienne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

guide des failles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

COMMANDE DES PIÈCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

SPANISH INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

SEGURIDAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

informacion GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

reglas de seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

GARANTIA LIMITADA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

REGISTRACION DE PRODUCTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

FUNCIONAMIENTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

comenzando . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

funcionamiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

APLICACIÓN del generador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Carga DE su generador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

limitaciones del motor y rendimiento del generador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

limpieza del generador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Almacenamiento general pautas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

DETALLES DE RECEPTAC LOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

MANTENIMIENTO GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Selection de aceite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

inspeccion diaria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Guia para encontrar fallas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

ORDENANDO PIEZAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

A information provided in this manua is be ieved to be correct at the time of printing. The manufacturer reserves the right to

correct any errors and omissions.

English 0070661

GENERAL INFOR ATION

This manual is provided so that your generator may be

properly, safely and effectively applied and operated. Please

read and understand all aspects of this manual before

operating your generator set. Please also read and understand

the documentation supplied with this generator regarding the

engine and alternator. Keep this documentation in a safe and

accessible place so that reference can be made as needed. All

operators, users and subsequent owners of this generator

must read and understand all aspects of this documentation

before operating this product.

THIS SYMBOL IS USED THROU HOUT YOUR

OWNER’S MANUAL TO BRIN ATTENTION TO

IMPORTANT SAFETY INSTRUCTIONS. THE WORDS

DAN ER, WARNIN , AND CAUTION ACCOMPANY THIS

SYMBOL AND REFLECT THE POTENTIAL SEVERITY OF

INJURY OR DAMA E. FAILURE TO FOLLOW SAFETY

INSTRUCTIONS COULD ENDAN ER YOU OR OTHERS

AND RESULT IN PERSONAL INJURY OR DEATH. READ

AND UNDERSTAND ALL SAFETY INSTRUCTIONS BEFORE

OPERATION.

SAFETY RULES

ELECTROCUTION

DANGER: THIS ENERATOR SET PRODUCES

ELECTRICAL CURRENT. THEREFORE, SAFETY

UIDELINES MUST BE FOLLOWED. IMPROPER USE

OF THIS ENERATOR CAN RESULT IN ELECTROCUTION,

INJURY OR DEATH. DO NOT OPERATE, SERVICE OR

REPAIR THIS ENERATOR UNLESS FULLY QUALIFIED TO

DO SO.

DANGER: THIS ENERATOR SET IS DESI NED TO

BE OPERATED IN DRY CONDITIONS AND FOR

OUTDOOR AREAS ONLY. NEVER OPERATE THIS

ENERATOR INDOORS. NEVER OPERATE THIS

ENERATOR IN RAIN, SNOW, SLEET OR ENERALLY WET

CONDITIONS. DAMA E TO THE ENERATOR, BODILY

INJURY, OR DEATH COULD RESULT FROM

ELECTROCUTION.

DANGER: IF THIS ENERATOR IS CONNECTED TO

A BUILDIN , HOME, BUSINESS, OR ANY OTHER

ELECTRICAL CIRCUIT NORMALLY FED BY UTILITY

POWER, STEPS MUST BE TAKEN TO INSURE THE

ENERATOR OUTPUT AND THE UTILITY POWER ARE

POSITIVELY ISOLATED. THIS IS TYPICALLY

ACCOMPLISHED THROU H THE USE OF A PROPERLY

INSTALLED TRANSFER SWITCH. FAILURE TO ISOLATE

THE UTILITY AND ENERATOR ELECTRICAL SYSTEMS

WILL RESULT IN ENERATOR DAMA E AND COULD

RESULT IN INJURY OR DEATH TO UTILITY WORKERS DUE

TO THE BACKFEED OF ELECTRICITY.

DANGER: DO NOT MODIFY OR MISAPPLY YOUR

ENERATOR SET. OPERATION OF THE

ENERATOR OTHER THAN INTENDED COULD

RESULT IN ENERATOR SET DAMA E, BODILY INJURY

OR EVEN DEATH FROM ELECTROCUTION.

DANGER: NEVER TOUCH A RECEPTACLE OR BARE

WIRE. ELECTROCUTION OR SHOCK COULD

RESULT.

FIRE

WARNING: ALWAYS INSURE THAT AT LEAST 6 FEET

OF CLEARANCE ON ALL SIDES OF THE

ENERATOR ARE MAINTAINED DURIN

OPERATION. FAILURE TO MAINTAIN PROPER CLEARANCE

COULD DAMA E YOUR ENERATOR AND POTENTIALLY

LEAD TO FIRES.

WARNING: DIESEL FUEL IS HI HLY FLAMMABLE

AND ITS VAPORS ARE EXPLOSIVE. FAILURE TO

PROPERLY HANDLE DIESEL FUEL CAN RESULT IN

EXPLOSION OR FIRE. DO NOT PERMIT SMOKIN WITHIN

50FT OF THIS ENERATOR SET.

WARNING: NEVER REFILL A HOT ENERATOR

WITH FUEL. NEVER REFILL THE ENERATOR

WHILE IT IS RUNNIN . SPILLA E ONTO THE

EN INE OR ENERATOR COULD RESULT IN AN

EXPLOSION OR FIRE. ALWAYS ALLOW THE ENERATOR

SET TO COOL BEFORE REFILLIN .

ENGLISH INSTRUCTIONS

SAFETY

Certain States and Jurisdictions require that engine driven

equipment be fitted with spark arresting mufflers. Depending

on the generator model, spark-arresting mufflers may or

may not be fitted. If spark-arresting mufflers are required for

your location and the generator muffler is not spark

arresting, contact your local dealer for instructions for a

retrofit.

SPARK ARRESTING UFFLER

The exhaust emission control system for this generator

complies with the standards set forth by the California Air

Resources Board (CARB) and the Environmental Protection

Agency (EPA). The respective engine manufacturers

administer warranties for the exhaust emission system.

Refer to the engine documentation for warranty information.

EXHAUST E ISSION CONTROL SYSTE

The engine exhaust from this product contains

chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

WARNING

WARNING: DO NOT STORE THIS ENERATOR SET

IN ANY LOCATION WHERE DIESEL FUEL FUMES

COULD POTENTIALLY COME INTO CONTACT WITH

SPARKS, A PILOT LI HT OR AN OPEN FLAME. IMPROPER

STORA E OF THIS ENERATOR COULD RESULT IN AN

EXPLOSION OR FIRE.

EXHAUST GASES

DANGER: DO NOT OPERATE THIS ENERATOR

WITHIN AN ENCLOSED AREA. THE EXHAUST

ASES OF THIS ENERATOR EMIT “DEADLY”

CARBON MONOXIDE. EXPOSURE TO CARBON MONOXIDE

CAN CAUSE CARBON MONOXIDE POISONIN ,

HEADACHES, NAUSEA, SEVERE SICKNESS OR DEATH.

BURNS AND SCALDS

CAUTION: KEEP HANDS, BODY PARTS, HAIR AND

CLOTHIN AWAY FROM THE “HOT” PARTS OF THE

ENERATOR SET DURIN AND AFTER OPERATION.

THE EXHAUST SYSTEM, AND THE ENERATOR IN

ENERAL, CAN REMAIN VERY HOT EVEN AFTER BEIN

SHUT DOWN.

ENVIRON ENTAL PROTECTION

CAUTION: INSPECT THE EXHAUST SYSTEM

RE ULARLY TO ENSURE IT IS FUNCTIONIN

PROPERLY. LEAKY EXHAUST SYSTEMS WILL

INCREASE NOISE LEVELS.

CAUTION: DIRECT THE “LOUD” SIDES OF THE

ENERATOR INTO OPEN SPACES AVOIDIN

REVERBERATION FROM WALLS OR BUILDIN S

THUS AMPLIFYIN THE SOUND.

CAUTION: INSPECT THE SPARK ARRESTOR

PERIODICALLY. SPARK ARRESTORS ARE

REQUIRED IN SOME AREAS AND MINIMIZE THE

RISK OF FIRE FROM SPARKS EMMITTED FROM THE

EXHAUST.

CAUTION: NEVER DRAIN OR DISPOSE OF EN INE

OIL INTO THE ROUND OR DOMESTIC WASTE

WATER SYSTEMS.

GENERAL SAFETY

Always follow National and Local electrical codes pertaining to

generators. All local and national codes supersede rules or

information provided in this manual.

CAUTION: DO NOT OPERATE THIS ENERATOR IF

THE AMBIENT TEMPERATURE EXCEEDS 104ºF/40ºC.

CAUTION: DO NOT EXCEED THE RATED CAPACITY

OF THE ENERATOR. THE TOTAL ELECTRICAL

LOADS AT EACH OUTLET MUST BE ADDED TO

DETERMINE THE TOTAL ELECTRICAL LOAD. THE TOTAL

LOAD MUST NOT EXCEED THE RATED CAPACITY OF THE

ENERATOR. IF THE DRIVEN APPARATUS DOES NOT LIST

WATTA E, BUT ONLY AMPERA E, WATTA E MAY BE

DETERMINED BY MULTIPLYIN AMPERA E TIMES

VOLTA E (WATTS = AMPS X VOLTS).

CAUTION: DO NOT TAMPER WITH THE EN INE-

OVERNED SPEED. THE ENERATOR OPERATES

AT A NOMINAL SPEED OF 3600 RPM. INCREASES IN

SPEED OVER THE 3600 RPM NOMINAL WILL INCREASE

THE CHANCE OF PERSONAL INJURY DUE TO

ROTATIONAL STRESSES ON THE ROTATIN MEMBERS.

OPERATION OF THE ENERATOR AT SPEEDS BELOW

THE NOMINAL 3600 RPM COULD CAUSE DAMA E TO THE

ENERATOR OR DRIVEN APPARATUS DUE TO LOW

VOLTA E OUTPUT.

WARNING: REFER TO LOCAL AND NATIONAL

ELECTRICAL CODES TO DETERMINE ROUNDIN

REQUIREMENTS AS THIS CAN VARY PER

APPLICATION. THE ENERATOR IS ROUNDED

INTERNALLY NEUTRAL TO FRAME. WHERE

APPLICATIONS REQUIRE EXTERNAL ROUNDIN , A

CONNECTION MUST BE MADE FROM THE ENERATOR

TO A SOLID EARTH ROUND. A CONTINUOUS LEN TH OF

SPLICE-FREE COPPER CABLE, NO SMALLER THAN 6

AW , SHALL BE USED FOR THE CONDUCTOR.

• When moving or transporting this generator, take proper

precautions to avoid fuel spillage. Further, always use

common sense when lifting this generator. An adequate

number of people and proper lifting methods must be

used.

• Do not cover the generator while it is running or

immediately after shutdown. Always allow time to cool

down before covering.

• Do not operate this generator unless it is in good

mechanical and electrical condition.

• Always keep hands, body parts, hair and clothing well

away from the rotating parts of the generator.

• Do not start this generator with connected devices turned

“ON”. Always make sure that connected devices are

disconnected from the generator or turned “OFF” before

starting the generator.

• enerators operating on job or construction sites may be

required to have FCI ( round Fault Circuit Interrupters)

receptacles.

• Use only grounded extension cords in good condition and

make sure that the wire size within the extension cords is

of sufficient size to safely carry the surge output of the

generator.

• Never handle extension cords or electrical circuits if

standing in water or if standing in a damp area.

BATTERY SAFETY

WARNING: STORA E BATTERIES PRODUCE AND

RELEASE EXPLOSIVE HYDRO EN AS WHEN

CHAR IN . THE SLI HTEST SPARK, FLAME OR

BURNIN ASH CAN I NITE THESE ASES CAUSIN A

SERIOUS EXPLOSION THAT COULD RESULT IN

BLINDNESS OR OTHER SERIOUS INJURIES. WEAR EYE

PROTECTION, RUBBER APRON AND RUBBER LOVES

WHEN WORKIN AROUND A BATTERY OR PERFORMIN

BATTERY SERVICE. BATTERY FLUID IS AN EXTREMELY

CAUSTIC SULFURIC ACID, WHICH CAN CAUSE SEVERE

BURNS. ALWAYS DISCONNECT THE NE ATIVE (-)

BATTERY CABLE FROM THE BATTERY BEFORE

PERFORMIN BATTERY SERVICE OR BEFORE

PERFORMIN ANY ELECTRICAL SERVICE ON THE

ENERATOR OR EN INE.

English 0070661

LI ITED WARRANTY FOR PRA AC POWER SYSTE S PRODUCTS

This warranty applies to generators, pressure washers, and water pumps commercialized by Pramac America, LLC

in the USA and Canada. The warranty period begins from the date of purchase and is in effect for two (2) years or

1500 hours. Pramac will repair or replace, at its discretion, any parts determined to be defective under typical use by

an authorized service provider or by Pramac. Pramac reserves the right to make the final decisions on all warranty

approval.

The warranty does not apply to engines or other components specifically covered and administered by another

manufacturer. The warranty period and requirements for approval are defined separately for these components and

Pramac cannot determine warrantability in the event of a failure.

Requirements:

1. Any and all warranty repairs and/or concerns, must be performed and/or addressed by an Authorized/Certified

Pramac service center.

2. Proof of purchase must be provided that clearly defines date of purchase and the product model.

3. Warranty expenses may be limited by the approved rates and service schedule published to the service center

network.

4. The warranty is not transferable, therefore, the claim must be made by the original owner.

5. Product must have been maintained according to published schedules using genuine service parts.

The warranty does not cover:

1. Any unit built/manufactured prior to January 1, 2009.

2. Costs of normal maintenance or replacement/repair of normal wear parts.

3. Any failure caused by contaminated fuels, oils, or lack of proper fuels, oils.

4. Failures caused by any external cause or act of od such as, but not limited to, collision, fire, theft, freezing,

vandalism, riot or wars, lightning, earthquake, windstorm, hail, volcanic eruption, water or flood, tornado,

hurricane, terrorist acts or situations outside reasonably anticipated conditions.

5. Products that are modified or altered in a manner not authorized by Pramac in writing.

6. Failures due, but not limited to, normal wear and tear, accident, misuse, abuse, negligence, or improper

application.

7. Any incidental, consequential or indirect damages caused by a warrantable or non-warrantable product failure.

8. Any costs relate to delay in repair or replacement of the defective part(s).

9. Telephone, fax, cell phone, or other communication expenses.

10. Rental equipment used while warranty repairs are being performed or required for any purpose related to a

warranty repair.

11. Overtime, holiday, or emergency labor.

12. Any transport costs related to a warranty claim.

13. Any expenses incurred investigating performance complaints unless a warrantable failure was the direct cause

of the problem.

14. Starting batteries, fuses, or light bulbs.

15. Overnight or other expedited freight costs related to deliver of parts used in warrantable repairs.

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. PRAMAC DOES

NOT UARANTEE THE PRODUCT FOR ANY SPECIFIC PURPOSE NOT CLEARLY STATED.

Any limitations not allowed by certain states may not apply to the purchaser, with specific rights varying from location

to location.

English 0070661

0070661

English

INITIAL INSPECTION

Upon receiving your generator set, inspect the product to make

sure it is complete and in good condition. Handle with care and

place in a suitable site for storage or operation.

GROUND CONNECTION

The generator can be grounded to earth to reduce the chance

of electrical shock. To do this you will need a grounding rod

and an appropriately sized copper ground wire. Drive the

ground rod into the earth, connect one end of the copper wire

to the rod and connect the other end to the external ground

connection on the generator set. This is a general explanation,

consult National and Local electrical codes to ensure

compliance.

BEFORE START-UP

ENGINE FUEL

Use only Diesel fuel with cetane value of more than 45. Check

the fuel gauge beside the fuel fill and add as necessary.

ENGINE OIL

The engine manual or other information provided by the engine

manufacturer supersedes data provided here. Proper oil grade

varies with climate. Consult the engine manual to verify proper

grade. The oil fill port is located on top of the engine. The

integral dipstick is located on the side of the engine. Add the

proper amount of oil and check the level using the dipstick.

STARTING BATTERY (Electric Start odels Only)

The starting battery should be rated at 420 CCA. The battery is

fully charged if a voltage of 12.84VDC is measured across the

terminals using a DC Voltmeter.

POSITIONING

• Place the generator set on a flat and solid surface to

prevent it from sinking.

• The surface should not be more than 25° from horizontal

in any direction for the engine to lubricate properly.

• Keep fuel, oil or other explosives at a safe distance from

the generator set.

• Select a site that is well ventilated and protected from the

weather.

• Place the generator set safely away from people and

animals.

OPERATION

Check the engine oil before each use. Never operate the

generator set with insufficient oil.

GENERATOR SET OVERLOAD

Do not exceed the rated load of the generator set when

operating continuously. Before connecting items to the

generator set, determine the total electrical requirements of the

products to be connected. The requirement of each item is

generally given on the manufacturer’s nameplate. Below is a

list of commonly used items and typical requirements. Use this

list as a guideline only if no other data is available.

NOTE: Many appliances such as saws or drills draw more

current than indicated on the manufacturer’s nameplate when

under severe load.

DIGITAL HOUR ETER

• Press and release mode button to

toggle between Total Timer and

Timer 1 (T R1).

• Total Timer displays and records

the total hours your generator has

run. Total Timer is not resettable.

• Timer 1 can be used to track

operating hours for service intervals.

Timer 1 is resettable by holding the

mode button down for 3 seconds

while T R1 is displayed.

OPERATION

EN INE HP Oil Capacity rade

Kohler KD420 9.8 1.6 qt (1.5 l) See manual

Item Running Watts

Air Conditioner (12000 Btu) (*) . . . . . . . . . . . . . . . . . . .1750

Air Compressor (1/2 hp) (*) . . . . . . . . . . . . . . . . . . . . . .1400

Air Compressor (3/4 hp) (*) . . . . . . . . . . . . . . . . . . . . . .1800

Air Compressor (1 hp) (*) . . . . . . . . . . . . . . . . . . . . . . .2000

Battery Charger (25A) . . . . . . . . . . . . . . . . . . . . . . . . . . .600

Belt Sander (3” belt) . . . . . . . . . . . . . . . . . . . . . . . . . . .1000

Circular Saw (7 1/4”) . . . . . . . . . . . . . . . . . . . . . . . 825-1050

Coffee Maker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900-1100

Edger (lawn) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .550

Furnace Fan (1/3 hp) (*) . . . . . . . . . . . . . . . . . . . . . . . . .1200

Hot Plate (single) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1500

Impact wrench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600

Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bulb rating

Nail un . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .750

Paint Sprayer (1/3 hp) (*) . . . . . . . . . . . . . . . . . . . . . . . .650

Paint Sprayer, hand-airless . . . . . . . . . . . . . . . . . . . . . . .175

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50-200

Refrigerator (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600

Table Saw (10”) (*) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000

Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250-550

Weed Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Note: (*) Items allow at least 3 times the listed wattage for

starting.

GENERAL WATTAGE GUIDE

HOUR METER

HOROMÈTRE

CONTADOR HORARIO

0070661

English

STARTING THE GENERATOR SET

Before attempting to start the generator set, ensure that

all instructions given in previous sections have been

followed completely.

• Check oil and fuel levels.

• Turn the fuel valve under the fuel tank on.

FUEL SUPPLY SOLENOID SWITCH

• Place the Fuel Supply Solenoid Switch in the UP

position for RECOIL START.

• Place the Fuel Supply Solenoid Switch in the DOWN

position for ELECTRIC START.

RECOIL START

• Turn key to 1st position-

Warning Light On.

• Slowly pull recoil cord until

resistance is felt, and then

pull firmly. Let the recoil

rewind slowly to avoid

damage.

ELECTRIC START

• Turn key to 1st position-

Warning Light On.

• Turn key to 2nd position-

Starting.

• Return key to 1st position when engine is running.

• Note: If the engine does not start after 20 seconds, stop

and wait 1 minute and repeat this step.

PRI ING PROCEDURE

This procedure may be required for the initial start or

subsequent starts, if the fuel runs out, or if air is in the fuel

system.

1. Fill the tank completely with DIESEL fuel.

2. Open the fuel shut-off valve under the tank.

3. Pump the primer lever 2-3 times.

4. Watch for the fuel filter to be completely filled with diesel

with no air inside.

5. Crank the engine by turning the ignition key or pulling

the recoil.

VOLTAGE SELECTOR GUIDE (applicable models)

The voltage selector switch allows the generator set to produce

120 volts only or to produce 120/240 volts simultaneously. With

the switch in the 120V position only the 120V receptacles may

be used. All of the power from the generator is available at 120

volts but the 240V output is not available. In the 120/240V

position all receptacles are operable however only half of the

generator output is available at any one 120V receptacle. Full

power may be pulled from the generator from the 240V

receptacle. The switch should always be left in the 120V

position when 240 volts are not needed. This balances the

load on the generator more effectively.

STOPPING THE GENERATOR SET

Unplug all appliances and let

the engine run unloaded for a

couple of minutes. Turn the key

switch to the Stop (0) position.

Turn the fuel valve on the

bottom of the fuel tank Off.

GENERATOR APPLICATION

WHAT IS A GENERATOR

A generator is basically a prime mover, typically a gasoline or

diesel engine, coupled to an alternator to produce electricity. It

is very useful as a substitute power source during power

outages or as the primary source in remote locations where

power is not available. enerators are essential for people

such as contractors or farmers who are always in need of

portable power. They are also very convenient for recreational

use.

SELECTING A GENERATOR

Selecting the proper generator is important. A generator that is

too small for your application will not run all of the equipment

needed. A generator that is too large will cost more and if

never used to its potential the money is wasted. The correct

size generator is determined by totaling the wattage

requirements of the items to be used simultaneously,

determine additional starting wattage requirements and total

these numbers. Select a generator with a continuous rating

that exceeds this by about 20% to allow for expansion. See the

table in the section titled “ enerator Set Overload” for some

wattage guidelines of common equipment.

FUEL VALVE UP

DOWN

FUEL SUPPLY

SOLENOID

SWITCH

RATED vs. SURGE WATTS

Rated, or continuous, watts are the watts an item needs as it is

running.

Surge, or maximum, watts are the watts an item needs to start.

This is typically 2-4 times the rated watts.

This information is typically provided on the manufacturer’s

nameplate. If watts are not provided, it can be calculated using

the formula: Watts=Amps x Volts.

EXTENSION CORDS

An extension cord should always be in good condition with no

damage to the wires or sheathing. Never run an extension cord

through water. The correct wire size for an extension cord can

be determined from the table that follows.

LOADING YOUR GENERATOR SET

With reference to the Receptacle details section, please review

the power receptacles fitted to your generator. The circuit

breaker rating and the generator rating drive the actual load

that may be pulled from each receptacle. The ratings shown in

the table are the maximum available from each receptacle.

DO NOT EXCEED THE INDIVIDUAL RECEPTACLE RATIN S

AS SHOWN IN THE TABLE BELOW. DO NOT EXCEED THE

TOTAL ENERATOR RATIN SHOWN IN TABLE 2

PERFORMANCE SPECIFICATIONS. All generator units are

equipped with a magnetic main circuit breaker.

A PERAGE RATE TABLE

ENGINE LI ITATIONS ON GENERATOR

PERFOR ANCE

enerator ratings assume 60°F (20C) and Sea Level.

Operation of your generator at temperatures above 60°F (20C)

or above Sea Level will result in lower electrical output.

Electrical output must be derated 1% for each 10°F above

60°F and 3 ½ % for each 1000 feet above mean sea level.

GENERATOR CLEANING

CAUTION: ALWAYS SHUT DOWN THE ENERATOR

AND ALLOW IT TO COOL COMPLETELY BEFORE

PERFORMIN CLEANIN OPERATIONS.

WARNING: DO NOT USE HI H PRESSURE WATER

OR A ARDEN HOSE TO CLEAN YOUR

ENERATOR. WATER INTRODUCED INTO THE

ENERATOR CAN CAUSE ELECTRICAL SHORTS,

ENERATOR DAMA E OR PERSONAL INJURY.

• Compressed air (max. 25 psi) may be used to blow loose

dirt and dust from your generator. DO NOT DIRECT

COMPRESSED AIR DIRECTLY INTO ANY OPENIN IN

THE ENERATOR OR EN INE.

• Use a dampened cloth to wipe clean exterior surfaces.

• Use a soft bristle brush to clean/ loosen heavy dirt, oil or

grease deposits.

• NEVER insert rags, tools or any device into the generator

or engine openings.

GENERAL STORAGE GUIDELINES

WARNING: DIESEL FUEL FUMES ARE FLAMMABLE.

DO NOT STORE YOUR ENSET IN ANY AREA THAT

IS INDOOR OR IN POORLY VENTILATED AREAS.

DIESEL FUEL FUMES CAN I NITE IN THE PRESENCE OF

ANY OPEN FLAME, PILOT LI HT, CLOTHES DRYER,

WATER HEATER, ETC.

• Your generator should be started and operated for

several minutes at least every 30 days.

• If the generator cannot be operated every 30 days, follow

the storage recommendations within the engine

documentation.

• NOTE: A fuel shut-off valve is positioned at the base of the

fuel tank. The valve should be closed during storage

periods.

English 005440

RECEPTACLE DETAILS

The receptacles shown in this section are for reference only. Each receptacle is not available on all generators.

odel Cont. Watts Surge Watts

S5500 5000 Watts

41.7/20.8 Amps

5500 Watts

45.8/22.9 Amps

Continuous

Load

inimum Cord Gauge (AWG)

Amps 0-50 Feet 50-100 Feet 100-150

Feet

Indice

Lingue:

Altri manuali Pramac Generatore portatile

Manuali Generatore portatile popolari di altre marche

Kohler

Kohler 20EORZ Manuale di istruzioni

Powerhorse

Powerhorse 83171 Manuale utente

HURST

HURST ML-630-SI Manuale utente

ETQ

ETQ TG4000 Manuale utente

Briggs & Stratton

Briggs & Stratton 40265 Guida all'installazione

ConMed

ConMed 7550 Manuale utente

Owon

Owon Waveform Generator Manuale utente

evertz

evertz 7700 Series Manuale utente

Power Stroke

Power Stroke PS906025 Manuale utente

Firefly

Firefly Cygnus CYG2400/460/24 Manuale utente

Draper

Draper PG950S Aggiornamento firmware

PowerBoss

PowerBoss PowerBoss Manuale utente

SDMO

SDMO SH 4000 Manuale utente

EINHELL

EINHELL STE 5500 Manuale utente

Wanco

Wanco WI3000P Manuale utente

Full Boar

Full Boar FBT-3300 Manuale utente

Dwyer Instruments

Dwyer Instruments ASG Manuale utente

Westinghouse

Westinghouse WH1000i Series Manuale utente
