Pro-Form PFEL94910.0 Manuale utente

Serial Number

Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Model No. PFEL94910.0

Serial No.

Write the serial number in the

space above for reference.

USERʼS MANUAL

www.proform.com

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICAL .............................................................15

MAINTENANCEANDTROUBLESHOOTING ...................................................23

EXERCISEGUIDELINES ...................................................................25

PARTLIST ..............................................................................28

EXPLODEDDRAWING ....................................................................30

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

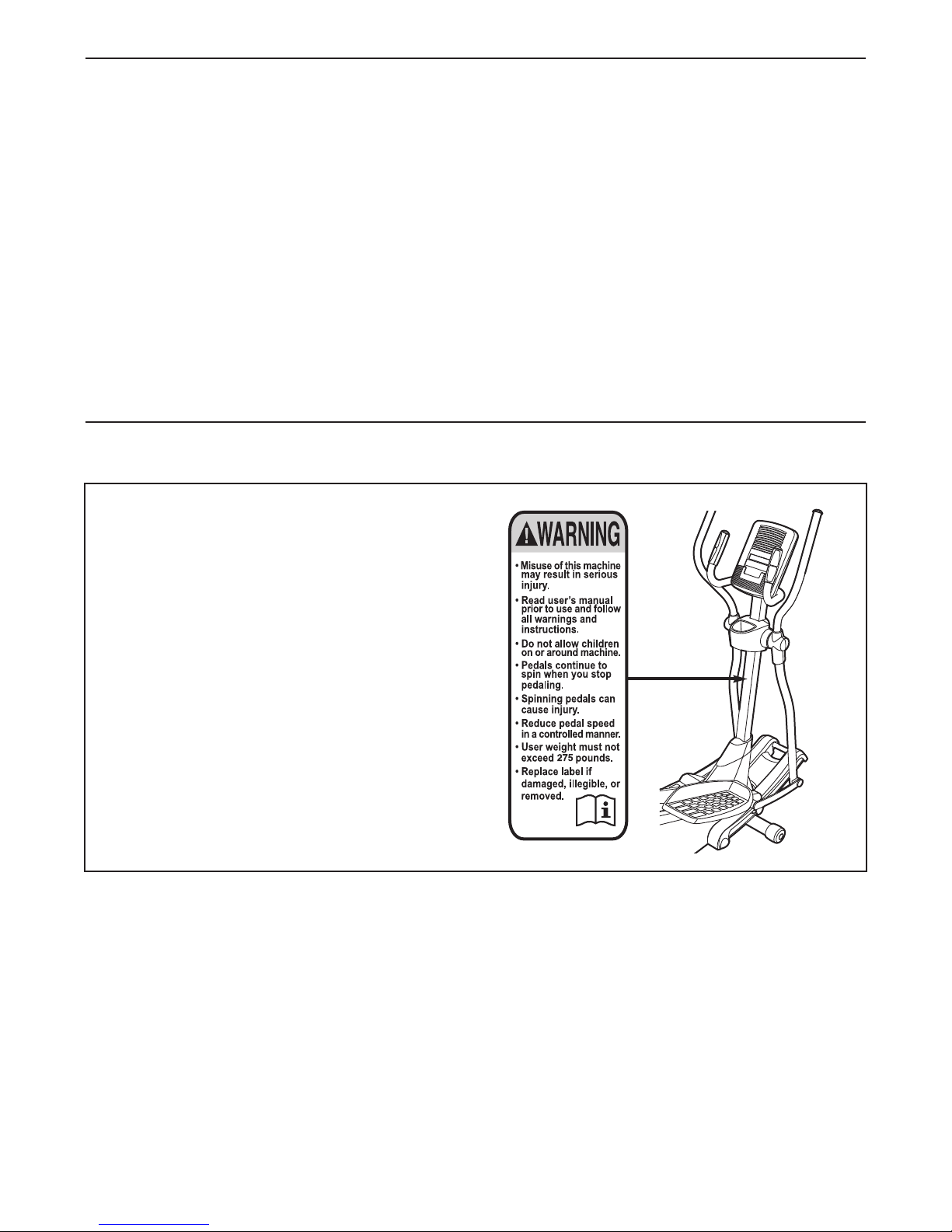

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. eep the elliptical indoors, away from

moisture and dust. Place the elliptical on a

level surface, with a mat beneath it to protect

the floor or carpet. Make sure that there is at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side.

6. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

7. eep children under age 12 and pets away

from the elliptical at all times.

8. The elliptical should not be used by persons

weighing more than 275 lbs. (125 kg).

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

10. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

11. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in

determining heart rate trends in general.

12. The elliptical does not have a freewheel; the

pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

13. eep your back straight while using the

elliptical; do not arch your back.

14. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

Pulse Sensor

Upper Body Arm

Handlebar

Pedal Disc Wheel

Pedal

Fan

Console

Water Bottle Holder*

Leveling Foot

Handle

*Water bottle is not included

BEFORE YOU BEGIN

Ramp

Thank you for selecting the new PROFORM®STRIDE

TRAINER 595 elliptical. The STRIDE TRAINER 595

elliptical provides a selection of features designed to

make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

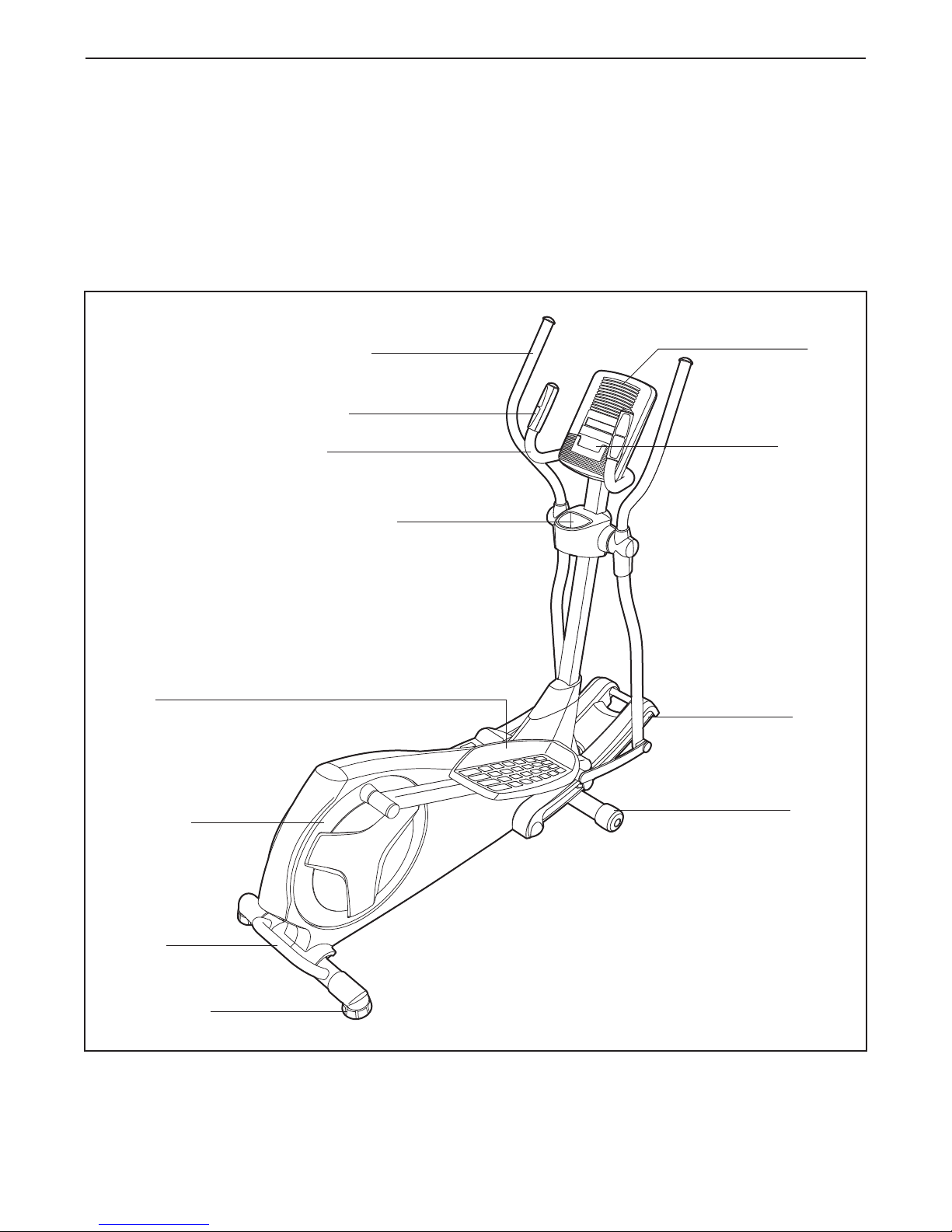

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver and an

adjustable wrench .

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below

each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-

lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check

to see if it has been preassembled.

M10 x 48mm Patch

Screw (75)–6

M10 x 20mm Patch

Screw (79)–7

M8 x 20mm

Patch Screw

(80)–4

M4 x 48mm

Screw (89)–2

M8 x 45mm Button

Bolt (76)–4

M10 x 85mm Patch Screw (82)–4

M4 x 16mm

Screw (92)–7

M8 Washer

(33)–6

M10 Split

Washer (78)–10

M8 Jam Nut

(77)–4

M8 x 18mm Patch

Hex Screw (85)–2

While a second person lifts the rear of the

Frame (1), attach the Rear Stabilizer (70) to the

Frame with two M10 x 85mm Patch Screws

(82).

2. Orient the Front Stabilizer (73) so that the

“Front” sticker is facing away from the front of

the Frame (1).

While a second person lifts the front of the

Frame (1), attach the Front Stabilizer (73) to the

Frame with two M10 x 85mm Patch Screws

(82).

To make assembly easier, read the

information on page 5 before you begin.

Wire

Tie

4. Slide the Upright (2) onto the Frame (1).

Tip: Have a second person hold the Top

Shield Cover (37) out of the way.

Tip: Avoid pinching the Wire Harness (42).

Attach the Upright (2) with four M10 x 20mm

Patch Screws (79) and four M10 Split Washers

(78).

Slide the Top Shield Cover (37) downward and

press it into the Frame (1).

78 78

79 79

Wire Tie

Avoid pinching the

Wire Harness (42)

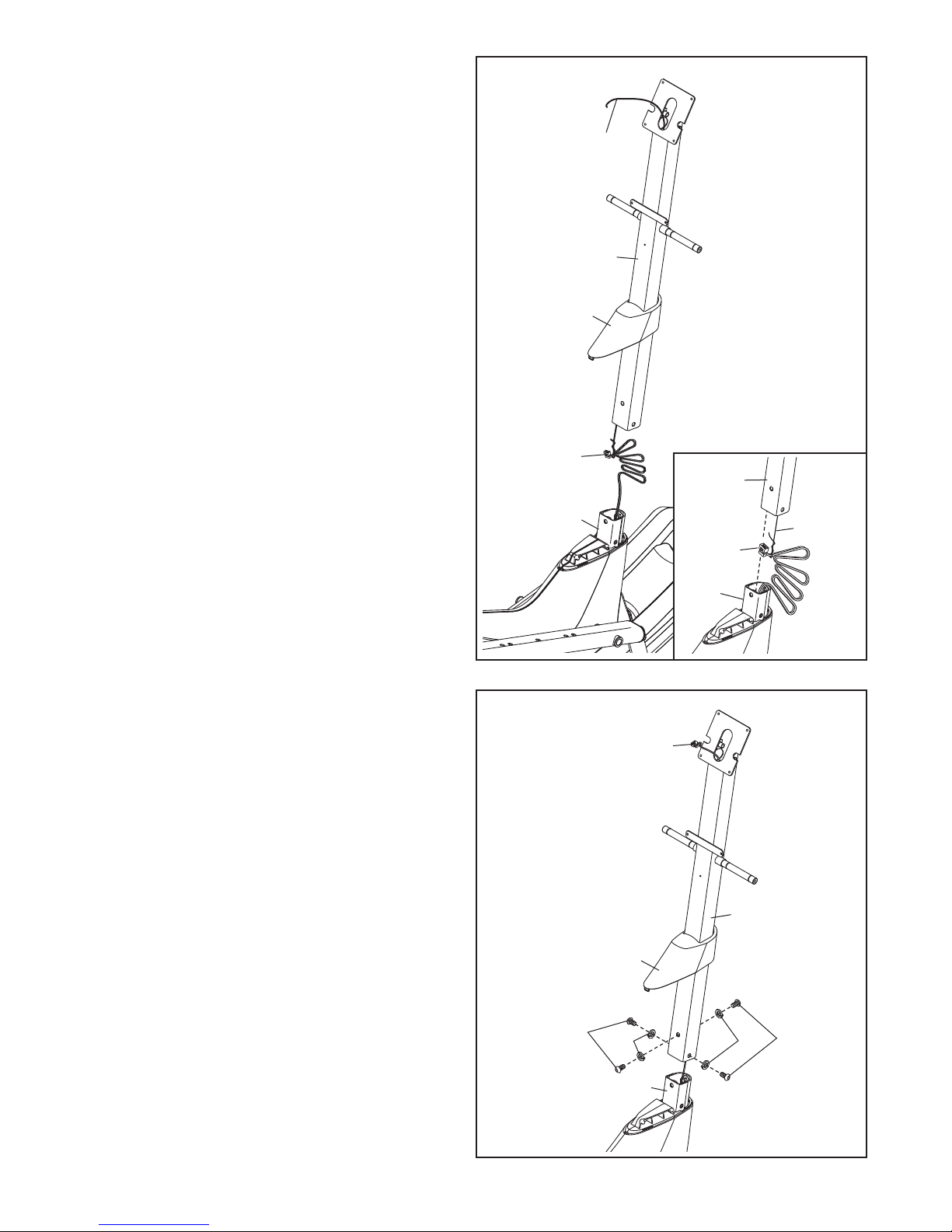

3. Orient the Upright (2) and the Top Shield Cover

(37) as shown. Slide the Top Shield Cover

upward onto the Upright.

Have a second person hold the Upright (2) near

the Frame (1).

See the inset drawing. Locate the wire tie in

the Upright (2). Tie the lower end of the wire tie

to the Wire Harness (42). Next, pull the upper

end of the wire tie upward until the Wire

Harness is routed through the Upright. Then,

untie and discard the wire tie.

Tip: To prevent the Wire Harness (42) from

falling into the Upright (2), secure the Wire

Harness with a rubber band or a piece of

tape.

5. See the upper drawing. To avoid pinching or

damaging the Pulse Wires (28) while you

assemble the Handlebar (39), perform the fol-

lowing actions:

Insert the end of the left Pulse Wire (28) inside

the left side of the Handlebar (39).

Then, insert the end of the right Pulse Wire (28)

inside the right side of the Handlebar (39).

See the lower drawing. Have a second person

hold the Handlebar (39) in place around the

Upright (2).

Tip: Avoid pinching the wires. Attach the

Handlebar (39) to the Upright (2) with three M10

x 20mm Patch Screws (79).

Avoid pinching

the wires

6. The Console (4) can use four D batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the Console has been

exposed to cold temperatures, allow it to

warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic compo-

nents. Remove the screws, remove the battery

covers, insert the batteries into the battery com-

partments, and reattach the battery covers.

Make sure to orient the batteries as shown

by the diagrams inside the battery compart-

ments.

To purchase an optional power adapter, call

the telephone number on the front cover of

this manual. To avoid damaging the console,

use only a manufacturer-supplied power

adapter. Plug one end of the power adapter

into the jack on the console; plug the other end

into an outlet installed in accordance with all

local codes and ordinances.

Batteries

Screws

Battery

Covers

7. Locate the Pulse Wires (28) inside the left and

right sides of the Handlebar (39) and pull them

upward out of the Upright (2).

While a second person holds the Console (4)

near the Upright (2), connect the console wires

to the Wire Harness (42) and to the Pulse Wires

(28).

Insert the excess wires into the Upright (2).

Tip: Avoid pinching the wires. Attach the

Console (4) to the Upright (2) with four M4 x

16mm Screws (92).

Console Wires

Avoid

pinching

the wires

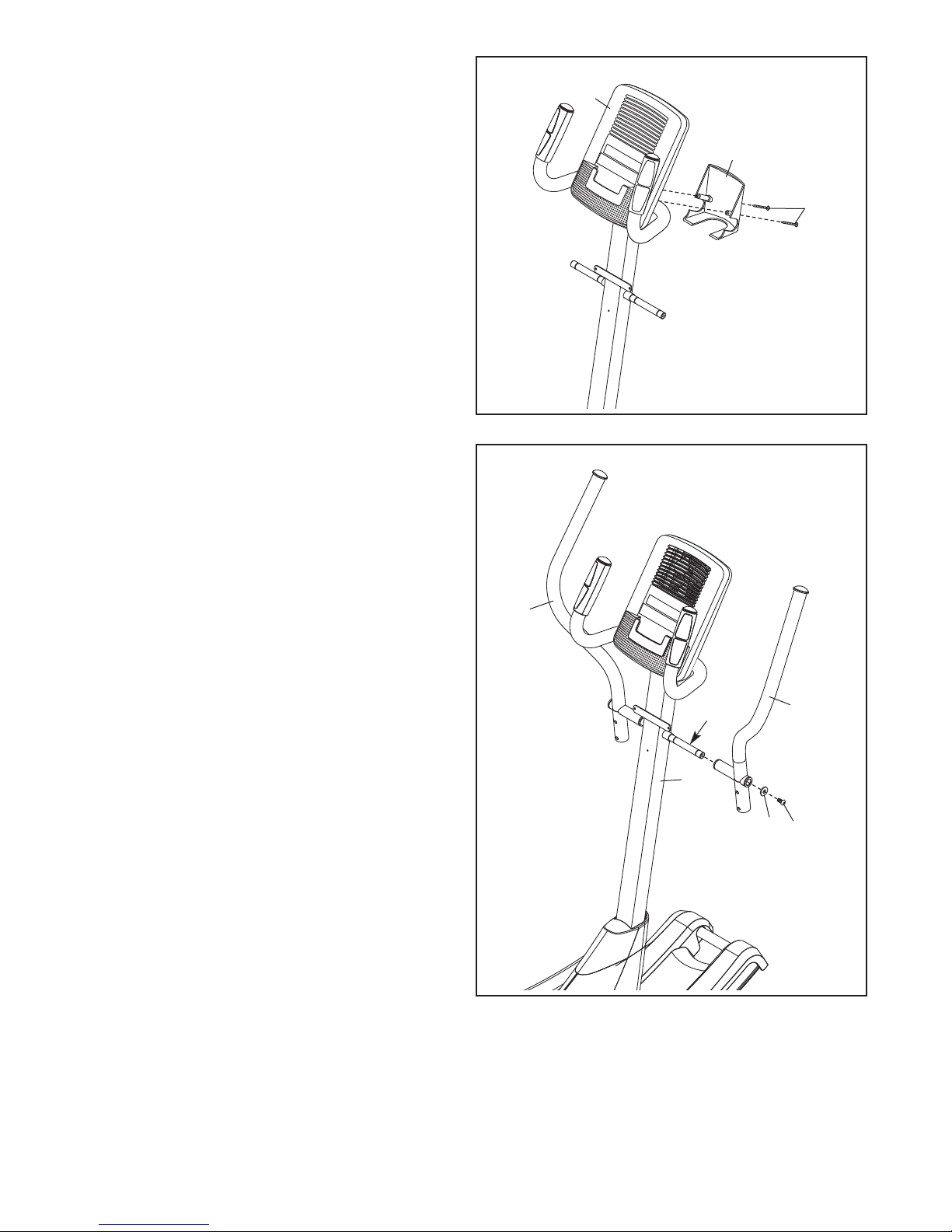

8. Attach the Console Cover (32) to the back of

the Console (4) with two M4 x 48mm Screws

(89).

9. Apply some of the included grease to the axle

on the right side of the Upright (2).

Identify the Right Upper Body Arm (9), which is

marked with a “Right” sticker, and orient it as

shown.

Slide the Right Upper Body Arm (9) onto the

right side of the Upright (2).

Attach the Right Upper Body Arm (9) with an

M8 x 20mm Patch Screw (80) and an M8

Washer (33).

Repeat this step to attach the Left Upper

Body Arm (8).

33 80

Grease

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Ellittica

Pro-Form

Pro-Form PFIVEL19216.0 Manuale utente

Pro-Form

Pro-Form PFEL04908.0 Manuale utente

Pro-Form

Pro-Form 690 Hr Elliptical Guida di riferimento

Pro-Form

Pro-Form PFIVEX79612.0 Manuale utente

Pro-Form

Pro-Form 750 Rx Guida utente

Pro-Form

Pro-Form Space Saver 895 ZLE Manuale utente

Pro-Form

Pro-Form 831.285871 Manuale utente

Pro-Form

Pro-Form 831.23743.1 Manuale utente

Pro-Form

Pro-Form 420 Zle Elliptical Guida utente

Pro-Form

Pro-Form 545EKG PFEVEL29831 Manuale utente

Pro-Form

Pro-Form 795 Manuale utente

Pro-Form

Pro-Form 820 Pr Elliptical Manuale operativo e di manutenzione

Pro-Form

Pro-Form PFIVEL81412.0 Manuale utente

Pro-Form

Pro-Form 500 Ekg Elliptical Manuale utente

Pro-Form

Pro-Form 475 E Manuale utente

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Guida di riferimento

Pro-Form

Pro-Form 330 Elliptical Manuale utente

Pro-Form

Pro-Form 880 S Manuale utente

Pro-Form

Pro-Form 700tr Elliptical Manuale utente

Pro-Form

Pro-Form 485 E Elliptical Manuale utente

Pro-Form

Pro-Form 910 E Elliptical Manuale utente

Pro-Form

Pro-Form 785 F Elliptical Manuale utente

Pro-Form

Pro-Form PFEL71032 Manuale utente

Pro-Form

Pro-Form Stride Select PFEL09807.0 Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
