Pro-Form SPACE SAVER PFEL59107.0 Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. PFEL59107.0

Serial No.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical exerciser.

1. Read all instructions in this manual and all

warnings on the elliptical exerciser before

using the elliptical exerciser. Use the ellipti-

cal exercise only as described in this

manual.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for

home use only. Do not use the elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 275 pounds.

8. Wear appropriate exercise clothes while

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

cising.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using the elliptical exerciser.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. Keep your back straight while using the ellip-

tical exerciser; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. When you stop exercising, allow the pedals

to slowly come to a stop.

14. The warning decals shown on page 4 have

been placed on the elliptical exerciser in the

locations shown. If a decal is missing or

illegible, call the toll-free telephone number

on the front cover of this manual and order

a free replacement decal. Apply the decal in

the location shown.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for purchasing the revolutionary

PROFORM®930 SPACE SAVER elliptical exerciser.

The 930 SPACE SAVER elliptical exerciser provides a

wide array of features designed to make your work-

outs at home more effective and enjoyable—and

when you’re not exercising, the unique elliptical exer-

ciser can be folded out of the way.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number is PFEL59107.0. The

serial number can be found on a decal attached to the

elliptical exerciser (see the front cover of this manual

for the location of the decal).

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Upper Body Arm

Pedal Disc

Wheel

Pedal

Water Bottle Holder*

Console

Handle

Latch Button

FRONT

RIGHT SIDE

REAR

Fan

*No water bottle is included

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included hex keys and your own phillips screwdriver ,

adjustable wrench , and rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the parts bag, check to see if it has been preassembled.

M8 x 23mm x

2mm Washer

(96)–8

M8 Split

Washer (97)–16

M4 x 16mm

Round Head

Screw (80)–21

M8 Washer

(95)–4

M8 x 14mm Button

Screw (84)–6

Wave Washer

(101)–2

M8 x 19mm Button

Screw (85)–6

M8 x 23mm Button

Screw (86)–4

M10 x 78mm Carriage Bolt (92)–2

M10 Nylon

Locknut (82)–2

M4 x 16mm

Screw (78)–6

M10 Split

Washer (99)–2

M10 x 80mm Button Screw (93)–2M8 x 45mm Button

Screw (90)–6

Large Wave

Washer (102)–4

M8 x 23mm x

1mm Washer

(31)–4

2. Attach the Left and Right Frame Covers (36, 37)

around the Frame (1) with four M4 x 16mm

Round Head Screws (80).

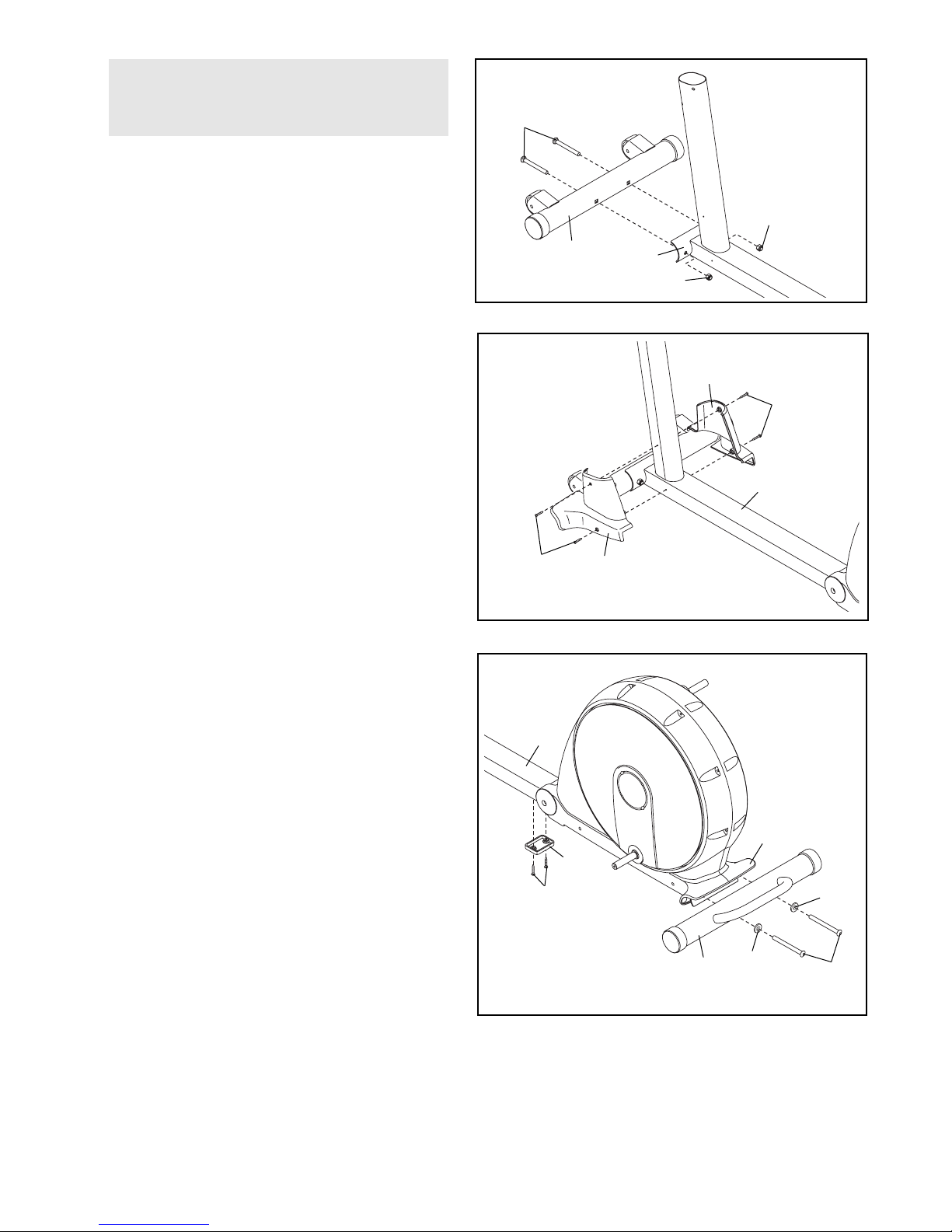

3. With the help of another person, carefully tip

the elliptical exerciser onto its side. Attach the

Center Foot (40) to the Frame (1) with two

M4 x 16mm Screws (78). Then, return the ellipti-

cal exerciser to the upright position.

Orient the Rear Stabilizer (3) as shown. While

another person lifts the Folding Frame (2),

attach the Rear Stabilizer to the Folding Frame

with two M10 x 80mm Button Screws (93) and

two M10 Split Washers (99).

See HOW TO FOLD AND UNFOLD THE

ELLIPTICAL EXERCISER on page 11, and

unfold the elliptical exerciser.

While another person lifts the front of the

Frame (1), attach the Front Stabilizer (4) to the

Frame with two M10 x 78mm Carriage

Bolts (92) and two M10 Nylon Locknuts (82).

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

5. Orient the Left and Right Upright Covers (19, 20)

as shown. Attach the Upright Covers around the

Upright (10) with five M4 x 16mm Round Head

Screws (80).

4. While another person holds the Upright (10)

near the Frame (1), connect the Upper Wire

Harness (65) to the Lower Wire Harness (64).

Then, insert the Upright (10) into the Frame (1).

Attach the Upright with four M8 x 19mm Button

Screws (85) and four M8 Split Washers (97). Do

not tighten the Button Screws yet.

Avoid pinching the Wire Harnesses (64, 65)

during this step.

Avoid pinching the

Wire Harnesses (64, 65)

during this step

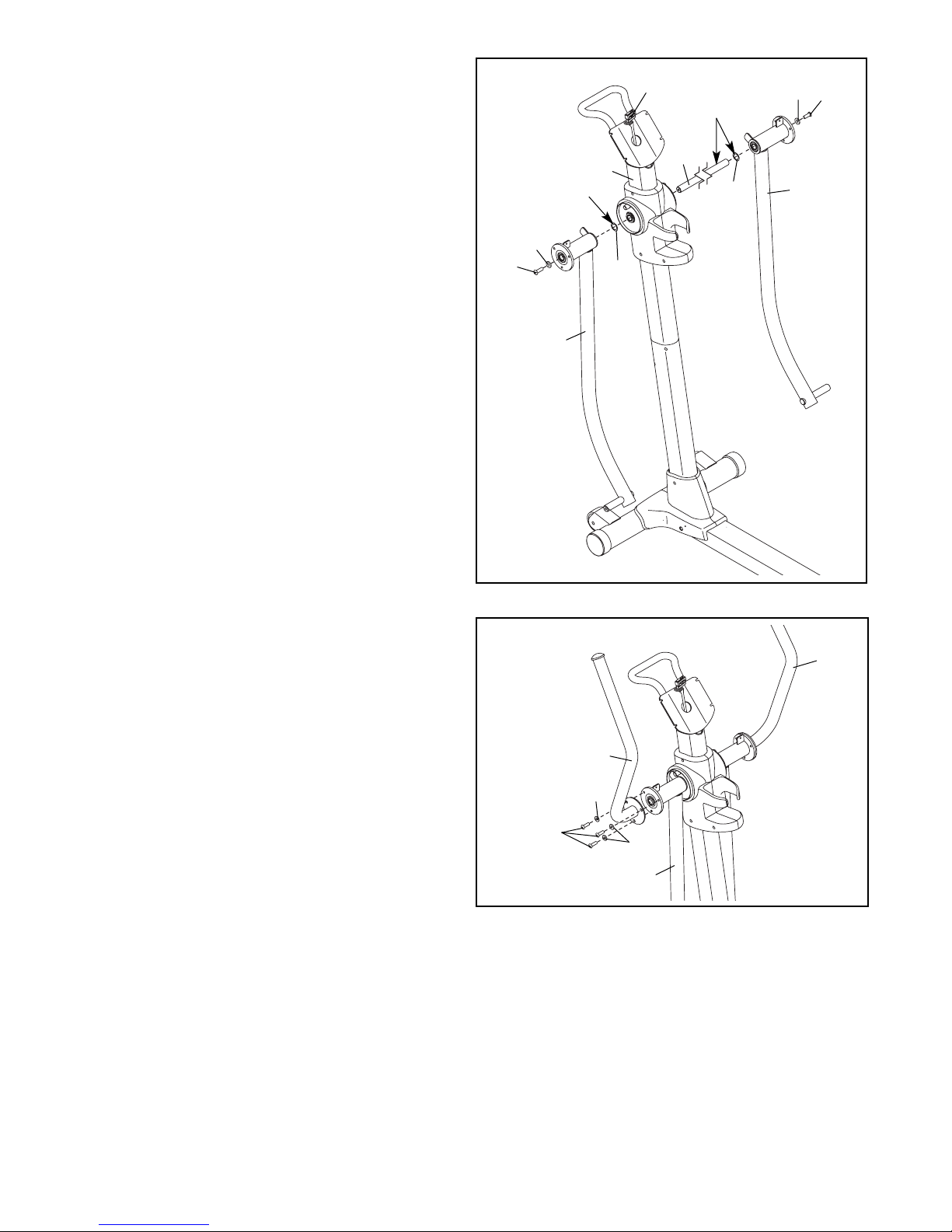

7. Attach the Left Upper Body Arm (22) to the Left

Upper Body Leg (24) with three M8 x 14mm

Button Screws (84) and three M8 Split

Washers (97).

Attach the Right Upper Body Arm (23) in the

same way.

665

101

6. Apply a generous amount of the included grease

to the Upper Body Axle (71). Insert the Upper

Body Axle into the Upright (10). Be careful not

to damage the Upper Wire Harness (65).

Apply a small amount of grease to a Wave

Washer (101). Slide the Wave Washer onto the

left end of the Upper Body Axle (71).

Identify the Left Upper Body Leg (24), which is

marked with sticker, and orient it as shown.

Slide the Left Upper Body Leg onto the left side

of the Upper Body Axle (71).

Attach the Left Upper Body Leg (24) to the Upper

Body Axle (71) with an M8 x 19mm Button

Screw (85) and an M8 x 23mm x 2mm Washer

(96).

Repeat this step for the Right Upper Body

Leg (72).

Grease

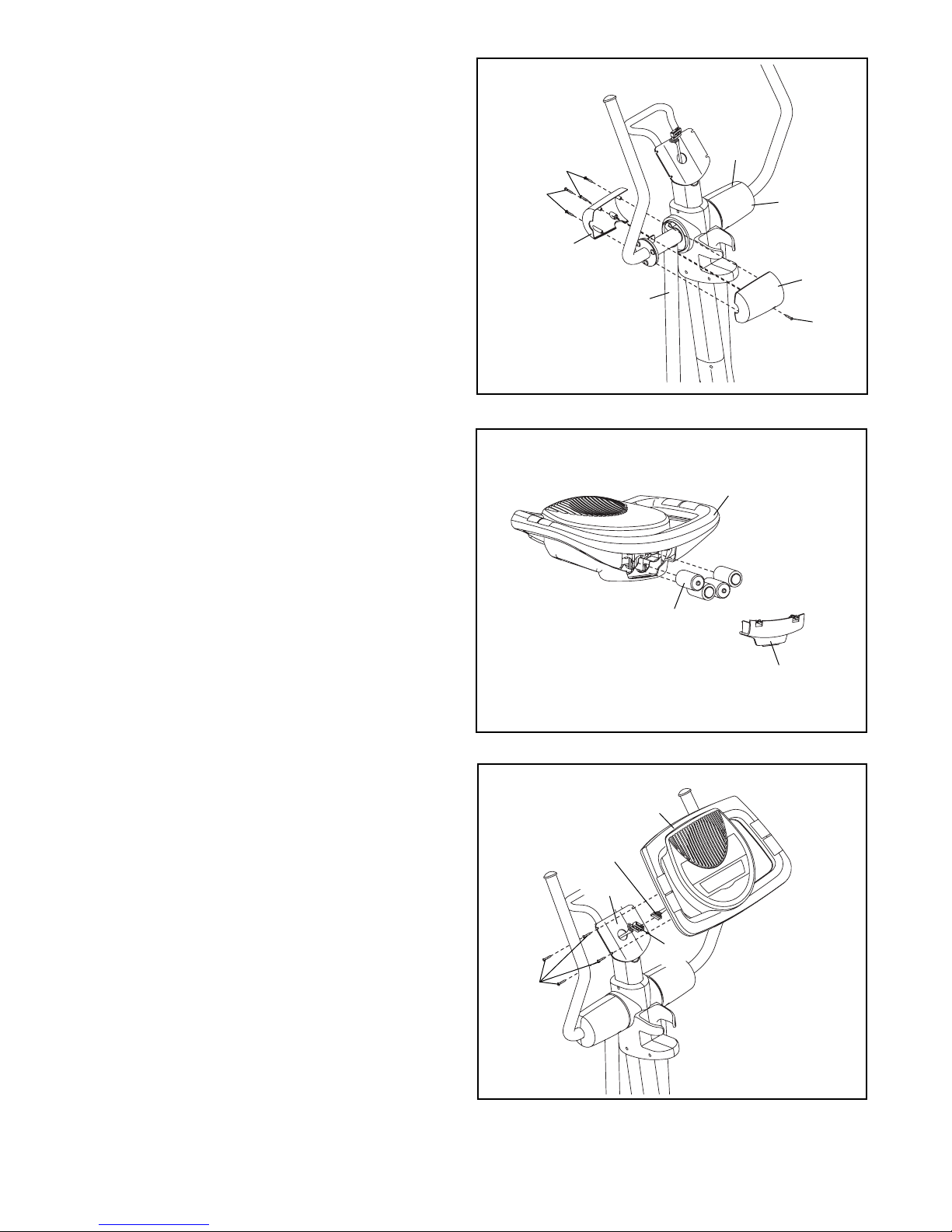

10. While another person holds the Console (11)

near the Upright (10), connect the console wire

harness to the Upper Wire Harness (65).

Attach the Console (11) to the Upright (10) with

four M4 x 16mm Screws (78). Avoid pinching

the wire harnesses during this step.

Console Wire

Harness

Avoid pinching the

wire harnesses

during this step

8. Hold the Left Rear Upper Body Cover (26) and

the Left Front Upper Body Cover (27) around

the Left Upper Body Leg (24). Attach the Upper

Body Covers with five M4 x 16mm Round Head

Screws (80).

Attach the Right Rear Upper Body Cover (28)

and the Right Front Upper Body Cover (29)

in the same way.

9. The Console (11) requires four 1.5V “D” batteries

(not included); alkaline batteries are

recommended. Remove the battery cover and

insert four batteries into the Console. Make sure

that the batteries are oriented as shown at the

right. Then, reattach the battery cover.

Note: The Console (11) can be operated with an

optional power supply instead of batteries. To

purchase a power supply, call the toll-free

telephone number on the front cover of this

manual. Plug one end of the power supply into

the jack on the console. Plug the other end of

the power supply into an appropriate outlet that

is properly installed in accordance with all local

codes and ordinances

Battery

Cover

Batteries

13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical exerciser.

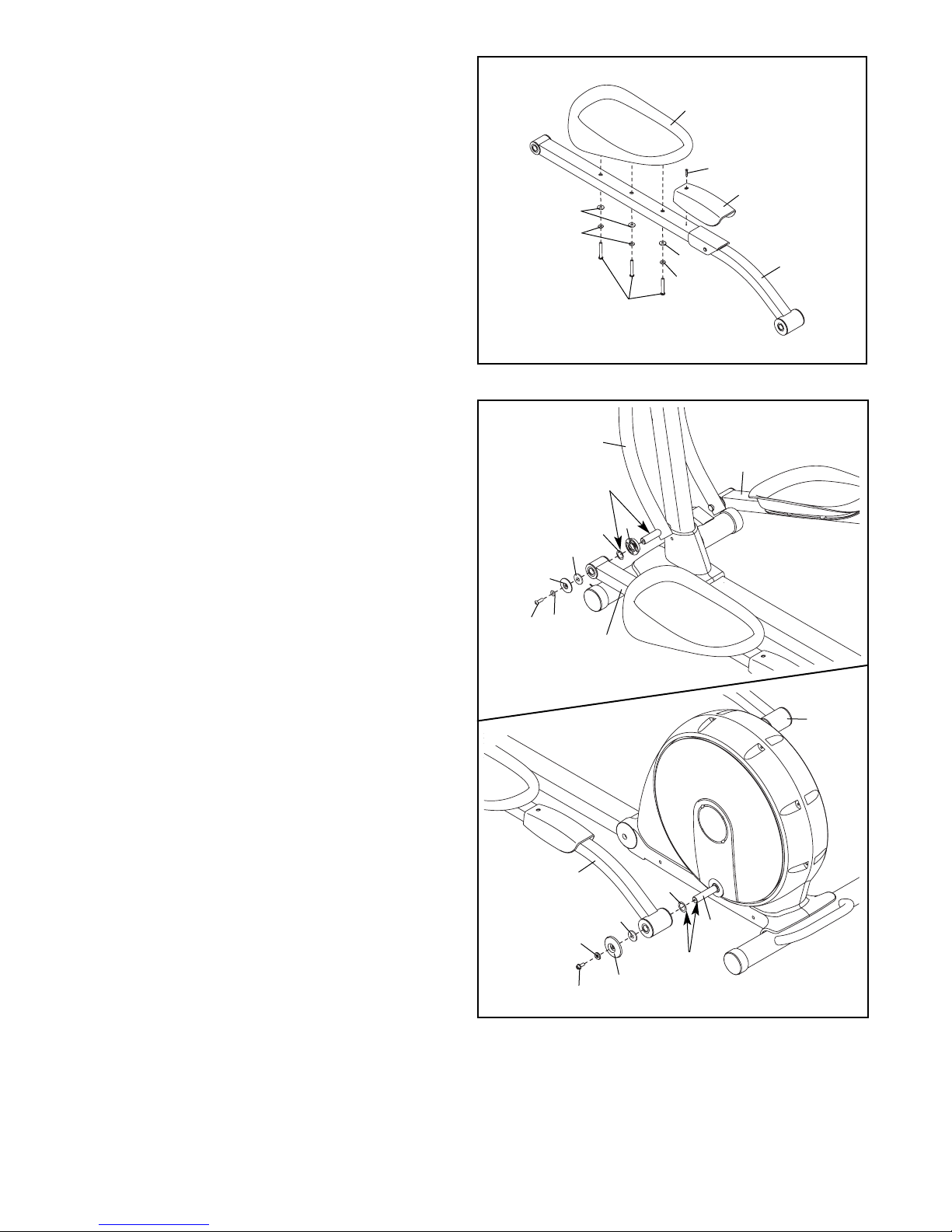

12. Apply a generous amount of grease to the axle

on the Left Upper Body Leg (24) and to the axle

on the left Crank Arm (55). Then, apply grease

to two Large Wave Washers (102).

Slide an Upper Body Leg Spacer (9) and a

Large Wave Washer (102) onto the Left Upper

Body Leg (24). Make sure that the flat side of

the Upper Body Leg Spacer is facing out-

ward. Then, slide the other Large Wave Washer

(102) onto the left Crank Arm (55).

Slide the left Pedal Arm (32) onto the Left Upper

Body Leg (24) while sliding the left Link Arm

(30) onto the axle on the left Crank Arm (55).

Attach the Pedal Arm (32) to the Left Upper

Body Leg (24) with an M8 x 23mm Button

Screw (86), an M8 Washer (95), an Axle Cover

(66), and an M8 x 23mm x 1mm Washer (31).

Then, attach the Link Arm (30) to the Crank Arm

(55) with an M8 x 23mm Button Screw (86), an

M8 Washer (95), a Large Axle Cover (52), and

an M8 x 23mm x 1mm Washer (31).

Repeat this step for the right Pedal

Arm (32) and the right Link Arm (30).

See step 4. Tighten the M8 x 19mm Button

Screws (85).

102

Grease

11. Orient a Link Arm (30) as shown. Attach the

Left Pedal (34) to the Link Arm with three

M8 x 45mm Button Screws (90), three M8 Split

Washers (97), and three M8 x 23mm x 2mm

Washers (96).

Attach a Pedal Arm Cover (39) to the Link

Arm (30) with an M4 x 16mm Round Head

Screw (80).

Repeat this step for the Right Pedal (not

shown) and the other Link Arm (not shown).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Ellittica

Pro-Form

Pro-Form 490 LE Manuale utente

Pro-Form

Pro-Form PFEL3905.0 Manuale utente

Pro-Form

Pro-Form 850 Elliptical Manuale utente

Pro-Form

Pro-Form Trainer 7.0 Manuale utente

Pro-Form

Pro-Form 465S Manuale del sistema

Pro-Form

Pro-Form 450 Hr Elliptical Guida rapida

Pro-Form

Pro-Form PFCCEL3906.0 Manuale utente

Pro-Form

Pro-Form 18.0 Re Elliptical Manuale utente

Pro-Form

Pro-Form 450 Hr Elliptical Manuale operativo e di manutenzione

Pro-Form

Pro-Form 130 Elliptical Manuale utente

Pro-Form

Pro-Form 545e Manuale utente

Pro-Form

Pro-Form PFEL13032 Manuale utente

Pro-Form

Pro-Form PFIVEL74514.0 Manuale utente

Pro-Form

Pro-Form 720 Zle Elliptical Guida utente

Pro-Form

Pro-Form 14.0 Re Elliptical Manuale utente

Pro-Form

Pro-Form PFEL4905.0 Manuale utente

Pro-Form

Pro-Form 220 Zle Elliptical Manuale utente

Pro-Form

Pro-Form pacerprograms 485p Manuale utente

Pro-Form

Pro-Form L.E.X PFEL25070 Manuale utente

Pro-Form

Pro-Form REBEL Manuale utente

Pro-Form

Pro-Form 700tr Elliptical Manuale utente

Pro-Form

Pro-Form Crossxover Manuale utente

Pro-Form

Pro-Form 1110 E PFEL10112.2 Manuale utente

Pro-Form

Pro-Form 465S Guida rapida

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
