Pro-Ject Audio Systems Pro-Ject MaiA DS Manuale utente

INSTRUCTIONS FOR USE

Pro-Ject MaiA DS

Dear music lover,

thank you for purchasing a Pro-Ject Audio Systems´ amplifier.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

Safety instructions

AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the

voltage in your area meets the voltage requirements printed on the power supply.

The power supply is used to connect/disconnect the unit from the mains. Make sure that the power

supply is easily accessible at all times. Never handle the device, the power supply while your hands are

wet or damp. Avoid letting liquids enter the device or the power supply. Never place any item

containing liquid, such as a flower vase on or near the device. Never spill any liquid on the device or

the power supply. Never place any naked flame sources, such as lighted candles on or near the device.

The product shall not be used in damp or wet locations, next to a bathtub, sink, swimming pool or any

other similar conditions.

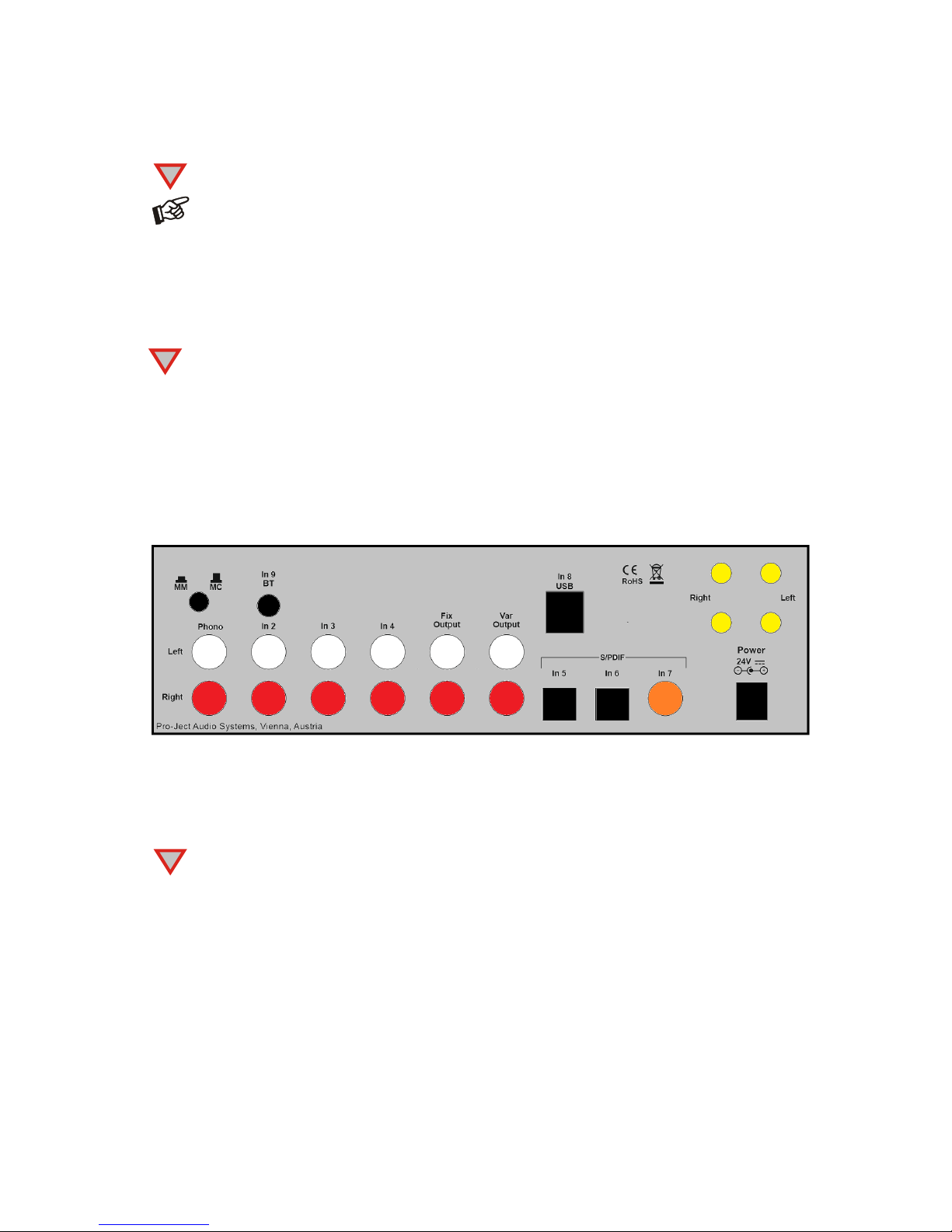

Connectors

MaiA DS

1. Make all connections except the connection to the headphone and USB whilst the unit is

disconnected from the mains.

2. Never connect or disconnect power supply to or from the unit whilst the power supply is connected to

the mains! Never use any other power supply than the one supplied with the unit with the exception of

dedicated Power Boxes which can replace original power supplies.

3. Take care to connect the left and right channels of RCA inputs correctly. The right channel is usually

marked red, the left channel black or white.

4. Speaker connections for the left speaker are located on the right hand side of rear view above,

connections to right speaker are located on the left side. Speaker connectors marked red represent +

according indicators on speaker terminal.

Line output

A power amplifier or active loudspeakers can be connected to the output sockets marked Var Output.

Record output, connecting a headphone amplifier

Fix Output connects an analogue record device or a Pro-Ject Head Box headphone amplifier.

Connection to the speakers

The output terminals accept loudspeaker cables terminated with 4mm Banana plugs, spades connectors

or naked wire.

Phono input

Connect the tonearm signal lead to the Phono In1 of the amplifier. The MM/MC switch allows to adapt to

connected cartridge type. The earthing wire may be connected to the screw terminal if you encounter hum

problems when using the turntable.

Line inputs

Line level sources such as CD player, radio or TV can be connected to the input sockets marked In2, In3 or

In4.

Digital inputs

Sources with a digital output such as TV satellite/cable receiver or a game console can be connected to the

digital inputs. Optical to In5and In6and coaxial to In7.

Connecting to a Computer

Connect the USB-input In8 USB of the MaiA DS (unit must be switched on) to a free USB-socket on your

computer and turn it on/make sure it is powered on. Select input 8.

* For Windows®operating systems an USB Class 2 driver (supplied on CD) has to be installed. For MaiA DS

with Windows® version 1.61.2 or higher is needed.

Mac OS®operating systems do not need an additional driver or setup.

Linux operating systems include an USB Audio Class 2 driver from Linux Kernel 2.6.35 and higher.

Please note: Connection should be made to an USB-socket of your computer directly. Connecting to

USB-hubs or switches can cause problems.

24Bit/192kHz playback with Windows® operating systems

* For Windows®operating systems a 24Bit/192kHzUSB driver (supplied on CD) has to be installed. Insert the

included CD into the drive of your PC and follow the instructions.

After installing the driver, some settings have to be checked/done.

For example - Windows 7®operating system:

Control Panel Hardware and Sound SoundPlayback:

select Speaker/MaiA USB 2.0 Audio Out

Properties Supported formats: make sure nothing is assigned

Level Sound: setting must be 100

Enhancements: disable all enhancements Advanced Default Format: set to studio quality 24/192

DSD playback

Playback of DSD files (.dff, .dsf) is possible over USB. Player capable of playing DSD files is required in your

computer. Setup guide is available on our website http://www.box-designs.com

Mains power connection

Connect the low voltage plug from the power supply to the 24V DC Power socket before connecting the

power supply to the mains.

Remote control

turns the unit on or back into standby

and adjust the sound volume

- and select the inputs

Blank button confirms Bluetooth pairing

Activate/deactivate mute

Front panel controls

To switch on from standby or to standby

The push button on the left side of the front panel turns the unit on or back into standby. The blue LED above

the stand-by push button shows that the unit is switched on. Mute is active when LED is blinking.

Input selector

After the unit is powered on, pressing the buttons◄ and ►next to the LEDs inputs indicators selects

desired input.

Volume

Adjust the volume to the desired level, using the large knob on the front panel.

Connecting a headphone

Connect the headphones to the ¼“ (6,3mm ) jack socket on the front of the unit.

ON/OFF

VOL

Bluetooth connection

Make sure the antenna is attached to its connector In9 BT on the back panel prior using Bluetooth. If the Pair

LED is on, active audio connection with Bluetooth device is established.

Pairing with Android devices

Open Settings and tap on Bluetooth. Turn on Bluetooth and tap on Scan. Searched devices will show up.

Tap on "MaiA DS" and confirm presented pairing code on your Android device. Then press Pair button on

MaiA DS (alternatively Blank button on remote control) when the blue Pair LED starts blinking. When paired

with MaiA DS, your Android device will show "Connected to media Audio". Now you can play music from

your Android device over Bluetooth to MaiA DS.

Older devices may request a pairing code. Enter "0000" and confirm. No more confirmation on MaiA

is then needed.

Bluetooth pairing with Apple devices

Tap on Settings, tap on Bluetooth, turn on Bluetooth. Your device will automatically start searching for

available devices. Tap on "MaiA DS" and confirm by pressing Pair button on MaiA (alternatively Blank button

on remote control) when the blue Pair LED of is blinking.

Bluetooth pairing with Windows smartphones

Open Settings and tap on Bluetooth. Turn on Bluetooth and a scan for available devices starts automatically.

Searched devices will show up. Tap on "MaiA DS" and confirm presented pairing code on your Windows

device. Then press Pair button on MaiA DS (alternatively Blank button on remote control) when the blue Pair

LED is blinking. When paired with MaiA DS, your Windows device will show "Connected to media Audio".

Now you can play music from your Windows device over Bluetooth to MaiA DS.

Bluetooth pairing with Windows PC

For example - Windows 7®operating system:

Control Panel Devices and PrintersAdd device

Select MaiA DS (make sure no other Bluetooth device is connected) Confirm by pressing Pair button on

MaiA (alternatively Blank button on remote control) when the blue Pair LED is blinking

PC screen will display this question: “Confirm if code is identical”

Select “Yes” and continue

Select MaiA DS from list of devices with double-click

Select “Listen to music” and make sure that “Bluetooth Audio” is selected as standard device

A new connection is only possible if the Pair LED is off (it indicates that no device is connected). If a

problem with Bluetooth connection occurs, it is necessary to reset memory and to delete all paired

devices. For reset turn off the unit > disconnect power supply > press & hold power button >

connect power supply > still hold power button for another 5 seconds > release power button. The

blue LED above the power button will blink for few seconds. When the LED stops blinking, memory is

erased and you can turn on the unit.

Bluetooth remote control function via App

IR emitting diodes are located on the front panel of the product. Free view has to be ensured for reliable use

of remote control function.

Bluetooth connection must be established prior using MaiA DS remote control function over Box control app.

Bluetooth remote control function is available in Box control app version 1.5 and higher.

- Connect your Android or Apple device to MaiA DS over Bluetooth

- Run Box Control app

-After first start is automatically opened Setup wizard, in the first step (Select your Devices) select MaiA DS

remote and confirm with "Next" and in second step check all the remotes you want to use and confirm with

"Next".

Once remotes are confirmed, your Android or Apple device can be used for IR control of selected products.

Replacing batteries

Proceed as follows:

Unlock and slide open the battery case cover

Replace the battery.

Make sure the battery is the right way round !

Close the battery case cover

Battery type: 1 x CR2032 / 3V or 1 x CR2025 / 3V

Do not dispose the batteries as ordinary domestic refuse. Please dispose your exhausted batteries at

the appropriate collection sites - usually located at supermarkets and drugstores.

Technical specifications Pro-Ject MaiA DS

Power output : 2x 40W/55W at 8 ohms/4 ohms (both channels driven)

Frequency response : 20Hz - 20kHz (-0,3dB, -2,5dB)

Channel separation : > 65dB at 20kHz

Noise floor Line/MM/MC: > -90dB / -84dB / -75dB (A weighted)

THD : < 0,07% at 15W

Gain : 34dB (measured via line level input)

Line level inputs : 3 pair RCA

Line input sensitivity : 350mV

Line input impedance : 50kohms

Phono input : 1 pair RCA

Phono input sensitivity : suitable for MM, MI or MC cartridges

Phono input impedance MM/MC : 47kohms / 100ohms

Phono input gain MM/MC: 44dB / 64dB

S/PDIF coaxial input : up to 24bit and 192kHz

S/PDIF optical input : up to 24bit and 96kHz

USB input : USB Audio Class 2 requires USB 2.0 or higher on computer

USB data transfer : Asynchronous with DSD DoP 64/128/256 support

Digital to Analogue converter : PCM1796 24bit/192kHz Multi-bit Delta Sigma type

Variable line level output : RCA

Bluetooth version: 2.1 +EDR

Bluetooth music receiver codec : aptX, A2DP profile, SPP for an app remote control

Bluetooth range : 10 meters in direct visibility between source and receiver

Speakers connectors: 4mm banana plugs, spades connectors or naked wire

Headphone output : 6,3mm jack (16 –600ohms)

Outboard power supply : 24V/5A DC, suitable for your country's mains supply

Power consumption : max. 5A DC, <1W in standby

Replacement battery remote control : 1 x CR2032 / 3V or 1 x CR2025 / 3V

Dimensions W x H x D (D with sockets) : 206 x 72 x 150 (165)mm

Weight : 1550 g without power supply

Service

Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for

further advice. Only if the problem cannot be resolved there, the unit should be sent to the responsible

distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use. Modification or changes to any part of the product by unauthorized persons release the

manufacturer from any liability over and above the lawful rights of the customer.

Pro-Ject Audio Systems is a registered Trademark of

H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Indice

Altri manuali Pro-Ject Audio Systems Amplificatore

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pre Box S Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box MM Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box Design Pre Box DS Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box MK II Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Phono Box S Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box S USB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box II Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box USB V Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box DS Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Audio Systems Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box TV Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box II Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems CD Box Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Tube Box S Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box SE II Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box S2 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pre Box S2 Analogue Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Power Box RS Amp Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Record Box USB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box DS Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Tube Box SE Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Stereo Box DS Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Record Box E Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
