Projoy Electric PEEM-S100 Manuale utente

Talent-MG3-MS

V1.0

- 1 -

Talent-MG3-MS

V1.0

- 2 -

Trademarks and Permissions

PROJOY and other PROJOY trademarks are trademarks of Projoy Electric Co., Ltd. All other

trademarks and trade names mentioned in this document are the property of their respective

holders.

Projoy Electric Co., Ltd makes no representations express or implied, concerning this

documentation or any of the equipment and/or software it may describe, including (with no

limitation) any implied warranties of utility, merchant ability, or fitness for any particular

purpose.

All such warranties are expressly disclaimed. Neither Projoy Electric nor its distributors or

dealers shall be liable for any indirect, incidental, or consequential damages under any

circumstances. (The exclusion of implied warranties may not apply in all cases under some

statutes, and thus the above exclusion may not apply.)

Specifications are subject to change without notice. Every attempt has been made to make this

document complete, accurate, and up-to-date. Readers are cautioned, however, that

Projoy Electric reserves the right to make changes without notice and shall not be responsible

for any damages, including indirect, incidental, or consequential damages, caused by reliance

on the material presented, including, but not limited to, omissions, typographical errors,

arithmetical errors or listing errors in the content material.

All trademarks are recognized even if these are not marked separately. Missing designations do

not mean product or brand is not a registered trademark. All trademarks are recognized as the

property of their respective owners.

Product information is subject to change without notice. User documentation is frequently

updated; please check www.projoy-electric.com for the latest information. To ensure optimal

reliability and meet warranty requirements, Projoy Electric products must be installed

according to the instructions in this manual. For warranty text refer to

www.projoy-electric.com.

Projoy Electric

Audience

This manual is intended for use by professional installation and maintenance personnel.

Talent-MG3-MS

V1.0

- 3 -

Content

Trademarks and Permissions ............................................................................................................................................. - 2 -

Audience ............................................................................................................................................................................ - 2 -

Content ...............................................................................................................................................................................- 3 -

Read This First ...................................................................................................................................................................- 4 -

Important Safety Information..................................................................................................................................................................... - 4 -

Product Label ..............................................................................................................................................................................................- 4 -

System Introduction ...........................................................................................................................................................- 5 -

Product Description .................................................................................................................................................................................... - 6 -

Datasheet .....................................................................................................................................................................................................- 7 -

Installation ......................................................................................................................................................................... - 8 -

Pre-installation Check .................................................................................................................................................................................- 8 -

Installation Steps .........................................................................................................................................................................................- 8 -

Maintenance Guide ..........................................................................................................................................................- 12 -

Routine Maintenance................................................................................................................................................................................- 12 -

Storage and Dismantling ...........................................................................................................................................................................- 12 -

Recycling and Disposal ................................................................................................................................................... - 13 -

Warranty Service ............................................................................................................................................................. - 13 -

Exclusions .................................................................................................................................................................................................- 13 -

Distributor Responsibility .........................................................................................................................................................................- 14 -

Talent-MG3-MS

V1.0

- 4 -

Read This First

Dear customer, thank you for choosing Projoy products. We hope you will find our products

meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our

products.

A DTU is a communication device for the Projoy microinverter system. DTU and

microinverters are all connected to the same WIFI network. DTU will collect the AC power

grid parameter by CT. If any power is exported to the power grid, DTU will send it to each

microinverter and control the output of the system.

This manual contains important instructions for PEEM-S100 DTU and must be read in its

entirety before installing or commissioning the equipment. For safety, only qualified

technicians, who have received training or have demonstrated skills can install and maintain

this DTU under the guide of this document.

Important Safety Information

During installation, testing, and inspection, adherence to all the handling and safety

instructions is mandatory. Failure to do so may result in injury or loss of life and damage to the

equipment.

Product Label

The symbols on the products are listed below and illustrated in detail.

Symbol

Description

This device fulfills the requirements of the Radio Equipment Directive.

Talent-MG3-MS

V1.0

- 5 -

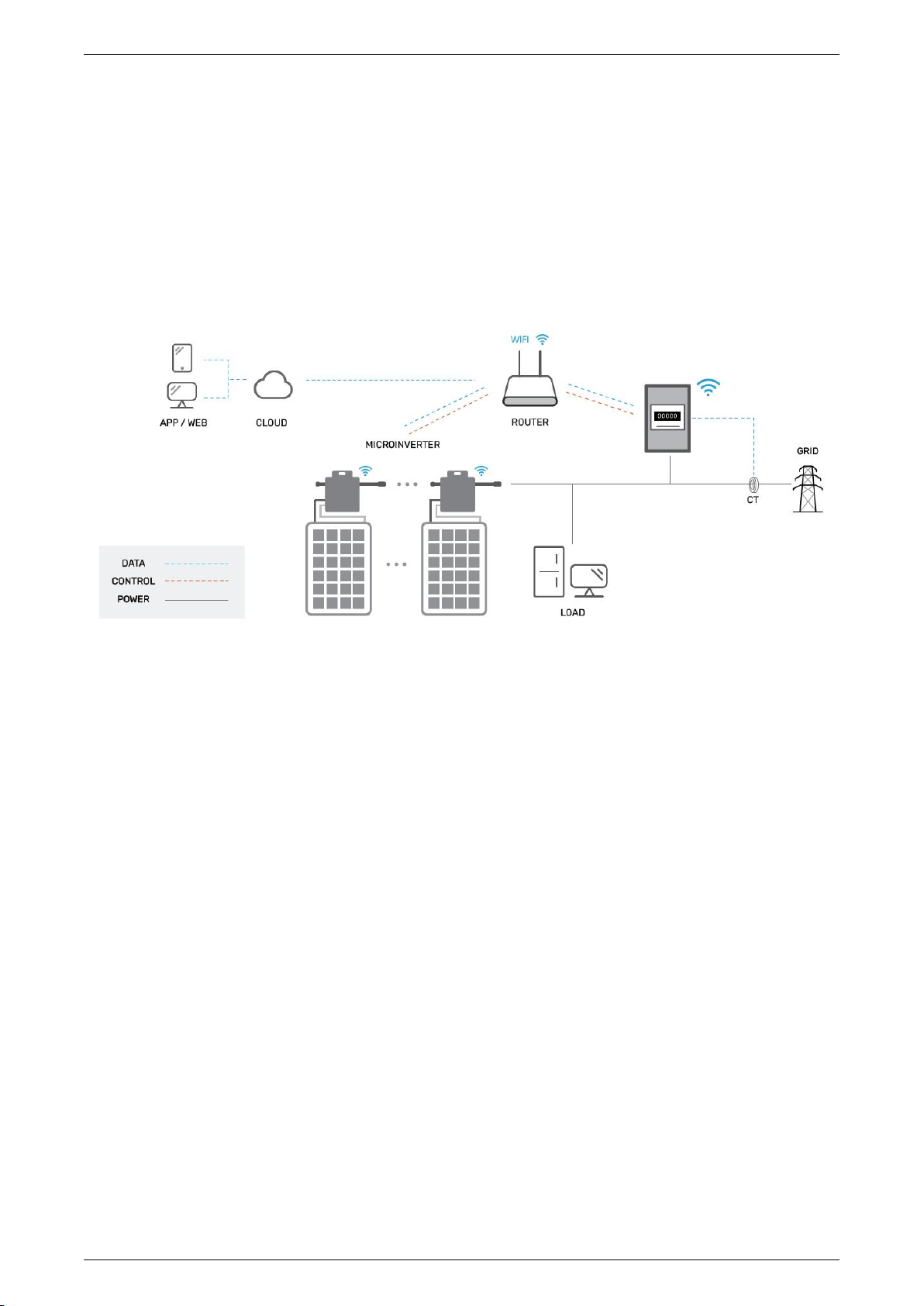

System Introduction

The PEEM-S100 DTU is used in grid-tied applications which not allow electricity to be

transmitted to the public power grid, is comprised of three key elements:



Projoy Microinverter.



M-Cloud monitoring system.



PEEM-S100 DTU.

The microinverter converts the DC electricity generated by solar panels into AC electricity

which is in accordance with the requirements of the public grid and sends the AC into the grid,

reducing the load pressure of the grid.

The microinverter is integrated with the Wi-Fi module and connects to the home Wi-Fi router

directly. Users can monitor the power generation of the system by M-Cloud monitoring App.

The PEEM-S100 DTU will detect the power to the public power grid. If there is an export to the

public power grid, DTU will communicate with the microinverter locally and reduce the

outpower of microinverters.

PEEM-S100

Talent-MG3-MS

V1.0

- 6 -

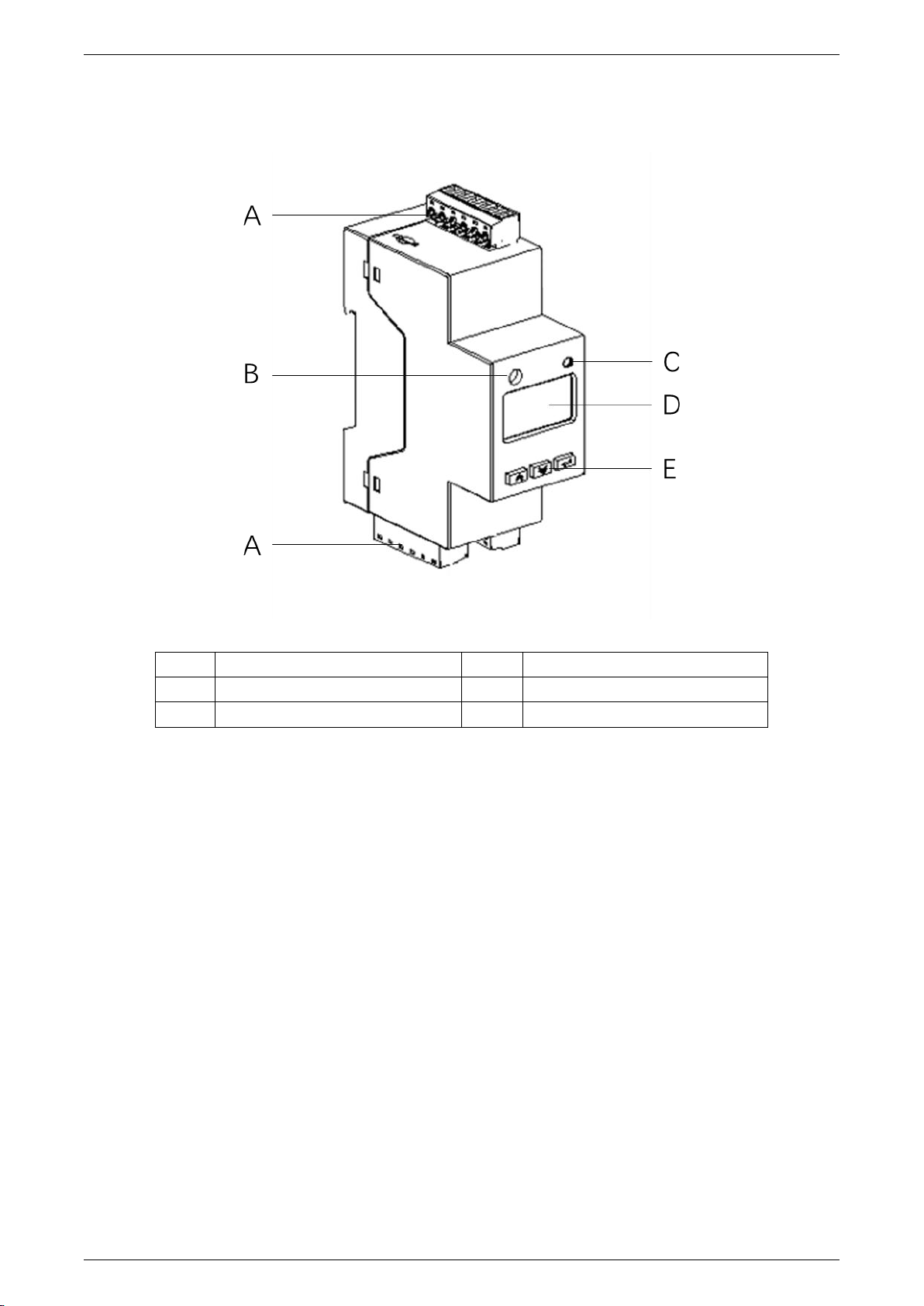

Product Description

Connector

Screen

Antenna Port

Buttons * 3

Status Light

Talent-MG3-MS

V1.0

- 7 -

Datasheet

Model

PEEM-S100

AC Input

Grid Type

Single phase

Input AC Voltage

230V

Input AC Frequency

50 / 60 Hz

Max. Current per phase

100A

Power Consumption per phase

＜1W

Communication

Wi-Fi Type

WIFI (802.11 b/g/n)

Wi-Fi Frequency Range

2400MHz-2483.5MHz

Maximum Distance to Router (Open Space)

100m

Bluetooth Type

BLE 5.0

Bluetooth Frequency Range

2400MHz-2483.5MHz

Maximum Distance to mobile phone (Open Space)

50m

Control

Connection Limit

28 Microinverters

Communicate to Server

300 s

Communicate to Microinverter

300 ms

Accessary

External Antenna

Yes

Cable length of antenna

External CT

Cable length of CT

CT Type

ɸ16mm

Mechanical Data

Dimension(mm)

36 * 90 * 90

Weight (g)

130

Ambient Temperature(°C)

-20~+55

Mounting System

Rail mounted (35mm)

Indicator Light

1 * LED

Altitude(m)

< 2000

Relative Humidity

0 - 95%, No condensation

Projoy Electric

Co., Ltd declares that the radio equipment (DTU) is in complies with Directive

2014/53/EU.

OPERATING FREQUENCY (the maximum transmitted power)

2412MHz—2472MHz(EIRP ＜20dBm)

2402MHz—2480MHz(EIRP ＜10dBm)

Talent-MG3-MS

V1.0

- 8 -

Installation

Pre-installation Check

Check the Package

Although Projoy’s products have surpassed stringent testing and are checked before they leave the

factory, it is uncertain that the products may suffer damage during transportation. Please check the

package for any obvious signs of damage, and if such evidence is present, do not open the package

and contact your dealer as soon as possible.

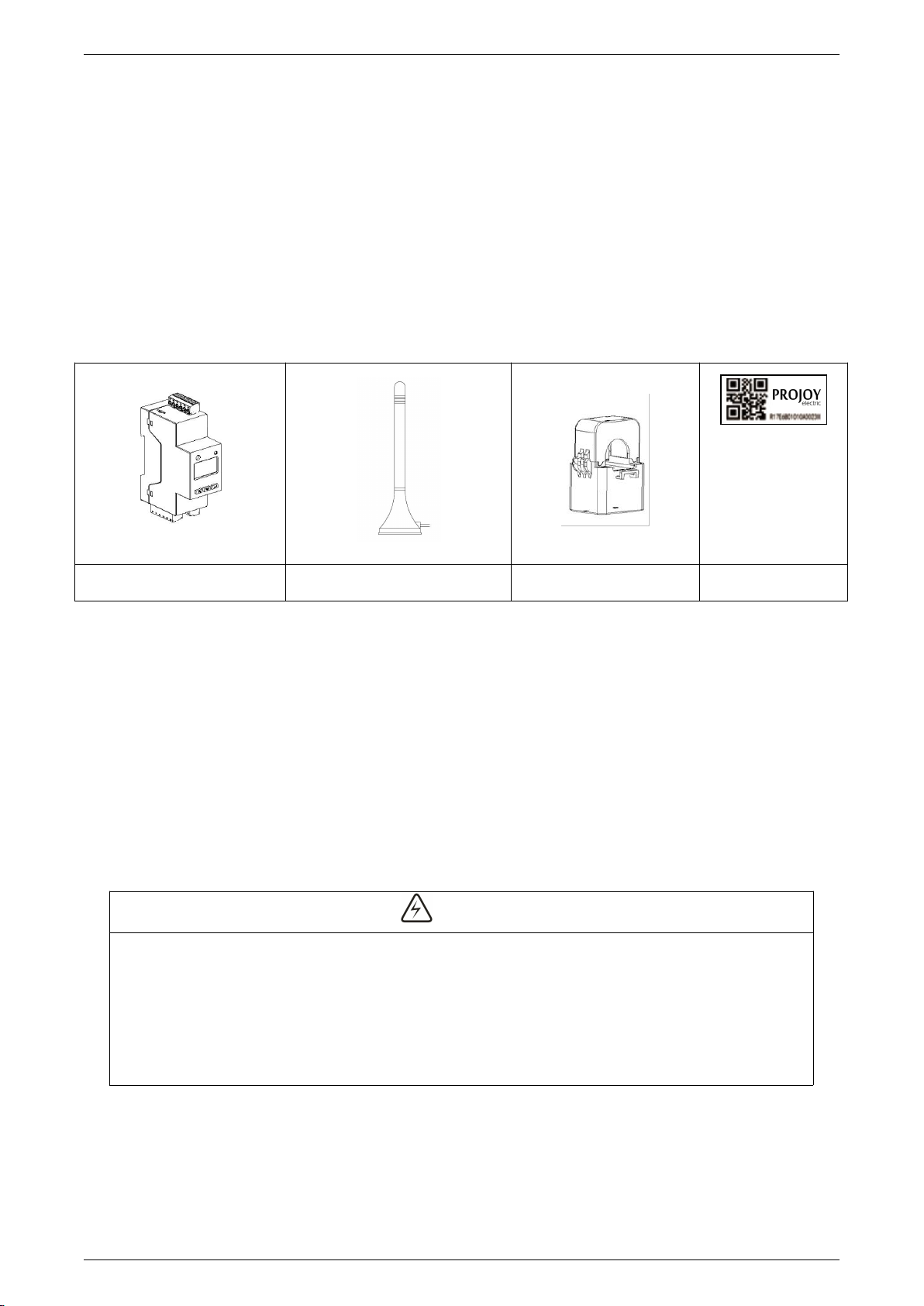

Meter * 1

Antenna * 1

CT * 1

SN Label * 1

Check the Installation Environment and Position

When choosing the position of installation, comply with the following conditions:

Install the DTU near or in the home distribution box.

Avoid electromagnetic interference that can compromise the correct operation of electronic

equipment.

Use a mobile phone to check the Wi-Fi signal strength at the installation position. If the Wi-Fi

signal is bad, try to install the DTU in another position or move the Wi-Fi router.

Installation Steps

DANGER

·Only qualified personnel should install, troubleshoot, or replace DTU and accessories.

·Before installation, check the unit to ensure the absence of any transport or handling

damages.

·Unauthorized removal of necessary protections, improper use, incorrect installation, and

operation may lead to serious safety and shock hazards or equipment damage.

·Be aware that installation of this equipment includes the risk of electric shock.

Talent-MG3-MS

V1.0

- 9 -

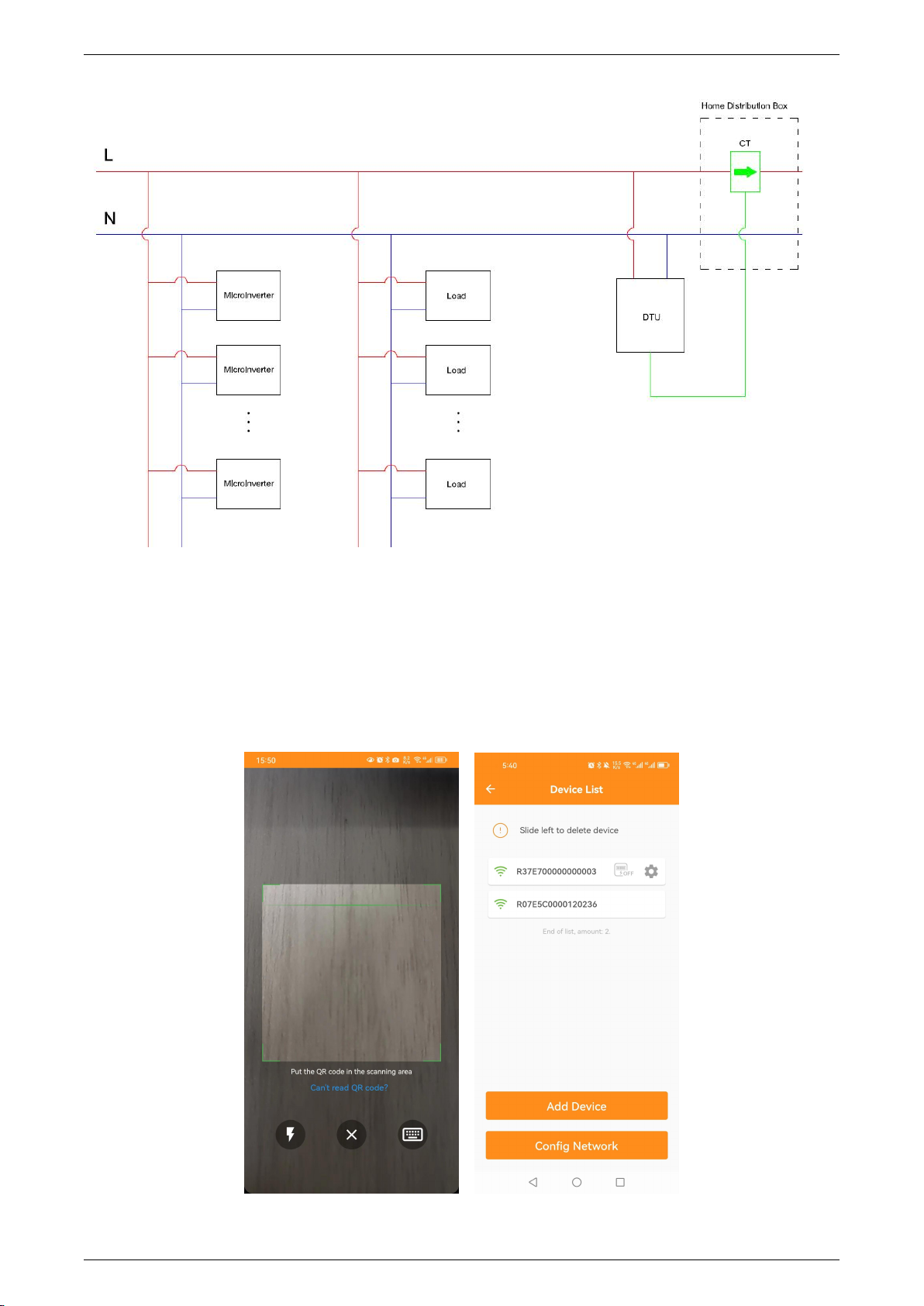

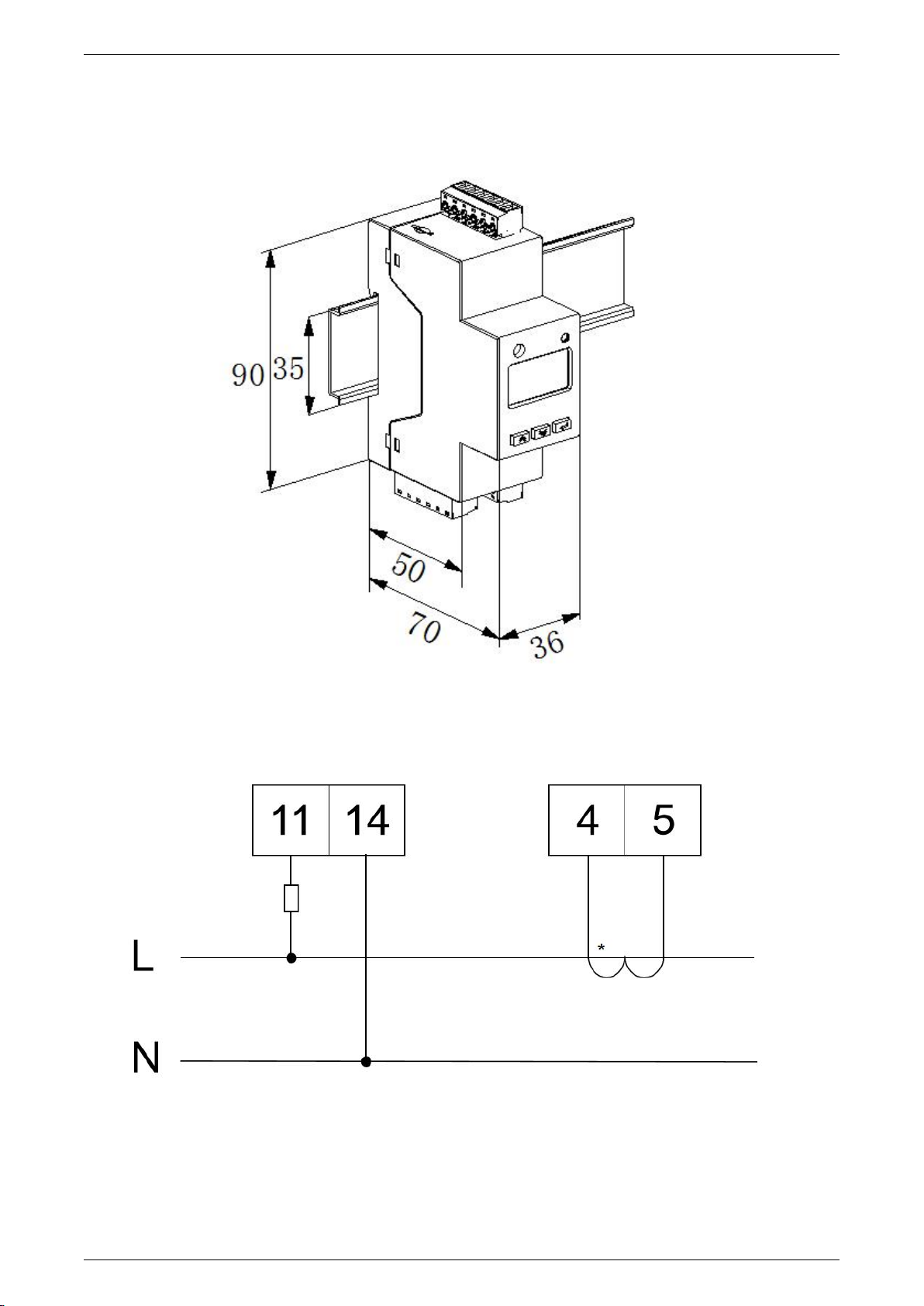

Step 1. Install the DTU.

Fix the DTU onto the rails of AC distribution box. Connect the L and N cable to port 11 and port 14.

Then connect CT cable to port 4 and port 5.

Step 2. Connect CT

Install the CT into the L cable. The direction on the CT should be pointed to the grid side.

Talent-MG3-MS

V1.0

- 10 -

Step 3. Connect the Wi-Fi antenna

Connect the Wi-Fi antenna cable to the DTU. Put the antenna out of the distribution box to get a

good Wi-Fi signal.

Step 4. Add the DTU to M-Cloud Home

Open M-Cloud Home App.

Scan the SN label of DTU and add it to the device list.
