Prorack K420 Manuale utente

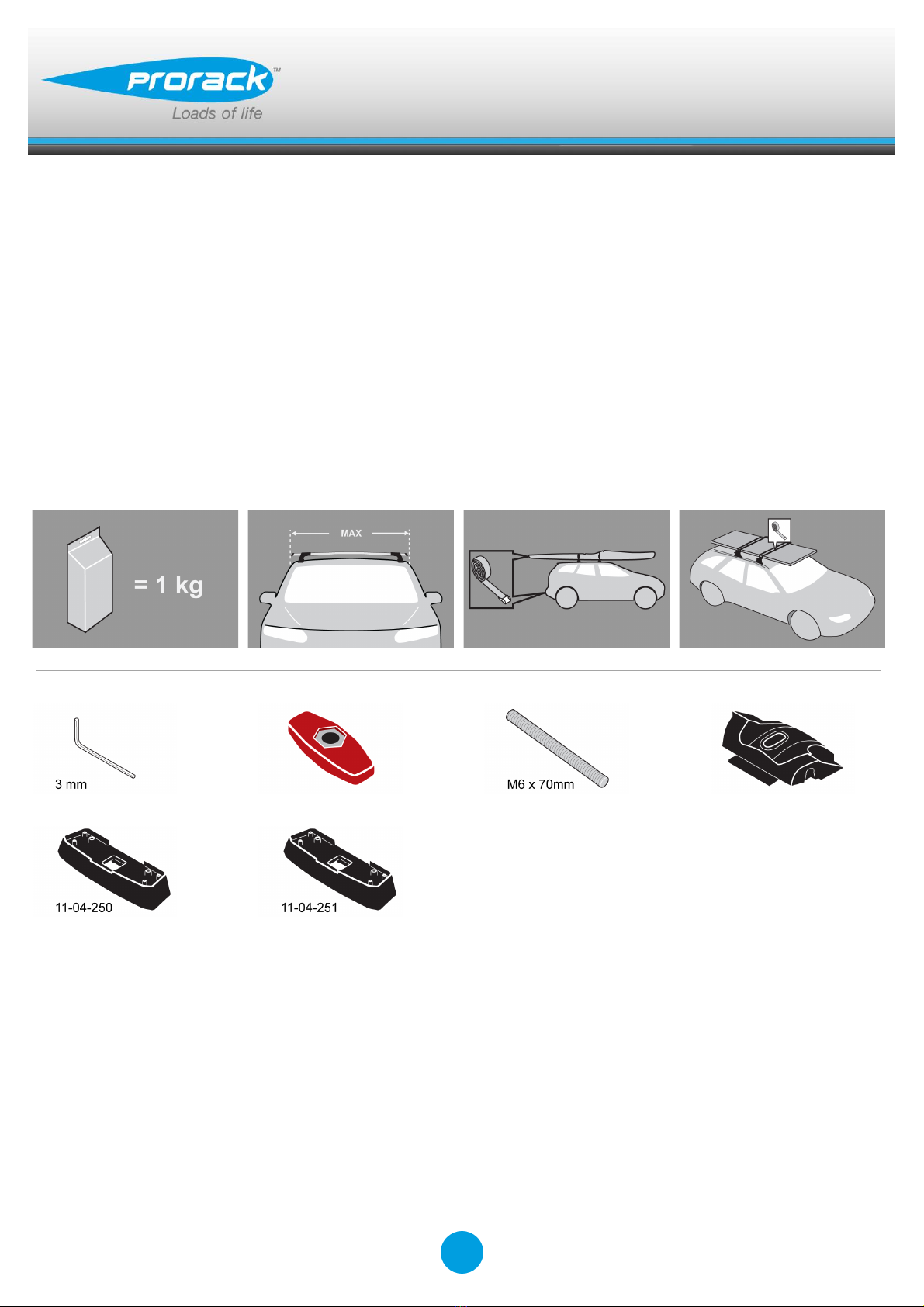

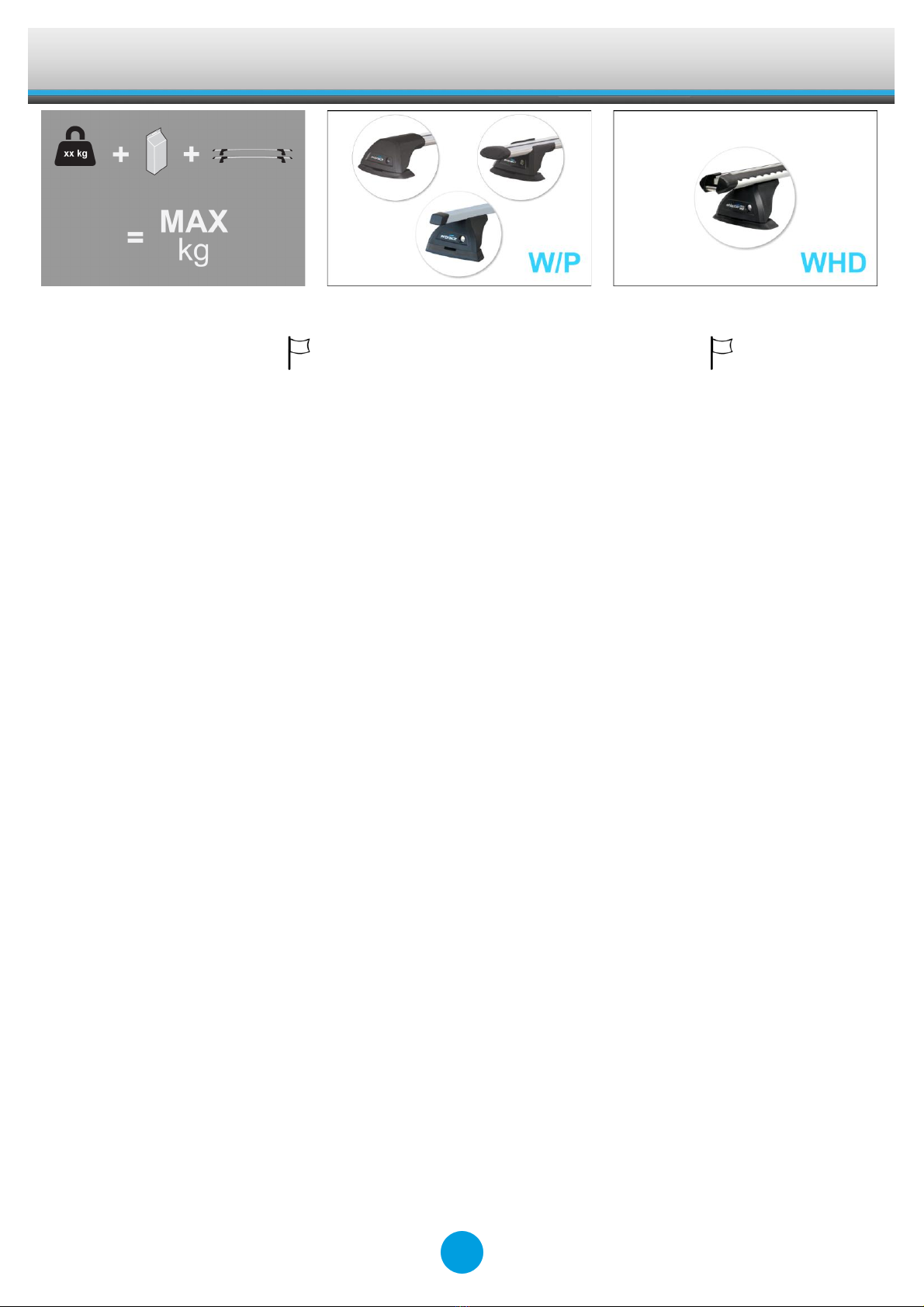

FittingKit

K420

Fitting Instruction for Accessory

x 1

x 4

x 2

Revision No:

1.1

FittingKit

K420

MAX kg

W/P

WHD

W/P

WHD

Ford

Focus (fix point), 5dr Hatch 05-+

Focus , 5dr Hatch 08-+

Focus , 5dr Hatch Jul 08-+

S-Max , 5dr MPV Jun 06-+

FittingKit

K420

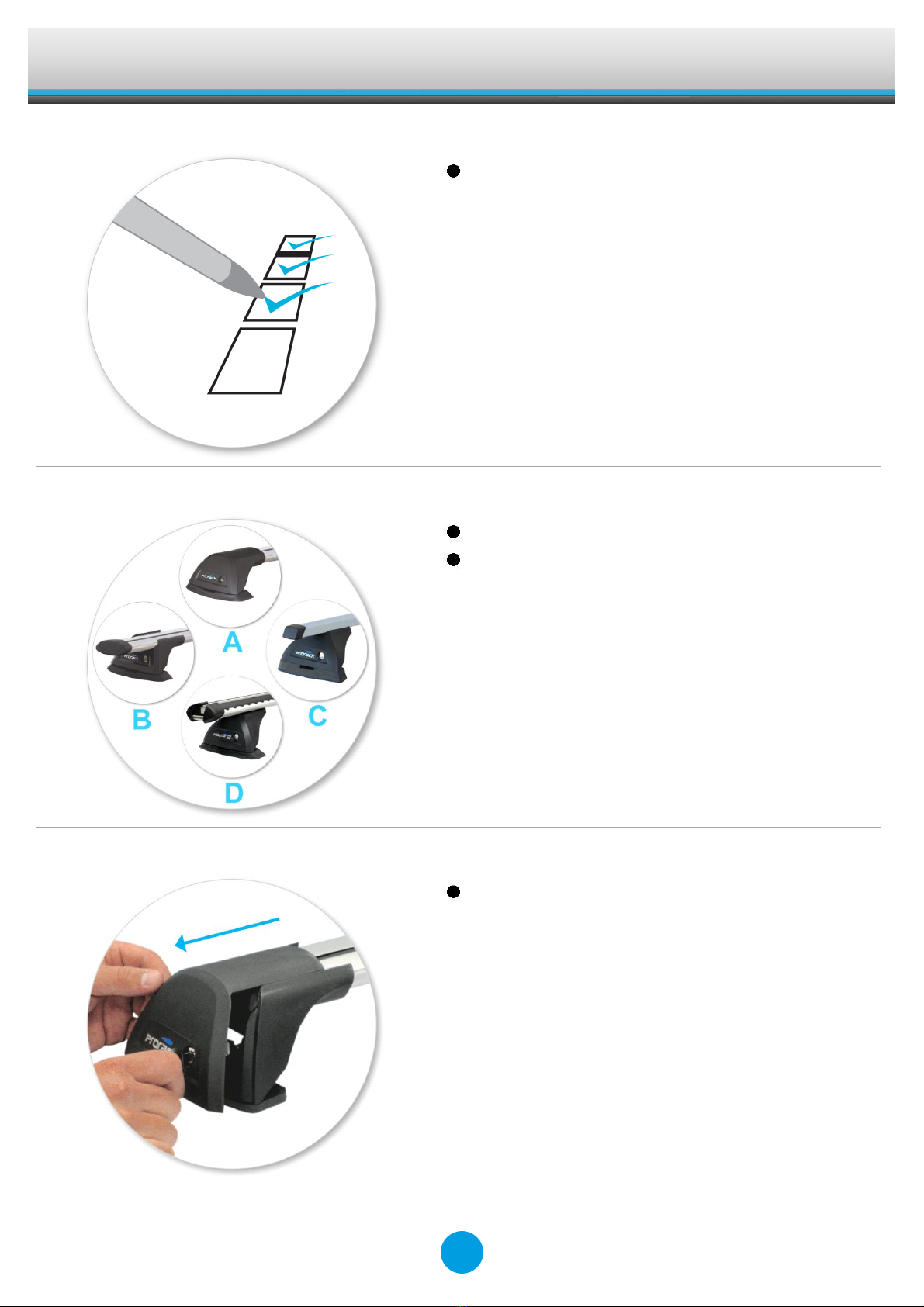

First Time Installation

Remove parts from packaging and check

contents. Contact your Prorack dealer if parts

are missing or damaged.

This kit fits type A, B, C and D.

These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Use keys to remove covers.

FittingKit

K420

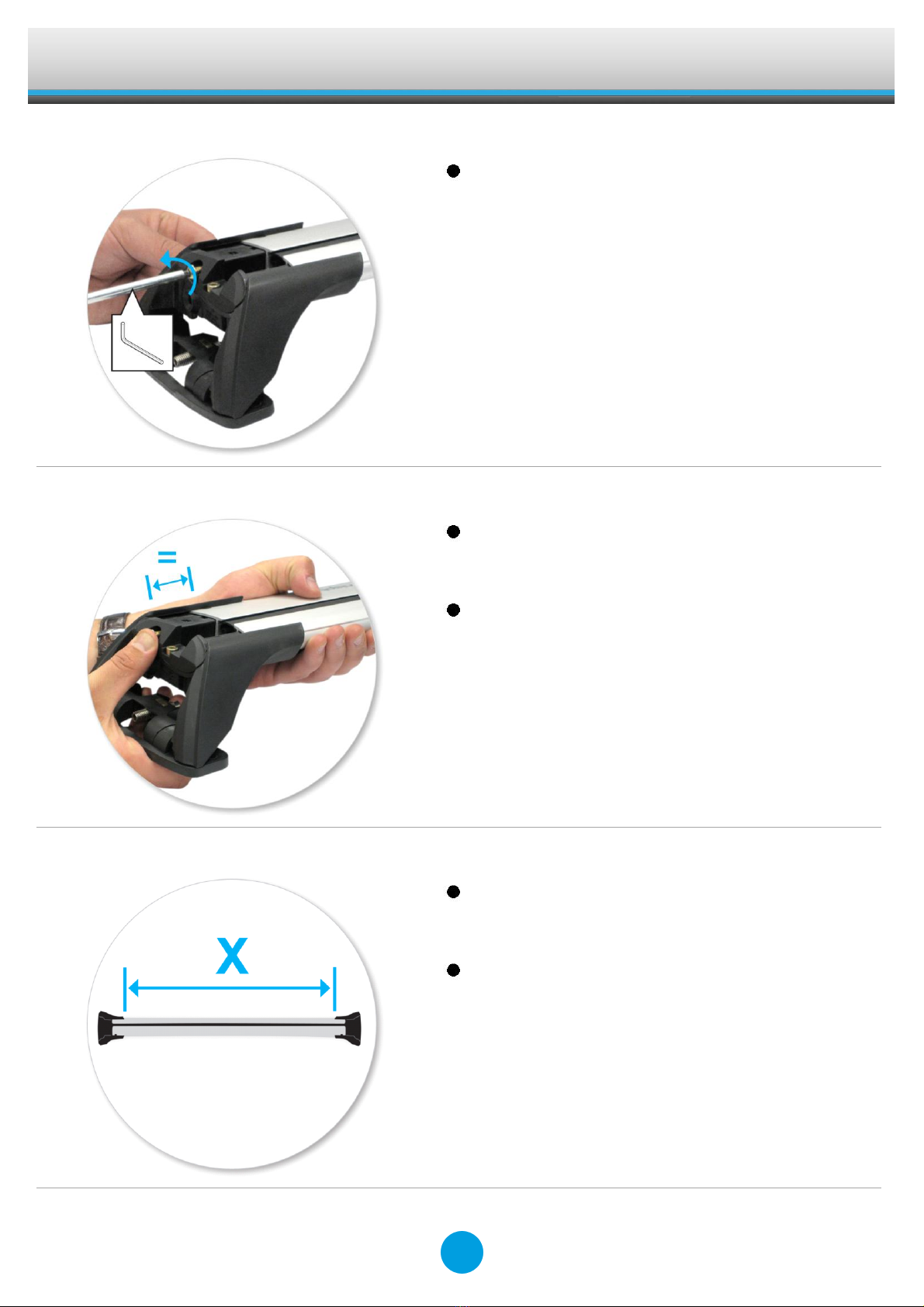

Use hex screwdriver to reverse adjusting

screw 10 turns.

Press adjusting screw and pull crossbar legs

out. Refer to the crossbar instructions for

crossbar adjustment.

Ensure each end of the crossbar is adjusted

equally.

Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Please check the rear of this manual for

information relating specifically to your

vehicle.

FittingKit

K420

Tighten adjusting screw to 5 Nm.

Remove clamp block by pressing backwards.

Select plastic internal block (from fitting kit)

and insert into foot.

Repeat for all legs.

FittingKit

K420

Refer to the underside of the pad for the part

number.

Letters refer to the pad part numbers and

position.

Pad Part Number:

A = 11-04-250

B = 11-04-251

Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Make sure the pad fits into the holes

underneath the foot.

Note: Pads may be different to that shown.

FittingKit

K420

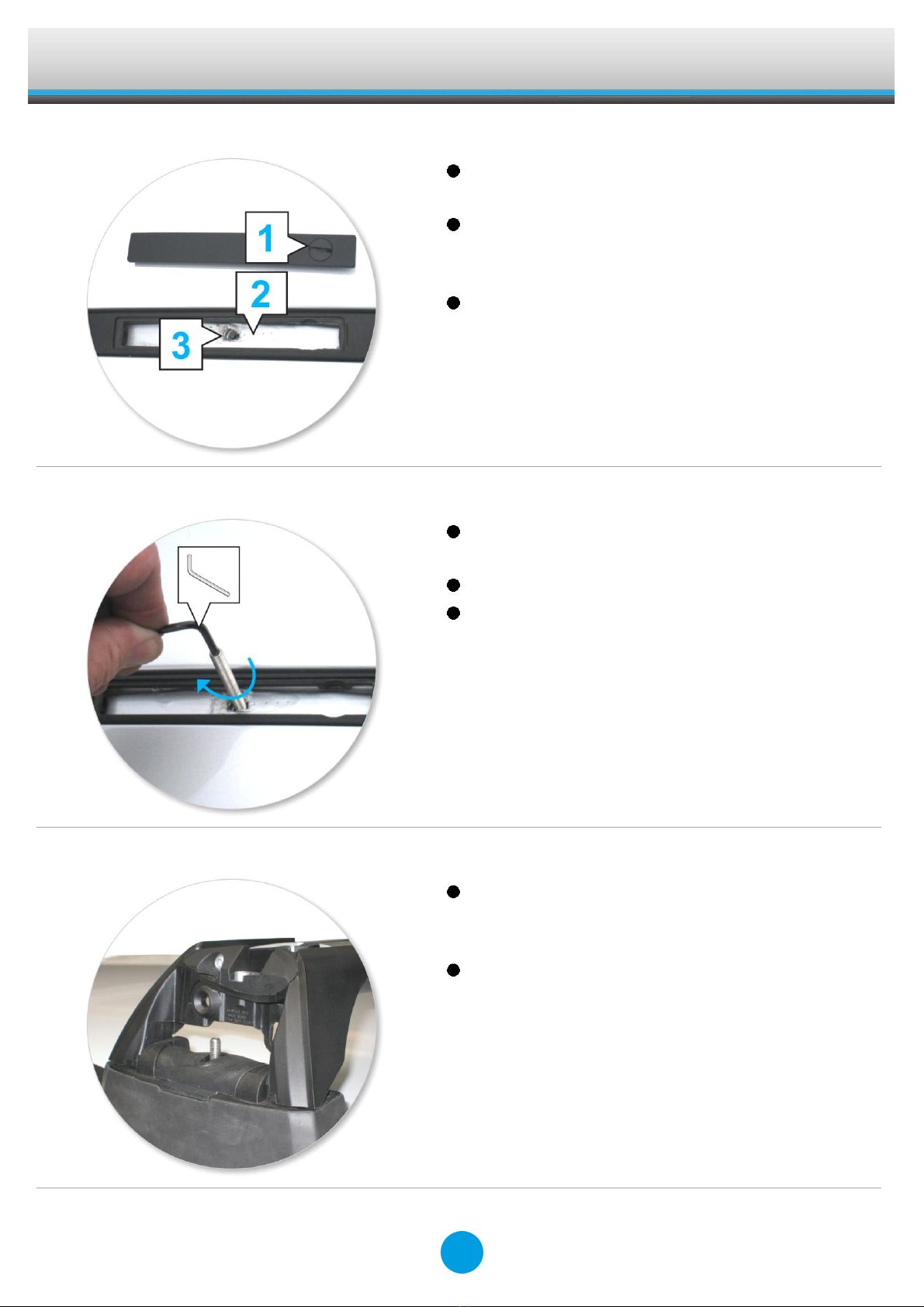

Fitment

Remove fixed-point covers by turning the

plastic screw with flat-head screw driver (1).

Remove sealant (2) to reveal plastic screw

(3).

Caution: Do not damage the screw head.

Remove the plastic screw (3) with a Philips-

head screw driver.

Select grubscrews and screw into the

vehicle's fixed points.

Do not over tighten.

Repeat for all four positions.

Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Place crossbar foot over grubscrews.

FittingKit

K420

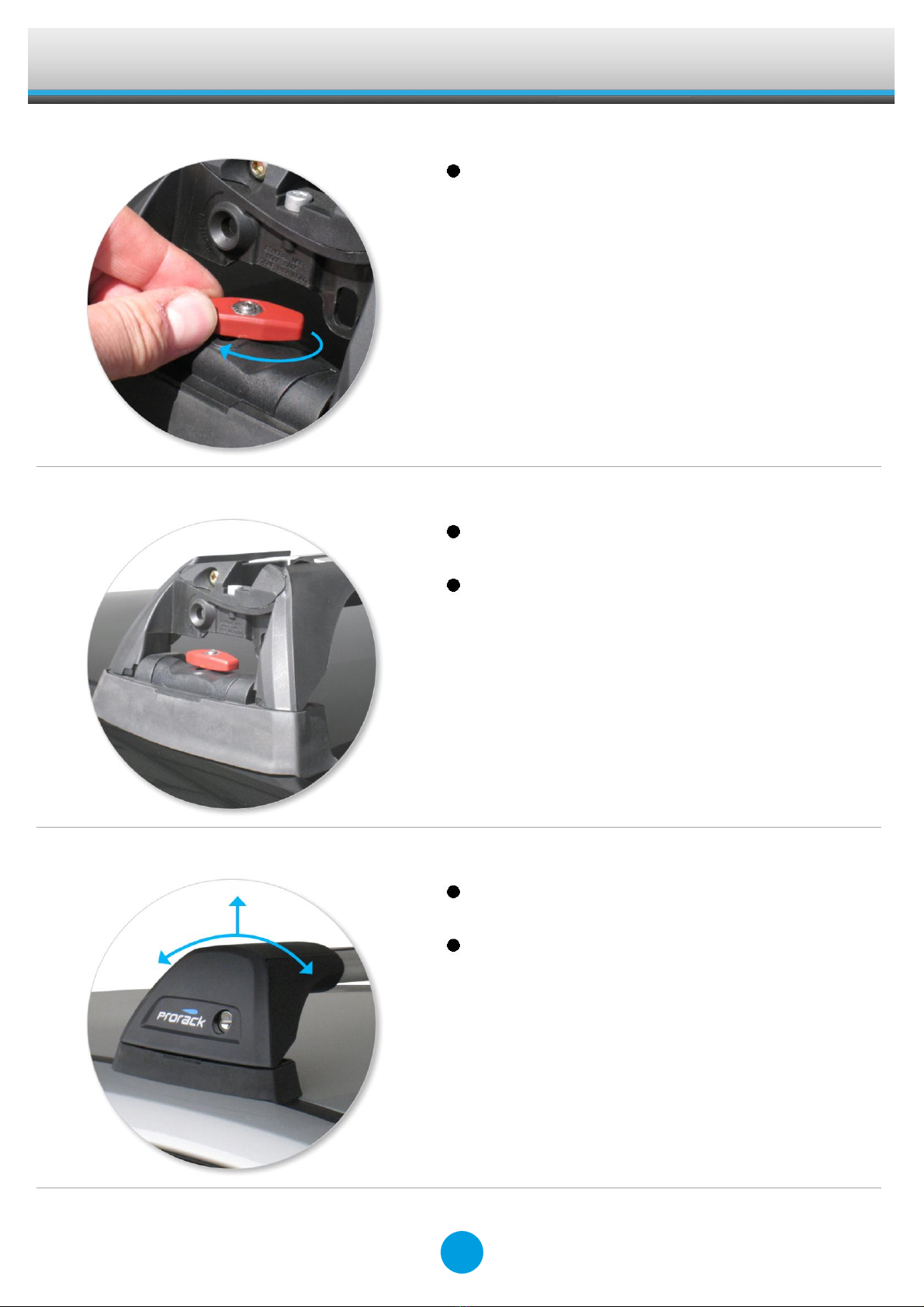

Tighten the red plastic knob. The side with

the nut showing should be facing up.

Ensure the red plastic knob is in the position

shown when fully tightened.

Repeat for all legs.

Check crossbar is securely attached to the

vehicle.

Use keys to fit and lock covers

FittingKit

K420

CAUTION:

Recheck all fasteners immediately after a load is

applied to the crossbars.

Regularly check screws are tight.

FittingKit

K420

Maintenance

Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

Set crossbars a minimum distance of 700mm

apart where no other distance is specified in

the fitting instructions. This is especially

important when carrying long loads.

Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

Some sunroofs and radio antennae cannot

be used when the product is fitted.

Do not modify this product.

Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the fitting

instructions.

Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

Objects with pointed ends (skis) should be

carried with the pointed ends to the rear of

the vehicle.

Remove all loose or removable objects from

the load prior to loading.

Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.
