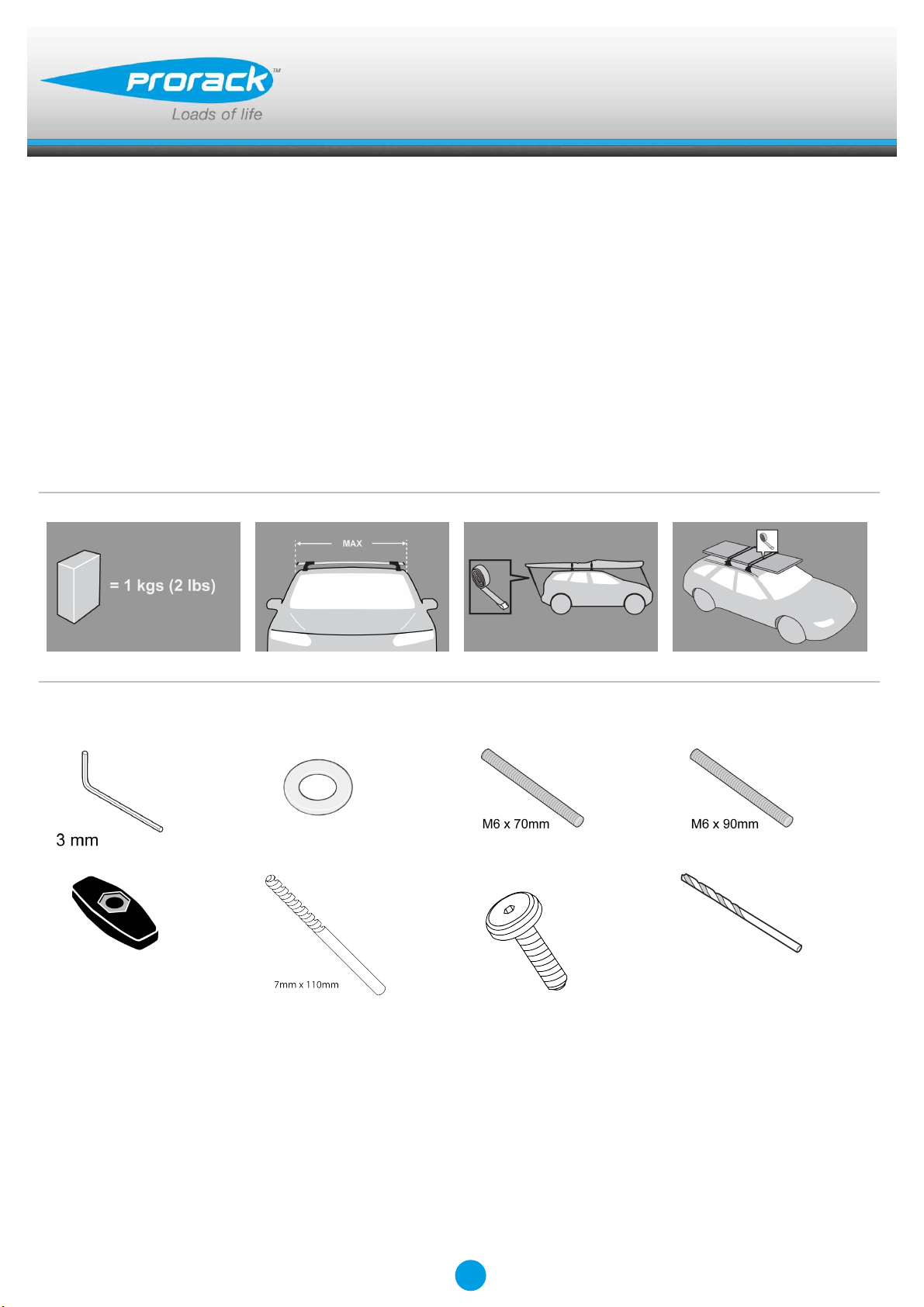

Prorack K919 Manuale utente
K919
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 6 x 4 x 2
x 6 x 1 x 6 x 1
Revision No: 3C 1

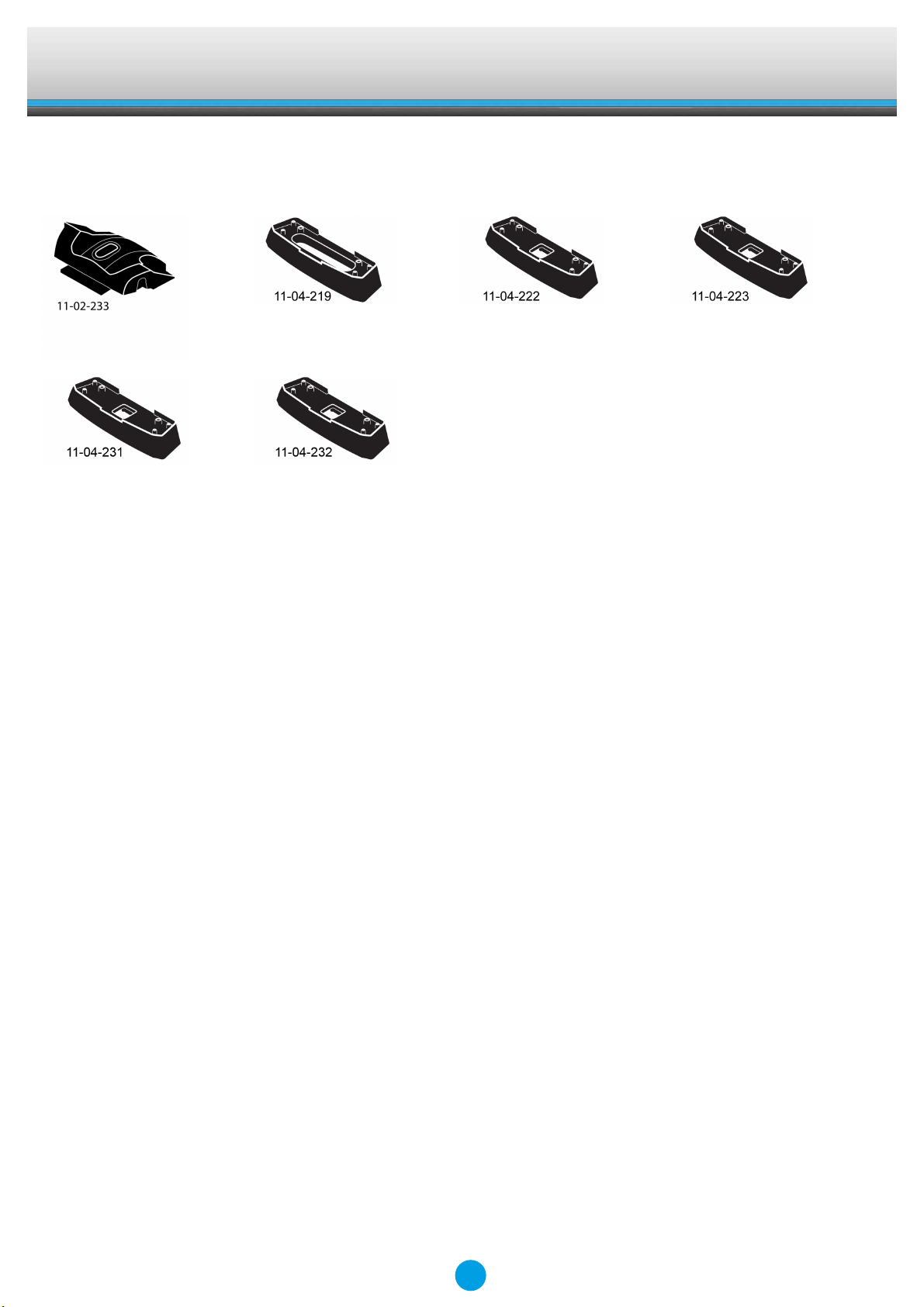

Fitting Kit K919
x 6 x 2 x 1 x 1
x 1 x 1
2
Fitting Kit K919
MAX kgs (lbs)
W/P WHD
Land Rover
Range Rover Sport (2 BAR), 5dr SUV 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (2 BAR), 5dr SUV 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (2 BAR), 5dr SUV 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (2 BAR), 5dr SUV 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (2 BAR), 5dr SUV 13-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (3 BAR), 5dr SUV 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (3 BAR), 5dr SUV 13-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (3 BAR), 5dr SUV 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (3 BAR), 5dr SUV 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport (3 BAR), 5dr SUV 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
3
Fitting Kit K919
X
A B C 1 2 3
Range Rover Sport (2 BAR), 5dr SUV 13-+ (NZ) -230mm 450mm - 1056mm 1056mm -
-9 -1/16ths" 17 3/4ths" - 41 9/16ths" 41 9/16ths" -
Range Rover Sport (2 BAR), 5dr SUV 13-+ (AU) -230mm 450mm - 1056mm 1056mm -
-9 -1/16ths" 17 3/4ths" - 41 9/16ths" 41 9/16ths" -
Range Rover Sport (2 BAR), 5dr SUV 13-+ (EU) -230mm 450mm - 1056mm 1056mm -
-9 -1/16ths" 17 3/4ths" - 41 9/16ths" 41 9/16ths" -
Range Rover Sport (2 BAR), 5dr SUV 13-+ (ZA) -230mm 450mm - 1056mm 1056mm -
-9 -1/16ths" 17 3/4ths" - 41 9/16ths" 41 9/16ths" -
Range Rover Sport (2 BAR), 5dr SUV 13-+ (CN) -230mm 450mm - 1056mm 1056mm -
-9 -1/16ths" 17 3/4ths" - 41 9/16ths" 41 9/16ths" -
Range Rover Sport (3 BAR), 5dr SUV 13-+ (AU) -230mm 450mm 1285mm 1056mm 1056mm 1028mm
-9 -1/16ths" 17 3/4ths" 50 9/16ths" 41 9/16ths" 41 9/16ths" 40 1/2ths"
Range Rover Sport (3 BAR), 5dr SUV 13-+ (CN) -230mm 450mm 1285mm 1056mm 1056mm 1028mm
-9 -1/16ths" 17 3/4ths" 50 9/16ths" 41 9/16ths" 41 9/16ths" 40 1/2ths"
Range Rover Sport (3 BAR), 5dr SUV 13-+ (EU) -230mm 450mm 1285mm 1056mm 1056mm 1028mm
-9 -1/16ths" 17 3/4ths" 50 9/16ths" 41 9/16ths" 41 9/16ths" 40 1/2ths"
Range Rover Sport (3 BAR), 5dr SUV 13-+ (NZ) -230mm 450mm 1285mm 1056mm 1056mm 1028mm
-9 -1/16ths" 17 3/4ths" 50 9/16ths" 41 9/16ths" 41 9/16ths" 40 1/2ths"
Range Rover Sport (3 BAR), 5dr SUV 13-+ (ZA) -230mm 450mm 1285mm 1056mm 1056mm 1028mm
-9 -1/16ths" 17 3/4ths" 50 9/16ths" 41 9/16ths" 41 9/16ths" 40 1/2ths"
4
Fitting Kit EN
K919
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
5
Fitting Kit EN
K919
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
6
Fitting Kit EN
K919
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
7
Fitting Kit EN
K919
Fitment
●Lift and pull ditch moulding back towards
you and remove from the vehicle.
●Remove retaining clips from 2nd and 4th
position for 2 bar system.
●Remove retaining clips from 2nd, 4th and
6th position for 3 bar system.
●Repeat both sides.
●Remove centre of retaining clip by twisting.
●Repeat for all six positions.
8
Fitting Kit EN
K919
●Use drill bit supplied, to drill holes in
marked positions on ditch mould.
●Replace retaining clips into ditch mould.
●Re-install rubber ditch mould back into roof
channel and click into place.
9
Fitting Kit EN
K919

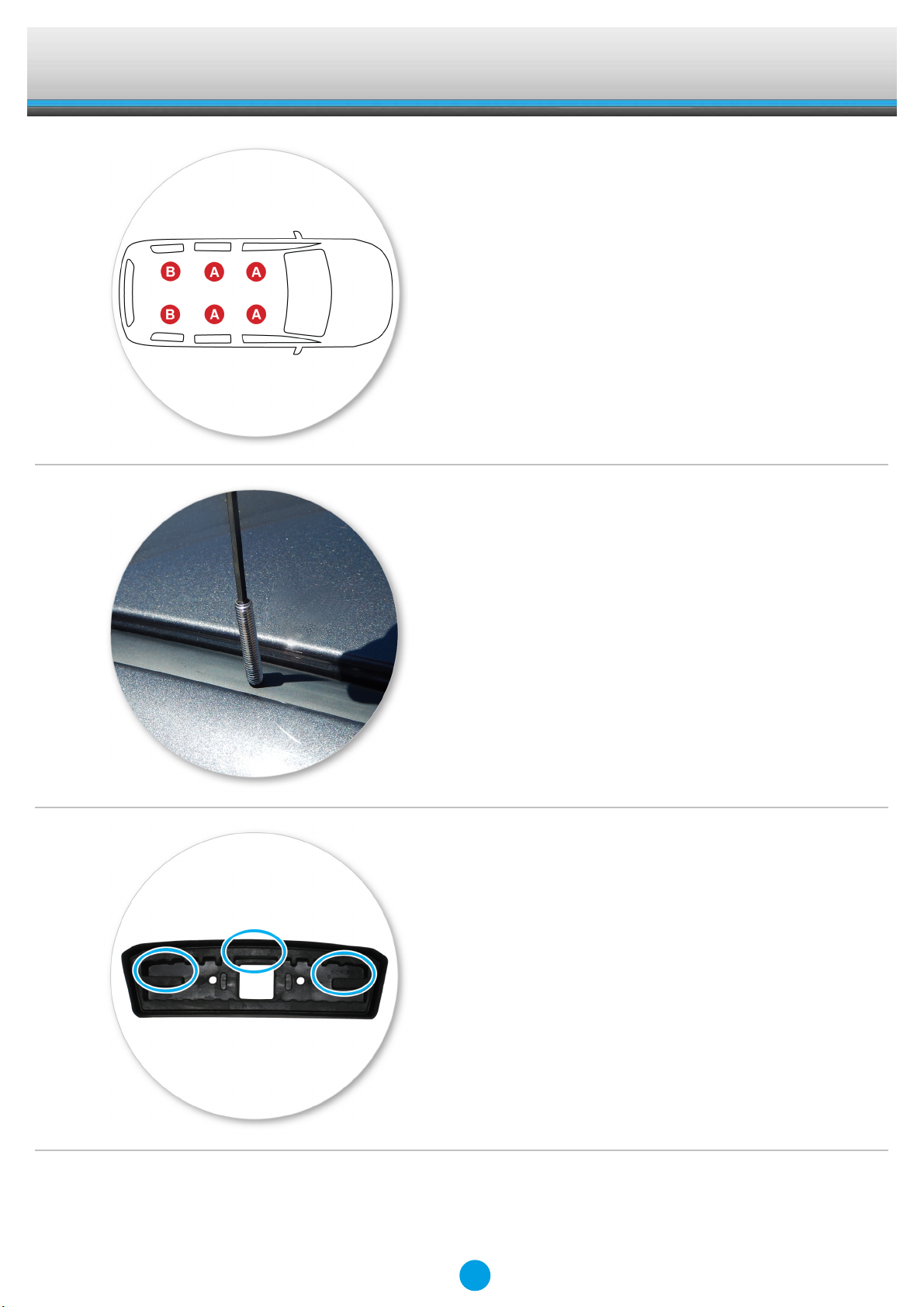

●Letters refer to the part numbers stamped
on clamps.
●Grubscrew Part Number: 2 bars only
A = 70mm
●Grubscrew Part Number: 3 bars only
A = 70mm
B = 90mm
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all positions.
●Refer to the underside of the pad for the
part number.
10
