Prorack K716 Manuale utente
K716

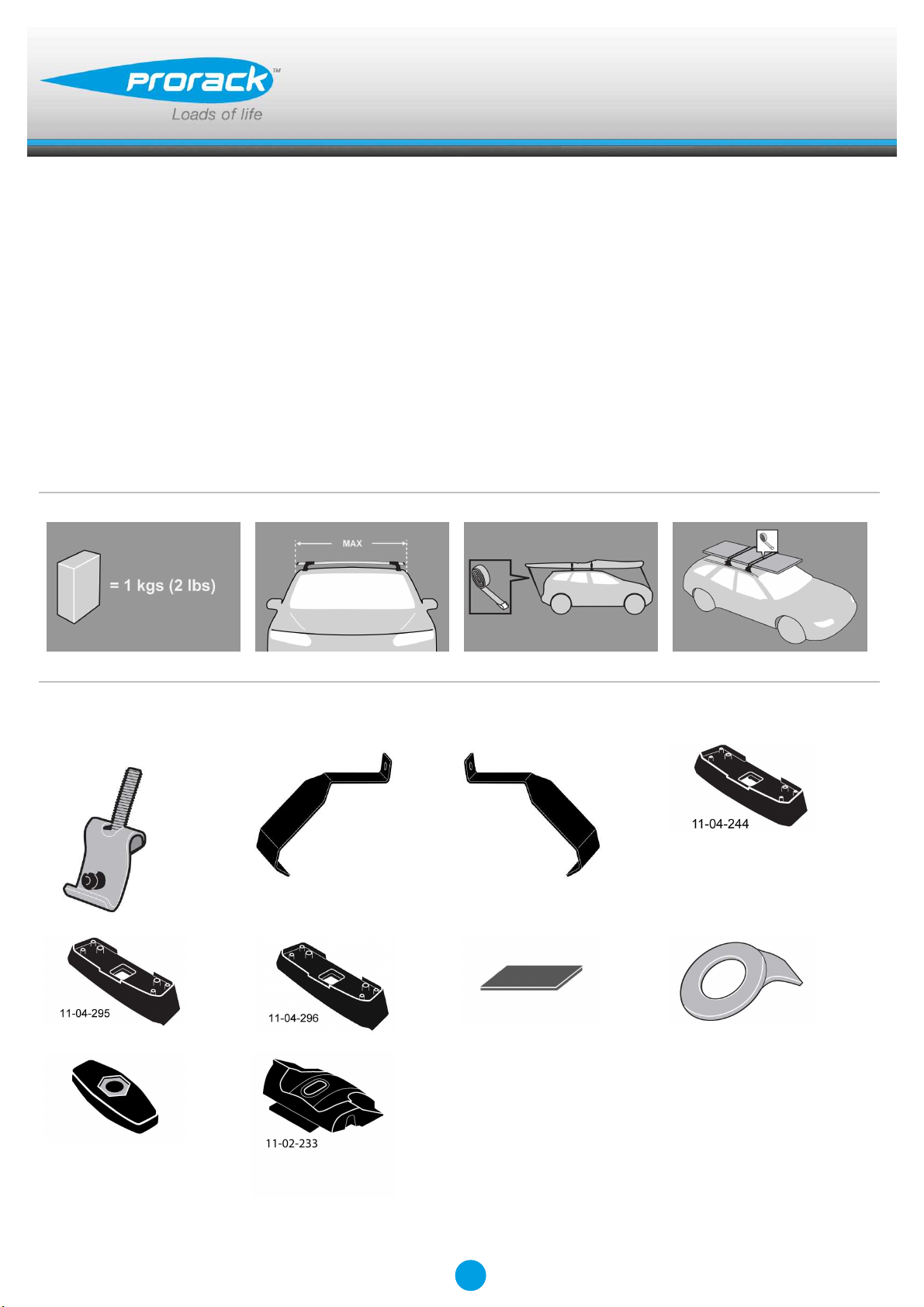

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 1 x 1 x 2
x 1 x 1 x 2 x 2
x 2 x 2
Revision No: 7G 1
Fitting Kit K716
MAX kgs (lbs)
W/P WHD
Toyota
Rav 4, 5dr SUV 16-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Rav 4, 5dr SUV Dec 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Rav 4, 5dr SUV Jan 13-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Rav 4, 5dr SUV Jan 13-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Rav 4, 5dr SUV Jan 13-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Rav 4, 5dr SUV Jan 13-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Lexus
RX, 5dr SUV 09-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
RX, 5dr SUV 09-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
RX, 5dr SUV 09-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
RX, 5dr SUV 09-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
RX, 5dr SUV 10-15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K716
X
A B C 1 2 3
Rav 4, 5dr SUV 16-+ (EU) -165mm 580mm - 911mm 832mm -
-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 3/4ths" -
Rav 4, 5dr SUV Dec 15-+ (AU) -165mm 580mm - 911mm 830mm -
-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -
Rav 4, 5dr SUV Jan 13-+ (US) -165mm 580mm - 911mm 830mm -
-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -
Rav 4, 5dr SUV Jan 13-+ (CN) -165mm 580mm - 911mm 830mm -
-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -
Rav 4, 5dr SUV Jan 13-15 (NZ) -165mm 580mm - 911mm 830mm -
-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -
Rav 4, 5dr SUV Jan 13-15 (EU) -165mm 580mm - 911mm 830mm -
-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -
RX, 5dr SUV 09-15 (EU) -340mm 400mm - 915mm 850mm -
-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -
RX, 5dr SUV 09-15 (AU) -340mm 400mm - 915mm 850mm -
-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -
RX, 5dr SUV 09-15 (CN) -340mm 400mm - 915mm 850mm -
-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -
RX, 5dr SUV 09-15 (NZ) -340mm 400mm - 915mm 850mm -
-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -
RX, 5dr SUV 10-15 (ZA) -340mm 400mm - 915mm 850mm -
-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -
3
Fitting Kit EN
K716
Fitment (Front Bar)
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K716

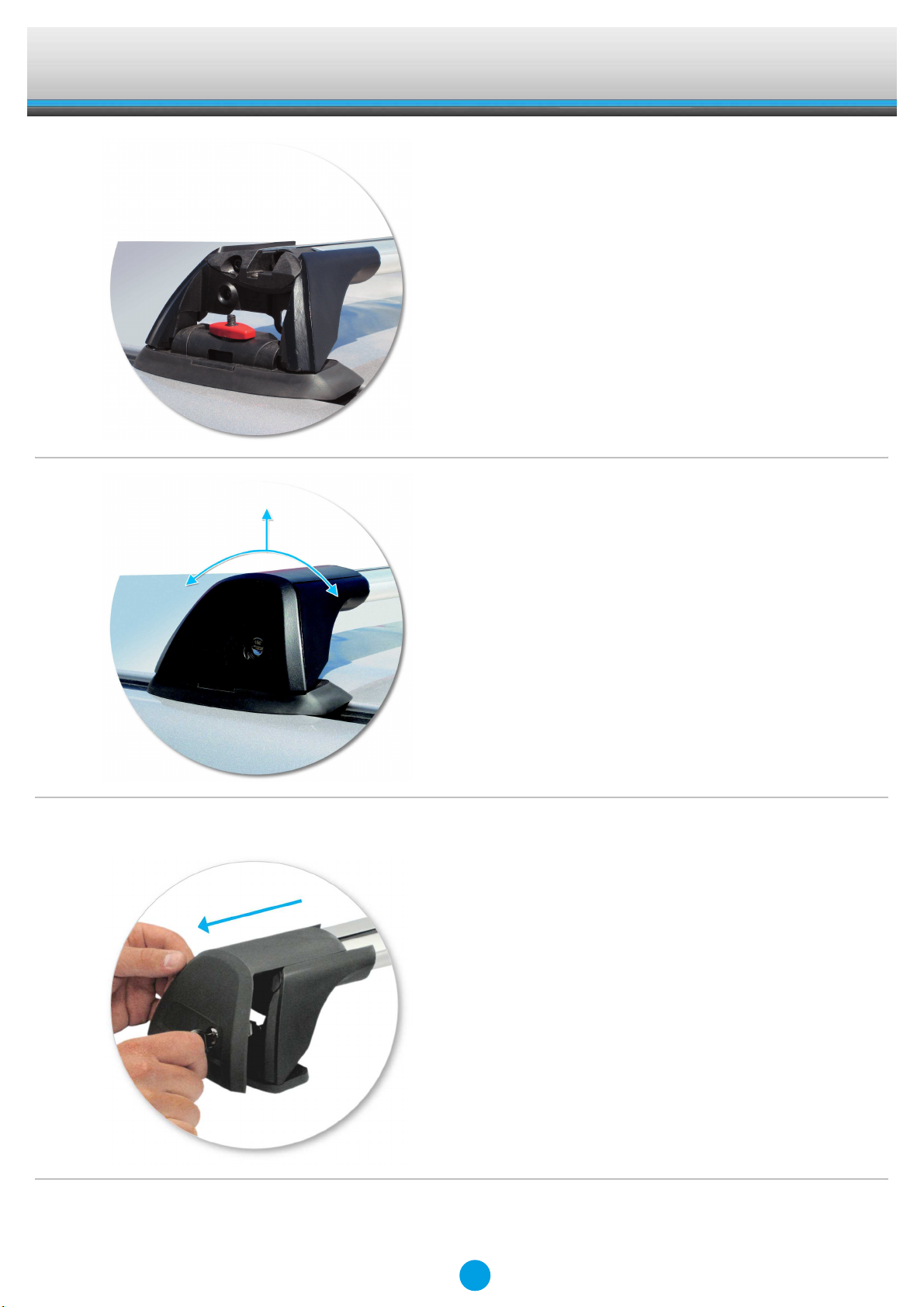

●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Please check the front of this manual for
information relating specifically to your
vehicle.
5
Fitting Kit EN
K716
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
6
Fitting Kit EN
K716
Fitment

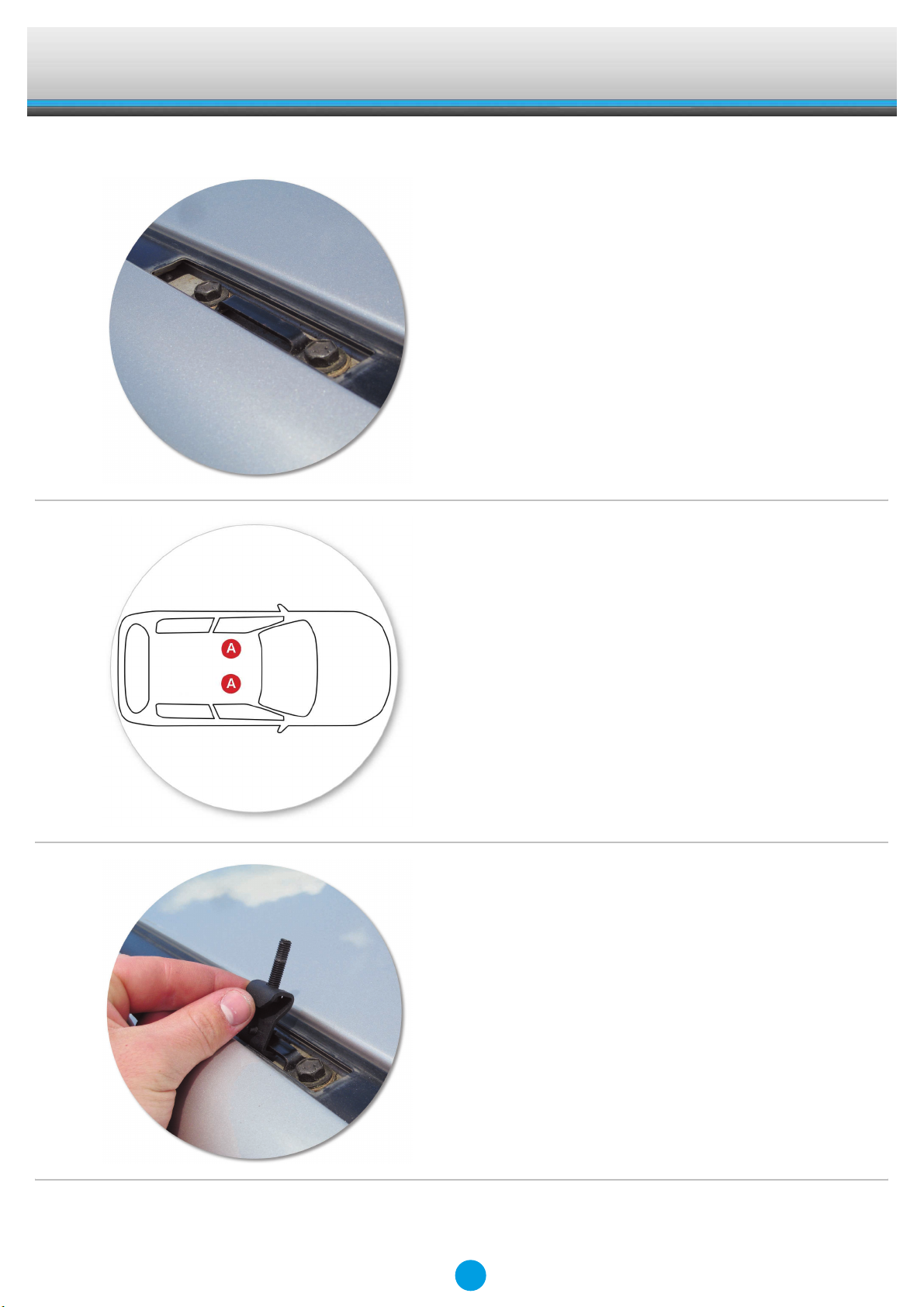

●Open or remove fixed-point covers.
●Store items away in a safe place.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 239A
●Hook clamps into the fixed points on the
vehicle.
7
Fitting Kit EN
K716
●Refer to the underside of the pad for the
part number.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 296
B = 295
●Place pads on roof as per diagram. Screw
thread should be vertically through square
hole in pad.
8
Fitting Kit EN
K716

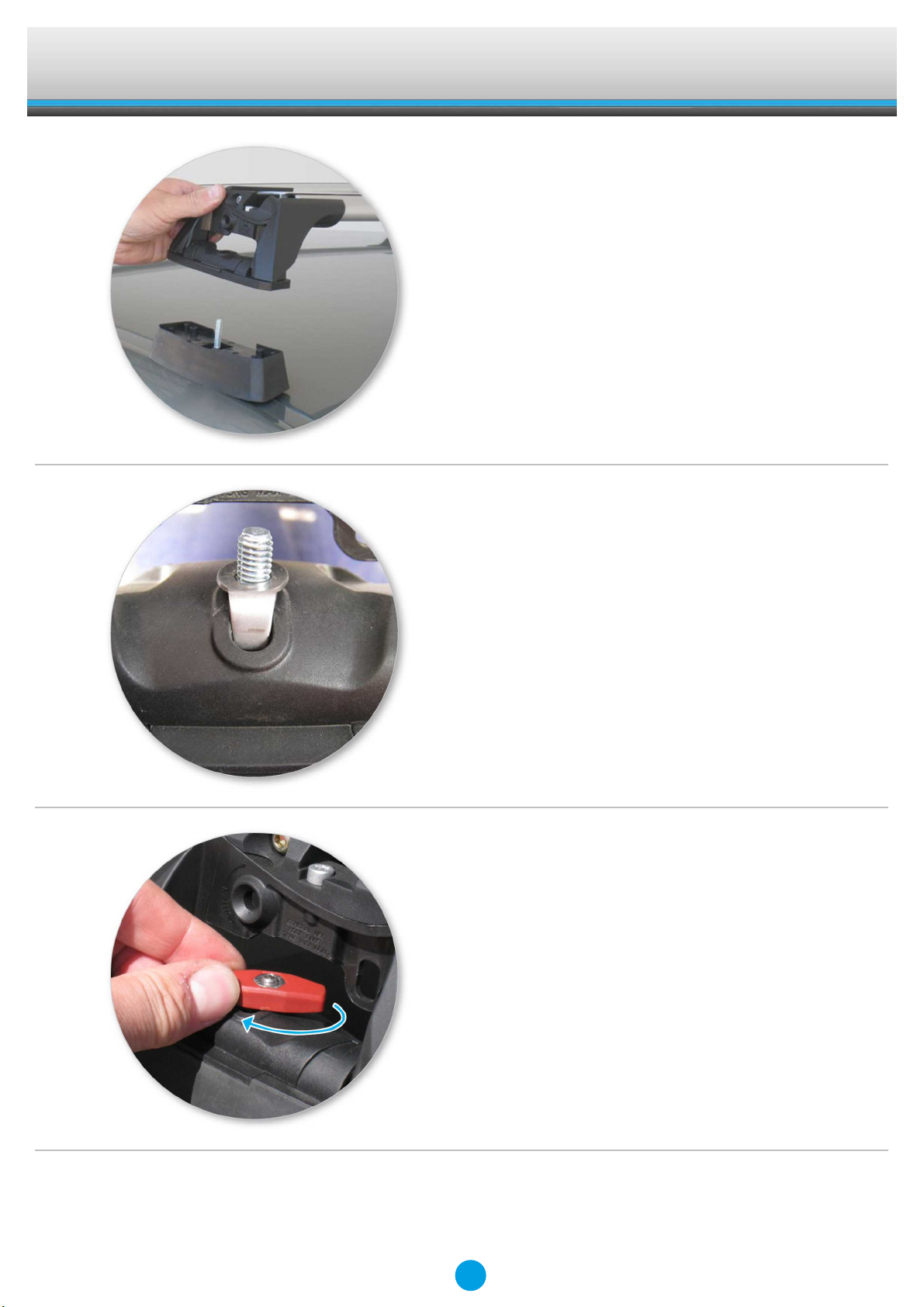

●Place crossbar foot over clamp bolt.
●Place washer over clamp thread as shown.
●Ensure that tab is inserted into clamp
block.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
9
Fitting Kit EN
K716
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat at other end.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
Fitment (Rear Bar)
●Use keys to remove covers.
10
