Prorack K631 Manuale utente
K631
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 4 x 4 x 4
x 4 x 1 x 4
Revision No: 3B 1
Fitting Kit K631
MAX kgs (lbs)
W/P WHD
Land Rover
Freelander 2, 5dr SUV 07-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV 07-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV 12-14 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV Jul 07-Feb 11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV Jul 07-Feb 11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV Jul 07-Feb 11 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV Mar 11-Mar 15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV Mar 11-Mar 15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Freelander 2, 5dr SUV Mar 11-Mar 15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
LR2, 5dr SUV 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K631
X
A B C 1 2 3
Freelander 2, 5dr SUV 07-12 (EU) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV 07-15 (CN) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV 12-14 (EU) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV Jul 07-Feb 11 (NZ) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV Jul 07-Feb 11 (AU) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV Jul 07-Feb 11 (ZA) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV Mar 11-Mar 15 (AU) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV Mar 11-Mar 15 (NZ) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
Freelander 2, 5dr SUV Mar 11-Mar 15 (ZA) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
LR2, 5dr SUV 07-+ (US) -250mm 500mm - 925mm 905mm -
-9 -13/16ths" 19 11/16ths" - 36 7/16ths" 35 5/8ths" -
3
Fitting Kit EN
K631
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K631
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K631

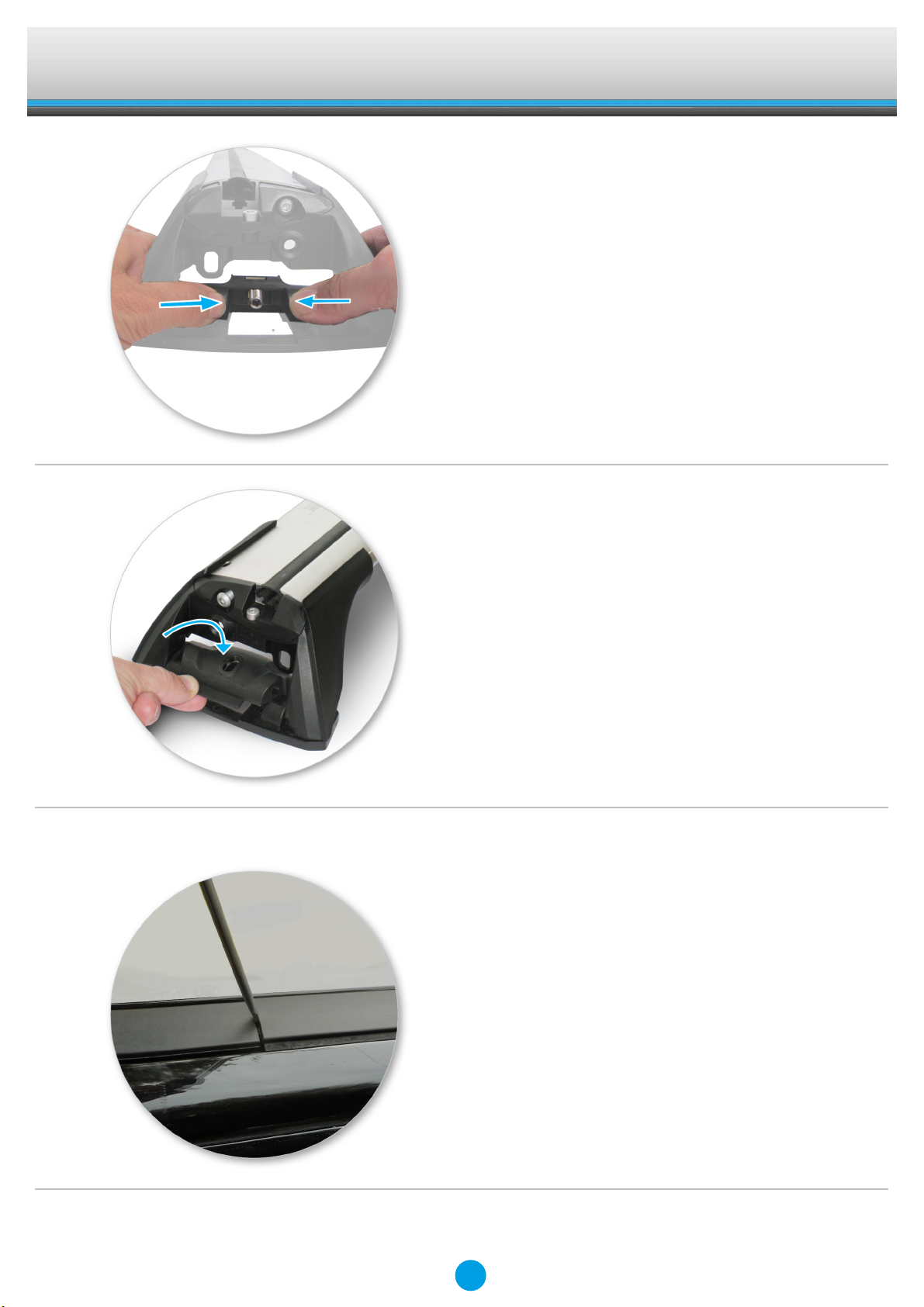

●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
Fitment
●Locate ditch mouldings on roof.
●Carefully remove centre section of ditch
mould with flat-head screwdriver.
6
Fitting Kit EN
K631

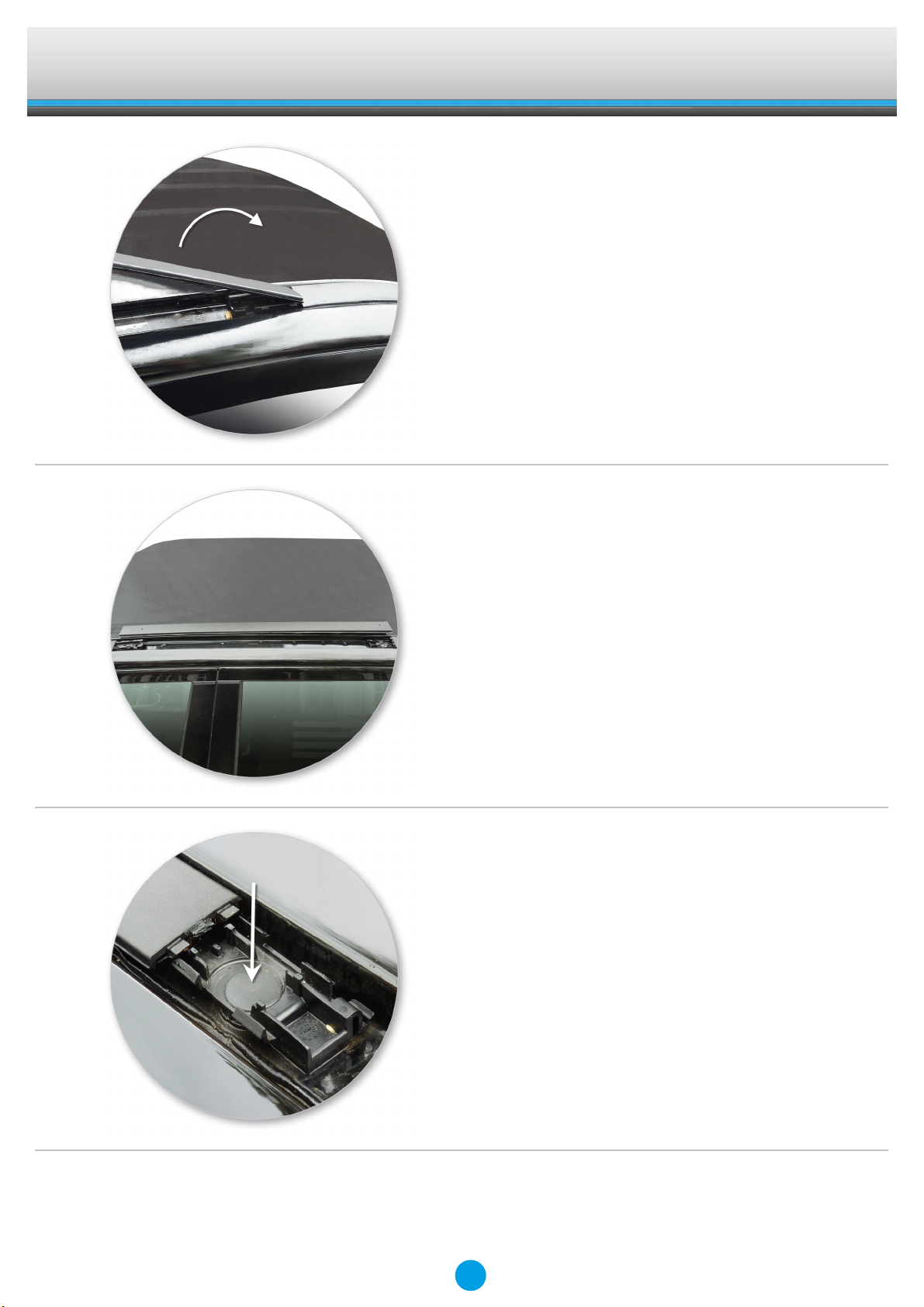

●Pull ditch moulding back towards you.
●Remove centre section.
●Remove as shown.
●Locate vehicle's fixed points.
7
Fitting Kit EN
K631

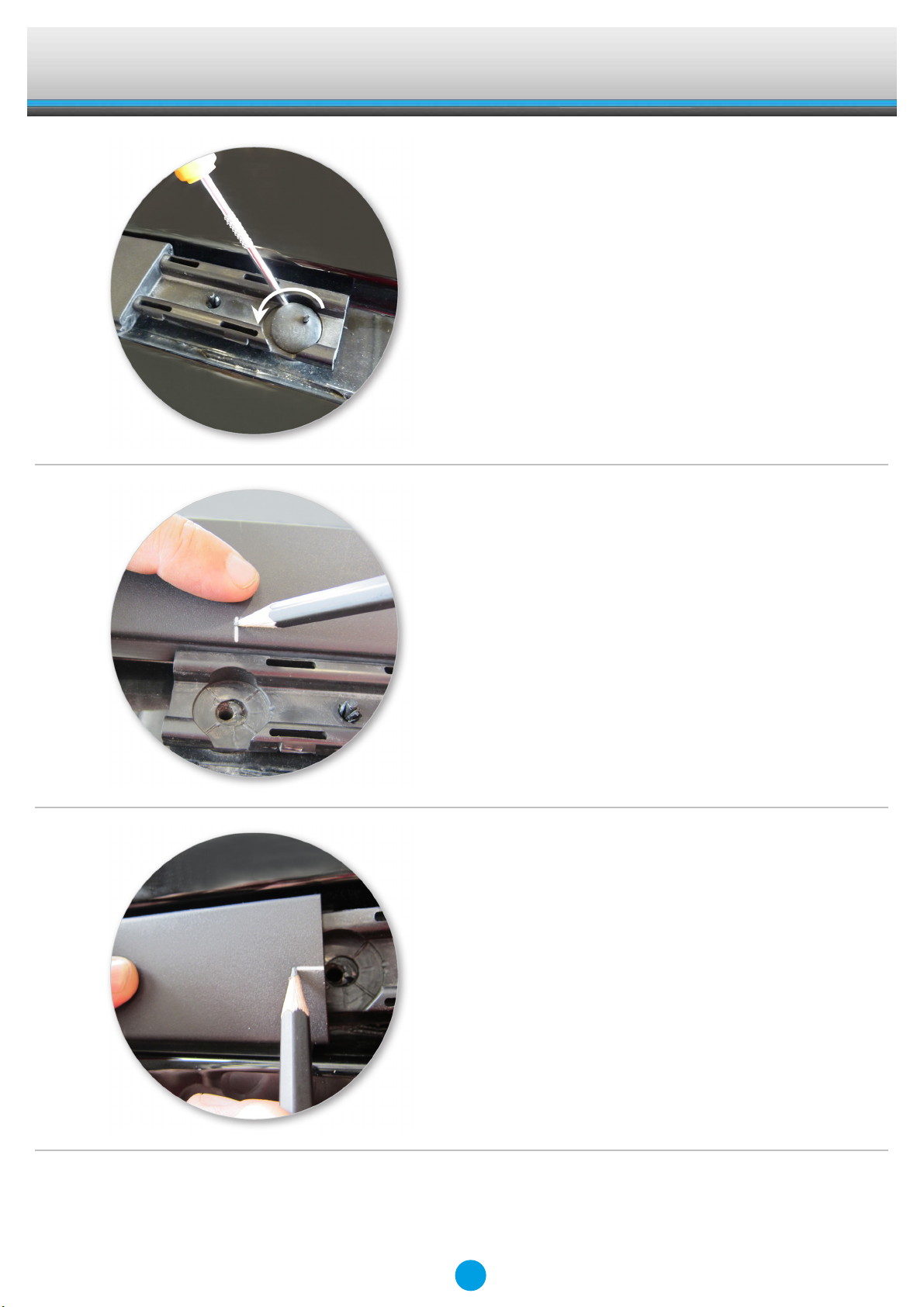

●Remove plastic bungs as shown.
●Rotate as shown.
●Mark reference point with a pen onto
removed section of ditch mould.
●Mark reference point with a pen onto
removed section of ditch mould.
8
Fitting Kit EN
K631

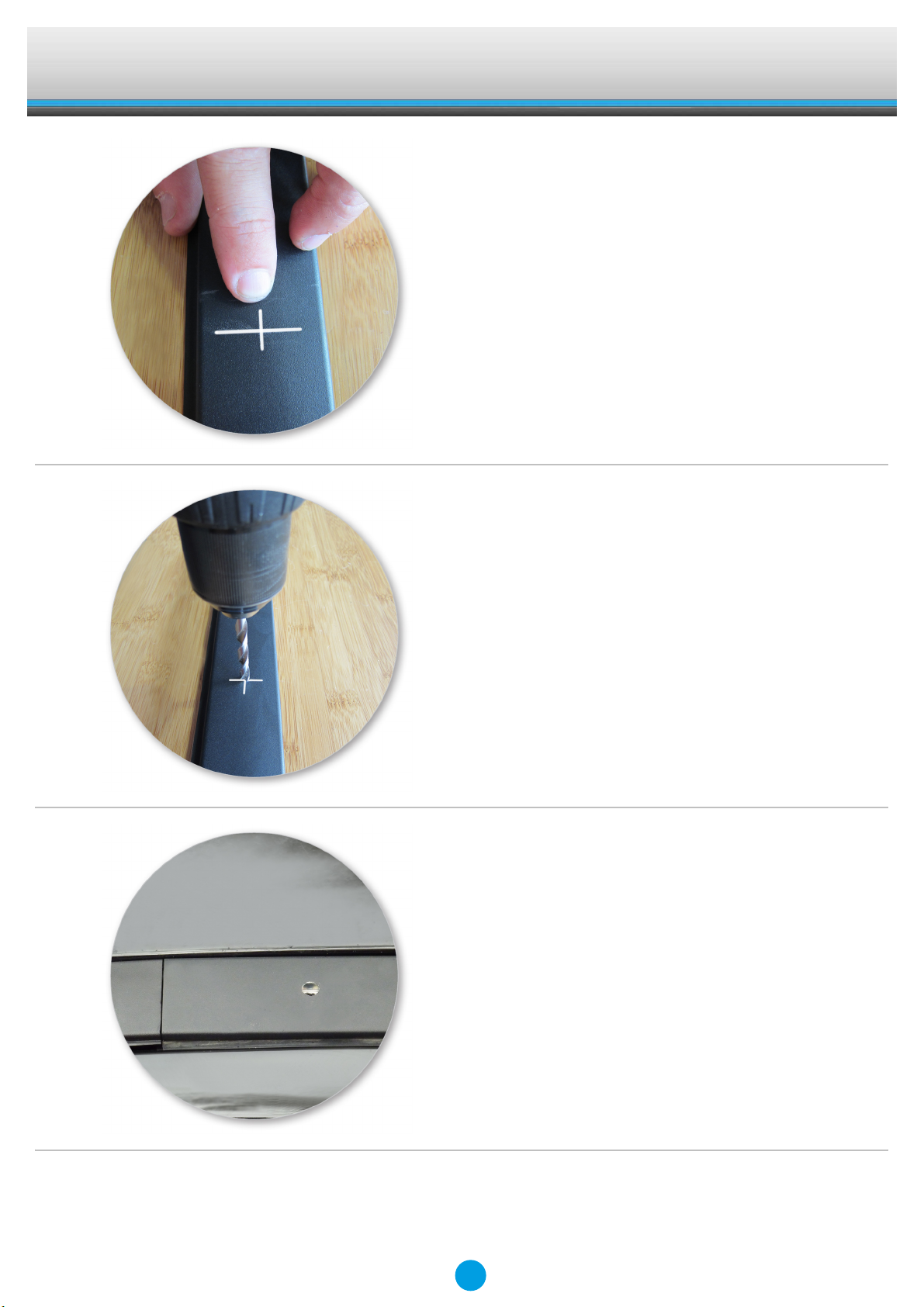

●Mark as shown.
●Use drill bit supplied, to drill holes in
marked positions.
●Re-install ditch mould in roof channel.
●Align holes.
9
Fitting Kit EN
K631

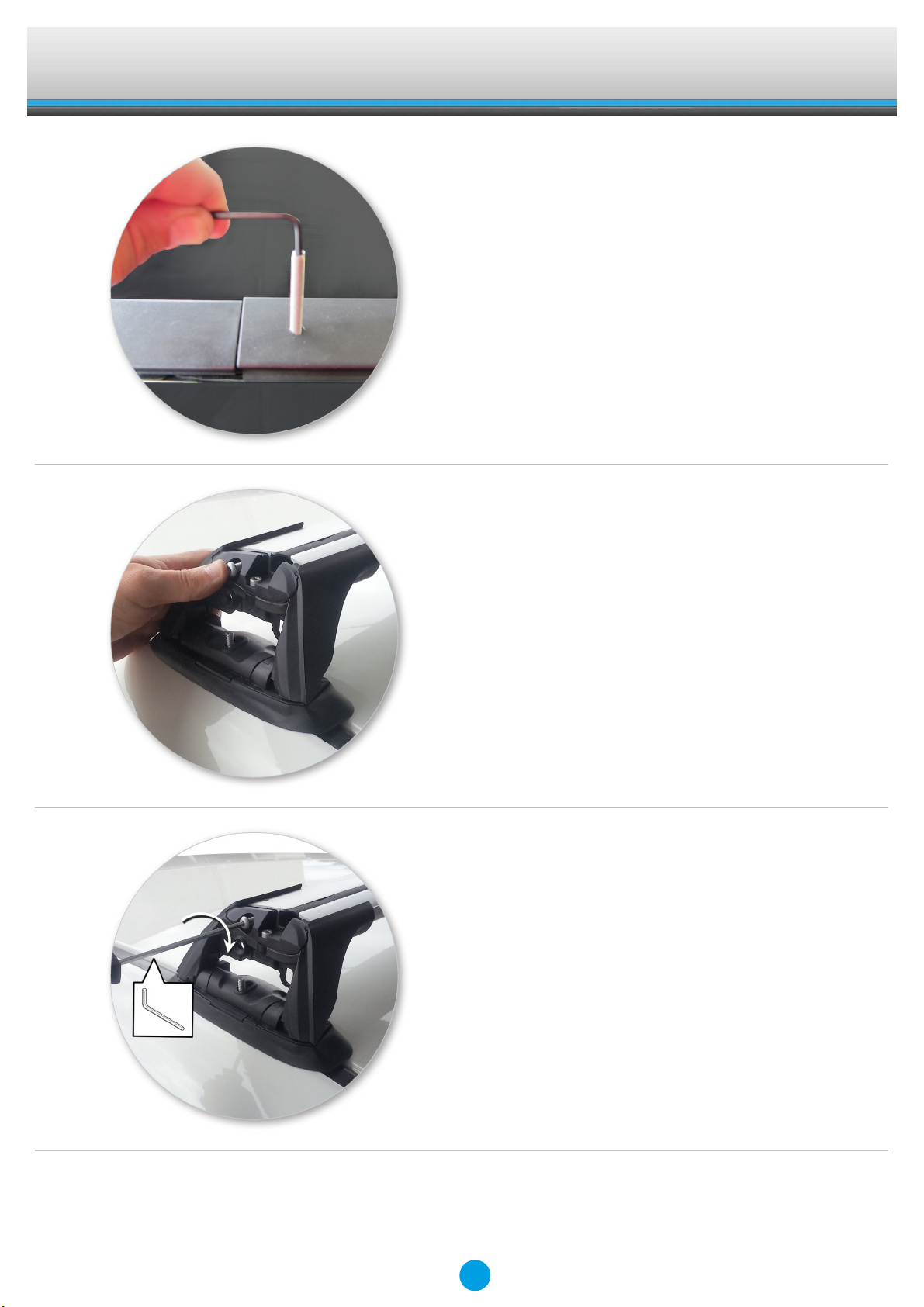

●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
