Prorack K585 Manuale utente
K585
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
x 1 x 1 x 2 x 4
Revision No: 7G 1
Fitting Kit K585
MAX kgs (lbs)
W/P WHD
Volkswagen
Amarok (Mexico), 4dr Truck 10-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Amarok Double Cab, 4dr Ute 10-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Amarok Double Cab, 4dr Ute 10-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Amarok Double Cab, 4dr Ute 10-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Amarok Double Cab, 4dr Ute 10-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Amarok Double Cab, 4dr Ute 10-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Amarok Single Cab, 2dr Ute 10-+ EU 35 kgs (77 lbs) 35 kgs (77 lbs)
Amarok Single Cab, 2dr Ute 10-+ AU 35 kgs (77 lbs) 35 kgs (77 lbs)
Amarok Single Cab, 2dr Ute 10-+ ZA 35 kgs (77 lbs) 35 kgs (77 lbs)
2
Fitting Kit K585
X
A B C 1 2 3
Amarok (Mexico), 4dr Truck 10-+ (US) -270mm 500mm - 970mm 955mm -
-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -
Amarok Double Cab, 4dr Ute 10-+ (NZ) -270mm 500mm - 970mm 955mm -
-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -
Amarok Double Cab, 4dr Ute 10-+ (AU) -270mm 500mm - 970mm 955mm -
-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -
Amarok Double Cab, 4dr Ute 10-+ (EU) -270mm 500mm - 970mm 955mm -
-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -
Amarok Double Cab, 4dr Ute 10-+ (ZA) -270mm 500mm - 970mm 955mm -
-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -
Amarok Double Cab, 4dr Ute 10-+ (CN) -270mm 500mm - 970mm 955mm -
-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -
Amarok Single Cab, 2dr Ute 10-+ (EU) -270mm - - 960mm - -
-10 -5/8ths" - - 37 13/16ths" - -
Amarok Single Cab, 2dr Ute 10-+ (AU) -270mm - - 960mm - -
-10 -5/8ths" - - 37 13/16ths" - -
Amarok Single Cab, 2dr Ute 10-+ (ZA) -270mm - - 960mm - -
-10 -5/8ths" - - 37 13/16ths" - -
3
Fitting Kit EN
K585
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K585
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Please check the front of this manual for
information relating specifically to your
vehicle.
5
Fitting Kit EN
K585
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K585

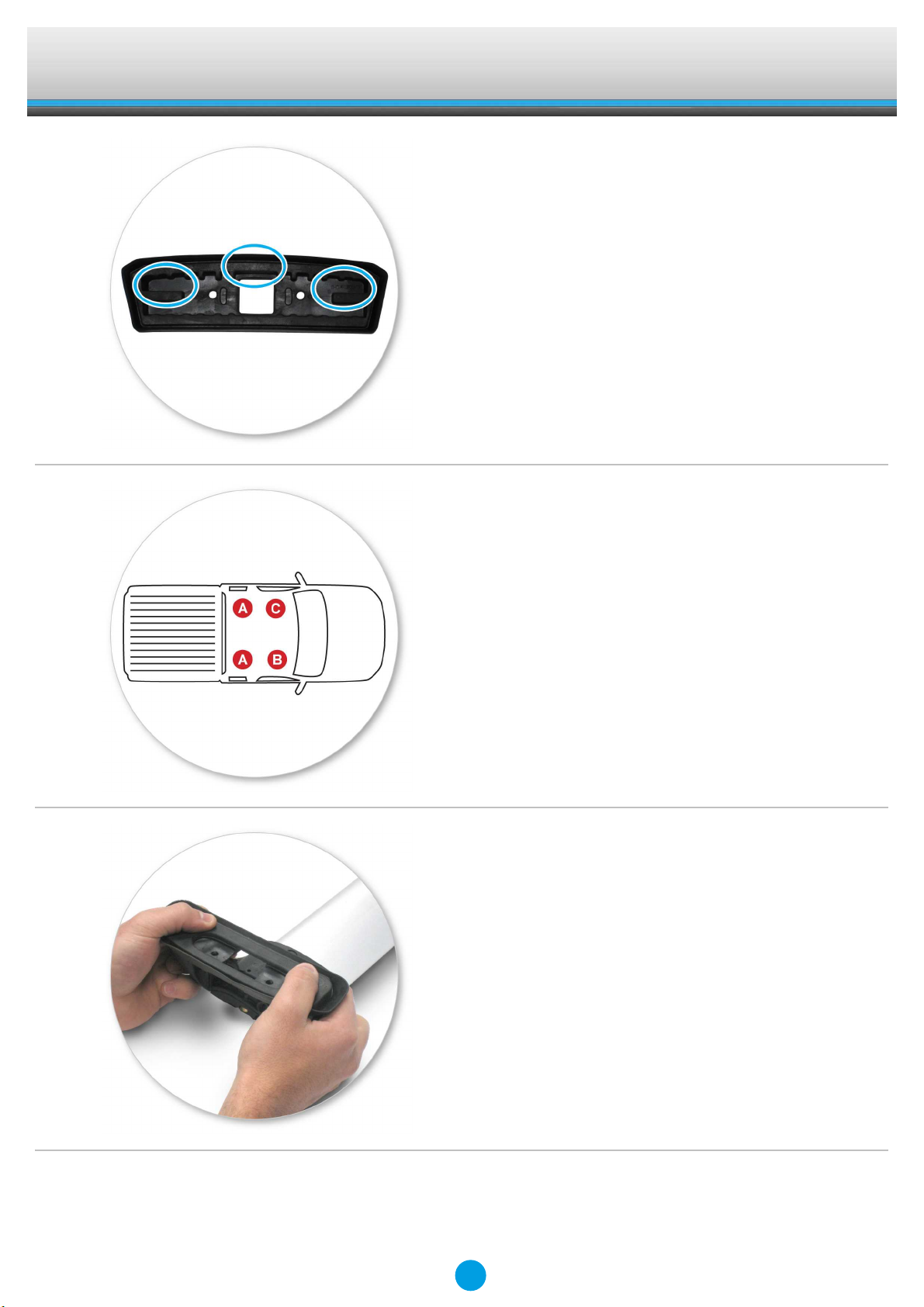

●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-220
B = 11-04-224
C = 11-04-225
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
7
Fitting Kit EN
K585
Fitment

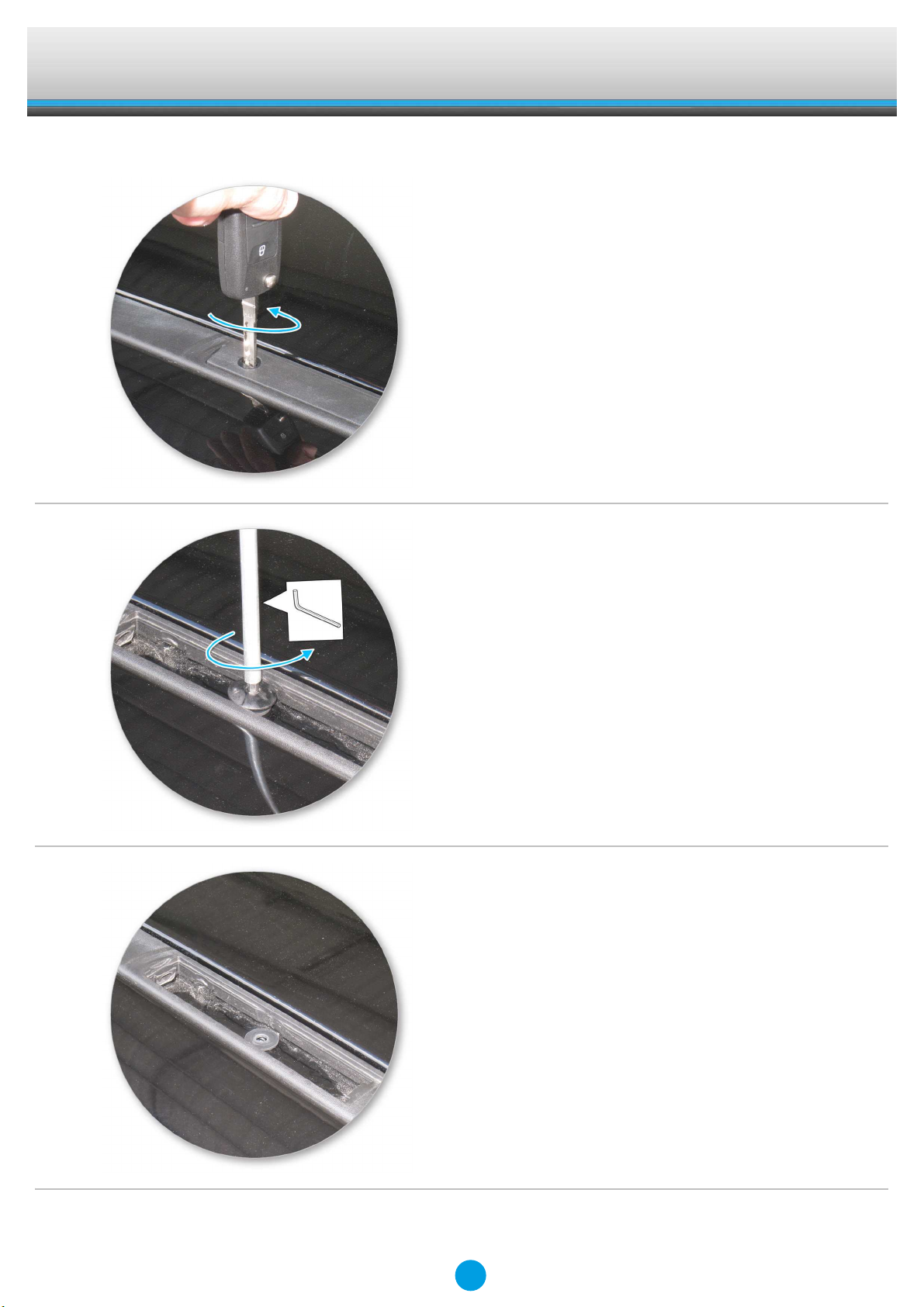

●Open or remove fixed-point covers.
●Store items away in a safe place.
●Remove screws from the vehicle's fixed
points
●Remove rubber washer from screw and re-
install onto fixed point.
8
Fitting Kit EN
K585
●Assemble as shown.
●Ensure rubber sleeve is installed as far
onto the bolt as possible.
●Place crossbar foot over fixed-point mount.
●Ensure bolt engages with rubber washer
and fixed-point thread.
●Tighten the plastic knob.
9
Fitting Kit EN
K585

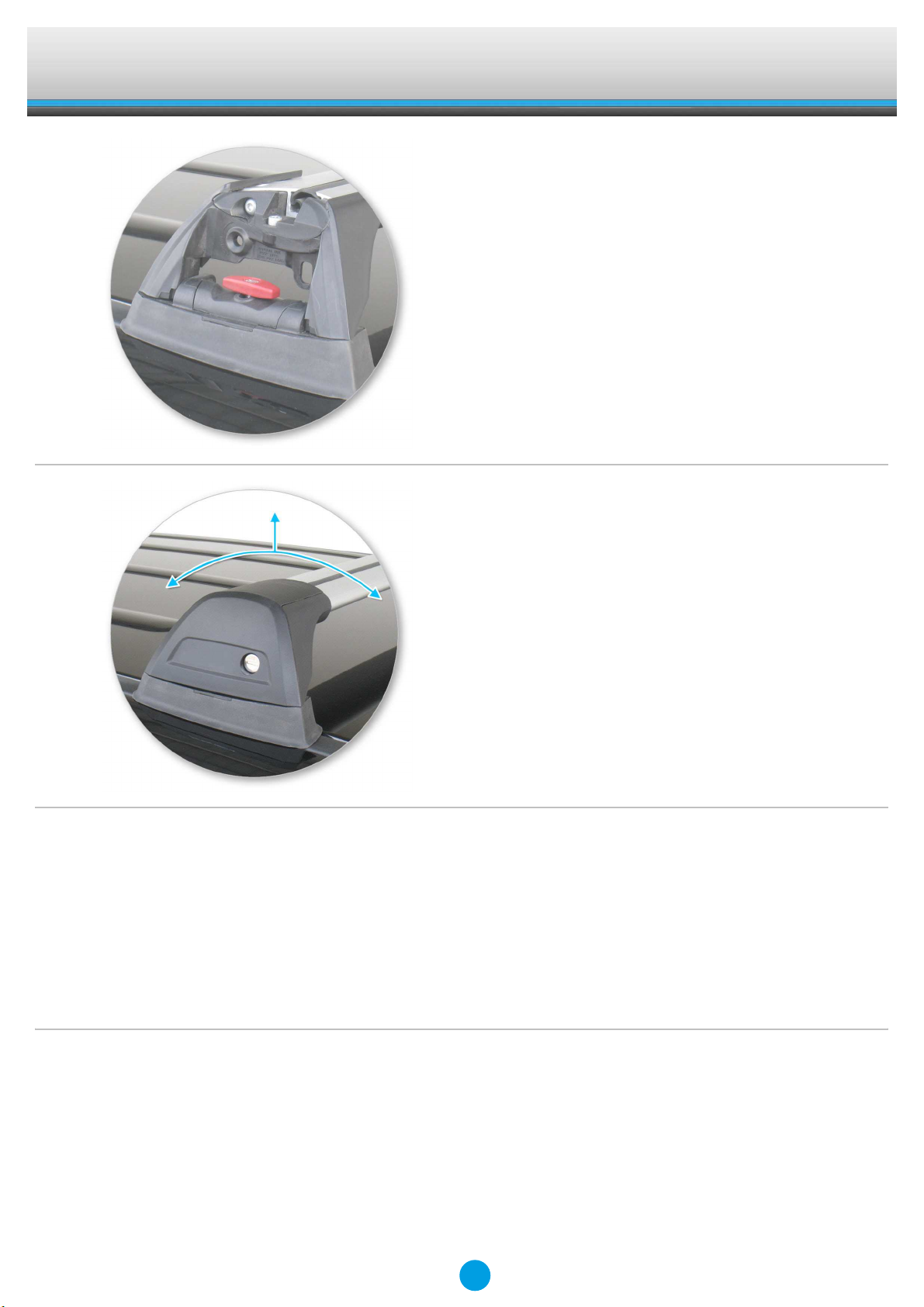

●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all four positions.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
