Forward FN455S
Manual
Content
Specifications
Description
Package Contents
Features
Components and Controls
Button Operation
Using the Battery Pack
Battery Charging
Battery Installation
Safety Measures
External Power Supply
Operation
Operating Features
Installing Digital Module on the Optical Device
Installing Pulsar 5x30 Monocular on to the Digital Module
Powering on and Image Setting
IR Illuminator
Installing the IR Illuminator
Removing the IR Illuminator
Status Bar
Quick Menu Functions
Main Menu Functions
Enter the Main Menu
Icon Brightness
Microphone
Wi-Fi Settings
General Settings
Auto Shutdown
Device Information
Bluetooth
Video Recording and Photography
Wi-Fi Function
Specifications
FN455S
Model FN455S
SKU 78199
Optical Characteristics
Lens focus, mm 50
Relative aperture, D/f 1:1
Field-of-view (Horizontal), ° 6.3
Field-of-view (Horizontal), m
per 100 m 11
Detection Range (animal
height 1.7 m), m/y 500/546.8
Minimum Focusing Distance,
m/y 5
Recommended daylight optics
magnification, x 2-8
Electronic Specifications
Sensor type / resolution CMOS HD 1280X720
Display type / resolution AMOLED 1746x1000
Detachable IR Illuminator
Type / wavelength, nm LED 940
Operational Characteristics
Power Supply, V 3.1-4.2
Battery type / Capacity / Rated
Output Voltage Li-Ion Battery Pack IPS7 / 6400
mAh / DC 3.7 V
External Power Supply Micro USB type B (5V)
Max. Battery Pack Life at t =
22 °C (Wi-Fi off, IR off), Hour 9
Degree of protection IP code
(IEC60529) IPX7
Operating temperature, °C -25 - +50
Overall Dimensions (with
battery and monocular),
mm/inch 273х136х77 / 10.75x5.35x3.03
Weight (with battery and
monocular), kg/oz 1 / 35.3
Video Recorder
Video/Photo Format .mp4 / .jpg
Built-in Memory 16 GB
Wi-Fi Channel*
Frequency 2.4 GHz
Standard 802.11 b/g
*Reception range may vary depending on various factors: the presence of
obstacles, other Wi-Fi networks.
Description
The Forward FN455S digital night vision device is designed for various
areas of application, including hunting surveillance, security activities, night
photography and video recording.
The digital module included in the Forward FN455S package can be
mounted on lenses of various daytime optical instruments using special
adapters, enabling them to be used for night-time observation.
To get started, see the sections:
Battery Charging
Battery Installation
Installing Digital Module on the Optical Device
Installing Pulsar 5x30 Monocular on to the Digital Module
Powering on and Image Setting
Package Contents
Digital module
Pulsar 5x30 Monocular
Carrying Case
Wireless Remote Control
IPS7 Battery Pack
Battery Pack Charger
Power Adapter
USB Cable
Quick Start Guide
Lens-Cleaning Cloth
Warranty Card
Neck strap
Features
1280X720 HD sensor
Enhanced night-time sensitivity
Simple transformation of a daytime optical device into night device.
Preserves the benefits of daytime optics in night-time conditions
Comfortable use in a wide range of daytime optical magnifications
Invisible long-range IR Illuminator
SumLight™ enhanced sensitivity firmware
Detection distance of up to 500m
Instant power up
Built-in video
Power from quick-release, high-capacity B-pack rechargeable batteries
Four-point mounting system with automatic clamp
Wireless remote control
Wi-Fi integration with iOS and Android devices
Remote firmware updates
Fully waterproof (IPX7)
Extreme operating temperature range (-25 °C – +50 °C / -13 °F – +122
°F)
MicroUSB Power Bank charging
Storing photos and videos in Cloud when using the Stream Vision 2 App

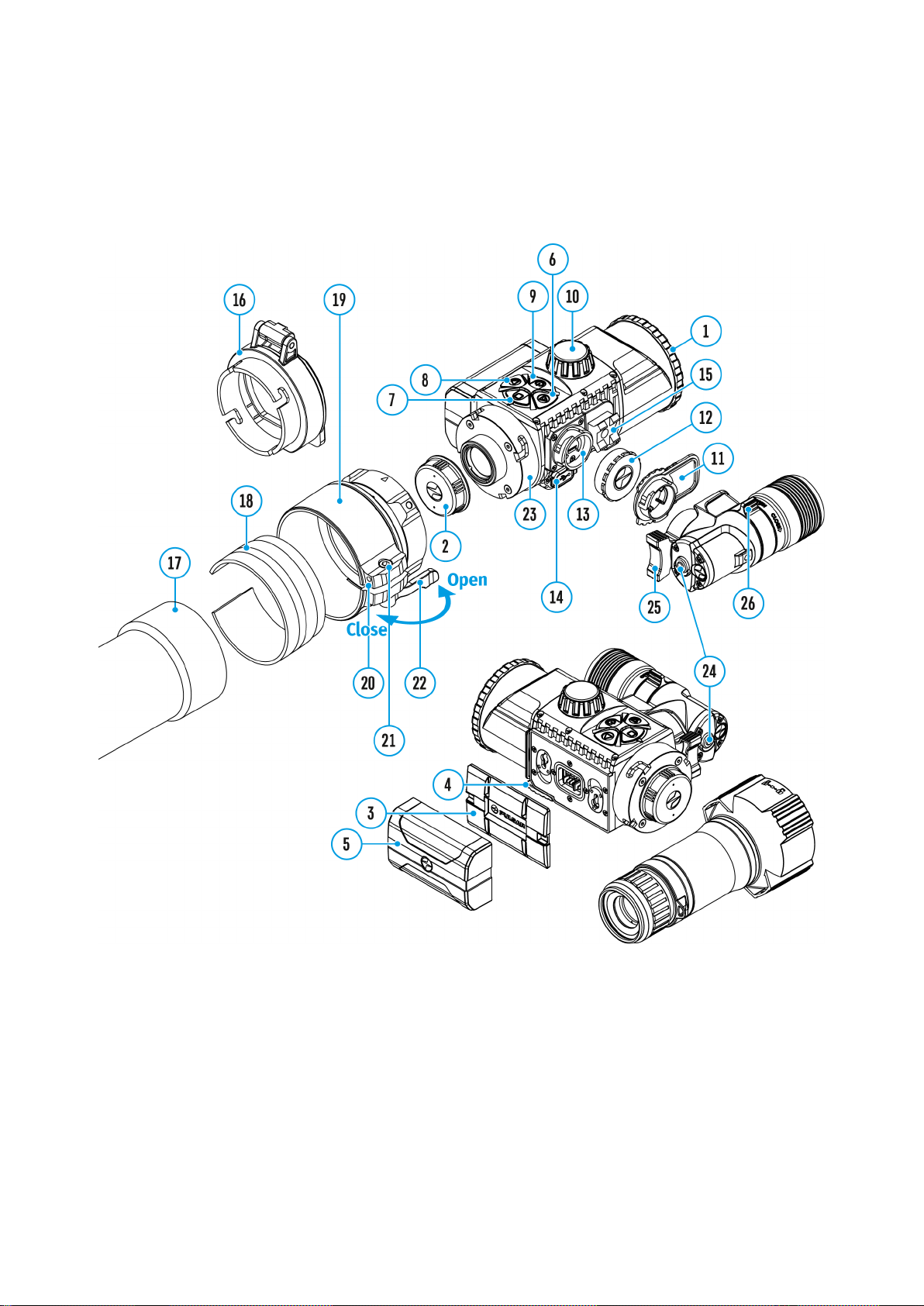

Components and Controls
1. Lens cover
2. Eyepiece cover
3. Battery compartment cover
4. Battery locking lever
5. Battery pack
6. RIGHT button
