Pulsar AXION XQ38 Manuale utente

Axion XQ

Manual

Content

Description

Package Contents

Specifications

Features

Components and Controls

Button Operation

Using the Battery Pack

Battery Charging

Battery Installation

Precautions

Recommendations for Use

External Power Supply

Powering On and Image Setting

Microbolometer Calibration

Discrete Digital Zoom

Image Detail Boost

Status Bar

Quick Menu Functions

Main Menu Functions

Enter the Main Menu

Mode

Image Detail Boost

Color Modes

Calibration Mode

Microphone

PiP Mode

Icon Brightness

General Settings

Wi-Fi Activation

Wi-Fi Settings

Defective Pixel Repair

Restore Default Pixel Map

Device Information

Video Recording and Photography

Wi-Fi Function

Stadiametric Rangefinder

Display-Off Function

PiP Function

Stream Vision

Firmware Update

USB Connection

Installing the Device On a Tripod

Technical Inspection

Technical Maintenance and Storage

Troubleshooting

Legal Compliances and Disclaimers

Description

Axion XQthermal imaging monoculars are designed for use both at night-time and during the

day and provide exceptional image quality even in adverse weather conditions (fog, smog,

rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target

detection.

Unlike night-vision devices based on electron-optical converters, thermal imaging devices do

not need an external light source and are resistant to bright light.

Axion XQ thermal imagers are designed for various applications including hunting,

observation, security, terrain orientation, search and rescue operations, etc.

Package Contents

Axion XQ thermal monocular

APS 5 rechargeable battery

2 battery-locking covers

Battery charger

Power adapter

USB Type-C cable

Carrying case

Hand strap

Quick reference user manual

Lens cleaning cloth

Warranty information

Tripod adapter

Specifications

XQ38

Model XQ38

SKU 77427

Microbolometer

Type uncooled

Resolution, Pixels 384x288

Pixel Pitch, µm 17

Frame Rate, Hz 50

Optical

Characteristics

Optical Magnification, x 3.5

Smooth Digital Zoom 3.5-14

Digital Zoom, x 2/4

Lens Focus, mm 38

Relative Aperture, D/f' 1.2

Minimum Focus

Distance, m 3

Eye Relief Diameter,

mm 3.5

Angular Field of View

(Horizontal x Vertical),

degree 9.8x7.4

Linear Field of View, m

at 100 m 17.2

Eyepiece Focus

Range, Diopter +4 / -5

Detection Distance for

Deer-Sized Objects,

m/y 1350/1476

Display

Type AMOLED

Resolution, Pixels 1024x768

Operational

Characteristics

Power Supply, V 3 - 4.2

Battery

Type/Capacity/Nominal

Output Voltage APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V

External Power Supply 5-15 V (USB Type-C)

Battery Run Time at

t=22°C, hours 6

Degree of Protection,

IP Code (IEC60529) IPX7

Stream Vision

Compatible Yes

Operating Temperature

Range, °C -25 to +40

Dimensions, mm/inch 167x49x73 / 6.57x1.93x2.87

Weight (without

battery), kg/oz 0.35/12.35

Video Recorder

Photo/Video

Resolution, Pixels 1024x768

Video/Photo Format .mp4 / .jpg

Built-in Memory 16 GB

Wi-Fi Channel*

Frequency 2.4 GHz

Standard 802.11 b/g

*Reception range may vary depending on various factors: obstacles, other Wi-Fi networks.

Features

384x288 microbolometer sensor resolution

17-micron pixel pitch

1024x768 AMOLED display resolution

Compact and lightweight

Functional and ergonomic design

8-color display palette

3 calibration modes: Manual, Semi-Automatic, Automatic

Detection range up to 1350 m/1475 yds

Smooth digital zoom 3.5-14x

4 observation modes: Forest, Rocks, Identification, User

Stadiametric Rangefinder

Display-Off function

Defective pixel repair

Updatable firmware

Wide operating temperature range (-25°? to +40°?)

Fully waterproof (IPX7 rated)

Tripod mount

Video/Audio Recording

Built-in video and sound recorder

Integration with iOS and Android devices

Wi-Fi remote control and viewing using a smartphone

Direct YouTube streaming and recording to the Internet using the Stream Vision

application

Battery Pack

Quick Change Li-Ion Battery Pack APS 5

Charging from USB Power Bank

Quick-Charge power delivery?

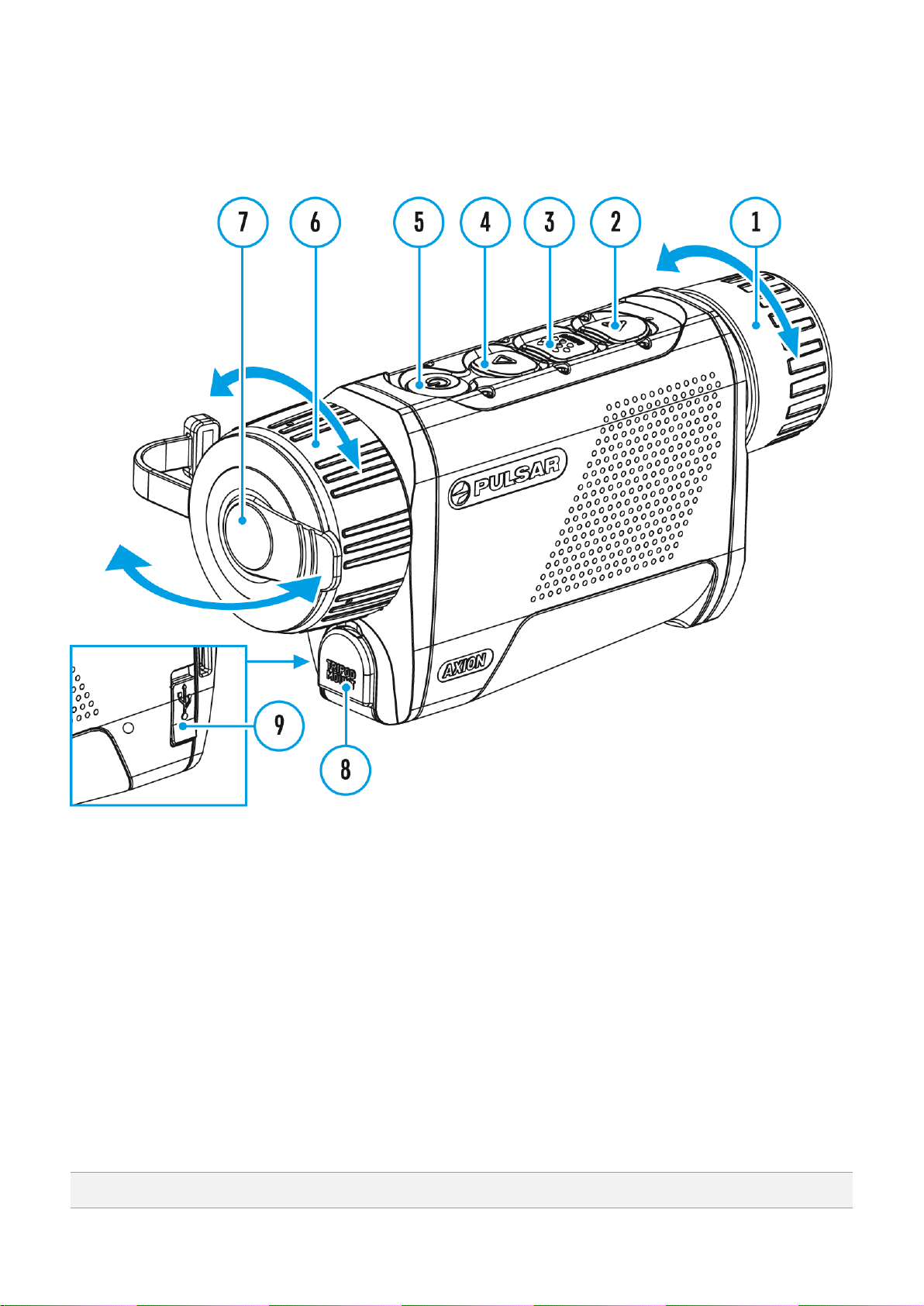

Components and Controls

1. Eyepiece focus ring

2. DOWN/REC button

3. MENU button

4. UP/ZOOM button

5. Power ON/OFF/CALIBRATION button

6. Lens focus ring

7. Lens cover

8. Tripod adapter socket

9. USB Type-C connector

LED indicator displays the current status of the device:

LED Indicator Operating Mode
