INDICATE™
INSTALLATION GUIDE
INST089 Doc 2.01
1
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
CONTENTS
General Information ..........................................................................................2
LED Indication ...................................................................................................3
Indicate Controller Mounting ..........................................................................4
Indicate Single Pole Application.......................................................................4
Indicate Dual Pole Application.........................................................................6
Indicate Ligate Battery Harness .....................................................................8
Limited Commercial Warranty Policy...........................................................12
2
e Indicate™ system is automatic and has easy-to-interpret LED indicators
to assure drivers and technicians of proper system function by monitoring
the source power and ligate batteries. Simply put, the Indicate system
provides indication that the current charging system for the ligate batteries
is functioning properly, which is essential in low mileage, high frequency
ligate operation applications. e LED indicators clearly show the status of
the source as well as the status of the ligate batteries. A quick glance at the
Indicate controller assures the driver that the ligate batteries are ready to go
or alerts the driver that the batteries need maintenance.
GENERAL INFORMATION
3
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
INDICATE INSTALLATION GUIDE
LED INDICATION
4
INDICATE CONTROLLER MOUNTING
INDICATE SINGLE POLE APPLICATION
Step 1: Mount the Indicate controller
at the front of the trailer via the
mounting holes on the plate that
the controller is mounted to.
Step 1: Route the jacketed
2-conductor input harness up to
the single pole receptacle. Ensure
that it will reach the single pole
nosebox and then cut o any
excess cable.
Important: Place the supplied cable
clamps along the 2-conductor
jacketed input harness every 6
inches to ensure proper support
for the cable. Avoid sharp edges
and possible chang points.
Step 2: Remove the single pole
receptacle from the trailer to
access the connection inside the
nosebox. Connect the supplied 2
amp fuse holder to the single pole
receptacle.
5
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
INDICATE INSTALLATION GUIDE
Step 3: Strip 6 inches of the jacketing
o the 2-conductor input harness
and apply a short piece of the
supplied 3/8” black heat shrink to
the area where the jacketing was
cut o.
Step 4: Prep the chassis ground wire
by adding the supplied ¼ inch ring
terminal. Solder and heat shrink
this connection using the supplied
heat shrink.
Step 5: Route the jacketed
2-conductor input harness back
into the single pole nosebox.
Butt connector the red wire to
the 2 amp fuse holder. Solder
and apply the supplied 2 pieces
of ¼” red heat shrink. Route the
black chassis ground wire back
out of the single pole nosebox
to be attached to the front of the
trailer or to one of the single pole
nosebox mounting bolts.
IMPORTANT: e chassis ground
wire must be attached to a good
chassis ground.
6
Step 2: Remove the dual pole
receptacle from the trailer to
access the connection inside the
nosebox. Connect the supplied
2 amp fuse holder to the positive
side of the dual pole receptacle.
Step 1: Route the jacketed
2-conductor input harness up to
the dual pole receptacle. Ensure
that it will reach the single pole
nosebox and then cut o any
excess cable.
Important: Place the supplied cable
clamps along the 2-conductor
jacketed input harness every 6
inches to ensure proper support
for the cable. Avoid sharp edges
and possible chang points.
Step 6: Mount the single pole
nosebox back onto the front of the
trailer. Attach the chassis ground
wire to the front of the trailer
using the supplied self-tapping
screws.
INDICATE DUAL POLE APPLICATION
7
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
INDICATE INSTALLATION GUIDE
Step 3: Strip 6 inches of the jacketing
o the 2-conductor input harness
and apply a short piece of the
supplied 3/8” black heat shrink to
the area where the jacketing was
cut o.
Step 4: Prep the ground wire by
adding the supplied ¼ inch ring
terminal. Solder and heat shrink
this connection using the supplied
heat shrink.
Step 5: Route the jacketed
2-conductor input harness back
into the dual pole nosebox. Butt
connector the red wire to the 2
amp fuse holder. Solder and apply
the supplied 2 pieces of ¼” red
heat shrink. Connect the black
ground wire to the negative side
of the dual pole receptacle and
tighten.
8
Step 6: Mount the dual pole nosebox
back onto the front of the trailer.

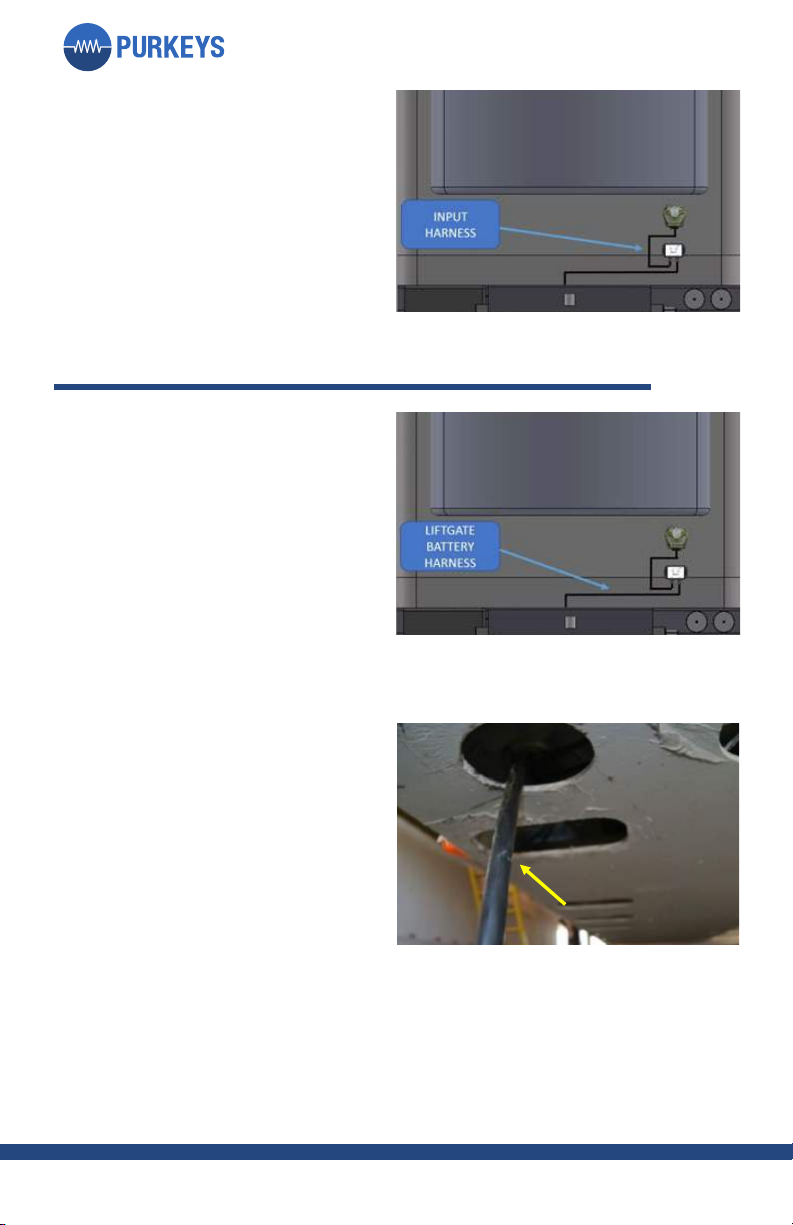

Step 1: Route the jacketed
2-conductor ligate battery
harness behind the front plate
then behind the header plate
through the air/electrical tube to
the center channel.
Step 2: Route the jacketed
2-conductor ligate battery
harness in the center channel
toward the back of the trailer.
Secure with the supplied wire ties
or cable clamps as you go.
Important: Place the supplied cable
clamps along the 2-conductor
jacketed wire every 18 inches to
ensure proper support for the
cable. Avoid sharp edges and
possible chang points.
INDICATE LIFTGATE BATTERY HARNESS
