Pyle Pro PPHP1259 Manuale utente













Introduction

Thank you for purchasing this Pyle Pro speaker The loudspeaker is

designed to provide you years of high performance in any application that

you require. Please read this manual carefully to fully maximize the

performance of the speaker.

Maintenance and Safety

• Do not expose the speaker to moisture.

• Avoid hot and cold temperature extremes.

• Clean using a damp cloth. Make sure that no moisture contacts the

drivers.

• Do not attempt to service the unit. Refer service to a certified Pyle Pro

technician.

• This loudspeaker is capable of producing extremely high SPL levels.

Use earplugs when necessary.

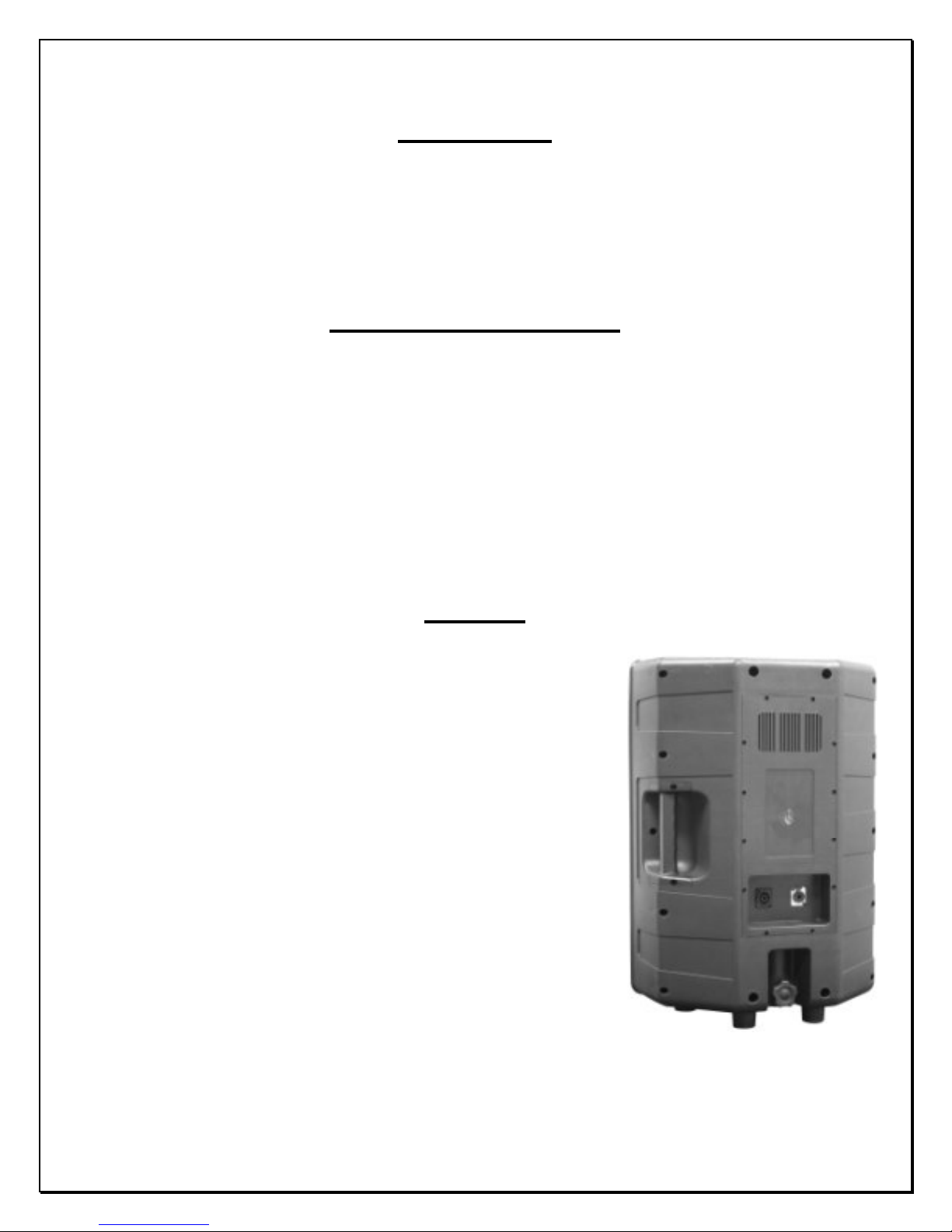

Features

The PPHP series features high-level drivers

and rugged components and is designed for high-

performance applications.

The cabinet features heavy-duty molded

plastic construction that will stand up to years of

tour duty. It has integrated handles that add to its

portability.

The speaker is loaded with a premium Kapton

voice coil woofer and exhibit excellent bass

response. The compression driver provides warm

midrange reproduction and crystal clear highs.

The integrated passive crossover network is

assembled using quality components and efficiently

directs the frequencies to the proper drivers.



There is an integrated 35mm speaker stand

adapter on the bottom side of the cabinet. Use the

knob to secure the speaker to the stand.

Connections

Your PPHP1259 speaker has a speakon jack as well as a ¼” jack. The

jacks are wired in parallel, which allows you to daisy chain additional

speakers. Thus you can use one amplifier channel to power multiple

speakers.

Make certain that the wires you are using are at least 12 gauge

unshielded speaker cable (the lower the number, the thicker the wire). Do

not use shielded “instrument” cables.

Hooking speakers up in parallel decreases the overall

impedance, placing a greater load on the amplifier. Check your

amplifier’s specifications to ensure that you are not overloading

the channel.

CAUTION: DO NOT USE MORE THAN ONE JACK AS AN

AMPLIFIER INPUT. DOING S O WILL DAMAGE THE S PEAKER!

Amplifier Requirements

There are a couple of considerations to keep in mind when choosing

an amplifier to drive your PPHP1259. While it is true that an amplifier with

a higher power rating can damage the drivers, under-powering can be even

more dangerous. When an amplifier is overdriven and starts distorting, it

generates transient frequencies that are much louder than the program

material. These wayward frequencies could damage your speaker. A proper

match is an amplifier which could drive the speaker up to the cabinet’s RMS

rating, without exceeding the amplifier’s own RMS level.



Operation

When powering on your equipment, make sure the volume level on

the amplifier is turned all the way down. This is to avoid the “popping”

noise, which could damage your speaker.

The placement of speakers can be a bit tricky. Besides for the

practical considerations, there are acoustic issues as well. Avoid placing the

speaker in a corner, as this will cause the low frequencies to sound “muddy”.

Similarly, but to a lesser degree, placing the speaker directly against the wall

will exaggerate the low frequencies. You should therefore try to place your

speaker so that it is a few feet away from the wall.

High frequencies are unidirectional while low frequencies are omni

directional. Being that this is a full range enclosure, it is important that the

speaker be placed so that the high frequencies reach the intended listeners

properly. Make certain that no person or object could come to interrupt the

line-of-site between the loudspeaker and the audience.

When using more than one loudspeaker, you have to account for

phase alignment. When the speakers are close together this is not usually an

issue. However, when they are far apart, the sound from one speaker may

reach the ear a fraction of a second before the other. This will cause certain

frequencies to cancel out, resulting in a hollow sound. To avoid this, you

may have to use a delay processor to align the sound from the speakers.



Troubleshooting

No Sound:

Check connections

Try a different speaker cable

Check levels on amplifier

Confirm amplifier is getting a signal (check signal LED, or use

headphone output)

Intermittent Output:

Check connections

Try a different speaker cable

Weak Bass:

Check the polarity of the speaker connection. It may be reversed.

Listen with headphones to confirm the amplifier is being sent a good

signal.

Distorted Sound:

Check if the amplifier is overdriven. If it is, you will have to turn the

level down.

Make sure you are not exceeding the RMS rating of your speaker.

Specifications

  



   



!" # Ω $



%

& '()

'*

+

,#



-*./*



&

!



0/1 2&3



'(4



(44



)'5 "

6″" 8Ω



7 8 *

$7 '*

&7''8*

-49



Parallel Setup

Typical Setup



Recommended Accessories







   

 ! "

"#$





%&'(

)& "

**





"    + &



  

%&'(

)& " 

"" 





Same as above 15ft





%&'()&

"

"*





"    + &



  

  

 )&  ,-.)   & 

 /0 -  & 

    .  

 1"23









 

 )&  ,-.)   & 

 %0 -  & 

    .  

1"23





 4'5'&'(

 "" 

 

 "#$

 





Check out these and other accessories at www.pyleaudio.com
