Pyle PLDVD128 Manuale utente
DVD/VCD/CD/MP3 PLAYERDVD/VCD/CD/MP3 PLAYER
OWNER'S MANUAL
AUDIO/VIDEO
Car Audio Hifi System
-Detachable faceplate -EQ3:ROCK/POP/CLASSIC/FLAT
-5.1 RCA line out:front,rear,center and subwoofer
-30 preset station 18 FM 12 AM
R
1
Power
Volume
Eject
Release
Mode
Loud
L/R
Clock
Dsp
Volume setting
Bass setting
Treble setting
Balance setting
Fader setting
Play/Pause
Scan
Repeat
Random
Stop
N/P
Loading and Replacing the battery
Basic operation
Receiption collection
Speaker collection
Install the unit
Remove the unit
Band
Band tuner
2

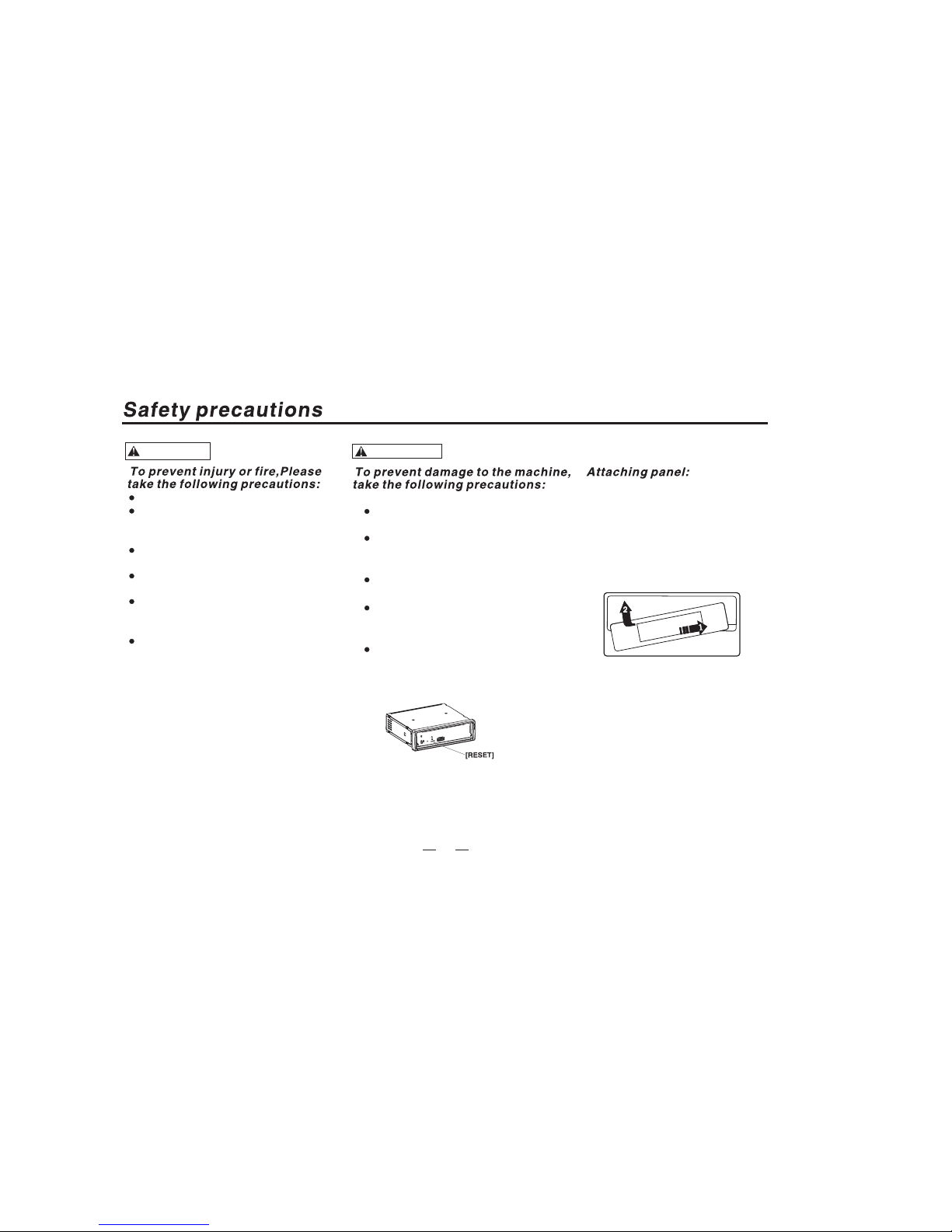

CAUTION
Be sure the unit is connected to a 12V
DC power with a Negative Ground.
Do not install the unit in places where
it is exposed to direct sunlight,high heat
or humidity,water splash or dust.
To change fuse,please use the same
one in specification and capacity.
When changing fuse,please do it
after pulling down power wires to avoid
short circuit.
If the unit seems not work in proper
situation,please press the reset button to
resume the function.
Do not operate when driving.
To prevent electric,etc,Please do not
let
If you smell or see smoke,turn off the
power immediately and consult our dealer.
Be careful not to drop or shock the unit
strongly.
Do not touch the liquid crystal to avoid the
life hurt.If the clothes is stained with it,Please
clean it immediately by soap.
For your driving safety,please link your
brake detecting wire with low power
level,and keep it controlled by manual brake
switch.when driving a car,the brake wire shall
be high power level and now,unit can not
play DVD or VCD disc.
the metal goods(silver,coin,tools..)fall into
the installation.
WARNING
Attach the front panel by fixing the left
Side of it into this unit as 1 showing.
Then push the right side of panel
towards into connecting plug as 2
showing.
Attaching panel
3

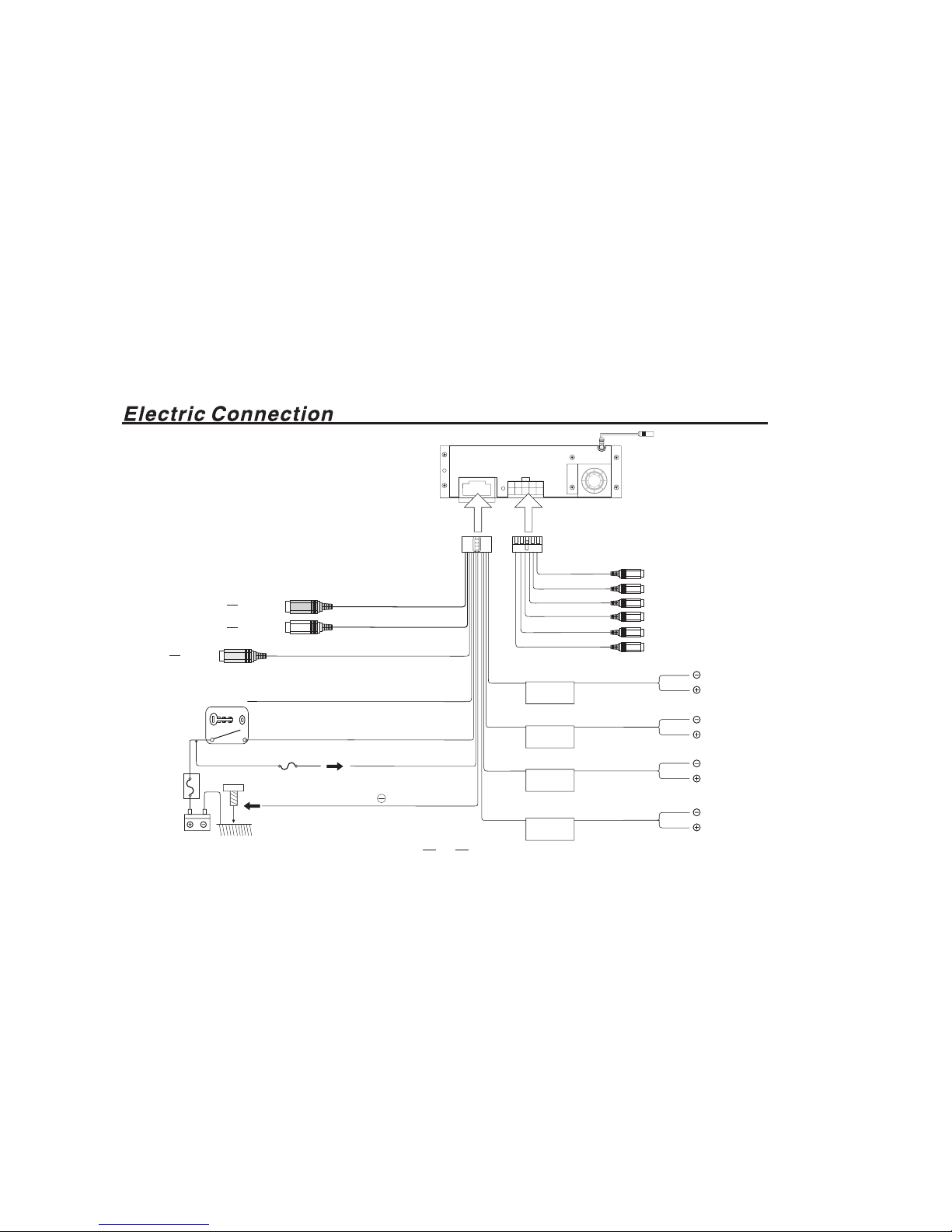

To front left
speaker
To front right
speaker
To rear left
speaker
To rear right
speaker
RED
Green/White
Green
Gray/White
Gray
Brown/White
Brown
Blue/White
Blue
RCH out
WHITE LCH out
YELLOW VIDEO
Lgnition key
swtich
Car fuse box
(main fuse)
Battery
Connect control for antenna
or remote control for amplifier (Orange)
Lgnition wire (Red)
Battery wire (Yellow)
Car fuse box
Ground wire(Black) (To car chassis)
CAR ANTENNA
SURROUND LEFT OUT
SURROUND RIGHT OUT
CENTER
SUBWOOF
FRONT LEFT OUT
FRONT RIGHT OUT
FRONT.L
FRONT.R
REAR.L
REAR.R
4

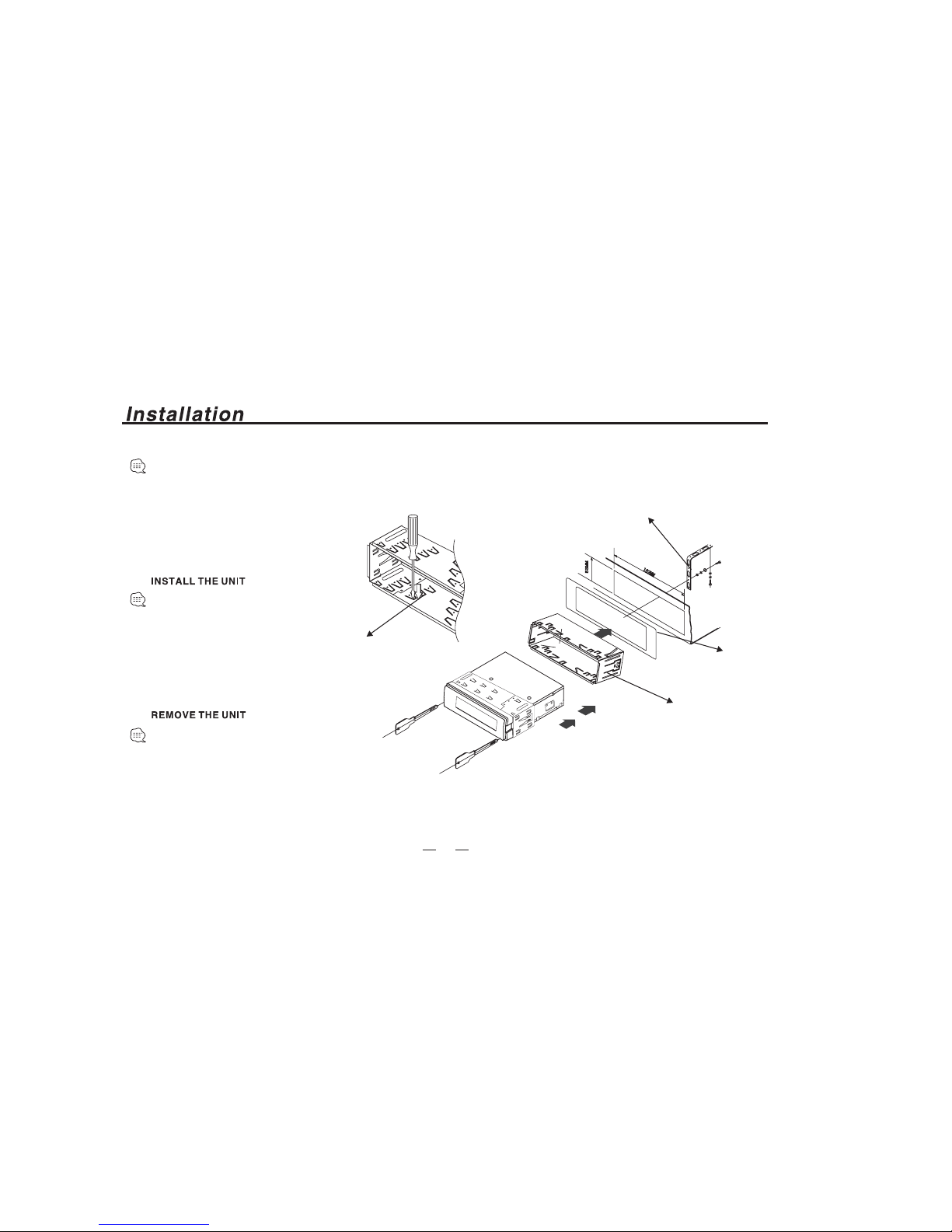

Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the
equipment according to the speakers and electrical connections. When
your system is operated properly,(preferably with the
car engine running), follow the instructions
for permanent installation
of your system.
1) Adapter
(not supplied)
2)Bend over tabs
of half sleeve
(supplied)
3)Support strap
(supplied)
Half sleeve
(supplied)
4) Two wrenches for releasing
the unit (supplied)
1)Install half sleeve, can be with or
without adapter. It will fit better
with adapter.
2)Bend over some tabs to secure the
half sleeve inside of dash.
3) Support strap to be strutted under
dash, secure this strip to avoid skipp
ing of disc.
Insert removal wrench into the small
gap on the right side of the unit and pull
the unit slightly out on the same side,
then release the wrench. Repeat the
same action for the left side. By now,
you can remove the unit and unplug
the wires connector.
VOL
1234 56
DSP
PWR
SEL
SEEK
SCN RPT RDM BAND CLOCK MODE
STOP N/P
5

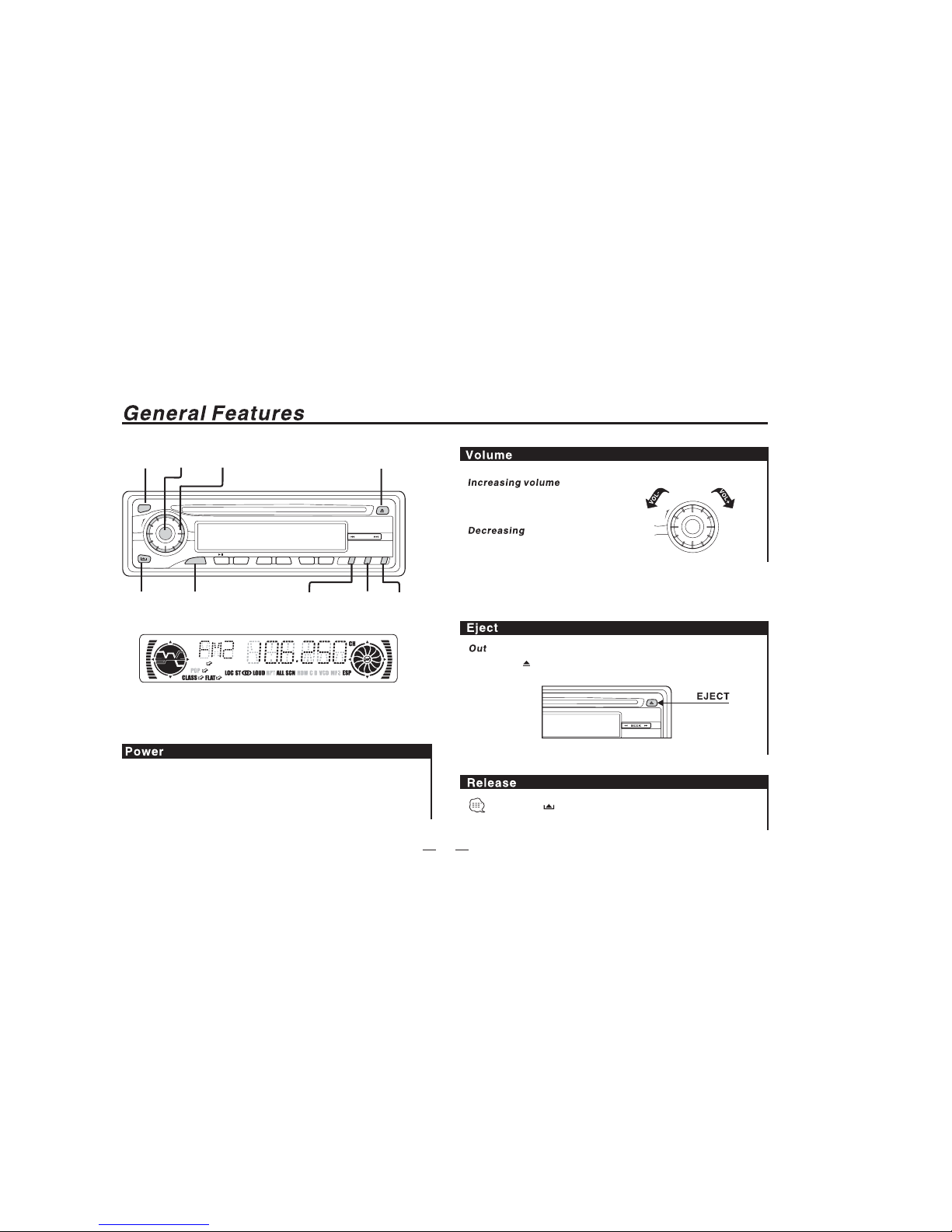

Press the [PWR]button to turn on/off the unit.
Rotate the SEL/VOL button in
clockwise direction.
Rotate the SEL/VOL button in
anticlockwise direction.
Press the [ ]button to eject the disc out of the unit .
press the " " button to release faceplate.
ON/OFF
CLOCK
EJECT
SELECT
RELEASE
LCD display
MODE
RCOK
DSP/LOUD L/R
VOLUME
VOL
SEL
6
Selecting radio and play
Each time you press the key,it will switch between radio
position and disc position.
DSP
press the DSP button to emphasize the bass output,
press it again to resume the normal listening.
In VCD mode, press [BAND] button,it will switch between
right channel and left channel position.
Short press CLK can display time even power off .
Long Press CLK for 3 seconds will enter set mode.
there is no operation in 5 seconds, it will quit clock
set mode.
Rotate the SEL/VOL button to set the hour.
Press the SEL/VOL button,and then rotate it to set
the minute.
Press DSP button once to effect [ROCK[ volume, LCD shows
ROCK on.
Press DSP button twice to effect [POPS] volume, LCD
shows CLASSICE on.
Press DSP button third to effect [CLASSIC] volume, LCD
shows POP on.
Press DSP button fourth to effect [FLAT] volume, LCD shows
FLAT on.
Press DSP button again to resume the normal listening.
VOL
PWR
SEL
1234 56
DSP
SEEK
SCN RPT RDM BAND CLOCK MODE
STOP N/P
7

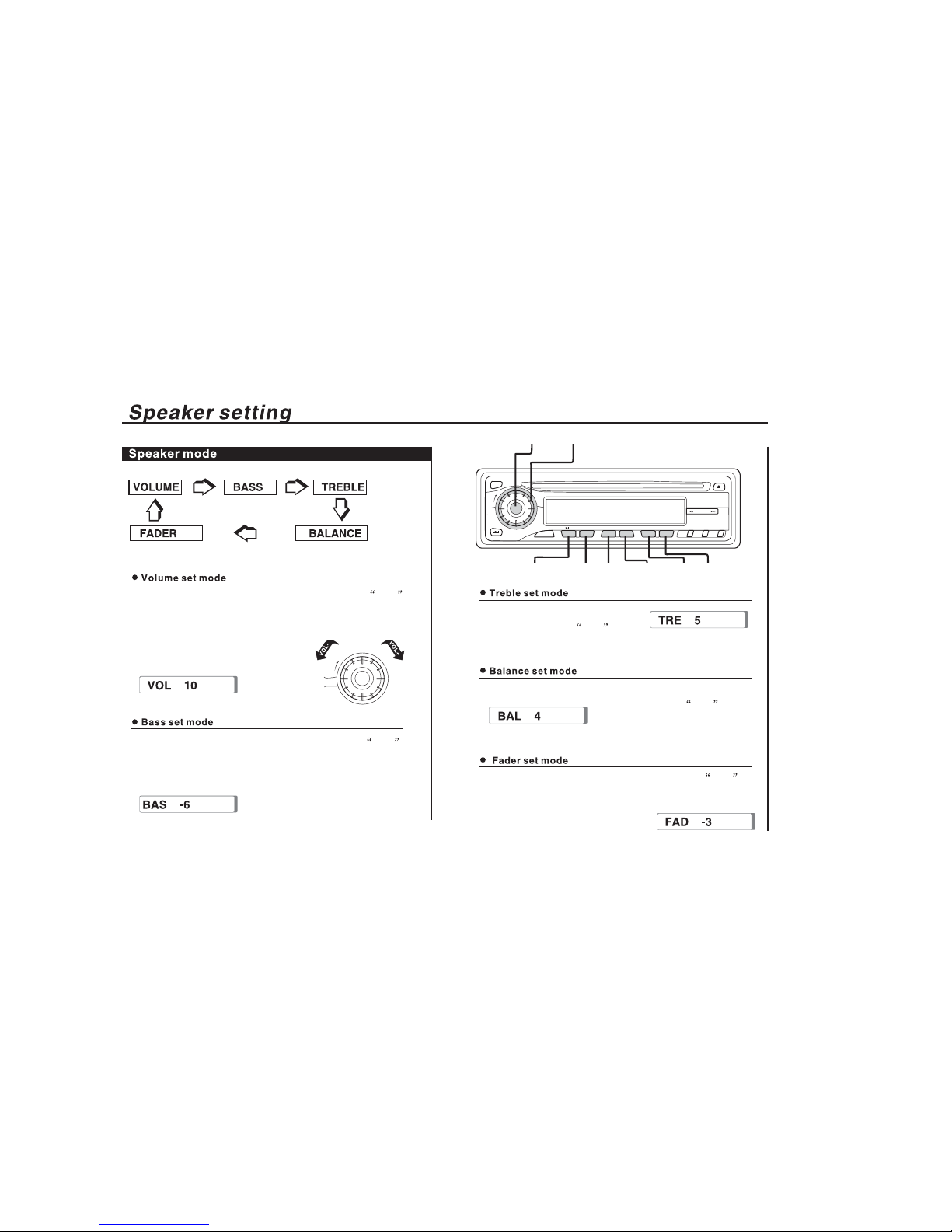

Press SEL/VOL button once,display will show VOL
on,then rotate the button in clockwise direction to
increase volume level;rotate the button in
anticlockwise direction to
decrease volume level.
Press SEL/VOL button twice,display will show BAS
on,then rotate the button to adjust bass level up/down
in different direction.
Press SEL/VOL button third,
display will show TRE on,
then rotate the button to adjust treble level up/down
in different direction.
Press SEL/VOL button fourth,
display will show BAL on,
then rotate the button to adjust
left and right speakers level up
/down in different direction.
Press SEL/VOL button fifth,display will show FAD
on,then rotate the button to adjust front and rear
speakers level up/down in different direction.
PLAY/PAUSE SCAN N/P
RANDOM STOP
REPEAT
VOL
SEL
SELECT VOLUME
8
Press the button to repeat the same track continuously,
RPT will appear on the LCD display.
Press the button again to come back normal playing.
Press STOP button to stop music,and press button
to start playing from track one.
In video mode, press this button to exchange between the
PAL and NSTC.
Press this button to play all the track in random order. Press it
again to stop random playing. This button is invalid if the unit is
in PBC On mode.
If with DISC in unit,Press the [ ]to pause music.
Press the [ ]button again , come back DISC playing.
Press this button once for TRACK INTRODUCTION.
The first 10 seconds of each track on the disc will play. And the
track number shows on LCD.
To select a desired song, press [SCN]button while it is playing.
If a disc is loaded,a sector sign will show on the display.
9

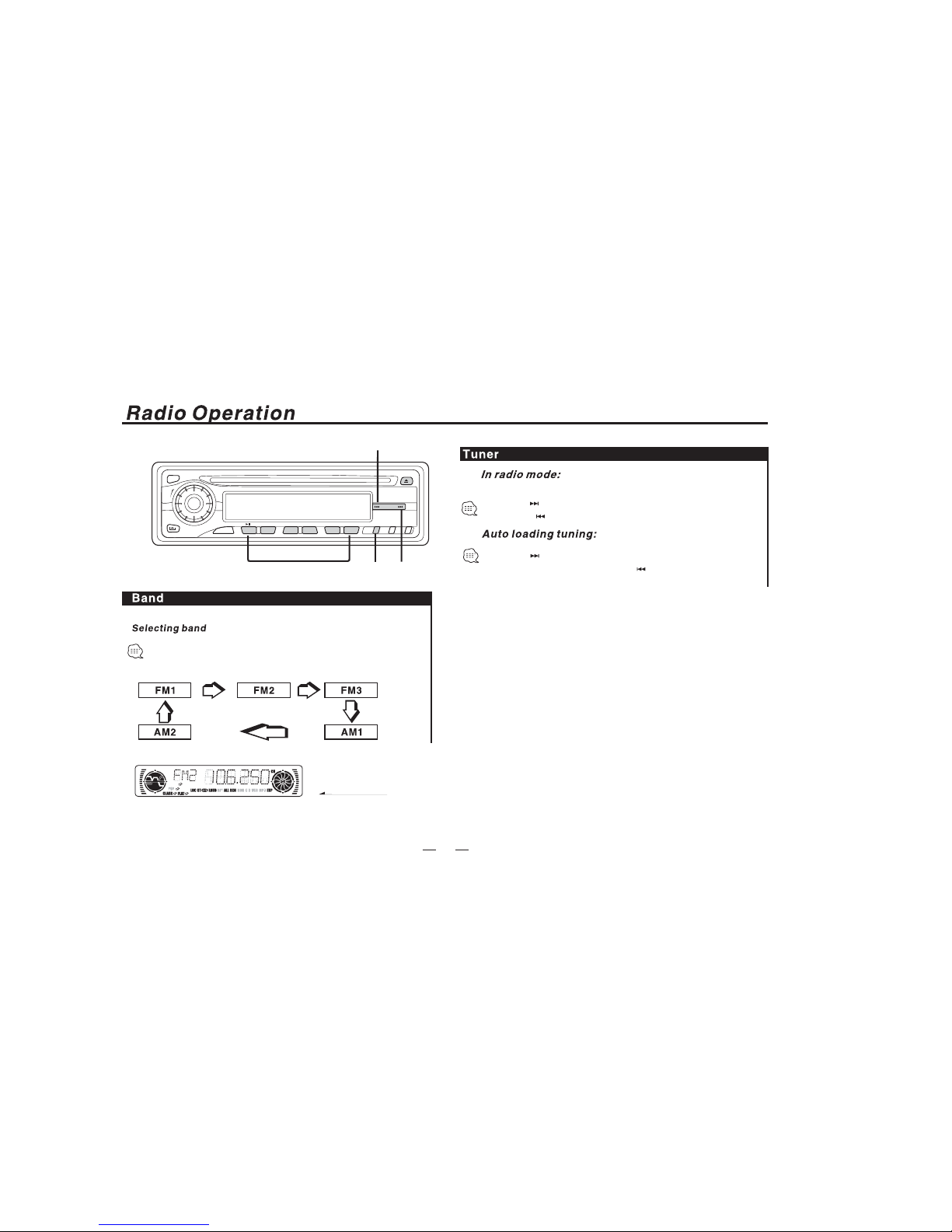

Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
long press button can automatically select higher
frequency station. And long press can automatically
select lower frequency station.
manual tuning:
short press button it can select higher frequency station.
Short press can select lower frequency station.
SEEK+BAND
PRESET MEMORY 1-6
LCD display
RCOK
VOL
PWR
SEL
1234 56
DSP
SEEK
SCN RPT RDM BAND CLOCK MODE
STOP N/P
SEEK-
