Pyle PBKSR40 Manuale utente
Desktop Wireless BT Bookshelf Speakers
HiFi Studio Monitor Computer Desk Stereo Speaker System,
Connections and Studio Quality Sound, (80Watt MAX)
PBKSR40
www.PyleUSA.com2
Please read all instructions before use for the best performance
of this product. Save these instructions for future reference.
Box Contents
LED Indicators and Button Introduction
Standby BT Optical
Line in Coaxial
Active Speaker
LED Indicators
Infrared receiver
RCAto RCA
audio cable
Stereo RCAto
3.5mm audio cable
Digital Optical cable Power Adapter
Bookshelf SpeakerRemote Control Quick Start
LINE
MOVIE MUSIC DIALOG
BT OPT
COAX
MUTE
VOL+
VOL-
INPUT
www.PyleUSA.com 3
Know Your Remote
01. Power switch
02. Input selection
Press in to navigate between audio
sources: BT -> Optical ->
Coaxial -> LINE IN
03. Sound effects
Press in to navigate between audio
sources: Music -> Dialogue -> Movie
04. Volume control
05. Treble control
06. Coaxial input port
07. Bass control
08. Power port
09. Line in input port
10. Optical input port
11. Left speaker audio output
12. Left speaker audio in
Passive Speaker
Product Name: Bookshelf Speaker
Model: PBKSR40
Input Voltage: DC 18-22V
Power Consumption: 80W
SPEAKER IN
12
Active Speaker
EQ
LINE IN
LR
OPT
COAX
SPEAKER OUT
DC IN
VOLUME
TREB
BASS
01 02 03
04
09
10
11
05
06
07
08
LINE
MOVIE MUSIC DIALOG
BT OPT
COAX
MUTE
VOL+
VOL-
INPUT
Power button
Volume up
Previous track
Play/pause
Optical mode
Line mode
Movie mode
Dialogue mode
Music mode
Coaxial mode
Input mode
Bluetooth mode
Next track
Volume down
Mute/Unmute
MUTE
VOL+ VOL-
BT
INPUT
OPT
LINE
MOVIE
DIALOG
MUSIC
COAX
www.PyleUSA.com4
Connection Diagram
Digital Optical cable (supplied)
aCoaxial cable (not supplied)
b
BT
cStereo RCAto 3.5mm audio cable (supplied)
d
RCAto RCA audio cable (supplied)
ePower Adapter (supplied)
f
BT Device
TV
Active Speaker Passive Speaker
EQ
LINE IN
LR
OPT
COAX
SPEAKER OUT
DC IN
TREB
BASS
Product Name: Bookshelf Speaker
Model: PBKSR40
Input Voltage: DC 18-22V
Power Consumption: 80W
SPEAKER IN
BT signal
up to 30 feet
e
d
a
c
b
f
www.PyleUSA.com 5
Connecting with a TV
Setting “PCM” on your TV
When all cables are connected properly, and LED indicator
lights properly, if there is no sound from tv or Soundbar, please
set your tv as below:
B
C
A
Method 2. Connecting using a RCA to 3.5mm cable.
Select RCA mode.
Method 1. Connecting using an Optical cable.
Select Optical mode and set the TV’s audio output to “PCM”.
(More information on PCM page)
Method 3. Connecting using an Coaxial cable.
Select Coaxial mode and set the TV’s audio output to “PCM”.
(More information on PCM page)
Active Speaker
TV
AOptical digital
cable (supplied)
BRCAto 3.5mm audio
cable (supplied)
CCoaxial cable
(not supplied)
www.PyleUSA.com6
1. Press "Menu" on the TV’s remote control.
2. Press the arrow keys on the remote to scroll to "Audio Settings."
3. Press "OK" on the remote control.
4. Scroll to "Advanced Audio" and press "OK". Some televisions
may not have an"Advanced Audio" menu and may list various
audio settings instead.
5. Scroll to "Audio Output Mode" or "Digital Audio Output Mode"
and press "OK".
6. Scroll until "PCM" is displayed as the current audio output.
7. Press "OK" to save the settings.

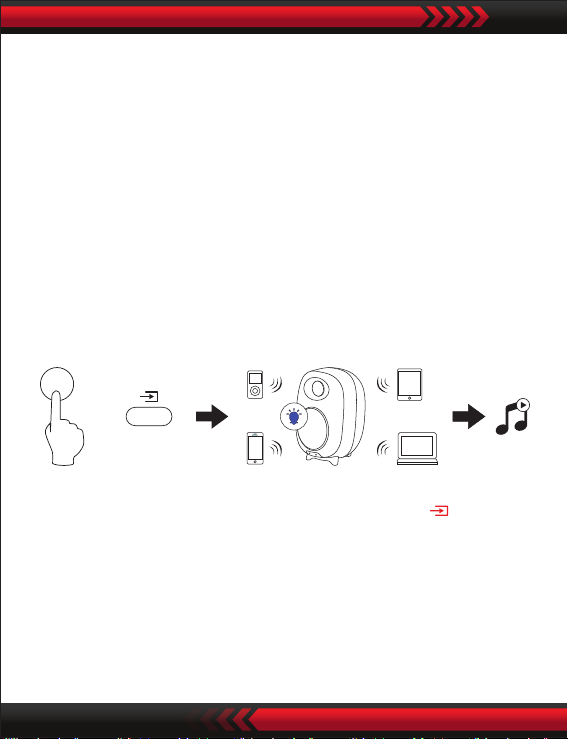

Connecting a Wireless BT Device
a. Press the “BT” button on the remote or press the “ ” button
on back panel of the active speaker, the LED indicator blinks blue.
b. Turn on Wireless BT on the BT device.
c. Select “PyleUSA” and connect it. When your BT device is
connected, the LED indicator blinks blue slowly.
d. Play music les from the device, connected via BT, through the
bookshelf speaker.
BT
or
BT signal
up to 30 feet
www.PyleUSA.com 7
Troubleshooting
No sound
• Check if the power indicator light is ON.
• Try to turn up the volume using either the master volume control
or remote control.
• Ensure the audio cables are rmly connected and the input is
set correctly on the speakers.
• Check if there is signal output from the audio source.
Cannot connect via Wireless BT
• Make sure the speaker is switched to BT input, in other audio
input mode BT can not be paired or connected. Disconnect from
any BT device by press and hold the volume dial in BT mode,
then try again.
• Eective BT transmission range is 10 meters, make sure operation
is within the range.
• Try another BT device for connection.
The PBKSR40 Bookshelf Speaker does not turn on
Check if mains power is connected or if the wall outlet is switched on.
Specications
Power output: L/R: 40W + 40W
Signal to noise ratio dB(A):L/R: ≥80dB (A)
Input sensitivity:LINE IN: R/L: 600±50mV
OPT: R/L: 500±50mFFS
Frequency response:40HZ-20KHZ
Bass unit: 4 inch (102mm)
Tweeter unit: 1 inch (25.4mm)
