FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY

INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE.

•

Adult assembly required. CAUTION: Keep small parts away from children during assembly.

• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller.

• AVOID SERIOUS INJURY from falling or sliding out. ALWAYS use seat belt. Check frequently to make sure it is

secure.

• ALWAYS keep fingers away from moving parts, when folding, unfolding or adjusting stroller to prevent

finger entrapment.

• ALWAYS make sure stroller is FULLY OPEN AND LOCKED before using.

• ALWAYS use the brakes when stroller is stopped.

• ALWAYS remove protective material and poly bags and dispose before assembly.

• NEVER put hot liquids in the cup holder.

• NEVER use stroller on stairs or escalators.

• NEVER rollerblade with stroller.

• NEVER allow children to play with or hang onto the stroller.

• NEVER allow children to climb into the stroller unassisted. Stroller may tip over and injure child.

• NEVER place or hang parcels, bags or accessories on the handle or canopy. The stroller may tip over or the

canopy may collapse.

• This product will become unstable if a parcel bag or rack is used when there is no provision for one.

• This product may become unstable if a parcel bag, other than the one recommended by the manufacturer is used.

• This product will become unstable if the manufacturer’s recommended load is exceeded.

• DO NOT carry additional children, goods or accessories in or on this product except as recommended in the

manufacturer’s instructions.

• NEVER place more than 5-LBS. (2.26-kg) in the storage basket. If weight is exceeded, hazardous unstable

conditions may exist.

• STROLLER is only for use with children up to 50-LBS. (22.7-kg), and WHEN SEATED, the midpoint of the

child’s head is at or below the top of the stroller seat.

• ONLY use this stroller with ONE child at a time.

• STROLLER is for use with children who can sit up unassisted, and is NOT recommended for newborns.

WARNING

TMTM

Parts List

Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use To Use

TM TM

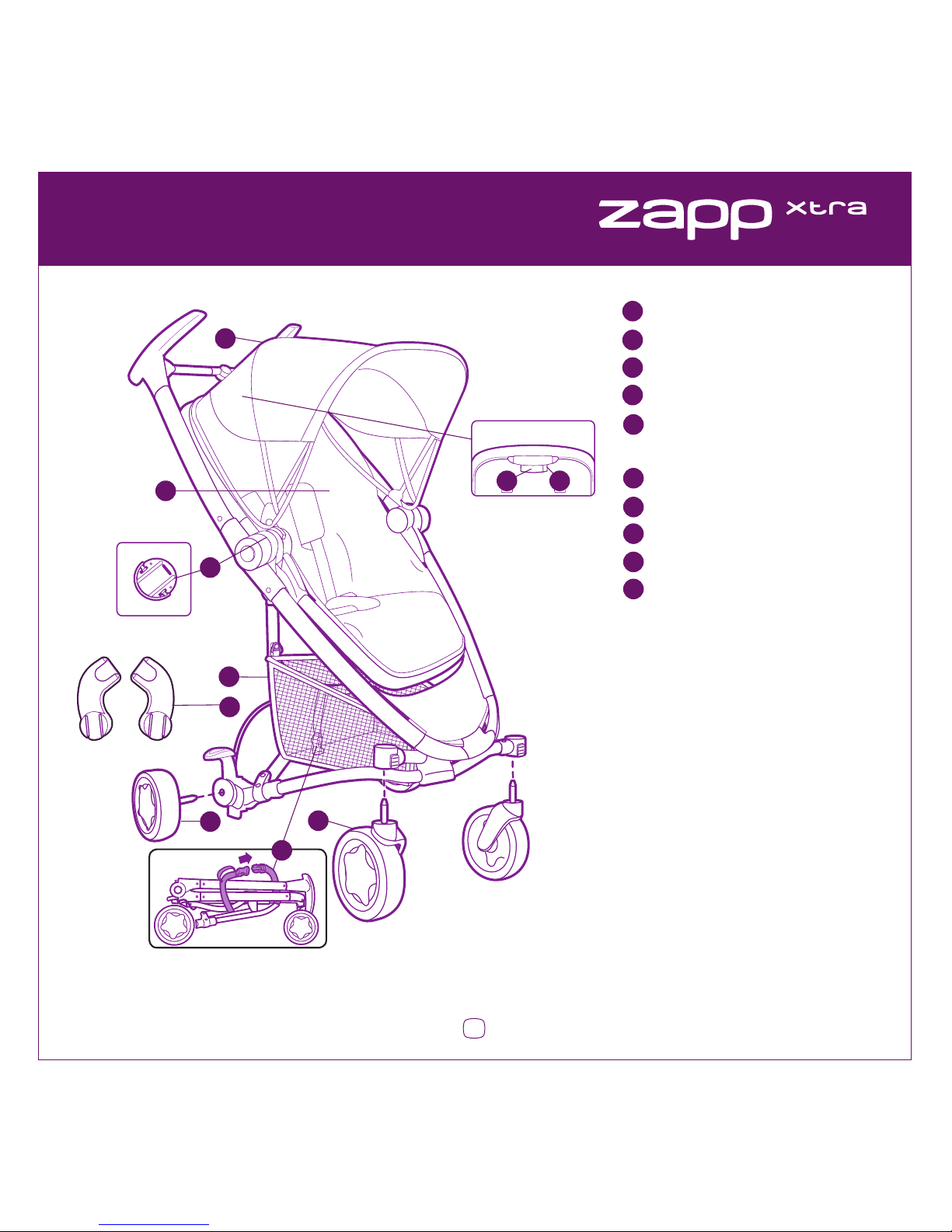

Canopy

Seat

Seat adapters, preassembled (2)

Storage basket, preassembled

Maxi-Cosi Mico

and Prezi

Infant Car Seat

Adapters* (2)

Rear wheels (2)

Front wheels (2)

Transport strap

Seat recline and fold button (on left)

Seat removal tab (on right)

* Maxi-Cosi Mico

and Prezi

Infant Car

Seats sold separately.

• Lay out and identify all parts.

• Do not return this product to the place

of purchase. If any parts are missing, call

Consumer Relations at (800) 951-4113.

Or visit our website at www.quinny.com.

• Include the model number and

manufacture date (found on the stroller

frame) and a brief description of the part.

• Keep these instructions for future use.

I J

Rear View

TMTM

Parts List Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use To Use

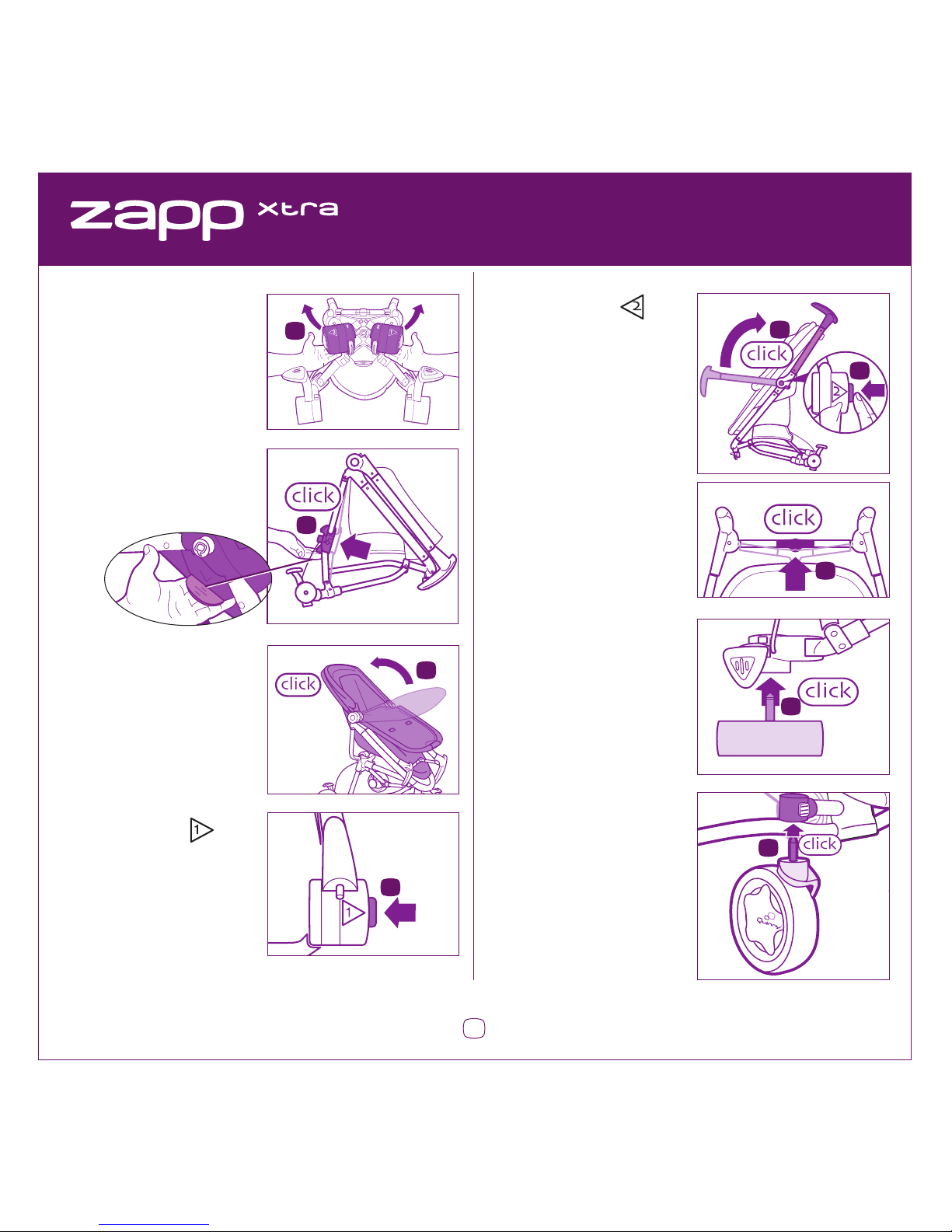

1 Unfold Stroller Frame

Unfasten transport strap

(see parts list image).

Gently lift on the sides of

the stroller (Figure 1).

Pull out on grey pedal until

you hear a “click” (Figure

1a).

3 Install Front Wheels

Position front wheel as

shown with Quinny logo

facing outward. Insert front

wheel until you hear “click”

(Figure 3). Repeat for other

front wheel. Pull to confirm it

is assembled securely.

2 Install Rear Wheels

Insert the rear wheel axle

into the frame until you hear

a “click” (Figure 2). Repeat

for other rear wheel. Pull

to confirm it is assembled

securely.

Extend the handle crossbar

into the horizontal position

until you hear a “click”

(Figure 1e).

Lift up on top of stroller seat

as shown until it clicks into

place (Figure 1b). Tip: While

lifting up seat top hold down

lower portion of seat

Push in on button

(Figure 1c).

Push in on button . Lift

up on the handles until they

click into place (Figure 1d).

Parts List Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use

TM TM

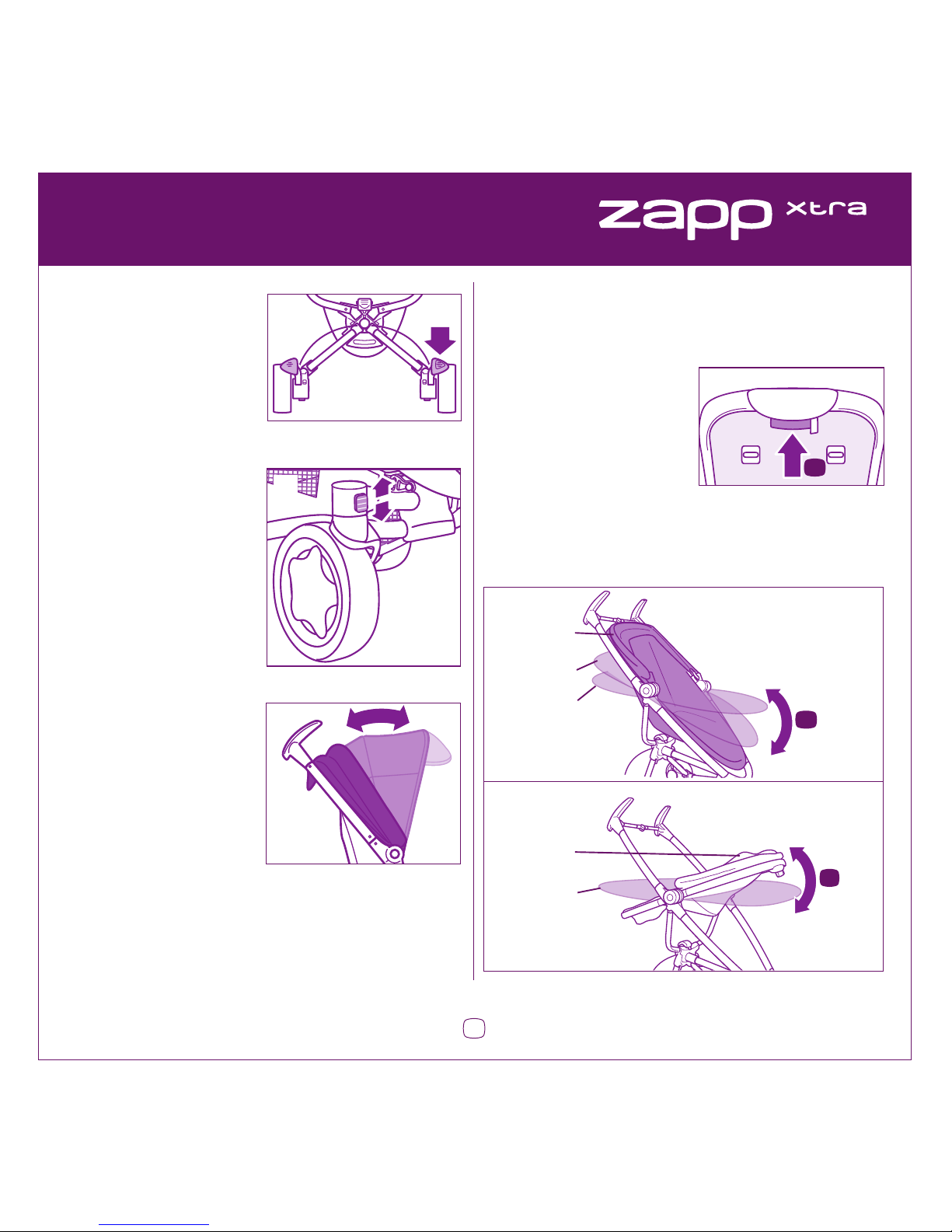

4 Parking Brake

Always use the parking brake,

even when standing still for

only a few moments! Push

down on the red pedal to set

the parking brake (Figure 4).

Push the opposite pedal to

release the parking brake.

6 Canopy

The canopy can be adjusted

to three different positions:

folded back, folded out and

extended (Figure 6).

NOTE: The canopy cannot

be removed from fabric

seat.

5 Swivel Wheel

TIP: Lock the swivel wheel

when using the stroller in

a straight direction for a

long period.

To lock, push the swivel

wheel lock downward and

turn the front wheel until

you hear a “click” (Figure 5).

To unlock, push the swivel

wheel lock upward.

7 Reclining Seat

Locate grey button behind

seat/canopy. Squeeze button

and recline seat to desired

position (Figure 7).

Facing forward: There are

three positions: upright,

semi-reclined and reclined

(Figure 7a).

Facing handlebar: There are

two positions: semi-reclined and

reclined (Figure 7b).

UPRIGHT

SEMI-

RECLINED

NOTES: The seat can be positioned facing forward or facing

handlebar. The seat is suitable for children from 6 months to

age 4 (maximum 50-LBS. / 22.73-kg).

SEMI-

RECLINED

TMTM

Parts List Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use To Use

Rotate release tab outward,

then squeeze recline button

in all the way (Figure 8).

While squeezing recline

button in and while tab

is rotated out, lift seat off

frame (Figure 8a).

Tip: Place free hand on side

of seat close to hub to easily

lift off seat frame.

Reverse direction of seat and

evenly place seat onto seat

adapters (Figure 8b).

9 Seat Adapters

NOTE: Seat adapters are

preassembled on frame and

must always be in place to

attach seat. Seat adapters

should only be removed

when using the infant car

seat adapters.

To remove adapters, swivel

grey tabs and slide adapters

off (Figures 9-9a).

To reattach seat adapters,

open stroller frame, lift up on

grey tab to expose slots, align

slots with frame, slide adapters

in and push down on grey

tabs

(

Figures 9-9a).

NOTES: Seat adapter labeled

fits into frame hub labeled

. Seat adapter labeled

fits into frame hub labeled

. Numbered adapters and

frame hubs match up only

when frame is in the open

and in-use position.

Grey

Tab

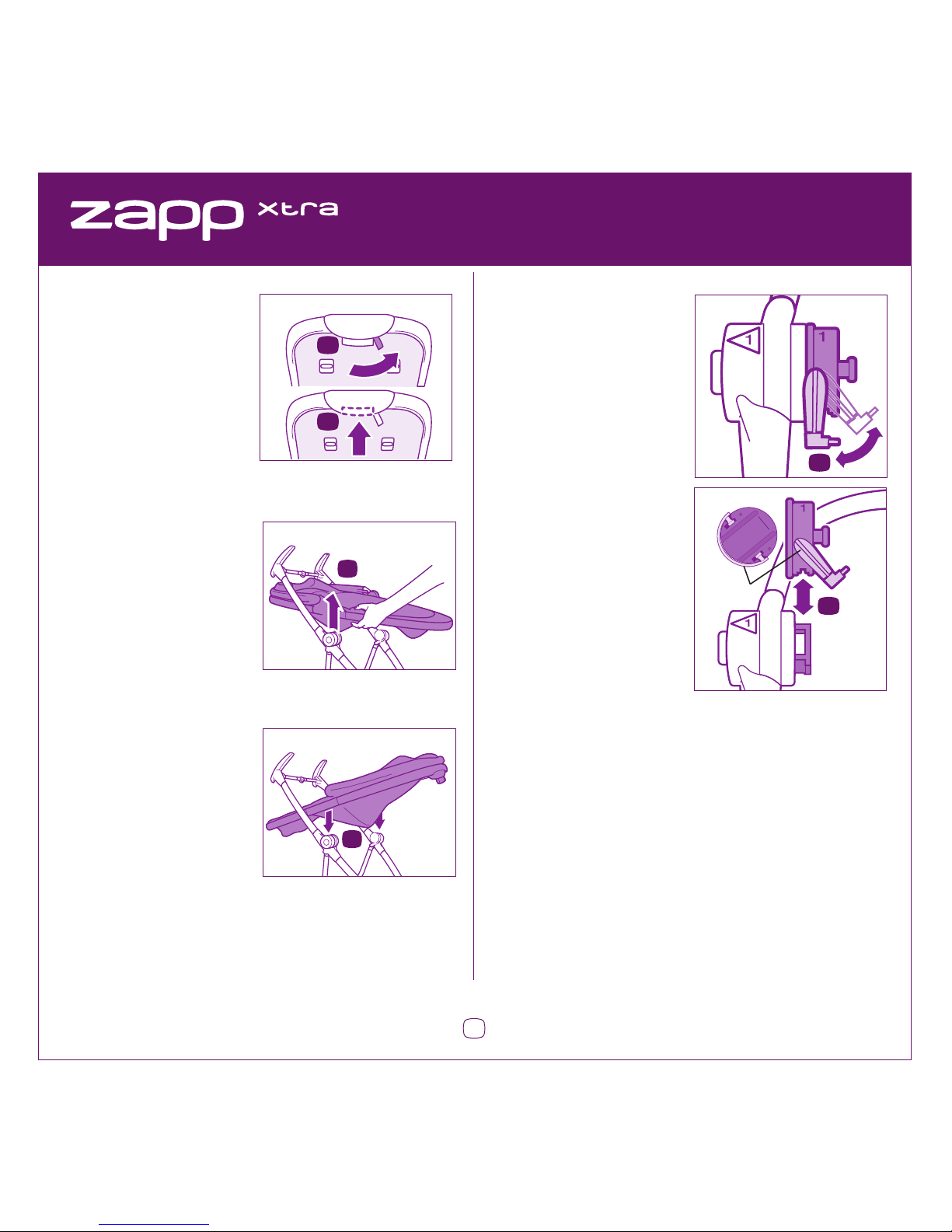

8 Removing or Reversing

Seat

It is necessary to remove

seat from frame when

preparing to use the car seat

adapters.

Locate grey tab behind seat

(Figure 8).

Parts List Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use

TM TM

• ALWAYS keep fingers away from moving parts,

when folding, unfolding or adjusting stroller to

prevent finger entrapment.

WARNING

Fold

pedal

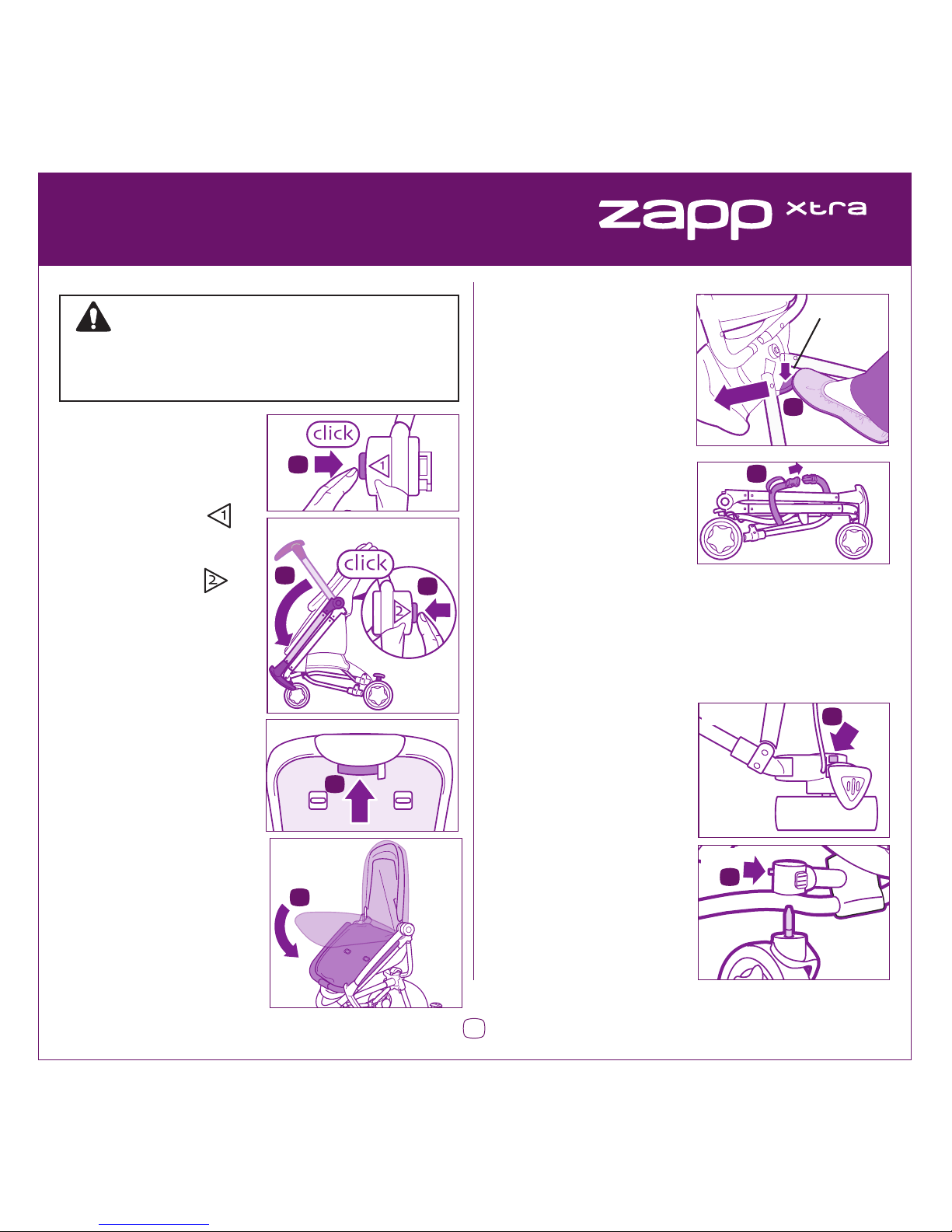

10 Fold Stroller

Apply parking brake. Place

seat forward facing and in

most upright position.

Fold seat forward by

squeezing in seat recline

button (Figure 10b) and

guiding top of stroller seat

toward front wheels (Figure

10c).

Locate grey pedal. Push

down with foot on pedal

and slide pedal towards

front wheels (Figure 10d).

Fasten transport straps around

top of frame (Figure 10e).

10d

10e

10c

10b 11

11a

11 Removing the Wheels

Press the release button and

pull the rear wheel out of

the frame (Figure 11).

Press the release button and

pull the front wheel off of

the frame (Figure 11a).

Push release button

(Figure 10).

Push release button

then fold handlebars forward

(Figure 10a).

10a

TMTM

Parts List Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use To Use

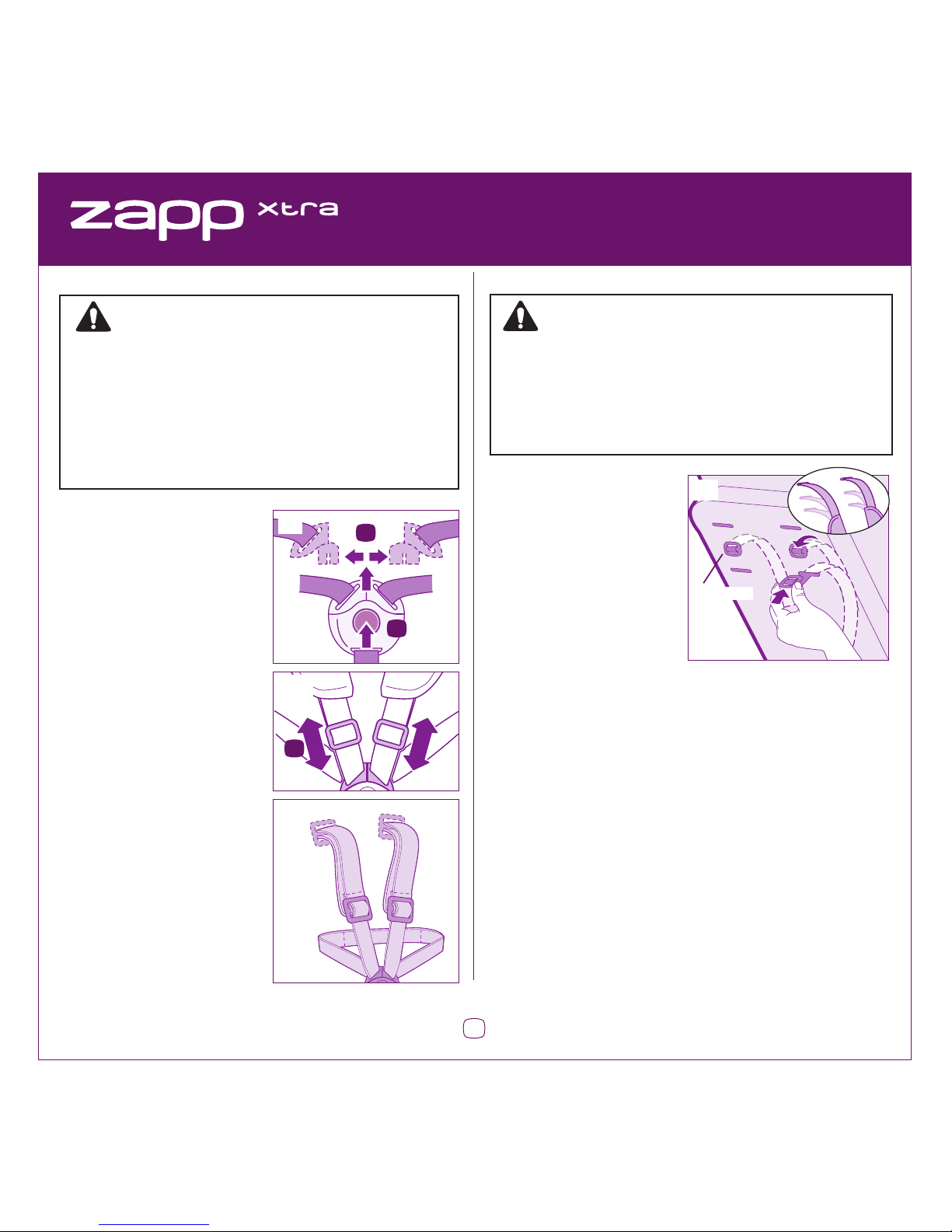

12 To Use Restraint System

Unbuckle restraint system by

pressing center button. Place

your child in the stroller, with

the crotch strap between the

child’s legs and arms through

shoulder harness straps. Fit

clips together. Slide clips into

buckle until you hear a “click”

(Figure 12).

Tighten straps snugly around

your child.

To tighten strap, slide buckles

down (Figure 12a).

To loosen strap, slide buckles

up (Figure 12a).

• NEVER LEAVE CHILD UNATTENDED.

• AVOID SERIOUS INJURY from falling or sliding

out. Always use seat belt. Check frequently to make

sure it is secure. Belts must be threaded exactly as

shown (Figure 12b).

• Failure to follow these instructions could result in the

serious injury or death of your child.

WARNING

• For proper installation of the restraint system,

make sure both anchors lay flat against the seat

back.

• NEVER use stroller without BOTH restraint and

crotch straps.

WARNING

13 Adjust Restraint Height

The shoulder straps have

three height positions for

your growing child. Push

each anchor through the

seat back and into the

desired slot (Figure 13).

Be sure the anchor lays flat

against the seat back.

Anchors

12a

12b

Parts List Warnings

Assembly

Care & Maintenance

Replaceable Parts

Warranty

To Use

Contents

To Use

TM TM

To avoid serious injury:

• Use ONLY with Maxi-Cosi Mico® and PreziTM Infant

Car Seats with the adapters provided with this

stroller.

• Please refer to the manufacturer’s instructions for

the use of your infant car seat.

• ALWAYS install car seat facing the stroller

handles.

• ALWAYS use the restraint system in the car seat.

WARNING

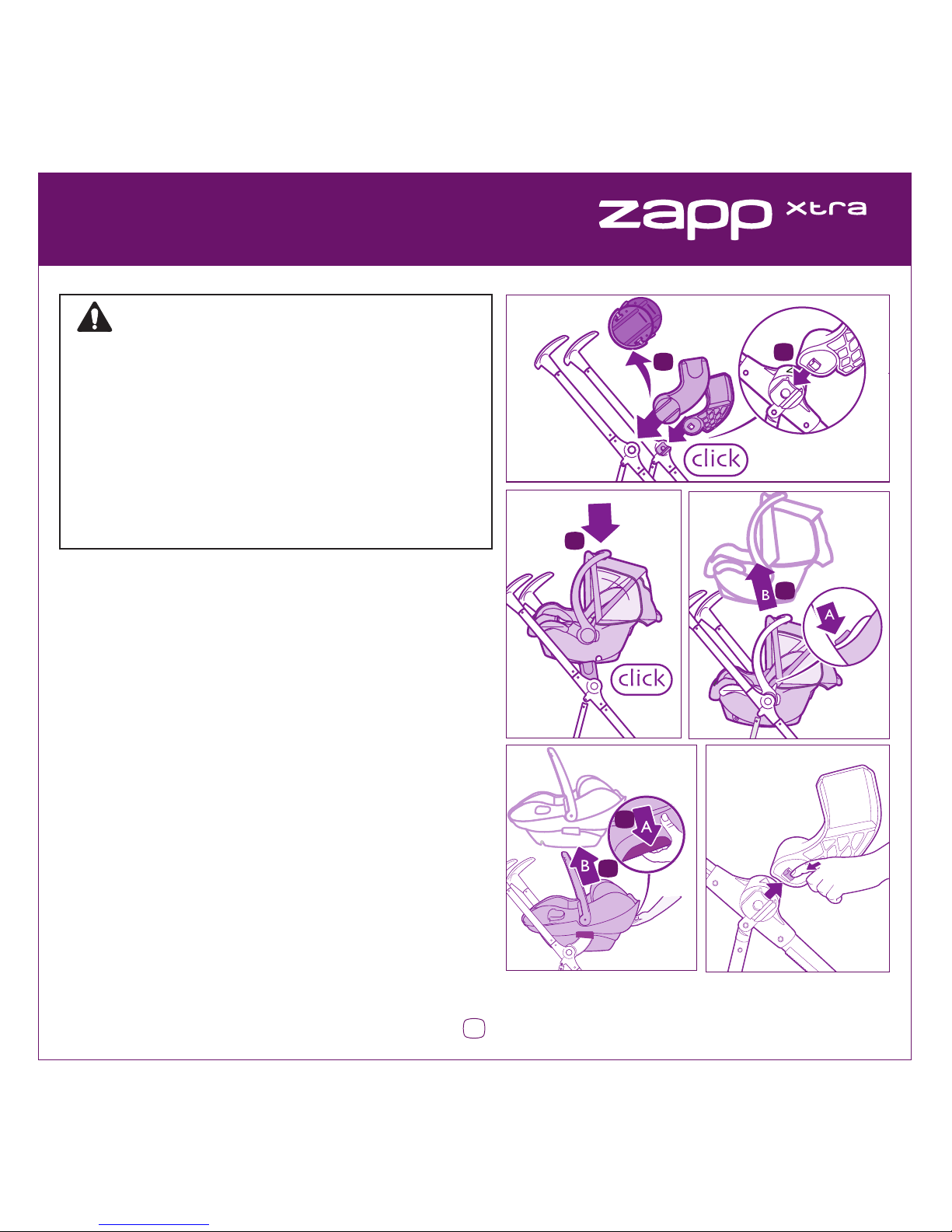

14 Install Infant Car Seat

Remove the seat and seat adapters (see steps 8 and 9). Push the

parking brake pedal down.

Insert left and right car seat adapters into frame hub until you hear a

“click” as shown (Figure 14).

Car seat must be positioned so child faces

the stroller handles.

Lower car seat into car seat adapters until both sides “click” (Figure 14a).

Lift up on handle to ensure it is securely in place.

To remove Mico, press and hold both buttons on car seat (Figure 14b). Lift

car seat up.

To remove PreziTM , pull release behind car seat and lift up (Figure 14c).

To remove car seat adapters, press gray button and slide adapter off hinge

points (Figure 14d).

14a 14b

14d14c

Indice

Lingue:

Altri manuali Quinny Passeggino

Quinny

Quinny Freestyle 3 XL Comfort Guida alla risoluzione dei problemi

Quinny

Quinny Moodd Guida alla risoluzione dei problemi

Quinny

Quinny yezz Guida alla risoluzione dei problemi

Quinny

Quinny XL Freestyle Plus Manuale utente

Quinny

Quinny yezz Guida alla risoluzione dei problemi

Quinny

Quinny ZAPP Guida alla risoluzione dei problemi

Quinny

Quinny SPPEDI Guida alla risoluzione dei problemi

Quinny

Quinny ZAPP Manuale utente

Quinny

Quinny Baby stroller Manuale utente

Quinny

Quinny BUZZ Guida alla risoluzione dei problemi

Quinny

Quinny Speedi Dreami DRU0466A13 Guida alla risoluzione dei problemi

Quinny

Quinny BUZZ Manuale utente

Quinny

Quinny moodd CV078 Manuale utente

Quinny

Quinny Buzz Xtra Guida alla risoluzione dei problemi

Quinny

Quinny SPEEDY SX Manuale utente

Quinny

Quinny BUZZ Manuale utente

Quinny

Quinny Buzz Stroller Manuale utente

Quinny

Quinny yezz Guida alla risoluzione dei problemi

Quinny

Quinny speedi Guida alla risoluzione dei problemi

Quinny

Quinny ZAPP Guida alla risoluzione dei problemi

Quinny

Quinny speedi Guida alla risoluzione dei problemi

Quinny

Quinny speedi Guida alla risoluzione dei problemi

Quinny

Quinny SENZZ CV061 Manuale utente

Quinny

Quinny yezz Guida alla risoluzione dei problemi

Manuali Passeggino popolari di altre marche

Hauck

Hauck Priya Trioset Manuale utente

CHILDHOME

CHILDHOME CWQDN Manuale utente

Dreamer Design

Dreamer Design Rebound GST Manuale utente

Britax

Britax STEELCRAFT AGILE Manuale utente

Graco

Graco 7427 Manuale utente

Comfort

Comfort COMPASS Manuale utente

OBaby

OBaby Aura Manuale utente

Tutek

Tutek Tirso Manuale utente

Babify

Babify Dual Plus Manuale utente

Graco

Graco Stroller Manuale utente

Special Tomato

Special Tomato Jogger Manuale utente

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuale utente

Otto Bock

Otto Bock Kimba neo Manuale utente

Milly Mally

Milly Mally ROYAL Guida rapida

Hauck

Hauck DUETT 3 PRAM Manuale utente

BOB

BOB DUALLIE Manuale utente

Nuna

Nuna Pepp Manuale utente

Britax

Britax B2 Manuale utente

Quinny zapp xtra Cv217 Manuale utente

Manuali Passeggino popolari di altre marche
