RECO SensorLine RM-DPC Micro FP Manuale utente

Operating and installation instructions

Differential pressure monitor

RM-DPC Micro FP

SensorLine

RM-DPC Micro FP Documentation

RDN 10000531 2 13.05.2013

Table of contents

1 Safety instructions...................................................................................................................................3

2 Equipment specification ..........................................................................................................................3

3 Assembly................................................................................................................................................. 4

4 Step-by-step installation ..........................................................................................................................4

5 Step-by-step settings...............................................................................................................................6

5.1 Function in delivery status ............................................................................................................6

5.2 Display and setting elements........................................................................................................6

5.3 Setting parameters .......................................................................................................................8

5.4 Parameter list ...............................................................................................................................9

6 Details on device function .....................................................................................................................10

6.1 Two-position controller (Parameters 01, 02, 03, 04, 05)............................................................. 10

6.2 Differential pressure monitor (Parameters 01, 04, 05)................................................................ 11

6.3 Timer function (Parameters 06, 07, 08)......................................................................................12

6.4 Self-monitoring ...........................................................................................................................12

7 Troubleshooting ....................................................................................................................................12

8 Text messages on the display............................................................................................................... 13

8.1 Operating messages...................................................................................................................13

8.2 Additional information .................................................................................................................13

8.3 Alarm messages.........................................................................................................................13

9 Glossary ................................................................................................................................................14

10 Technical specifications ......................................................................................................................15

Regulations

VDE 0160 EN 60.439 Part 500

EN 50178 2006/95 EC

Legend

Important note

Important warning

RM-DPC Micro FP Documentation

RDN 10000531 3 13.05.2013

1 Safety instructions

When connected to the mains, the RM-DPC Micro FP differential pressure monitor is live and poses an

electrical hazard. Device failure, serious or even fatal injuries may occur as a result of improper installa-

tion of the connected equipment. In addition to the general safety regulations for equipment in industrial

electrical installations therefore, pay particular attention to the following points:

- The device may only be installed by qualified experts, in accordance with the provisions of

IEC 364, DIN VDE 0105 for electrical equipment.

- All applicable laws, conditions, rules and regulations governing the setting up of electrical equipment

must be observed in respect of the installation site.

- Equipment with protection rating IP00 without covers may only be configured by authorised expert

staff when disconnected and whilst observing the local safety and accident prevention regulations.

The RM-DPC Micro FP may only be operated in the permitted operating area.

Switch off the mains supply before replacing the differential pressure monitor or any compo-

nents connected to it. Otherwise the equipment may be damaged.

2 Equipment specification

The devices in the SensorLine RM-DPC Micro FP series are differential pressure controllers designed for

use in robust, industrial environments. They are used for measuring, visualising and controlling non-

aggressive, gaseous media in the excess pressure and insufficient pressure ranges.

All necessary functions can be configured and displayed simply using a text display with two-key menu

control. In operating mode, the text display shows the differential pressure in variable physical sizes. The

status messages ON / SERVICE / ALARM are also indicated by LEDs.

In addition to the controller functions for differential pressure, the software can also be used to allocate a

two-position controller (∆pcontroller), a differential pressure monitor and a time function. The full scale

output for the measured differential pressure can be set by the parameter 12 "dP range". The anlog out-

put signal is automatically adjusted to the set full scale output.

RM-DPC Micro FP Documentation

RDN 10000531 4 13.05.2013

3 Assembly

4 Step-by-step installation



Connecting the supply voltage

RM-DPC Micro FP Documentation

RDN 10000531 5 13.05.2013



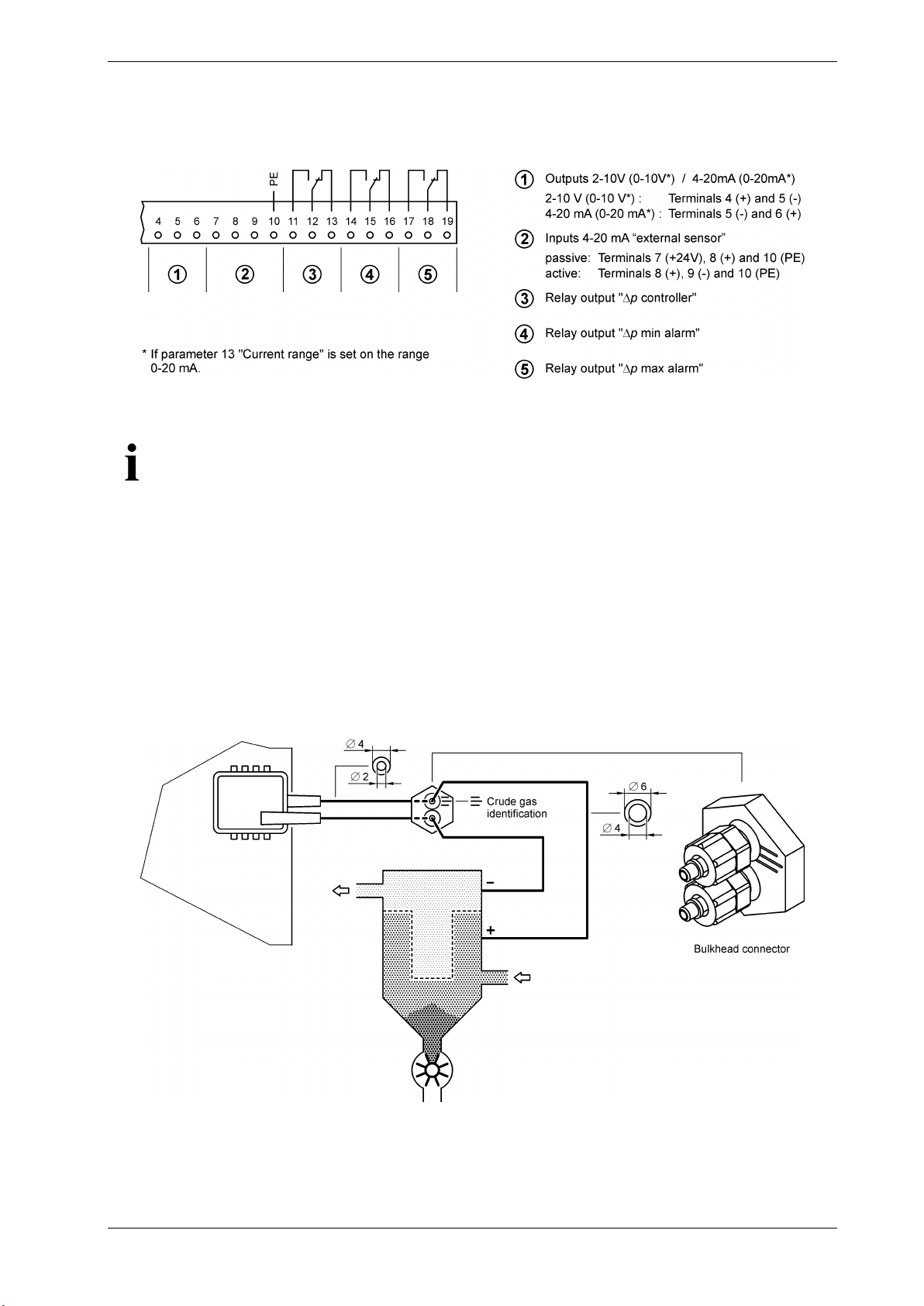

More connections

Signal cables may not be run parallel to power cables.

Tighten all cable glands in use to ensure that the cables are properly enclosed and that protec-

tion rating IP-66 is guaranteed.

Cable glands that are not in use must be closed or replaced with blank plugs.



Connection for differential pressure measurement lines

RM-DPC Micro FP Documentation

RDN 10000531 6 13.05.2013

5 Step-by-step settings

5.1 Function in delivery status

The functions of a differential pressure dependent two-position controller and a differential pressure mon-

itor are active on delivery.

Two-position controller: If the increasing differential pressure exceeds the ∆pmax switch point (factory

setting: 900 Pa), relay contact 12, 13 closes and contact 11, 12 opens (see point on page 5). If the

decreasing differential pressure falls below the ∆pmin switch point (factory setting: 700 Pa), relay contact

12, 13 opens and contact 11, 12 closes.

Differential pressure monitoring: If the increasing differential pressure exceeds the ∆pmax alarm

switch point (factory setting: 1800 Pa), relay contact 18, 19 closes and contact 17, 18 opens (see point 

on page 5). If the differential pressure falls below the ∆pmax alarm switch point, relay contact 18, 19

opens and contact 17, 18 closes.

If another function is required or you want to activate additional functions, then you must change the pa-

rameter settings of the RM-DPC Micro FP. For more on this refer to points +"Configuration keys" on

page 7 and section 5.3 "Setting parameters".

5.2 Display and setting elements

"Alarm" LED

This LED flashes if one of the following alarms is triggered:

∆pmin alarm

Differential pressure has fallen below the set ∆pmin alarm switch point (in the case of the ∆p

control device function) or has exceeded it (in the case of the ∆pmonitor device function).

∆pmax alarm (the set ∆pmax alarm switch point has been exceeded)

RM-DPC Micro FP Documentation

RDN 10000531 7 13.05.2013

"Service" LED

This LED flashes if the set number of service hours has elapsed. This LED goes out when the

service hours counter is reset to 0 hrs. In order to do this, Parameter 10 "Maintenance

acknowledge ?" must be configured to "Yes".

"ON" LED

The "ON" LED is lit if supply voltage is present.

Configuration keys

Selecting a parameter:

Press and hold for more than 3 seconds. Then press

briefly to scroll up, or

to scroll down,

until you see the required parameter in the display.

Setting the parameter value:

Once you have selected a parameter, press

and hold for more than 3 seconds. Then press

briefly to scroll up, or

to scroll down,

until you see the required parameter in the display. Then press

and hold for more than 3 seconds to save the configured value.

Then, if necessary, press

briefly to scroll up, or

to scroll down,

and select additional parameters to configure or check.

Returning to "Operation" mode:

Press briefly.

The program automatically returns to "Operation" mode if no button is pressed in over

one minute.

Cancelling the parameter setting:

Press briefly. Then press

again briefly to return to "Operation" mode.

RM-DPC Micro FP Documentation

RDN 10000531 8 13.05.2013

5.3 Setting parameters

For more on this refer to points +"Configuration keys" on page 7

RM-DPC Micro FP Documentation

RDN 10000531 9 13.05.2013

5.4 Parameter list

Parameter

Text on the display Explanation Factory setting

Setting range

01 01 Contr. type Device function dP-control.

dP-control,

dP-monitor

02 02 dP min ∆pmin switch point 700 Pa

150 Pa ...

(dP max - 50 Pa)

03 03 dP max ∆pmax switch point 900 Pa

200 Pa ...

(dP max alarm - 50 Pa)

04 04 dP min alarm ∆pmin alarm switch point 03

03, 100 Pa ...

(dP max alarm - 50 Pa)

05 05 dP max alarm ∆pmax alarm switch point 1800 Pa

03, 500 ... dP range4

06 06 Timer start Timer for relay output503

03... 240 h

07 07 Timer unit Time unit of the timer min

s, min

08 08 Timer period

Time period of the timer 10 s

03... 500 (s / min)6

09 09 Service hrs. Service hours alarm703

03, 500 hrs .... 25,000 hrs

10 Maintenance

acknowledge ?

Resets the service hours coun-

ter

No, yes

11 11 dP source Internal / External sensor Internal

Internal, external

12 12 dP range Full scale output

5000 Pa8

or 10000 Pa

1000 Pa ... 5000 Pa8

or 1000 Pa ... 10000 Pa

13 13 Current range 4-20 mA / 0-20 mA 4-20 mA

4-20 mA, 0-20 mA

14 14 dP attenuat. Alarm / Control delay 2 s

1 s ... 30 s

15 15 dP unit

Unit of the displayed

differential pressure

Pa, mbar, hPa,

inch H2O

16 16 Default set. Loads factory setting No

No, yes

17 17 Language Display text language DE

DE, EN, FR, ES

1Maximum value of the setting range = configured ∆p max switch point (see Parameter 03 "dP max") minus 50 Pa.

2Maximum value of the setting range = configured ∆p max switch point (see Parameter 05 "dP max alarm") minus 50 Pa.

30 = Function deactivated.

4Configured measuring range of the sensor (see Parameter 12 "dP range")

5See point on page 5

6Depends on the setting of Parameter 07 "Timer unit".

7The service hours counter runs when the differential pressure ∆pis greater than 200 Pa and the parameter 09 "Service hrs." has

not been configured to 0.

8Applies to the RM-DPC 5000 Micro FP – the full scale output can be configured in 500 Pa increments.

9Applies to the RM-DPC 10000 Micro FP – the full scale output is configurable in 500 Pa increments for the range

1000 Pa ... 5000 Pa, and continuously configurable for the range 5000 Pa ... 10000 Pa.
