Reliable I30 Manuale utente

i30 & i60

Professional Steam Iron

Instruction Manual

USER INSTRUCTIONS i30 & I60

Thank you for purchasing the Reliable™i30 & i60 series iron system. Please

follow the instructions carefully. With proper care and maintenance, your

steamer will provide years of dependable service.

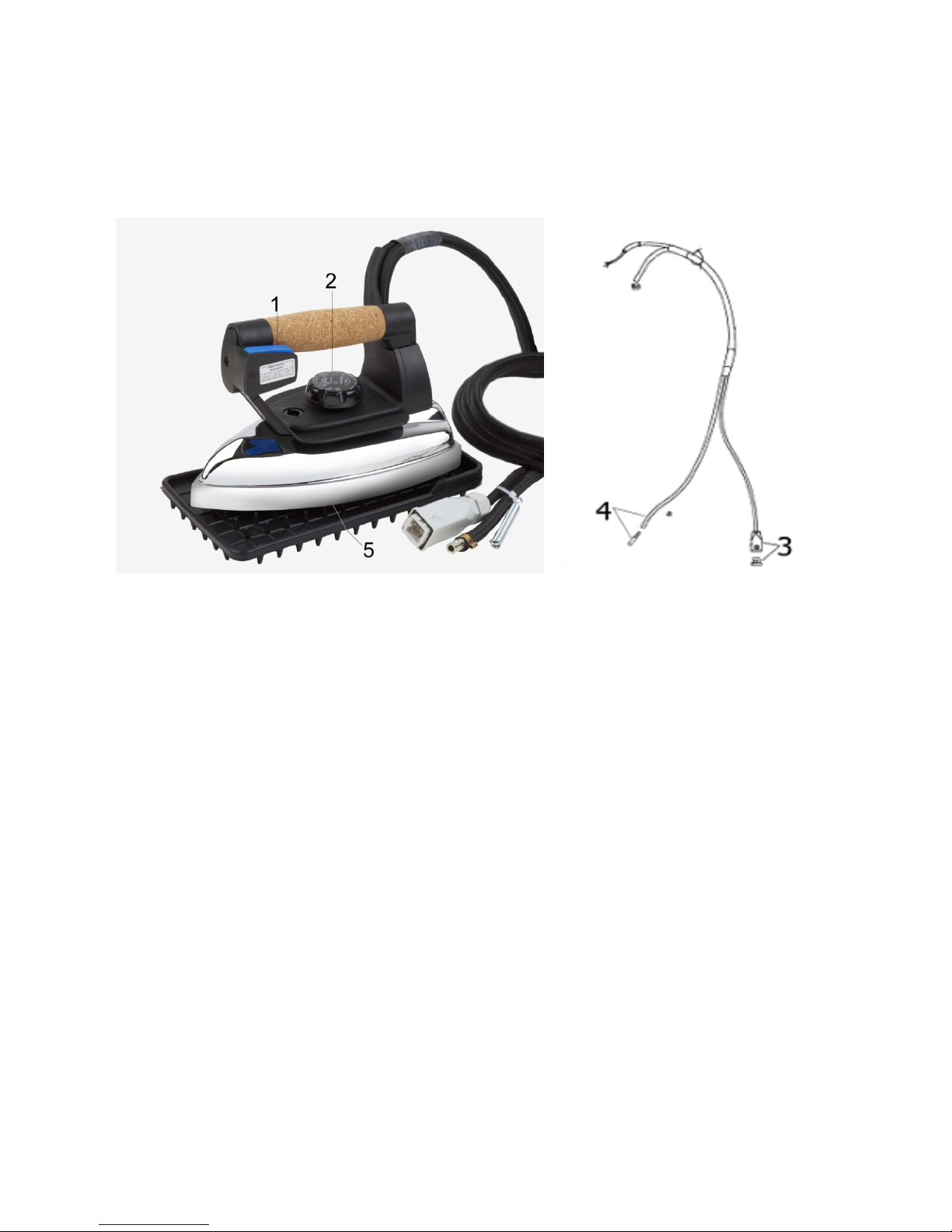

COMPONENTS:

1. Steam button

2. Temperature regulation knob

3. Male electrical plug

4. Quick release of steam hose

5. Iron plate

USER INSTRUCTIONS i30 & i60

1. Remove the steam iron from its packing and make sure all packing parts

have been taken off (including the protective bags). Lay the steam iron

on the supplied pad on the ironing table in steady position.

2. Connect the male plug (3) to the female plug of the steam generator (ref.

nr. 7 - see instruction booklet i700-i702) and the quick release of the

steam hose (4) to the “L” connector (ref. Nr 8 - see instruction booklet

i700-i702).

3. Push the steam switch (ref. Nr. 2 - see instruction booklet i700-i702).

4. Set the temperature regulation knob (2) to “cotton ooo”.

5. Wait for the iron plate to get hot (it takes about 5 minutes).

6. The steam iron is now ready for use.

7. Push the steam button (1) to release steam.

8. Please wait for the steam iron to cool down before storing it away.

CAUTION

-Do not leave the iron on while unattended.

-The iron plate is hot. Please do not touch it during use, or for 15 minutes

afterwards.

TECHNICAL DATA:

Adjustable thermostat: set at 60°C-215°C

Aluminium heater: set at 275°

Safety bimetallic thermostat with manual reset: 800w – 120V-220V

TROUBLESHOOTING:

PROBLEM

EXPLANATION

SOLUTION

Does the

steam iron

leak steam

mixed with

water?

1) While filling the tank you

may have poured too much

water into the tank.

2) The iron plate has to be hot

enough to produce dry steam.

1) The problem will go on until the

excess water is emptied. Keep the

steam button depressed until the

water in the tank is at the correct

level.

2) Please check that the temperature

knob is on the right position: “cotton

°°°”

There is

no steam

coming out

of the

iron?

1) The steam knob (where

supplied) might be closed.

2) The iron switch might be off.

3) The boiler switch might be

off.

4) The water might be used up.

1) Open the steam knob

anticlockwise.

2) After the iron switch comes on,

wait for 4 minutes so that the iron

plate gets hot.

3) After the boiler switch comes on,

wait for 10-20 minutes so the boiler

produces steam.

4) Fill it following the instructions

carefully.

Does the

steam leak

dirty

water?

Some dirty water might have

gone into the boiler with the

water and it is given off from

the iron.

Fill the empty tank with water

(i300/i500), screw the cap tight,

shake it, unscrew the cap and empty

the tank. Repeat the action until the

water is cleaned. We do not

recommend the use of any additive to

pour in the tank. Before ironing again

spray some steam on a cloth until

clean steam comes out.

How to

clean the

boilers

i700-i702

Clean the boiler frequently by opening

the exhaust valve but only when the

boiler has been disconnected from the

electrical outlet – let pressure go down

first.

How to

clean the

boiler

i300-i500

The use of normal tap water is

recommended. In order to clean the

boiler and remove limestone, rinse it

internally (every 15-20 litres of water

used or every month) with tap water.

I30/120V SPARE PARTS LIS

ITEM CODE

VARIANT

ITEM DESCRIPTION

Q.TY

AST114

BLOCKAGE FOR IRONING BOARD ELEMENT

CD348/1

SCREW FOR BULB THERMOSTAT

CD356

MONO-HOSE MT 2,2 5X10

CD356/3

THERMORESCTRICT. CLIP FOR MONOHOSE

MT.1

CD363

PAD

CD368/1

SPRING TO HOLD THE HOSE UP

CD368/2

CLIP FOR SPRING

CD378

HOSE CLAMP 10/12 ONE EAR

CD378/1

HOSE CLAMP 9/11 TWO EARS

CD490

ANGLE CONNECTION

FS200/120

IRON PLATE 120V

FS003

ADJUSTABLE THERMOSTAT

FS004

THERMOSTAT 271 WITH MANUAL RESET

FS005

CORK HANDLE

FS006

BRACKET

FS007

CAP

FS009

WIRING

FS011

INSERT FOR HANDLE

FS012

SCREW M4x22 FOR THERMOSTAT FIXING

FS014

SCREW FOR BACKHANDLE

FS015

SCREW FOR MICRO CLOSING

FS016

SCREW FOR MICRO-CASE

FS017

SCREW FOR HANDLE FIXING M5x10

FS018

SCREW FOR TERMINAL BLOCK FIXING

FS019

HANDLE COVER

FS020

BACKHANDLE

FS021

BUTTON-CASE

FS022

BUTTON-CASE COVER

FS023

UPPER BUTTON

FS024

LOWER BUTTON

FS025

PLATE FOR BRACKET COVER

FS026

CORD BLOCKAGE

FS027

FRONT HANDLE HOLDER

FS028

BACK HANDLE HOLDER

FS030

SCREW CAP

FS031

BRASS WASHER-SPACER

FS032

BRASS MALE FEMALE SPACER

FS033

MICRON

FS035

SCREW FOR HANDLE

FS036

VAR. 120V

BLACK BACHELITE PRINTED KNOB

FS038

LOWER HANDLE WASHER FOR SCREW

FS039

LOWER HANDLE WASHER FOR KNOB

FS041

FAIRLEAD FOR CABLE

GV026/9

QUICK RELEASE

GV028/38

MALE PLUG

GV028/39

REMOVABLE COVER

GV028/40

CABLE PRESS FOR MALE SOCKET

RIC003

4 POLE TERMINAL BOARD

i30/120V PARTS DRAWING

i30/220V PARTS LIST

ITEM

ITEM DESCRIPTION

Q.TY

AST114

BLOCKAGE FOR IRONING BOARD HEATING ELEMENT

CD348/1

SCREW FOR BULB THERMOSTAT

CD356

MONO-HOSE MT 2,2 5X10

CD356/3

THERMORESCTRICTING CLIP FOR MONO-HOSE

MT.1

CD363

PAD

CD368/1

SPRING TO HOLD THE HOSE UP

CD368/2

CLIP FOR SPRING

CD378

HOSE CLAMP 10/12 ONE EAR

CD378/1

HOSE CLAMP 9/11 TWO EARS

CD490

ANGLE CONNECTION

FS200

IRON PLATE 220V

FS003

ADJUSTABLE THERMOSTAT

FS004

THERMOSTAT 271 WITH MANUAL RESET

FS005

CORK HANDLE

FS006

BRACKET

FS007

CAP

FS009

WIRING

FS011

INSERT FOR HANDLE

FS012

SCREW M4x22 FOR THERMOSTAT FIXING

FS014

SCREW FOR BACKHANDLE

FS015

SCREW FOR MICRO CLOSING

FS016

SCREW FOR MICRO-CASE

FS017

SCREW FOR HANDLE FIXING M5x10

FS018

SCREW FOR TERMINAL BLOCK FIXING

FS019

HANDLE COVER

FS020

BACKHANDLE

FS021

BUTTON-CASE

FS022

BUTTON-CASE COVER

FS023

UPPER BUTTON

FS024

LOWER BUTTON

FS025

PLATE FOR BRACKET COVER

FS026

CORD BLOCKAGE

FS027

FRONT HANDLE HOLDER

FS028

BACK HANDLE HOLDER

FS030

SCREW CAP

FS031

BRASS WASHER-SPACER

FS032

BRASS MALE FEMALE SPACER

FS033

MICRON

FS035

SCREW FOR HANDLE

FS036

BLACK BACHELITE SILKSCREEN PRINTED KNOB

FS038

LOWER HANDLE WASHER FOR SCREW

FS039

LOWER HANDLE WASHER FOR KNOB

FS041

FAIRLEAD FOR CABLE

GV026/9

QUICK RELEASE

GV028/38

MALE PLUG

GV028/39

REMOVABLE COVER

GV028/40

CAVBLE PRESS FOR MALE SOCKET

RIC003

4 POLE TERMINAL BOARD
