Ricoh Aficio SG 3110DN Manuale utente
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.
CAUTION
Ricoh SG 3110DN
INSTALLATION GUIDE
PowerDriver-v4
v20140117
Windows 7 & 8
Note: If you experience any communication errors, a powered USB Hub may be required.
During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic
Maintenance Utilities to keep the print head nozzles clear. The Ricoh GELJET has been engineered to perform
automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte-
nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects. As a result,
head cleanings may be unable to restore the print head to optimal operation.
CAUTION
SECTIONS:
There are two steps required to complete the installation
and conguration process for the SubliJet-R PowerDriver
V4 to work with the Ricoh SG3110DN printer. Complete
both as described below for optimum results.
* Step 1 is included in this document. Step 2 is located on the Sublijet-R SG3110DN PowerDriver V4
Installation and Conguration webpage on sawgrasseurope.com.
Steps:
1) Download, install and register the SubliJet-R PowerDriver V4
2) Congure your graphics design software* (i.e. CorelDRAW, PhotoShop, Illustrator,
Page 1
*
Notes:
a) PowerDriver V4 is only compatible with Windows versions 7 and 8.
b) The Ricoh OEM printer driver is now automatically installed.
Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation
PAGE 3 of 16 >>
The following instructions will demonstrate how to download, install, and register SubliJet-R SG
3110DN PowerDriver-v4 on computers running Windows OS. The installation process will automatically
download and install the Ricoh OEM driver.
1.) Download the PowerDriver-v4 by accessing the Sawgrass Europe website by entering
www.sawgrasseurope.com in the address eld of your web browser.
2
3
1
4
2.) Navigate to: Technical Support > SubliJet-R Technical Support > PowerDriver-R and click on the
Ricoh SG 3110DN PowerDriver download link and save the le to your desktop: (see FIGURE 2).
FIGURE 2
FIGURE 1
PAGE 4 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation
3.) The following window will appear asking to Run the installation or Save the le to your computer. Click
Run to continue (see FIGURE 3).
FIGURE 3
SG3110DN_PD-v4.exe
4.) Select the appropriate language and click OK to continue (see FIGURE 4).
FIGURE 4
1
2
PAGE 5 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation
5.) Ensure that you are installing the correct driver and click Next (see FIGURE 5).
FIGURE 5
6.) If you agree with the terms of the License Agreement, click I Agree (see FIGURE 6).
FIGURE 6
PAGE 6 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation
7.) Click Install to continue (see FIGURE 7).
FIGURE 7
8.) The Ricoh OEM printer driver will be downloaded, you will see the following status screen whilst it is
downloading (see FIGURE 8).
FIGURE 8
PAGE 7 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation
FIGURE 9

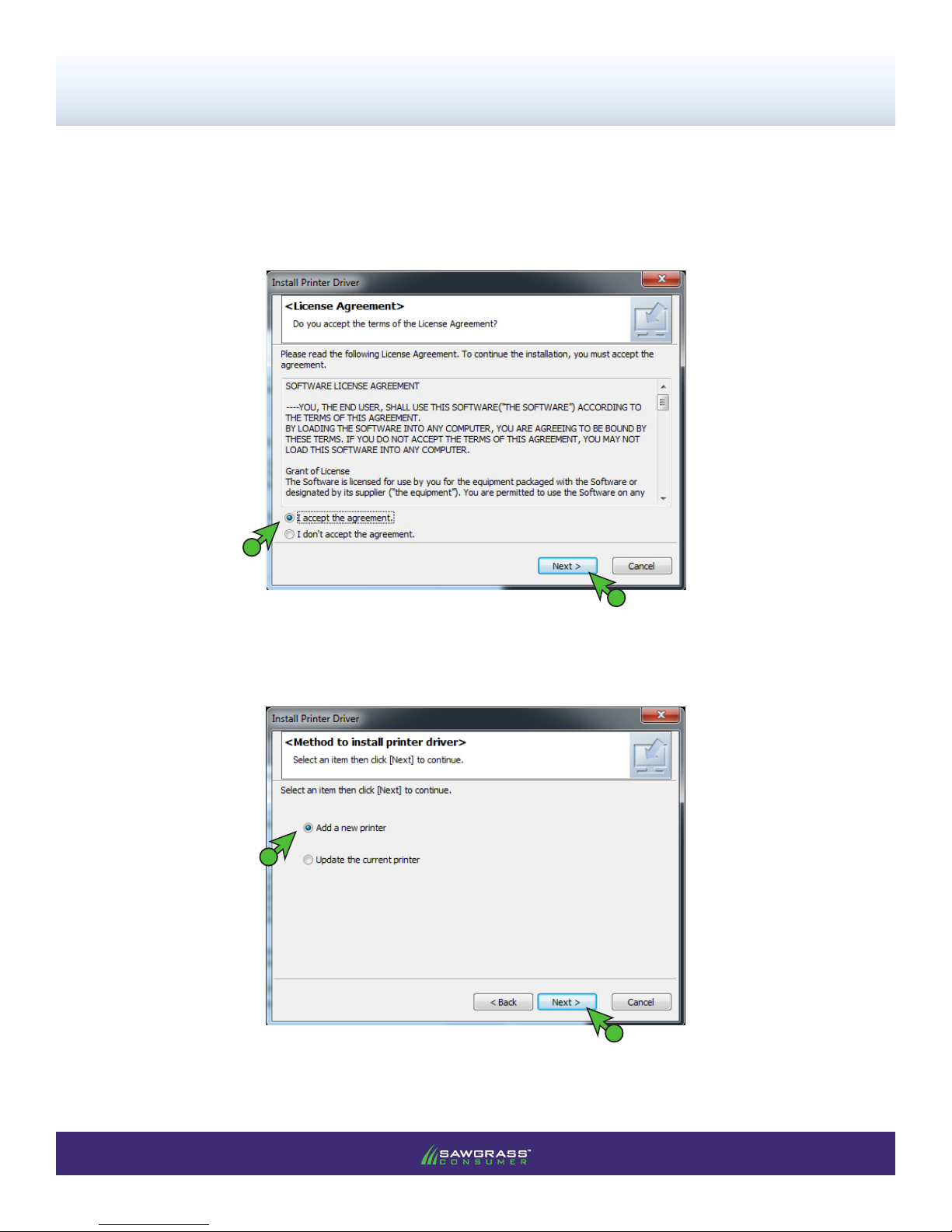

9.) Once the download has completed, the Ricoh OEM driver will be installed.You must accept the
Software License Agreement before the installation will commence. If you agree with the terms, select I
accept the agreement and click Next (see FIGURE 9).
1
2
10.) Select Add a new printer and click Next (see FIGURE 10).
FIGURE 10
1
2
PAGE 8 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation

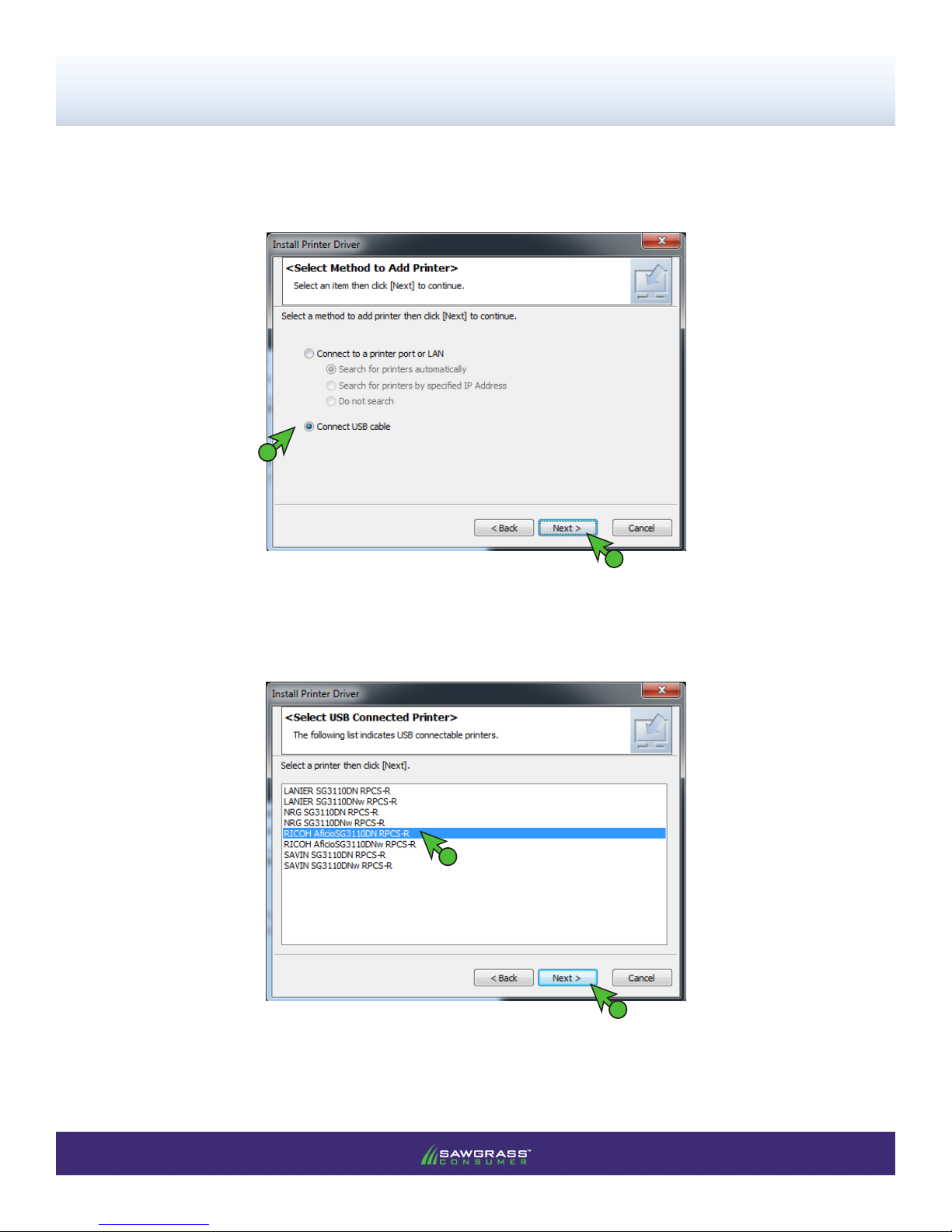

11.) Select how the printer is connected to your computer and click Next (see FIGURE 11). For this example
we will select USB cable.
FIGURE 11
1
2
12.) The following screen will appear asking you to select your printer (see FIGURE 12). Highlight RICOH
AcioSG3110DN RPCS-R and click Next.
FIGURE 12
2
1
PAGE 9 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation
13.) Ensure your printer is powered OFF and click Next to continue (see FIGURE 13).
FIGURE 13
14.) The following screen displaying the installation status should now appear (see FIGURE 14).
FIGURE 14
PAGE 10 of 16 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
PowerDriver-v4 Download & Installation

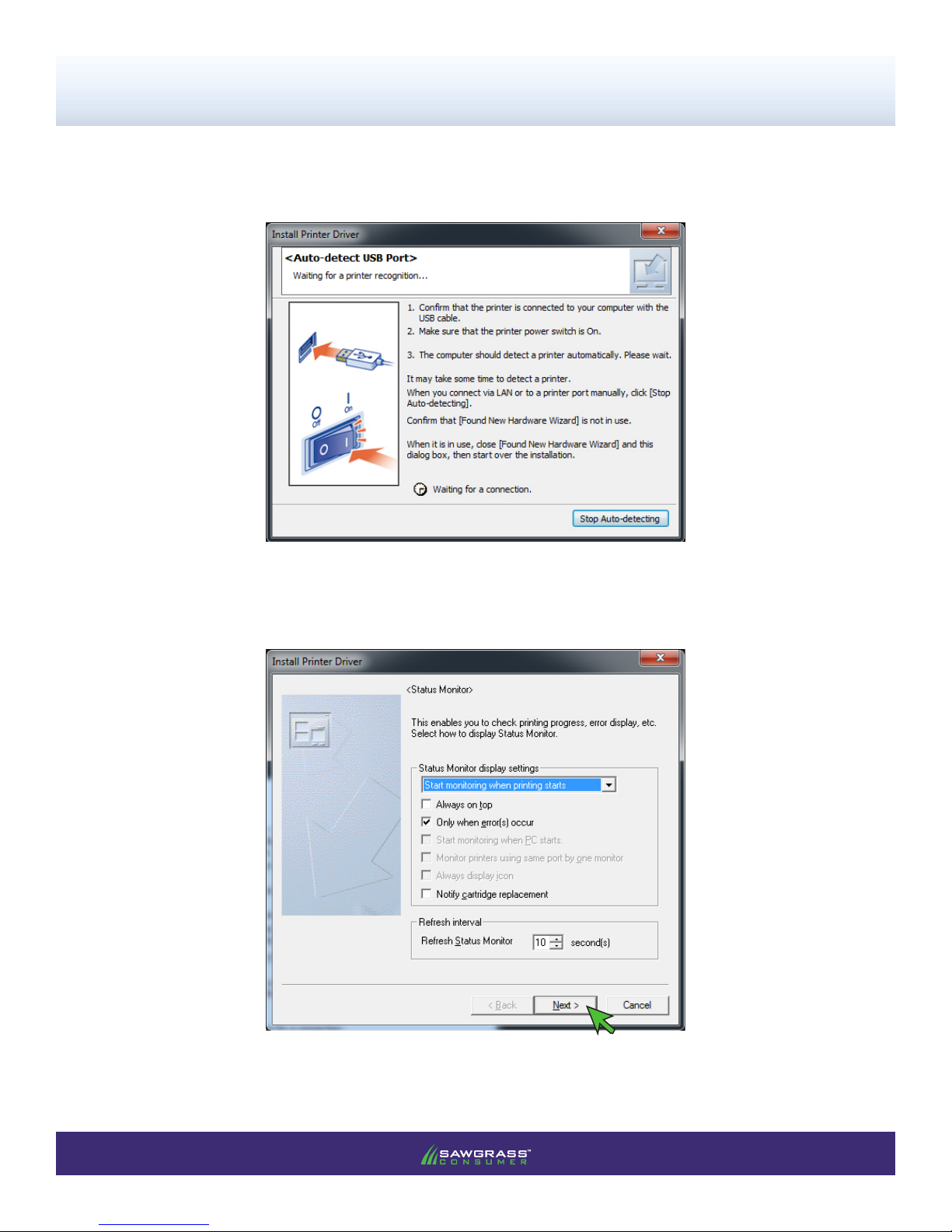

15.) Power the printer ON to allow the software to Auto-detect the printer (see FIGURE 15).
FIGURE 15
16.) On the following screen you are asked to customize the Status Monitor (see FIGURE 16). Adjust the
settings according to your preferences and click Next to continue.
FIGURE 16
