Copyright  2006 Ringdale User Manual, 62-400310001 Page 1

MinIT 5250E

Users Guide

User Manual

Version 2.4

Copyright Ringdale, Inc.

Part number: 62-400310001

Copyright  2006 Ringdale User Manual, 62-400310001 Page 2

TABLE OF CONTENTS

MinIT 2 0E packing list 4

Connecting the Unit

Getting Around the Desktop 6

MinIT Start Menu 8

Configuration 9

Unit Information 10

Network Settings 12

Keyboard Settings 13

Configuring 5250 Display Sessions 15

Configuring 5250 Printer Sessions 17

Configure Printer 19

Configure Language 21

Restore Defaults 21

Operation 22

Using the 122-Key Twinax Style Keyboard 22

PC Style Keyboards 23

Macro Recording and Playback 24

Text Terminal Mode 2

TO ENABLE TEXT TERMINAL ONLY 26

Display Session Status 27

Print Queue / Session Status 28

Ping Host 29

Linux Command Prompt 29

Process Monitor 29

Set Date/Time 30

Calculator 30

Troubleshooting Guide 31

CHECKLIST 31

MinIT 5250E CONFIGURATION PROBLEMS 32

NETWORK PROBLEMS 33

PROBLEMS AT THE HOST 35

HOST PROBLEMS AT THE HOST 37

PRINTER PROBLEMS 42

Technical Support 43

Copyright  2006 Ringdale User Manual, 62-400310001 Page 3

MinIT 5250E Version 2.0 February 2007

COPYRIGHT

may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or any computer language, in any form or by any third

party, without prior permission of Ringdale UK Limited.

DISCLAI ER

Ringdale UK Ltd. reserves the right to revise this publication and to make changes

from time to time to the contents hereof without obligation to notify any person or

organization of such revision or changes. Ringdale UK Ltd. has endeavored to ensure

that the information in this publication is correct, but will not accept liability for any

error or omission.

TRADE ARKS

All trademarks are hereby acknowledged.

VERSIONS

This manual is for MinIT- 2 0e’s with code version 2.2.17 and higher.

Copyright  2006 Ringdale User Manual, 62-400310001 Page 4

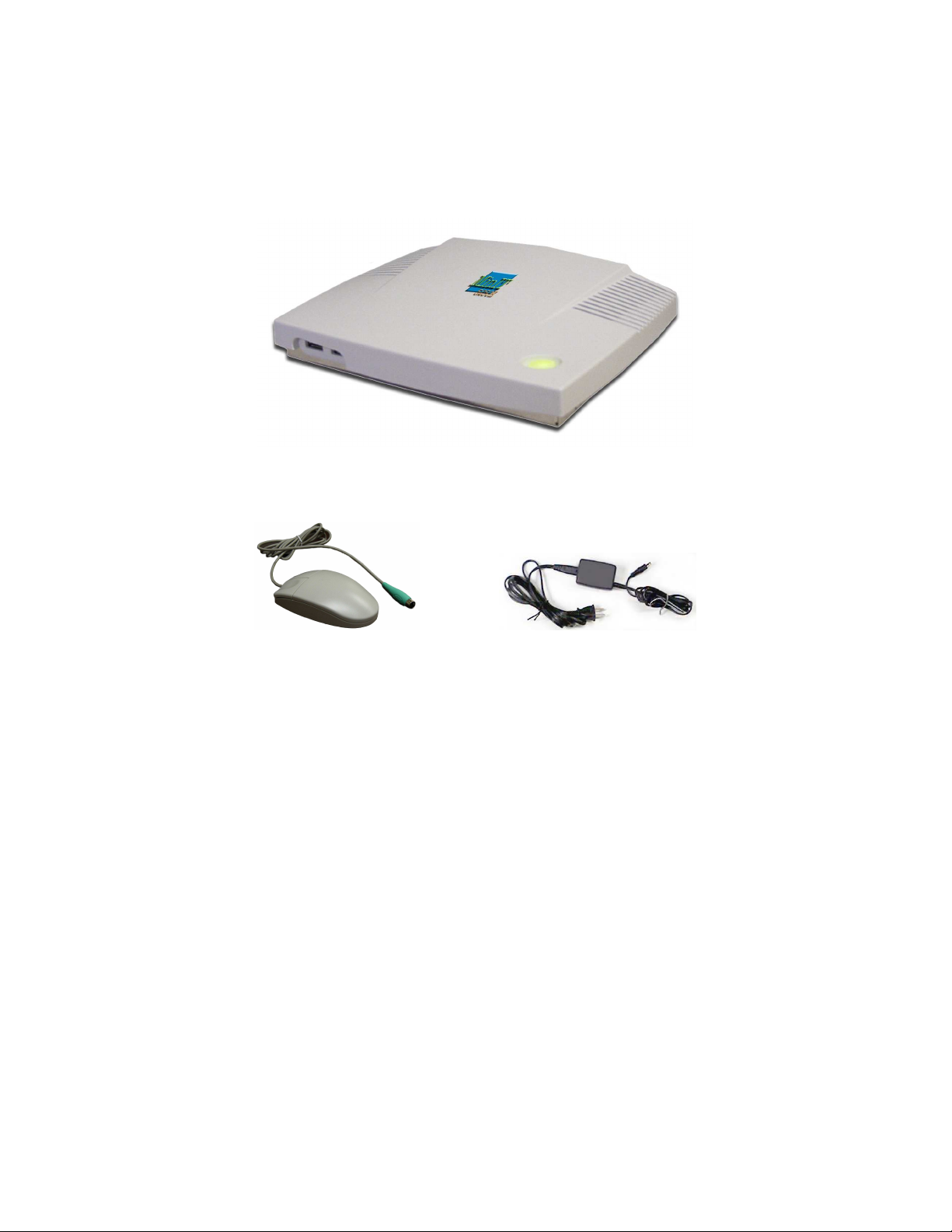

inIT 5250E packing list

MinIT 5250E Unit

Mouse Power Pack

Copyright  2006 Ringdale User Manual, 62-400310001 Page

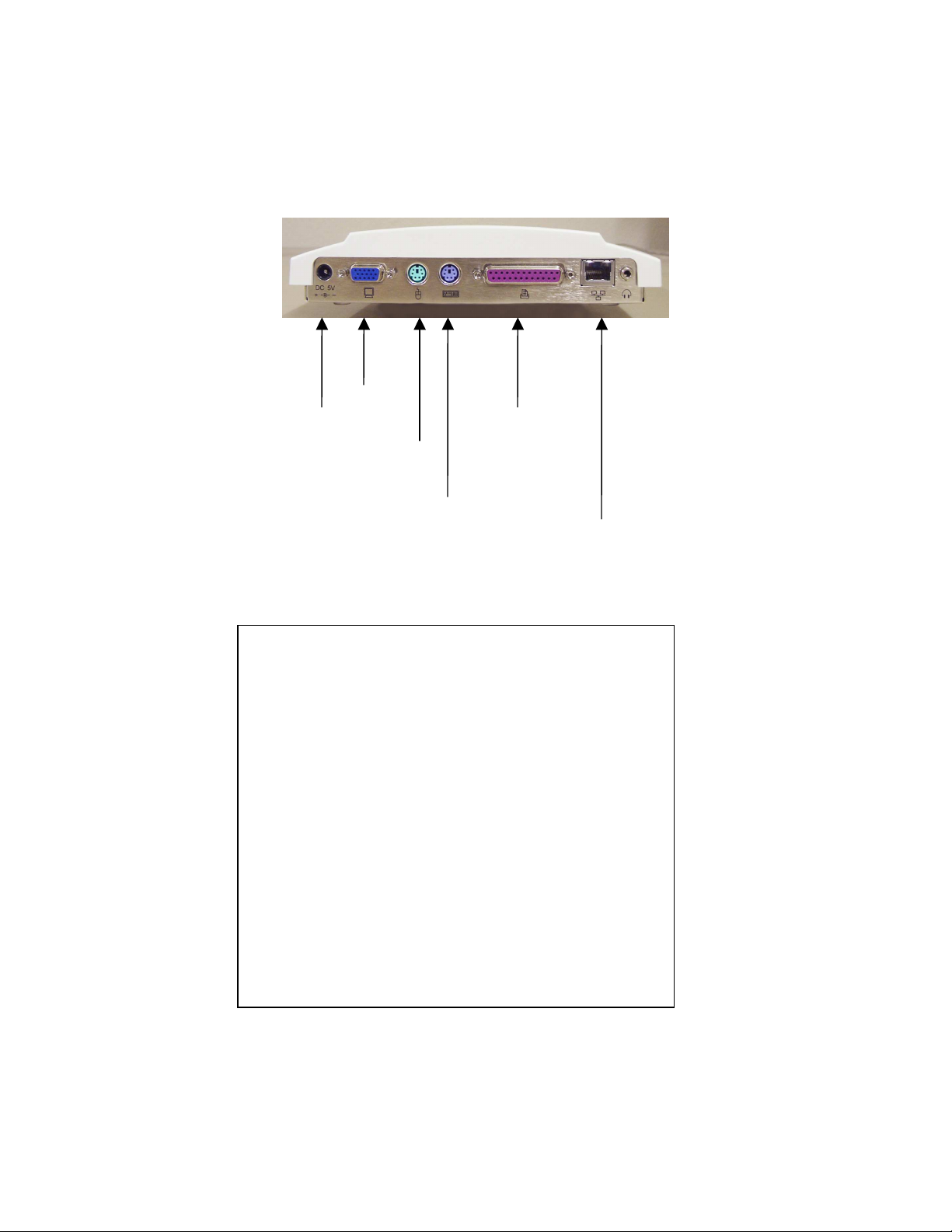

Connecting the Unit

MinIT Notes:

1. Use only the power supply provided with the unit. The

use of any other power supply may damage the unit.

2. The Power Button on the top of the unit will be lit

(orange) when there is power to the unit. The unit will

not start until you press the button. Then it will turn

green.

3. The correct way to power down the unit is from the

Start button or the MinIT Root Menu. See the

Technical Support section of the manual for more

information.

4. The USB ports on the front of the unit support USB

Keyboard or Mouse.

5.

The headphone jack can be used for powered speakers

or amplified headphones.

Power

Video

Mouse

Keyboard

Parallel

(local printer)

Ethernet

Copyright  2006 Ringdale User Manual, 62-400310001 Page 6

Getting Around the Desktop

There are two ways to move around the Desktop – using the keyboard or using the

mouse.

Using the Mouse

Left Click an object (field, button or window) once, to select it.

Click on Start Button or Left Click in the desktop area to bring up the MinIT Root

Menu (Help, Configuration, Display Sessions, Printing, Calculator, Power Down,

etc.)

The dark blue title bar will identify the active window across the top. Inactive

windows will have a gray title bar across the top.

Windows can be moved (drag by the Title Bar) or resized (grab a corner and drag).

The buttons on the right side of

the Title Bar control the window

Window

Title Bar

Minimize Maximize

Close

Copyright  2006 Ringdale User Manual, 62-400310001 Page 7

Using the Keyboard

Function Keystroke(s)

To get to a particular window Alt + Tab (hold down the Alt key

and hit the tab key until the

window you want is highlighted,

then release).

To move between fields Tab

MinIT Root Menu Alt + Shift +F1

If there is an underlined letter on a button, it is a keyboard

shortcut to that button. For example,

Hit D when you are Done.

Copyright  2006 Ringdale User Manual, 62-400310001 Page 8

inIT Start enu

The MinIT Start Menu is the key to most of the functions of the MinIT 2 0E. Click

on the desired menu item or use the underlined keyboard shortcut.

enu Item Function

Getting Started Help overview

MinIT

Administration

Configuration of the unit

Print Queue

/Session Status

Shows status of Printer Sessions and any print jobs

outstanding. Cancel print jobs here.

Display

/Session Status

Shows status of all defined Display Sessions.

View Keyboard

Macros

Allows you to see the Keyboard Macros and the number

assigned to it.

RDP Desktop Used for connection to an RDP Server

Ping Host For testing the Ethernet connection to a host

Linux Command

Prompt

For troubleshooting with Technical Support

Process Monitor For troubleshooting with Engineering

Set Time/Date Sets the Clock (lower right corner of Desktop)

Calculator Brings up a calculator

Restart Windows

Manager / Sessions

Restarts the MinIT software (partial restart)

Reboot Computer Full Reboot of the unit

POWER Down Always use this method to turn off the unit.

You can call up the MinIT Start Menu by

Clicking on the Start Button, by clicking on

the Desktop, or by using Alt+Shift+F1.

Hint: If a letter in the Start Menu is

underlined, it is a keyboard shortcut to

that item. For instance, hit P to jump to

Print Queue. Hit P again to jump to

Process Monitor).

Configuration

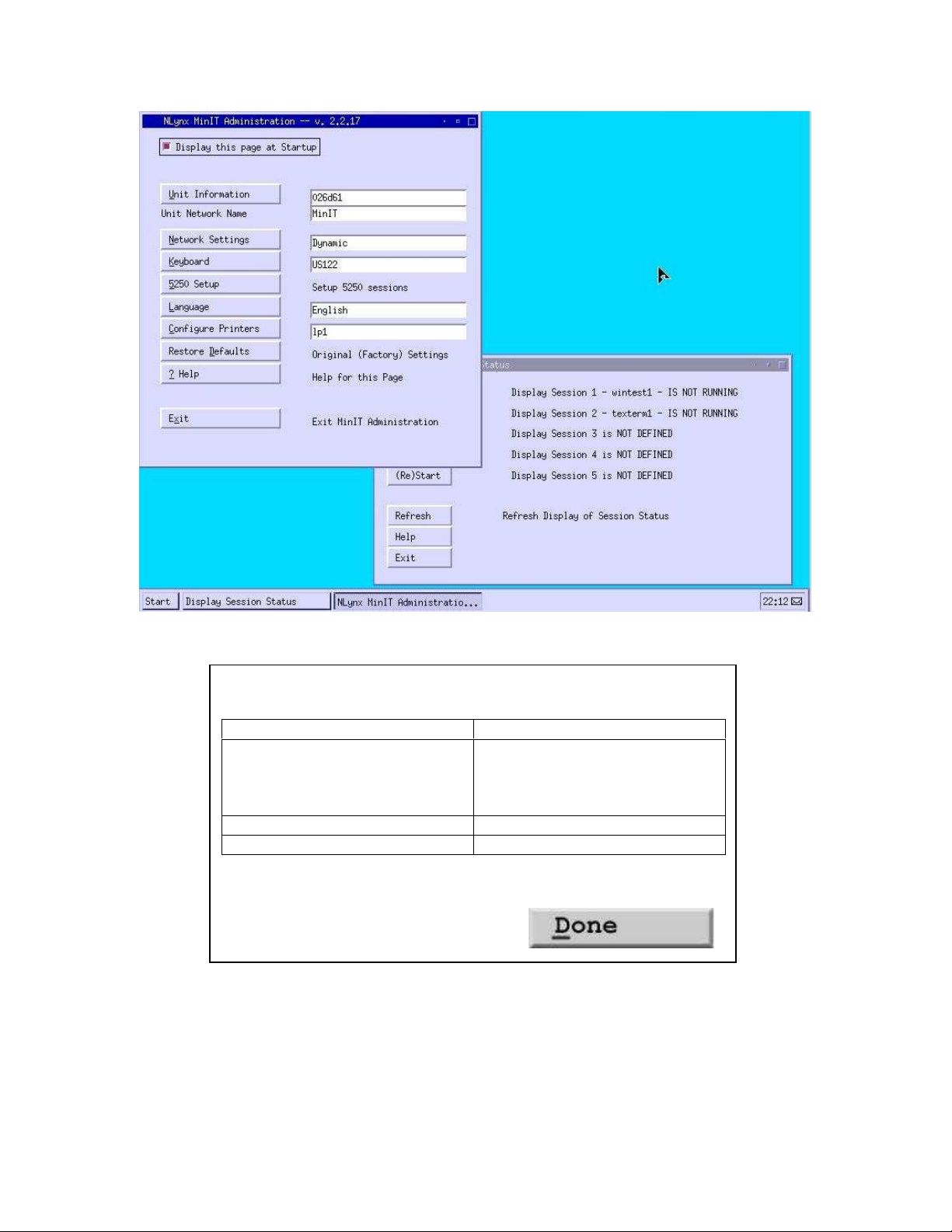

The NLynx MinIT Administration menu will come up when you power up the unit. If you don’t

want it to continue coming up, click on the Display this page at Startup radio button.

If the NLynx MinIT Administration menu is not up and you want it, click the Start button and

select it.

Using the mouse to configure the unit is probably the easiest way, but you can accomplish all

the same things using the keyboard if you prefer (tab through the fields, use the cursor keys

and use the underlined keyboard shortcuts).

Essentially, you will want to go through these configuration items in order. Each button takes

you to a configuration screen that prompts you for the information required. Each menu has

built-in help that will assist you in filling in the appropriate information.

Unit Information

 Unit No. - The Unit Number is reported to the MinIT Management Software, to

identify this unit on the network. It needs to be a unique number for the MinITMan

Manager to be able to see and manage the unit. The default value is 99999, which

makes it use the last digits of the MAC address.

 Unit Desc. - Unit Description should be used to help identify the unit, such as the

name of the user, or a location.

 Admin. Password - If you wish to secure this unit from accidental reconfiguration,

you can set an Administrative Password here.

 inIT. an port - This is the IP port that the MinITMan Management software uses

to talk to the unit. The default is 18901. Change this only if you are changing it on

the MinIT.Man management station as well.

 Boot to Terminal ode ONLY - Select this option if you want this unit to be forced

into a straight text 2 0 terminal mode, without access to the x-window desktop.

The access to the x-window desktop and the Administration menus will be hidden to

the user. An administrator who knows the password can access any of the desktop or

administrative functions.
