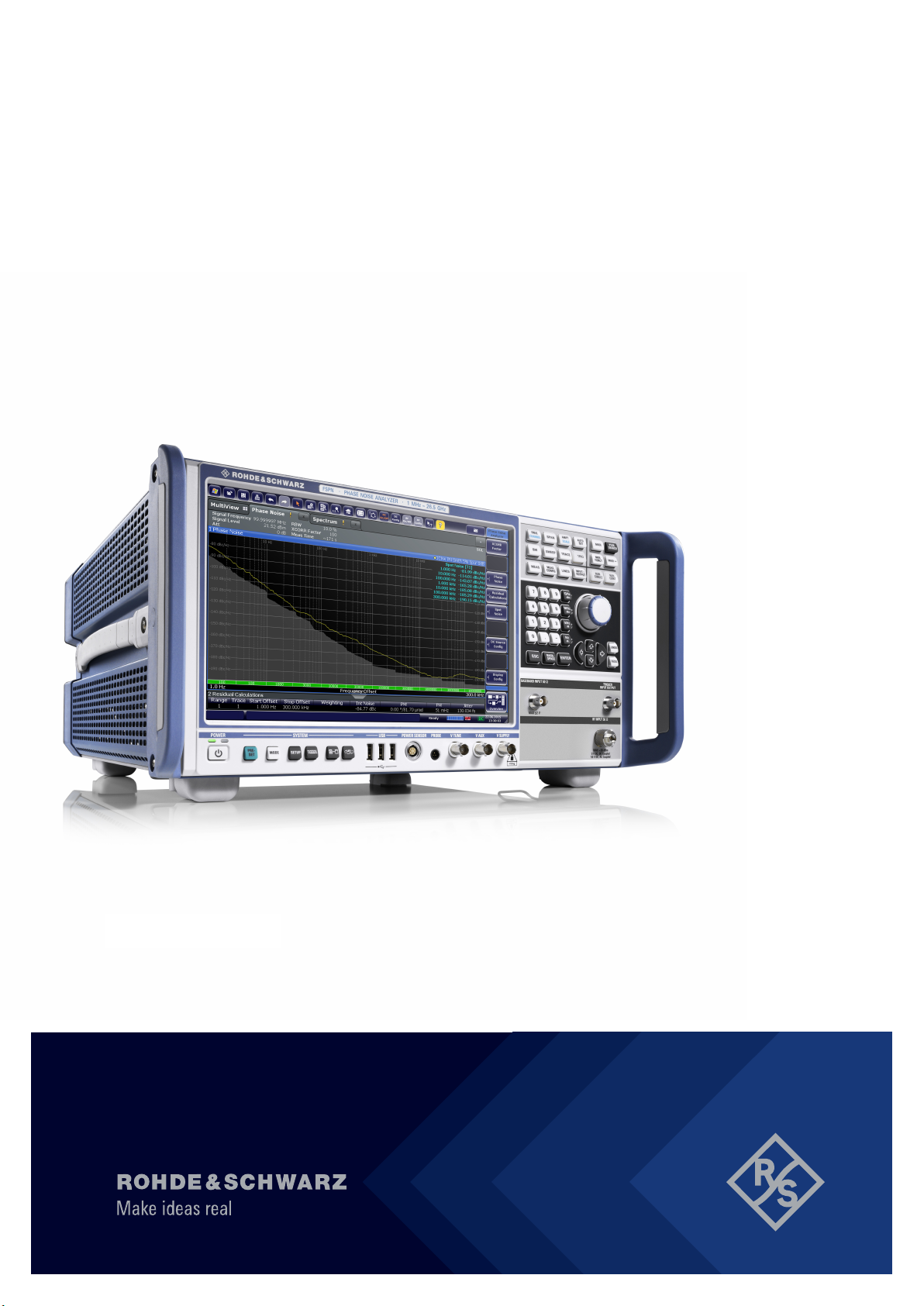

Rohde & Schwarz FSPN Manuale utente
R&S®FSPN
Phase Noise Analyzer
Getting Started
1179437002
Version 01
(;Ý[Ô2)
This document describes the following R&S®FSPN models:
●R&S®FSPN8 (1322.8003K06)
●R&S®FSPN26 (1322.8003K24)
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: +49 89 41 29 - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1179.4370.02 | Version 01 | R&S®FSPN
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g.
R&S®FSPN is indicated as R&S FSPN.
Safety and Regulatory Information
R&S®FSPN
3Getting Started 1179.4370.02 ─ 01
1 Safety and Regulatory Information
The product documentation helps you use the product safely and efficiently. Fol-
low the instructions provided here and in the Chapter 1.1, "Safety Instructions",
on page 3.
Intended use
The product is intended for the development, production and verification of elec-
tronic components and devices in industrial, administrative, and laboratory envi-
ronments. Use the product only for its designated purpose. Observe the operating
conditions and performance limits stated in the data sheet.
Target audience
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety Instructions", on page 3. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
1.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the prod-
uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten-
ded use and limits are described in the product documentation such as the data
sheet, manuals and the printed "Safety Instructions". If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Safety Instructions
Safety and Regulatory Information
R&S®FSPN
4Getting Started 1179.4370.02 ─ 01
Using the product requires specialists or specially trained personnel. These users
also need sound knowledge of at least one of the languages in which the user
interfaces and the product documentation are available.
Never open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. If any part of the product is
damaged or broken, stop using the product. Contact Rohde & Schwarz customer
service at http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The product is heavy. Do not move or carry the product by yourself. A single per-
son can only carry a maximum of 18 kg safely depending on age, gender and
physical condition. Look up the maximum weight in the data sheet. Use the prod-
uct handles to move or carry the product. Do not lift by the accessories mounted
on the product. Accessories are not designed to carry the weight of the product.
To move the product safely, you can use lifting or transporting equipment such as
lift trucks and forklifts. Follow the instructions provided by the equipment manu-
facturer.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that
enters can electrically connect the casing with live parts, which can lead to elec-
tric shock, serious personal injury or death if you touch the casing. If
Rohde & Schwarz provides accessories designed for your product, e.g. a carrying
bag, you can use the product outdoors.
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 environ-
ments where nonconductive contamination can occur. For more information on
environmental conditions such as ambient temperature and humidity, see the
data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the
product facing down. If the product is designed for different positions, secure the
product so that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure
stability. The feet can collapse if they are not folded out completely or if the prod-
Safety Instructions
Safety and Regulatory Information
R&S®FSPN
5Getting Started 1179.4370.02 ─ 01
uct is moved without lifting it. The foldable feet are designed to carry the weight of
the product, but not an extra load.
If stacking is possible, keep in mind that a stack of products can fall over and
cause injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity
and stability. Observe the specifications of the rack manufacturer. Always install
the products from the bottom shelf to the top shelf so that the rack stands
securely. Secure the product so that it cannot fall off the rack.
Connecting to power
The product is an overvoltage category II product. Connect the product to a fixed
installation used to supply energy-consuming equipment such as household
appliances and similar loads. Keep in mind that electrically powered products
have risks, such as electric shock, fire, personal injury or even death.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indica-
ted on the product match the available power source. If the power adapter
does not adjust automatically, set the correct value and check the rating of the
fuse.
●Only use the power cable delivered with the product. It complies with country-
specific safety requirements. Only insert the plug into an outlet with protective
conductor terminal.
●Only use intact cables and route them carefully so that they cannot be dam-
aged. Check the power cables regularly to ensure that they are undamaged.
Also ensure that nobody can trip over loose cables.
●If the product needs an external power supply, use the power supply that is
delivered with the product or that is recommended in the product documenta-
tion or a power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maxi-
mum 20 A.
●Ensure that you can disconnect the product from the power source at any
time. Pull the power plug to disconnect the product. The power plug must be
easily accessible. If the product is integrated into a system that does not meet
these requirements, provide an easily accessible circuit breaker at the system
level.
Safety Instructions
Safety and Regulatory Information
R&S®FSPN
6Getting Started 1179.4370.02 ─ 01
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Heavy product
Be careful when lifting, moving or carrying the product. Carrying the product requires
a sufficient number of persons or transport equipment.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This
connection protects you against electric shock if an electric problem occurs.
1.2 Warning Messages in the Documentation
A warning message points out a risk or danger that you need to be aware of. The
signal word indicates the severity of the safety hazard and how likely it will occur
if you do not follow the safety precautions.
WARNING
Potentially hazardous situation. Could result in death or serious injury if not avoi-
ded.
CAUTION
Potentially hazardous situation. Could result in minor or moderate injury if not
avoided.
Warning Messages in the Documentation
Safety and Regulatory Information
R&S®FSPN
7Getting Started 1179.4370.02 ─ 01
NOTICE
Potential risks of damage. Could result in damage to the supported product or to
other property.
1.3 Korea Certification Class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하
시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
Korea Certification Class A
Documentation Overview
R&S®FSPN
8Getting Started 1179.4370.02 ─ 01
2 Documentation Overview
This section provides an overview of the R&S FSPN user documentation. Unless
specified otherwise, you find the documents on the R&S FSPN product page at:
www.rohde-schwarz.com/manual/FSPN
2.1 Getting Started Manual
Introduces the R&S FSPN and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general
information, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for
download on the Internet.
2.2 User Manuals and Help
The user manual contains the description of all instrument modes and functions.
It also provides an introduction to remote control, a complete description of the
remote control commands with programming examples, and information on main-
tenance, instrument interfaces and error messages. Includes the contents of the
getting started manual.
The contents of the user manual are available as help in the R&S FSPN. The
help offers quick, context-sensitive access to the complete information for the
instrument and its firmware.
The user manual is also available for download or for immediate display on the
Internet.
2.3 Service Manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
Service Manual
Documentation Overview
R&S®FSPN
9Getting Started 1179.4370.02 ─ 01
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS):
https://gloris.rohde-schwarz.com
2.4 Instrument Security Procedures
Deals with security issues when working with the R&S FSPN in secure areas. It is
available for download on the Internet.
2.5 Printed Safety Instructions
Provides safety information in many languages. The printed document is deliv-
ered with the product.
2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S FSPN. It also lists
the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/FSPN
2.7 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of
the used open source software.
Release Notes and Open Source Acknowledgment (OSA)
Documentation Overview
R&S®FSPN
10Getting Started 1179.4370.02 ─ 01
See www.rohde-schwarz.com/firmware/FSPN
2.8 Application Notes, Application Cards, White
Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/FSPN
Application Notes, Application Cards, White Papers, etc.
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Rohde & Schwarz Strumento di misura
Rohde & Schwarz
Rohde & Schwarz FE50DTR Manuale utente
Rohde & Schwarz
Rohde & Schwarz R&S ENV216 Manuale utente
Rohde & Schwarz
Rohde & Schwarz R&S RT-ZD01 Manuale utente
Rohde & Schwarz
Rohde & Schwarz ZNLE Series Manuale utente
Rohde & Schwarz
Rohde & Schwarz R&S ZNL3 Manuale utente
Rohde & Schwarz
Rohde & Schwarz ABFS Manuale utente
Rohde & Schwarz
Rohde & Schwarz FSQ series Manuale utente
Rohde & Schwarz
Rohde & Schwarz ZNB Manuale utente
Rohde & Schwarz
Rohde & Schwarz EVSG1000 Manuale utente
Rohde & Schwarz
Rohde & Schwarz R&S ZNA Series Manuale utente
Rohde & Schwarz
Rohde & Schwarz FSH4 Manuale utente
Rohde & Schwarz
Rohde & Schwarz R&S NGU201 Manuale utente
Rohde & Schwarz
Rohde & Schwarz FSMR Manuale utente
Rohde & Schwarz
Rohde & Schwarz R&S UPP Manuale utente
Rohde & Schwarz
Rohde & Schwarz EVSF1000 Manuale utente
Rohde & Schwarz
Rohde & Schwarz EVSD1000 Manuale utente
Rohde & Schwarz
Rohde & Schwarz RT-ZC20 Manuale utente
Rohde & Schwarz
Rohde & Schwarz FSH3 Manuale utente
Rohde & Schwarz
Rohde & Schwarz EVSG1000 Manuale utente
Rohde & Schwarz
Rohde & Schwarz VOR/ILS Analyzer EVS200 Manuale utente
