ROSE DISPLAYS ANOGOTCHA FRAME ROUND Manuale utente

Parts

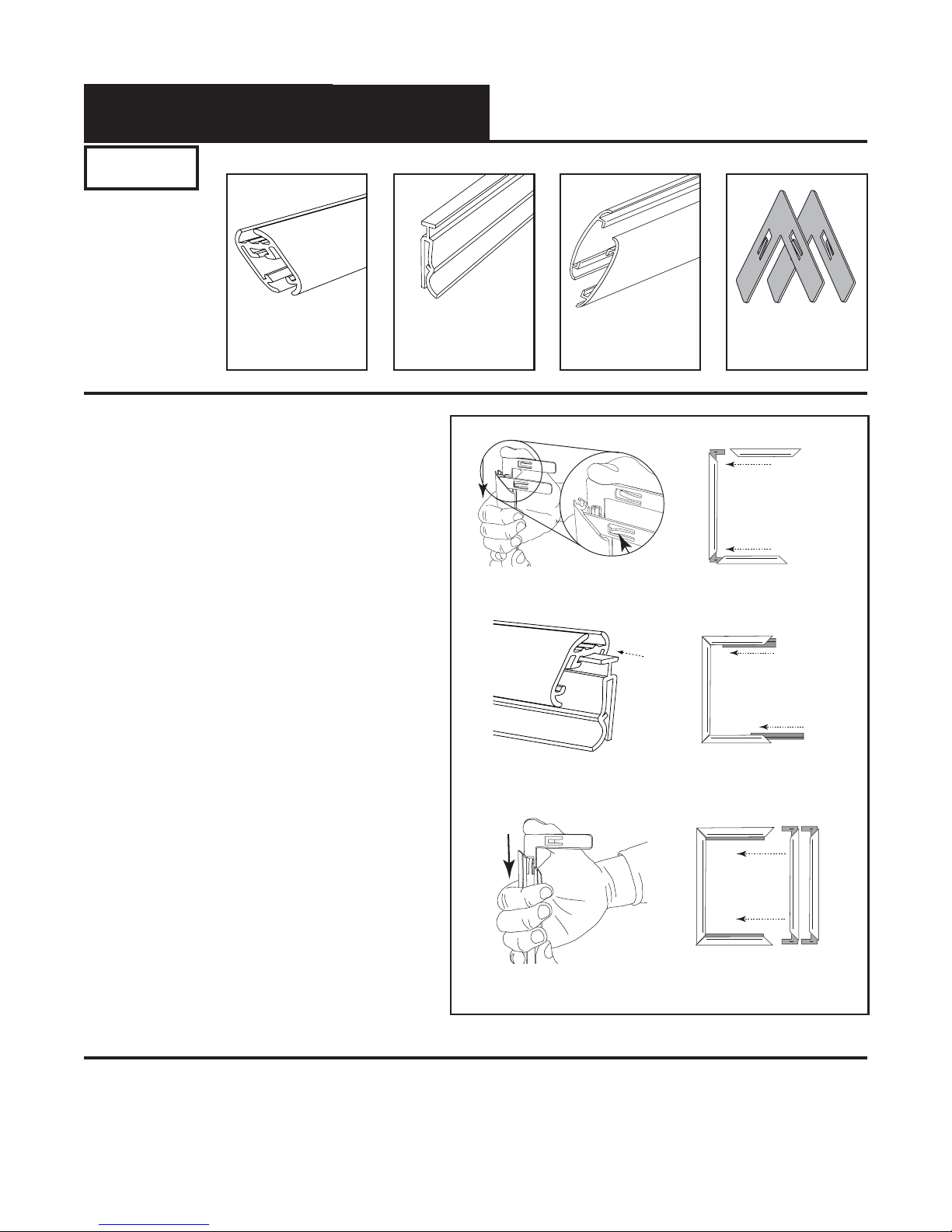

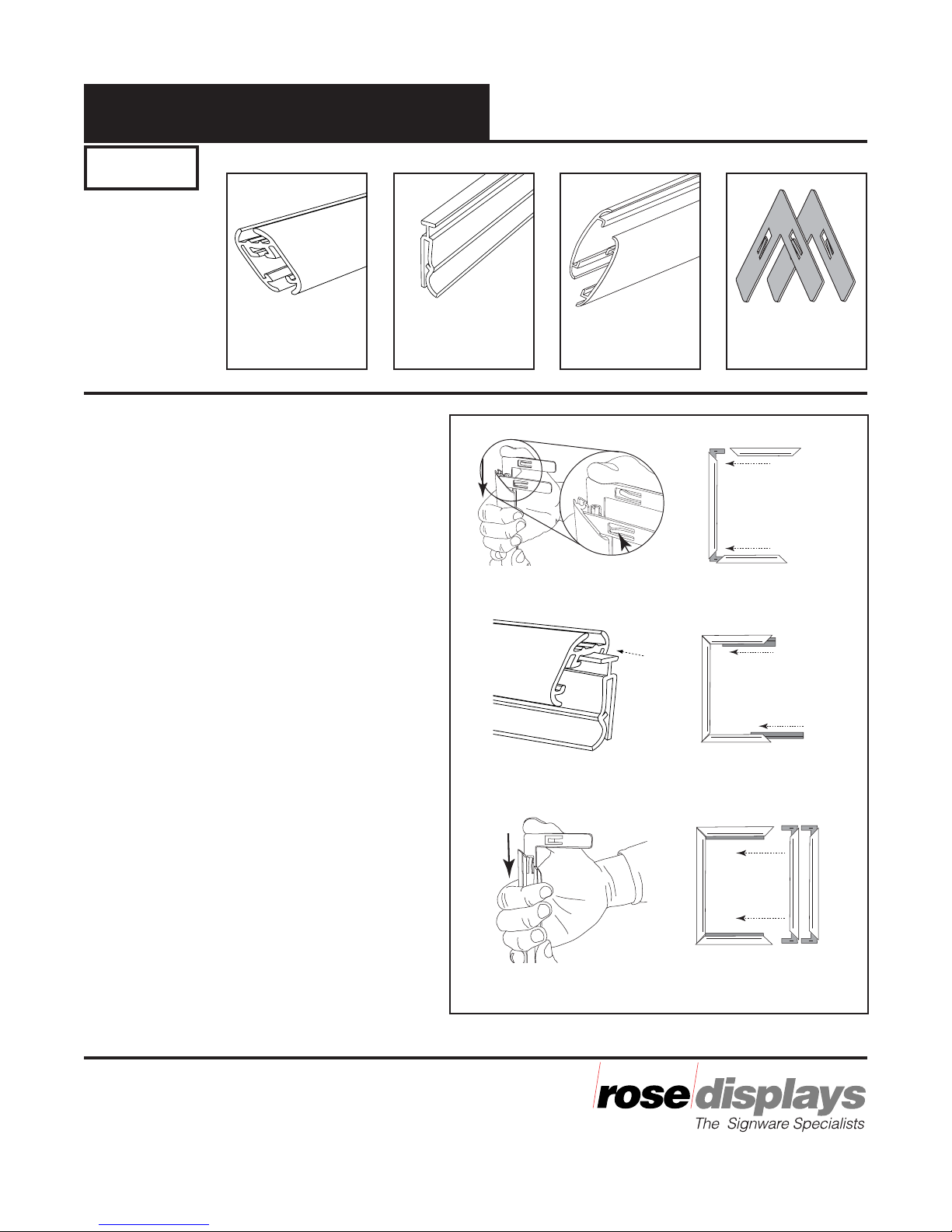

Step 1

Install four (4) corner brackets (2 each

end) into solid rail opposite split rails.

Fig. 1

Step 2

Push remaining solid rails onto rail

from Step 1 to make three (3) sides

of the frame. Fig. 2

Step 3

Slide Gotcha into top and bottom

rails as shown. Fig. 3 & 4

Step 4

Install remaining corner brackets into

ends of split rails. Fig. 5

Step 5

Assemble split rails onto frame one

at a time. Fig. 6

Instruction Sheet

AnoGotcha™ Frame

Instructions for Hanging

Incept-9.9.02

AnoGotcha™is a trademark of Rose Displays, Ltd. Neither the manufac-

turer nor any sales agent may be held liable for injury, loss or damage

resulting from the use of these products. Part #02INSAnoGotchaFrame

AnoGotcha

Solid Rails

12AG400 T-Top Gotcha

Corner

bracketsSplit Rails

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Figure 5 Figure 6

Figure 4

Figure 1 Figure 2

Continued on next page

Figure 3

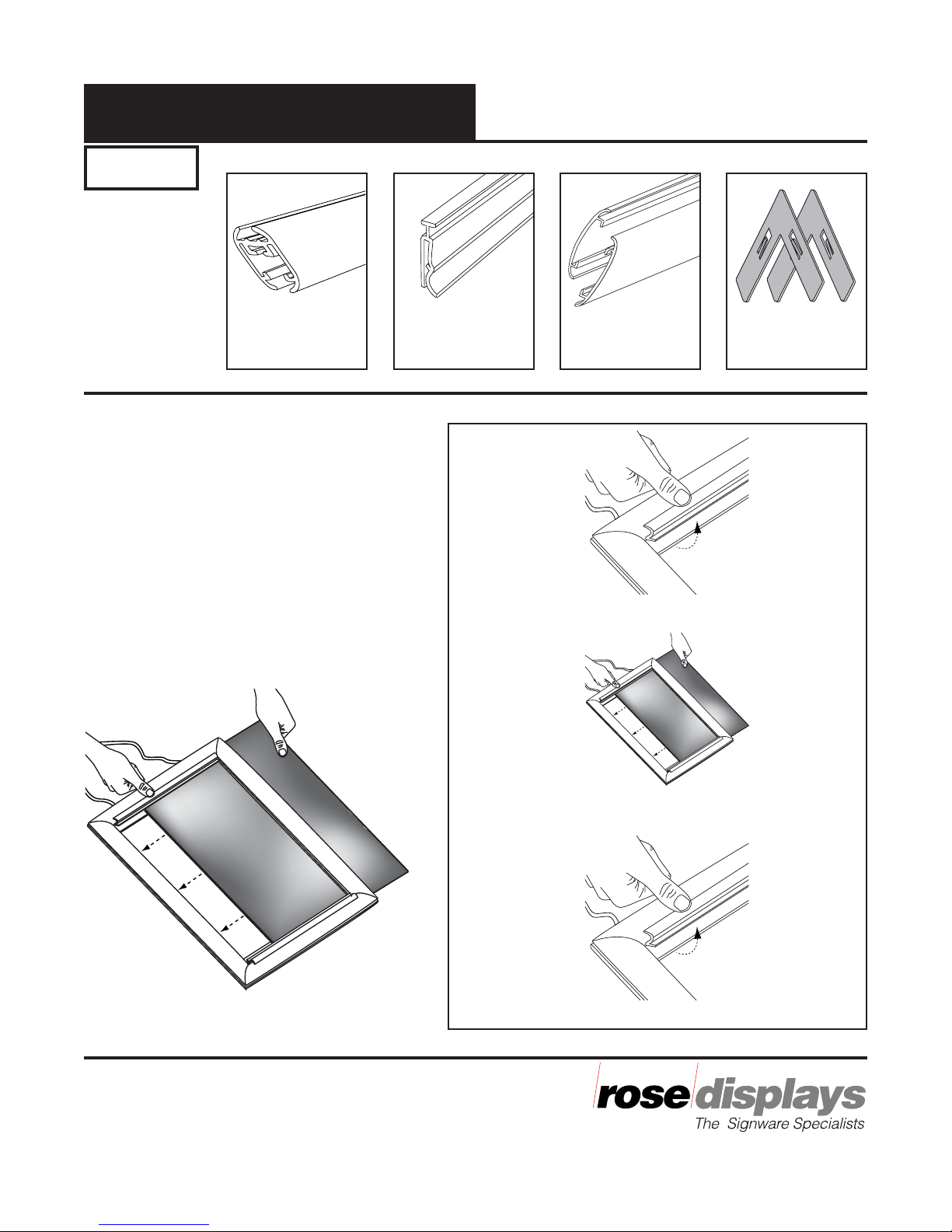

Parts

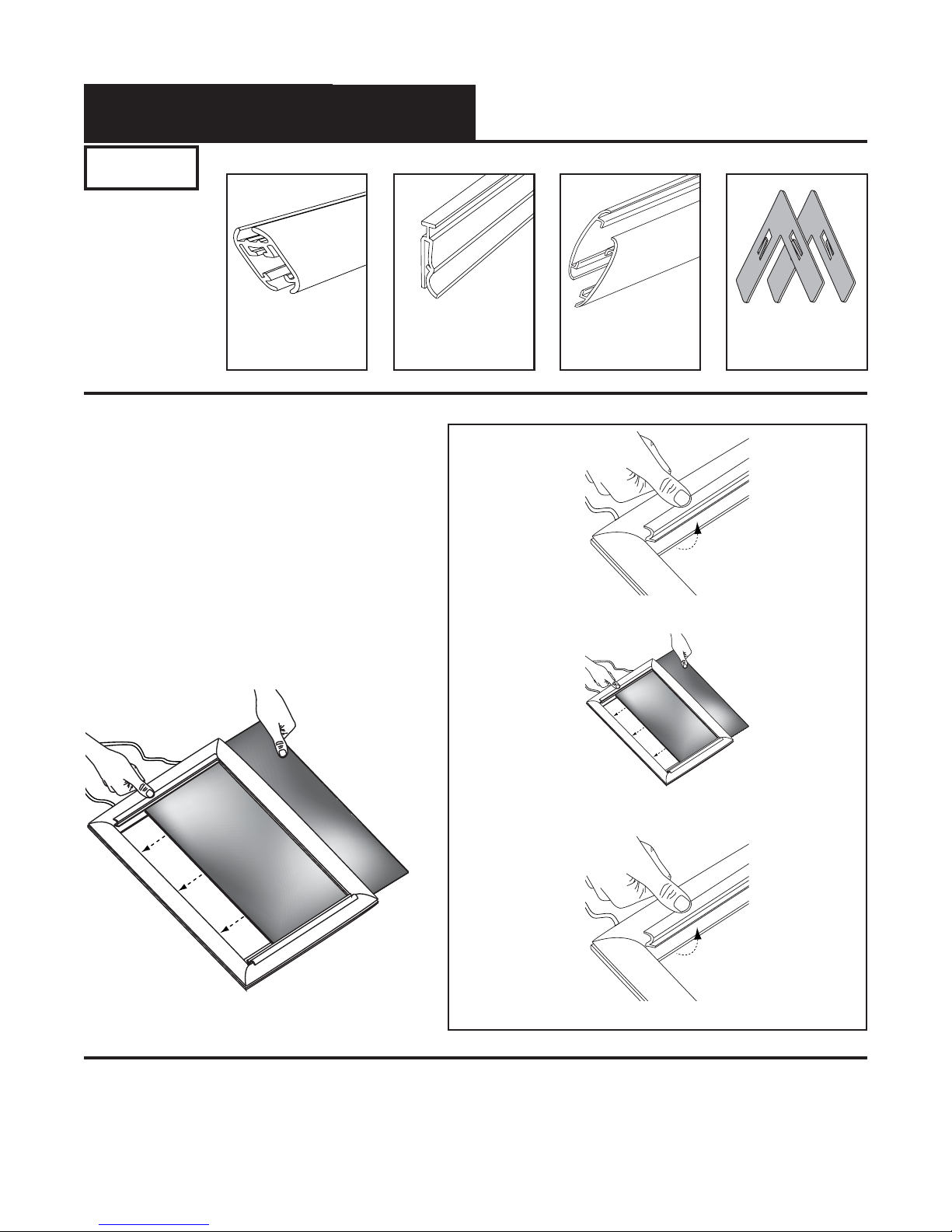

Step 6

Snap open Gotcha completely (if not

already open) so that bottom hinge is

turned up as far as possible.

Fig. 7

Step 7

Slip graphic into open rails of frame and

all the way into opposite edge of frame.

Fig. 8

Step 8

Snap Gotcha closed. Fig. 9

Instruction Sheet

AnoGotcha™ Frame

Instructions for Hanging

Incept-9.9.02

AnoGotcha™is a trademark of Rose Displays, Ltd. Neither the manufacturer

nor any sales agent may be held liable for injury, loss or damage resulting from

the use of these products. Part #02INSAnoGotchaFrame

AnoGotcha

Solid Rails

12AG400 T-Top Gotcha

Corner

bracketsSplit Rails

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Figure 9

Figure 7

Figure 8

Figure 8 (detail)

Parts

Step 1

Install four (4) corner brackets (2 each

end) into solid rail opposite split rails.

Fig. 1

Step 2

Push remaining solid rails onto rail

from Step 1 to make three (3) sides

of the frame. Fig. 2

Step 3

Slide Gotcha into top and bottom

rails as shown. Fig. 3 & 4

Step 4

Install remaining corner brackets into

ends of split rails. Fig. 5

Step 5

Assemble split rails onto frame one

at a time. Fig. 6

Instruction Sheet

AnoGotcha™ Frame

Instructions for Hanging

Incept-9.9.02

AnoGotcha™is a trademark of Rose Displays, Ltd. Neither the manufac-

turer nor any sales agent may be held liable for injury, loss or damage

resulting from the use of these products. Part #02INSAnoGotchaFrame

AnoGotcha

Solid Rails

12AG400 T-Top Gotcha

Corner

bracketsSplit Rails

Figure 5 Figure 6

Figure 4

Figure 1 Figure 2

Continued on next page

Figure 3

Parts

Step 6

Snap open Gotcha completely (if not

already open) so that bottom hinge is

turned up as far as possible.

Fig. 7

Step 7

Slip graphic into open rails of frame and

all the way into opposite edge of frame.

Fig. 8

Step 8

Snap Gotcha closed. Fig. 9

Instruction Sheet

AnoGotcha™ Frame

Instructions for Hanging

Incept-9.9.02

AnoGotcha™is a trademark of Rose Displays, Ltd. Neither the manufacturer

nor any sales agent may be held liable for injury, loss or damage resulting from

the use of these products. Part #02INSAnoGotchaFrame

AnoGotcha

Solid Rails

12AG400 T-Top Gotcha

Corner

bracketsSplit Rails

Figure 9

Figure 7

Figure 8

Figure 8 (detail)
