[ R2-RAID ]
Server RAID System
User Manual
Include
Hardware Installation Guide
Operation Guide
HDD Formatting Guide
Software Installation Guide
Operation Notice:
In avoidance of HDD's temperature going too high, be sure to turn on the FAN.
Thank you for purchasing a quality Rosewill Product.
Please register your product at : www.rosewill.com/ for complete warranty information and future support for your product.
Server RAID System [R2-RAID] UserManua
1
l
CONTENTS
Hardware Operation Guide…………..............……………………3
Hard Drives Installation Guide……………………………..………3
Mode Selection & Operation Guide…………………….…..……..6
Raid Mode Selection….............…………………………….……...7
Gui Steelvine Manager Operation………….............……….…….7
Jumper Selection & Storage Policy Definitions……..............…..9
Hard Drive Formatting Guide………………………….................16
Software Operation Guide…………………………......................23
Software Installation Guide.........................................................23
Starting The Steelvine Manager..................................................25
Introducing The Steelvine Manager............................................26
Server RAID System [R2-RAID] UserManua
2
l

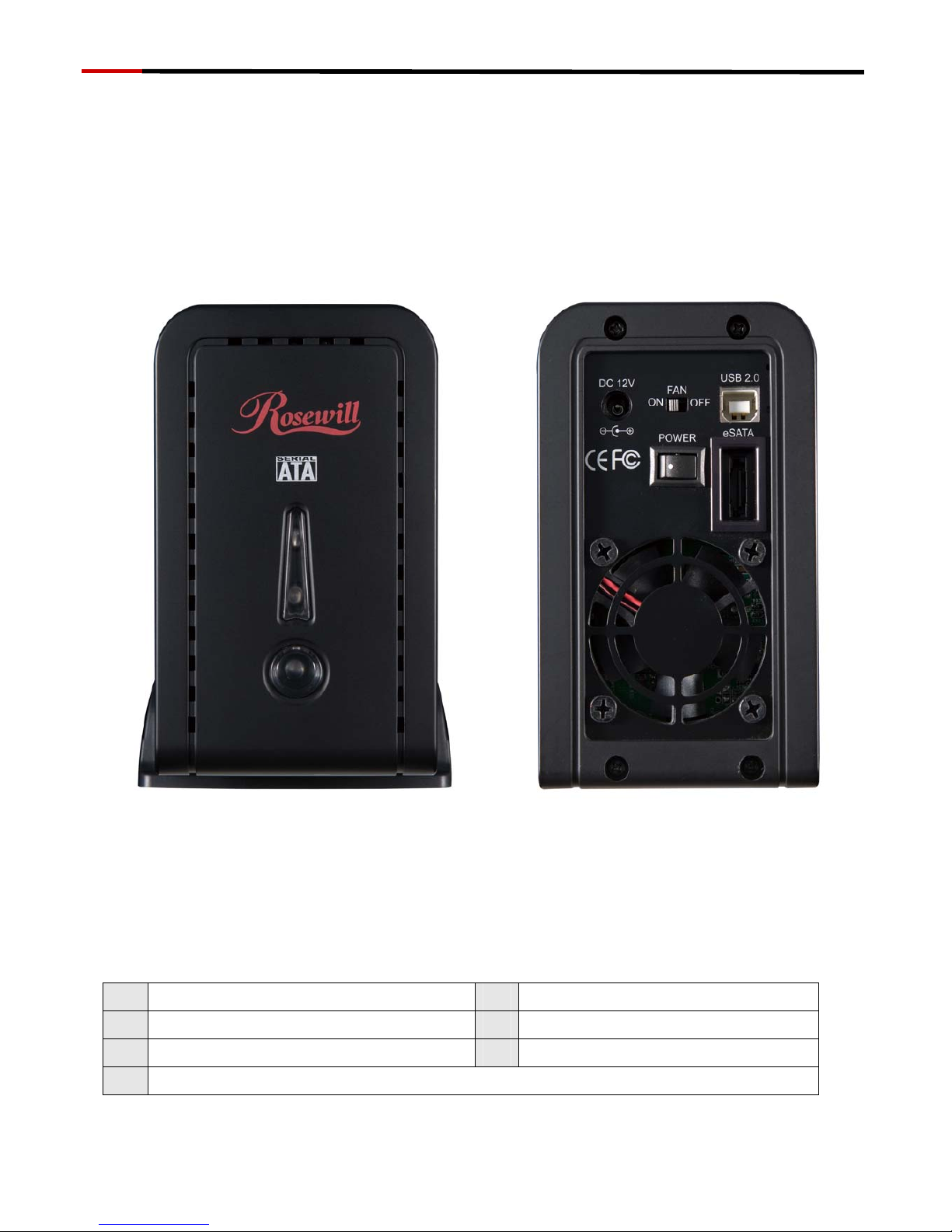

About the 3.5” Dual SATA Disk Enclosure
E
F
G
C
D
A
B
FrontView RearView
A Fan B eSATA Connector
C Power Switch D USB Connector
E Fan Switch F Power Adapter Socket
G LED Indicator
Server RAID System [R2-RAID] UserManua
3
l
Hardware Operation Guide
Hard Drives Installation Guide
STEP1: Release the 4 screws then pull out the rear panel and tray.
Server RAID System [R2-RAID] UserManua
4
l
STEP2: Place the two HDD into the tray. Push the HDD to the end
ntil the HDD is connected with SATA connector.u
STEP3: Screw the HDD on the tray both sides.
Server RAID System [R2-RAID] UserManua
5
l
STEP4: Push tray into Aluminum housing and secure them
together.
Note：Select operation mode first
Server RAID System [R2-RAID] UserManua
6
l
Hard Drives Installation Guide
You may select function by switching jumper on PCB or use software to
operate (GUI mode only).
Always press reset button after changing the setting of switching jumpers.
Backup your data before formatting hard drives.
The device can support two equal or unequal capacity hard drives.
STEP1: Switch the power button to power on.
STEP2: Switch the power button to power on.
STEP3: Press reset button to reset the device.

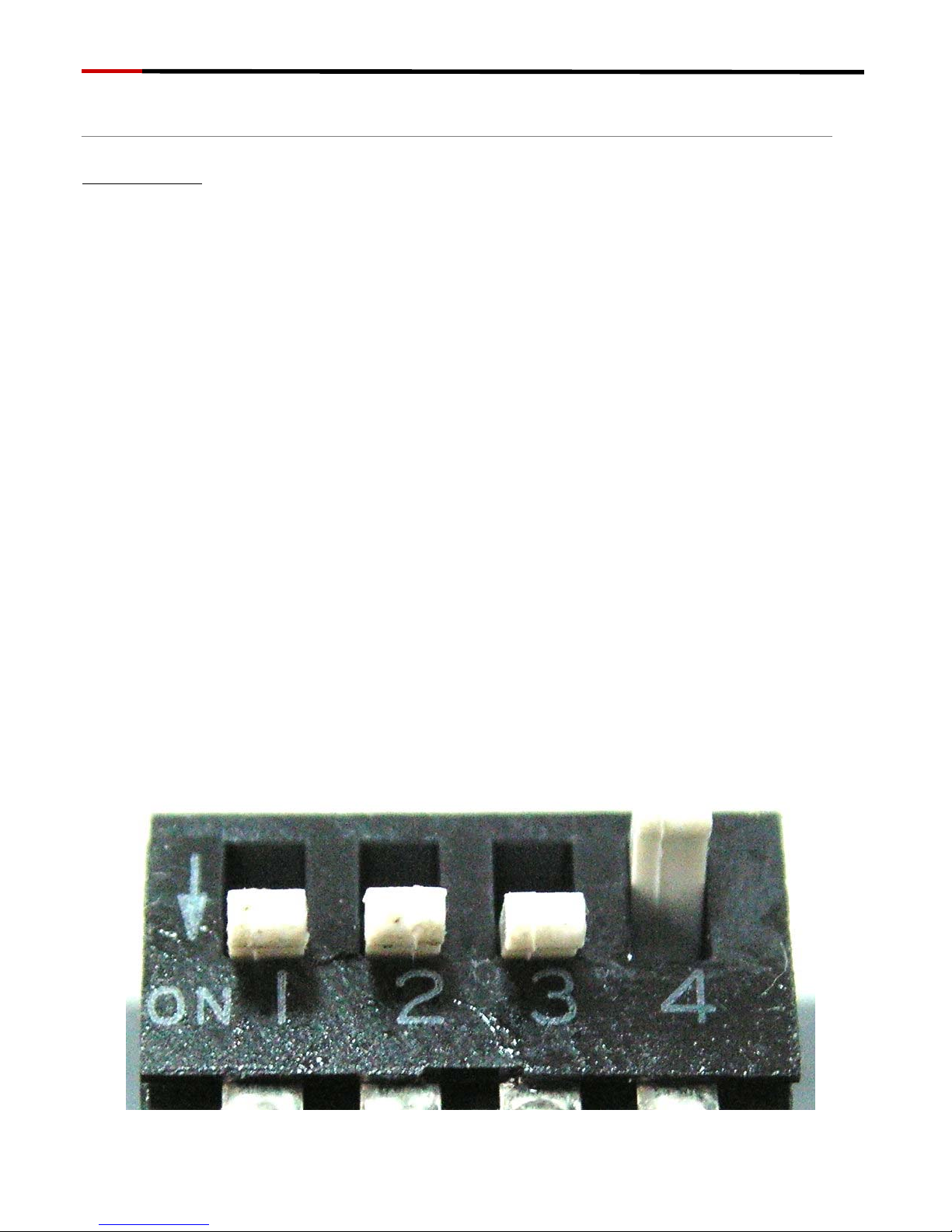

Reset Button Switching Jumper
Server RAID System [R2-RAID] UserManua
7
l
RAID Mode Selection
GUI SteelVine Manager Operation
GUI SteelVine Manager is available only under GUI Mode.
STEP1: Install SteelVine Manager (Please refer to page 23).
STEP2: Start the SteelVine Manager (Please refer to page 25).
STEP3: Click on “Configure Box” icon.
Server RAID System [R2-RAID] UserManua
8
l
STEP4: Select “Storage Policy” then click “Apply”.
STEP5: Click “Yes” to continue.
Server RAID System [R2-RAID] UserManua
9
l
Jumper Selection & Storage Policy Definitions
GUI MODE (factory default)：This mode allows you to use the SteelVine
Manager GUI to configure the storage policy and other settings as well as
monitor the status of the appliance (i.e., storage capacity, and RAID mode
of the desired hard drive). To select this mode the first time that the
product is used, ensure that the hard disk drives are installed, set
switching jumper on the back of the device to the GUI position and turn on
the power. In this mode, no virtual volume(s) will be created until the
storage policy and volume selections are made through the GUI. To
change from GUI mode to some other fixed storage policy thereafter, set
the switching jumper to the desired position and press the reset button to
create the new virtual volume(s).
