INSTRUCTIONS AND WARRANTY

MODEL NO. 19005-56

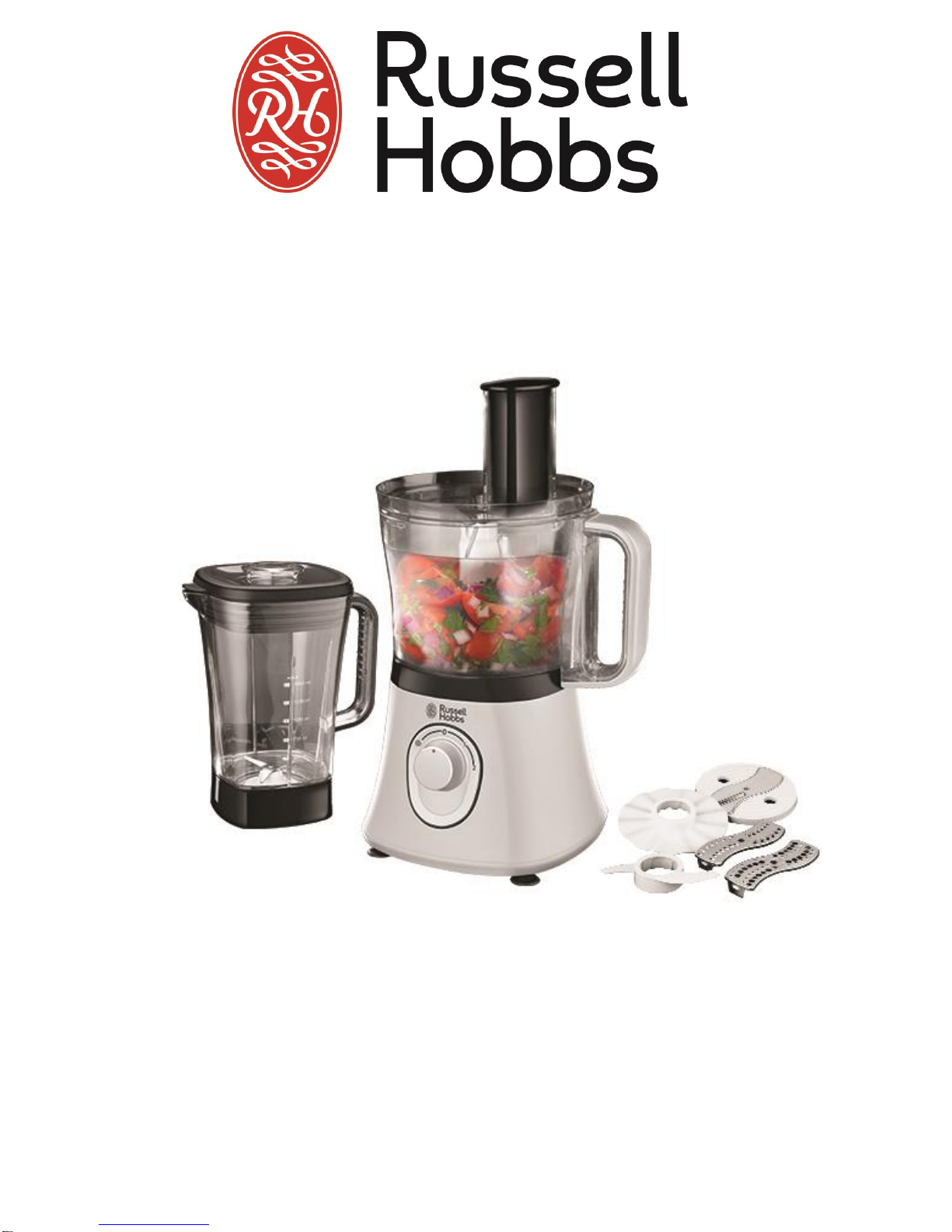

AURA 750W FOOD PROCESSOR

Congratulations on purchasing our Russell Hobbs Aura 750W Food Processor. Each

unit has been manufactured to ensure safety, reliability and ease of use. Before use,

please read these instructions carefully and keep them for further reference.

FEATURES OF THE RUSSELL HOBBS AURA 750W FOOD PROCESSOR

750W at maximum load

Includes stainless steel chopping blades, slicing / grating disc, dough tool and

creamer.

Chop, blend, shred, slice, whip up and mix ingredients in one unit to the exact

consistency you need at the touch of a button

Includes coffee and spice grinder for tougher ingredients like coffee beans, nuts and

spices.

1.5L usable capacity bowl for food processing

1.5L plastic jug blender for blending fruits, soups, smoothies and much more

2 speed settings and pulse

Double safety lock on bowl

Cord storage

Non slip feet for added stability

Dishwasher safe bowl and parts

For domestic use only

1 year warranty

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Read all instructions and save the instructions provided with this appliance.

2. Do not put the motor unit in water or any other liquid; do not use it in a bathroom or

near any source of water.

3. Do not use outdoors.

4. The unit must be used only by a responsible adult.

5. Switch OFF and unplug the unit from the main power supply outlet before dismantling

or cleaning.

6. Turn the switch to standby “0” / “OFF” before fitting/ removing the jug/bowl to/ from

the motor/ base unit.

7. Turn the switch to standby “0” / “OFF” and wait until the blades come to a complete

stop before removing the lid from the jug/bowl, and before removing the jug/bowl from

the motor/ base unit.

8. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

9. Children should be supervised to ensure that they do not play with the appliance.

10. Do not use the unit without first locking the lid in place.

11. Do not fill the jug/bowl with boiling liquids. Allow liquids to cool to a lukewarm

temperature before you put them in the jug/bowl. This type of temperature would be

comfortable to the touch.

12. Do not put your hand into the jug/bowl, even when they have been removed

for cleaning –the blades are very sharp.

13. Do not come into contact with moving parts.

14. Do not put any other object (spoon, spatula, etc.) into the jug/bowl while the unit

is plugged in.

15. Do not leave the unit unattended when plugged in.

16. Misuse of this appliance can result in injury.

17. Position the motor unit on a dry, firm, level surface, close to a power socket

and out of reach of children.

18. Route the mains lead so that it cannot be caught accidentally or tripped over.

19. Keep the unit and the mains lead away from hotplates, hobs and burners.

20. Store the unit away from direct sunlight and fluorescent light where

possible.

21. Do not let the jug/bowl overflow. If liquid gets under the motor unit, it

may be sucked into the motor, damaging it.

22. Do not fill the jug/bowl above the MAX mark. If you do, the contents may

force the lid off when you start the motor.

23. The unit is equipped with a powerful motor and therefore processes very

quickly. Due to its efficiency there is no need to run the motor for more than 2

minutes at a time.

24. Do not run the motor for more than 2 minutes, either continuously, or using

the pulse setting, otherwise it may overheat. After 2 minutes of use, switch it

off for at least 2 minutes allowing it to cool to room temperature and allowing it

recover.

25. Do not use the unit for any purpose other than those described in these

instructions.

26. Do not run the unit empty, as it may overheat.

27. Do not operate the unit after it malfunctions. If the mains lead or plug is

damaged, return the unit to the manufacturer in order to avoid any hazard.

28. Children should be supervised to ensure that they do not play with the appliance.

29. Always turn the power off at the power outlet before you remove the plug.

Remove by grasping the plug. Do not pull on the electrical cord.

30. This appliance is designed for processing household quantities; it is not

suitable for commercial purposes. Use the appliance only for the purpose it

was designed for.

31. Do not use this appliance if it or parts of it show visible damage or if the

appliance has been dropped.

32. Do not attempt to make any modifications to this appliance.

33. To avoid any risk and to remain within warranty, repairs to this appliance

must be carried out by an authorised service agent only.

34. To reduce the risk of injury, never place the blade assembly on the base

without the jar properly attached.

35. If the supply cord is damaged, it must be replaced by the manufacturer, its

authorised service agent or similarly qualified persons in order to avoid any

hazard.

36. Switch off the appliance and disconnect from the power supply before

changing accessories or approaching parts that move when in use.

37. Use only accessories provided by the manufacturer for this appliance.

38. Do not run this appliance with an external timer or remote control system.

PARTS DIAGRAM

0,1,2,3: speed control dial

11: creamer

19: fine grater

4: motor unit

12: tab

20: bottom of disc

5: spindle

13: food processor bowl lid

21: blade unit

6: blender jug

14: feed chute

22: seal

7: blender jug handle

15: pusher

23: cap

8: removable drive attachment

16: disc

24: grinder

9: dough tool

17: slicer

10: stainless steel chopping

blade

18: coarse grater

BEFORE FIRST USE

Before using your appliance for the first time take it out of the box and take off any

protective wrappings. REMEMBER: DO NOT LEAVE PROTECTIVE PACKAGING LYING

AROUND, AS IT COULD BE DANGEROUS AROUND INFANTS. Wash the bowl, jug,

lid and cap in warm soapy water, rinse well and dry. NOTE: The blades are sharp,

handle with care.

OPERATING INSTRUCTIONS

SWITCH ON

Place the motor unit on a dry, firm, level surface, near a power socket.

Check that the speed control is set to 0.

Put the plug into the power socket.

SPEED CONTROL

Turn the speed control to the speed you want (1 = low, 2 = high). Turn the speed

control back to 0 to turn the motor off.

Generally, large quantities, thick mixes, and a high ratio of solids to liquids suggest

longer timings and slower speeds.

Smaller quantities, thinner mixes, and more liquids than solids suggest shorter timings

and higher speeds.

Do not run the motor for more than 1 minute, or it may overheat. After 1 minute, switch

off for at least 2 minutes, to let the motor cool.

PULSE

Turning the speed control anti-clockwise will give you a short burst at high speed. In

this direction, the knob is spring-loaded. When you let go, it will return to 0.

USING THE BLENDER

Align the “arrow” on the bottom of the blender jug with the “open lock” on the motor

unit.

Lower the jug onto the motor body, then turn the jug to align the “arrow” with the

“closed lock”.

Pull the lever to open the lid.

Put the ingredients into the jug.

Do not fill past the 1500ml mark. If you do, the contents may force the lid off when you

start the motor. Close the lid.

Align the slots on the cap with the slots in the hole, fit the cap, and turn it clockwise to

lock it.

To add ingredients while the blender is working, remove the cap, pour the ingredients

through the hole, then replace the cap.

Check that the added ingredients do not push the volume in the jug past the 1500ml

mark.

USING THE PROCESSOR

Switch the appliance off (0) and unplug it.

Fit the spindle to the top of the motor unit.

Align the “arrow” on the bottom of the bowl with the “open lock” on the motor unit.

Lower the bowl on to the motor unit, then turn the bowl to align the “arrow” with the

“closed lock”.

Turn the lid to bring the “arrow” on the lid over the “open lock” on the bowl, and lift the

lid off. Choose the attachment you need.

CHOOSING THE RIGHT ATTACHMENT

Use the stainless steel chopping blade to pulverize ingredients.

Use the dough tool to mix ingredients together.

Use the creamer to thicken cream, to beat eggs, and to cream eggs and sugar

together.

Fit the selected attachment over the removable drive attachment, and slide it to the

bottom.

Lower the removable drive attachment into the centre of the jug, over the spindle. Put

the ingredients into the jug.

Do not fill past the 1500ml mark. If you do, the contents may force the lid off when you

start the motor.

Replace the lid, and turn it to bring the “arrow” on the lid over the “closed lock” on the

jug, to lock it in place.

To add ingredients while the motor is running: lift the pusher out of the feed chute, add

the ingredients via the feed chute, replace the pusher.

USING THE GRATING / SLICING ATTACHMENT

To fit the slicer or grater to the disc: insert the selected attachment into the centre of

the disc, lower the slicer/grater into the disc, secure the latch over the edge of the disc.

Lower the disc over the top of the spindle.

Replace the lid, and turn it to bring the “arrow” on the lid over the “closed lock” on the

jug, to lock it in place.

Remove the pusher, and slide the ingredients down the feed chute.

Replace the pusher, and use it to push the ingredients gently down the feed chute.

Do not use fingers or cutlery to push food down the feed chute –only the pusher.

The blade on top of the disc will slice or grate the food into the jug.

Do not let the jug get more than about half full –stop and empty it.

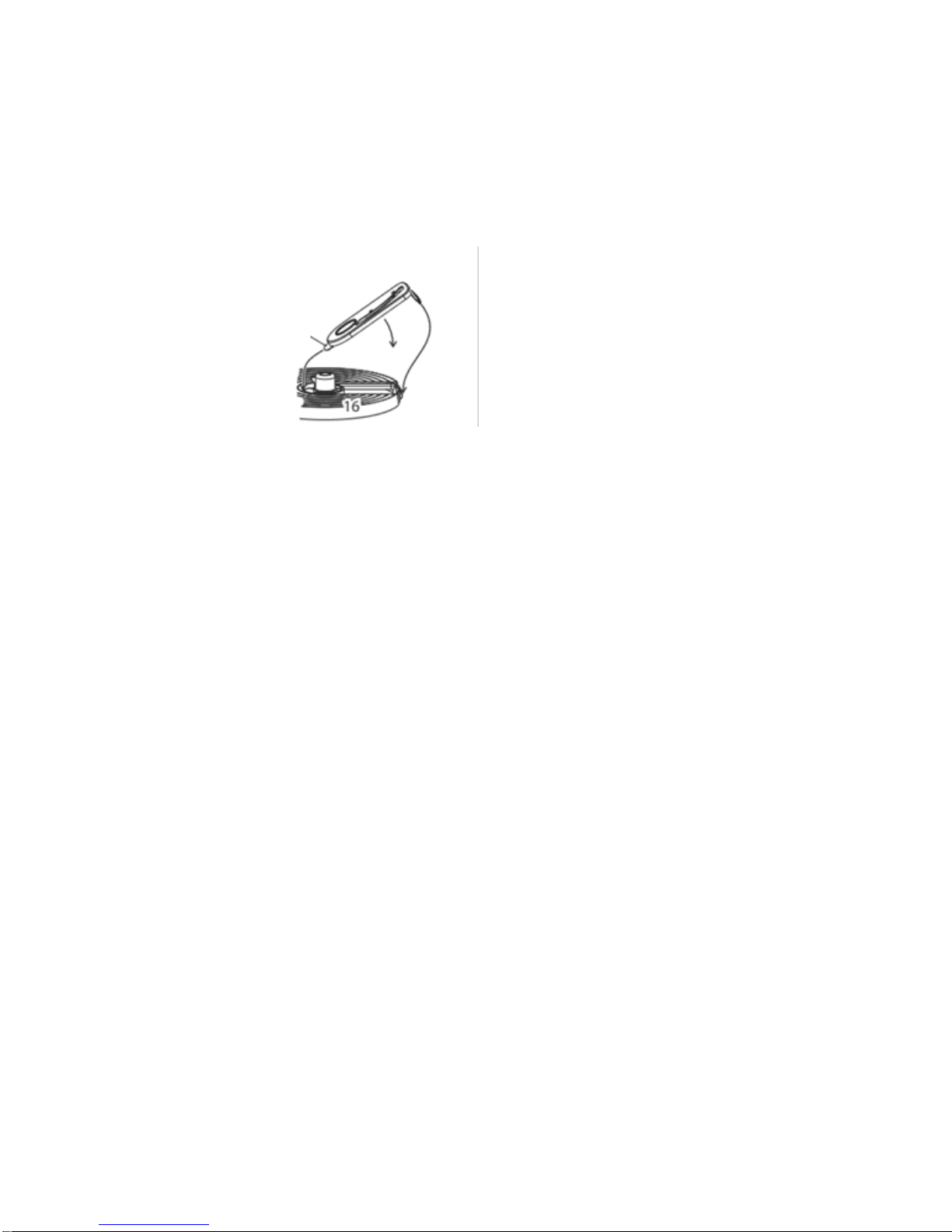

To remove the slicer or grater from the disc, ease the latch away from the side of the

disc, and lift the slicer/grater off.

USING THE MILL

Turn the mill base and bowl upside down.

Put the goods to be ground into the bowl –dry goods only.

Lower the mill base on to the bowl, then twist the base to the right, to lock it in place.

Turn the combined mill base and bowl the right way up.

Align the “arrow” on the bottom of the mill base with the “open lock” on the motor unit.

Lower the mill on to the motor unit, then turn, to align the “arrow” with the “closed lock”.

Turn the speed control in short bursts until you achieve the size of grind you want.

Turn the mill base to align the “arrow” with the “open lock”, and lift it off the motor unit.

Turn the mill base and bowl upside down.

Tap the bowl a couple of times to move all the grounds into the bowl. Hold the bowl,

turn the mill base clockwise, and lift it off.

CLEANING AND MAINTENANCE

This appliance is for household use only and is not user-serviceable.

Do not open or change any parts by yourself. Please refer to a qualified electrical

service department or return to the supplier if servicing is necessary.

Always remember to unplug the unit from the electrical outlet when not in use and

before cleaning.

Do not use bleach or other abrasive substance or solvents to clean your appliance as

it can be damaging to the finish.

Do not immerse the whole unit in water or any other liquid, or hold it under a running

tap to clean.

Unplug the unit from the mains before cleaning and storing away.

Clean soon after use, to prevent residues settling inside the jug/bowl.

Remove the jug/bowl from the motor unit. Wash the jug/bowl, lid and measuring cup

in warm soapy water, rinse well, then turn the jug/bowl upside downto drain and dry.

Keep hands out of the jug/bowl –BLADES ARE VERY SHARP.

If it is left for too long without cleaning and bits have glued themselves to the

inside of the jug/bowl, use a nylon brush to remove. If this does not work –crush a

few ice cubes in it.

Wipe the outside of the motor unit with a clean damp cloth.

Do not put the motor unit in water or any other liquid.

STORING THE APPLIANCE

Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure

that all parts are dry before storing.

Store the appliance in its box or in a clean, dry place.

Never store the appliance while it is still wet or dirty.

Never wrap the power cord around the appliance.

SERVICING THE APPLIANCE

There are no user serviceable parts in this appliance. If the unit is not operating correctly,

please check the following:

You have followed the instructions correctly

That the unit has been wired correctly and that the wall socket is switched on.

That the mains power supply is ON.

That the plug is firmly in the mains socket.

If the appliance still does not work after checking the above:

- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the

problem and you need to return the appliance, make sure that:

The unit is packed carefully back into its original packaging.

Proof of purchase is attached.

A reason is provided for why it is being returned.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised

service agent, in order to avoid any hazard. If service becomes necessary within the

warranty period, the appliance should be returned to an approved Home Of Living Brands

(Pty) Limited service centre. Servicing outside the warranty period is still available, but will,

however, be chargeable.

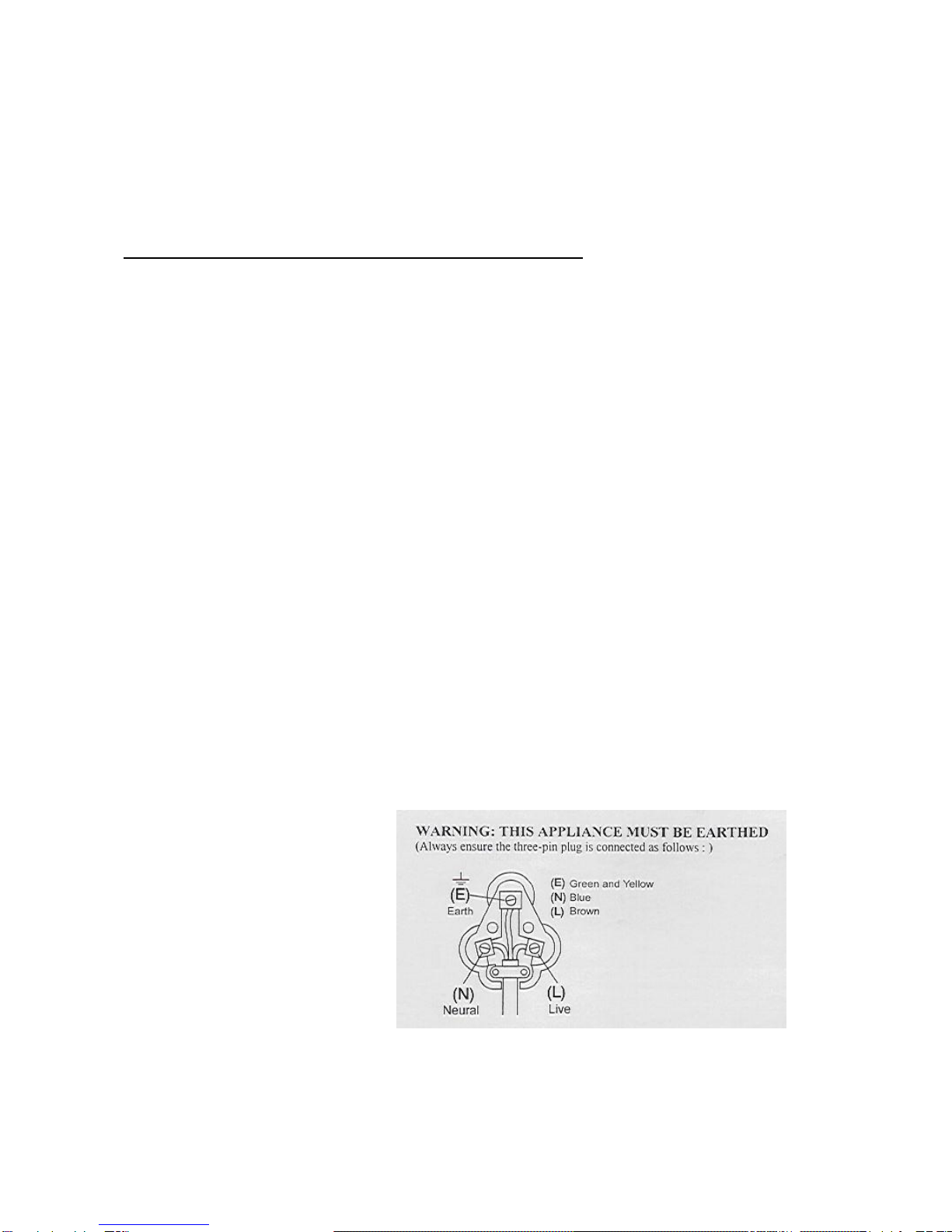

CHANGING THE PLUG

Should the need arise to change the fitted plug, follow the instructions below.

This unit is designed to operate on the stated current only. Connecting to other

power sources may damage the appliance. Connect a three-pin plug as follows:

The wires in this mains lead are coloured in accordance with the following code:

Green/Yellow = Earth

Blue = Neutral

Brown = Live

Indice

Altri manuali Russell Hobbs Robot da cucina

Russell Hobbs

Russell Hobbs RHPK1002 Scheda informativa del prodotto

Russell Hobbs

Russell Hobbs 24662-56 Manuale utente

Russell Hobbs

Russell Hobbs 20240AU Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 20320-56 Manuale utente

Russell Hobbs

Russell Hobbs RHFP3000 Series Manuale utente

Russell Hobbs

Russell Hobbs 14499 Manuale utente

Russell Hobbs

Russell Hobbs 24662 Manuale utente

Russell Hobbs

Russell Hobbs 25180-56 Manuale utente

Russell Hobbs

Russell Hobbs 21510-56 Manuale utente

Russell Hobbs

Russell Hobbs 14450 Manuale utente

Russell Hobbs

Russell Hobbs RHFP750 Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 23810-56 Manuale utente

Russell Hobbs

Russell Hobbs T22-5000583 Manuale utente

Russell Hobbs

Russell Hobbs 18553 Guida rapida

Russell Hobbs

Russell Hobbs 19440-56 Manuale utente

Russell Hobbs

Russell Hobbs 25920 Manuale utente

Russell Hobbs

Russell Hobbs FP3100RDR Manuale utente

Russell Hobbs

Russell Hobbs 19006-56 Manuale utente

Russell Hobbs

Russell Hobbs Compact Home 25280-56 Manuale utente

Russell Hobbs

Russell Hobbs RHMP750 Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs RHFPT2 Guida all'installazione

Russell Hobbs

Russell Hobbs DESIRE RHMFP5BLK Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 19440-56 Manuale utente

Russell Hobbs

Russell Hobbs 24730-56 Manuale utente

Manuali Robot da cucina popolari di altre marche

INNOLIVING

INNOLIVING INN-727 Manuale utente

Berkel

Berkel C32 Manuale utente

Beko

Beko CHP5554W Manuale utente

KitchenAid

KitchenAid 5KFP0719 Manuale utente

QUIGG

QUIGG KM 2017Wi.20 Manuale utente

Lakeland

Lakeland PRESS AND CHOP 31557 Manuale utente

Bosch

Bosch MMR08 GB Series Manuale utente

HOFFEN

HOFFEN Chef Express T9532 Manuale utente

Garland

Garland 852 ZG Manuale utente

Robot Coupe

Robot Coupe CL50 Gourmet Manuale utente

SAPIRHOME

SAPIRHOME SP-1111-K Manuale utente

Moulinex

Moulinex DJ3051 Manuale utente

Bosch

Bosch MUM5 Manuale utente

cecotec

cecotec Mambo Touch Manuale utente

KitchenAid

KitchenAid 9KFC0516 Manuale utente

Black & Decker

Black & Decker hc 300 Istruzioni per l'installazione

Gorenje

Gorenje SBR 1000 DV Manuale utente

Arzum

Arzum AR 1128 Manuale utente
