Sanus Systems PFV59S Guida all'installazione
PLATINUM FURNITURE
Assembly Instructions
MODEL PFV59s - Digital TV Stand
Congratulations and thank you for purchasing your new Sanus
Platinum Furniture Product. If you have any questions regarding
this or any other Sanus product, please contact our customer
service department at ( 00)359-5520, or www.sanus.com. It is
not necessary to contact the retailer with any questions or
problems, as parts can be sent directly to you
BUS5306
BUS5306
We recommend that the unit is assembled on a soft surface
such as carpet. Please record your serial number in the space
provided below and retain this manual for future reference.
Serial No
Please follow these assembly instructions. This will save you
time, make assembly easier and prevent possible damage to
your new Digital TV Stand. Assistance may be required for
some assembly procedures. Correct assembly is your
responsibility.
This unit was manufactured using ISO 9000 certified systems.
For improvement purposes, design and specifications are subject to
change without notice.
Thin side
2. PRODUCT MODEL NAME/NUMBER AND COLOR.
OF REQUIRED PARTS.
4. PURCHASE DETAILS:
(LOCATED ON REAR OF UNIT)
5. SERIAL NUMBER OF THE UNIT PURCHASED.
-DATE OF PURCHASE.
-STORE THE UNIT WAS PURCHASED FROM.
THE TOLL FREE NUMBER WITHIN 14 DAYS OF PURCHASE.
TOLL-FREE NUMBER - (800) 359-5520 (USA ONLY)
1. YOUR NAME, ADDRESS AND TELEPHONE NUMBER.
THE FOLLOWING INFORMATION MUST BE SUPPLIED IN FULL:
CUSTOMER SERVICE INFORMATION
3. DESCRIPTION, PART NUMBER AND QUANTITY

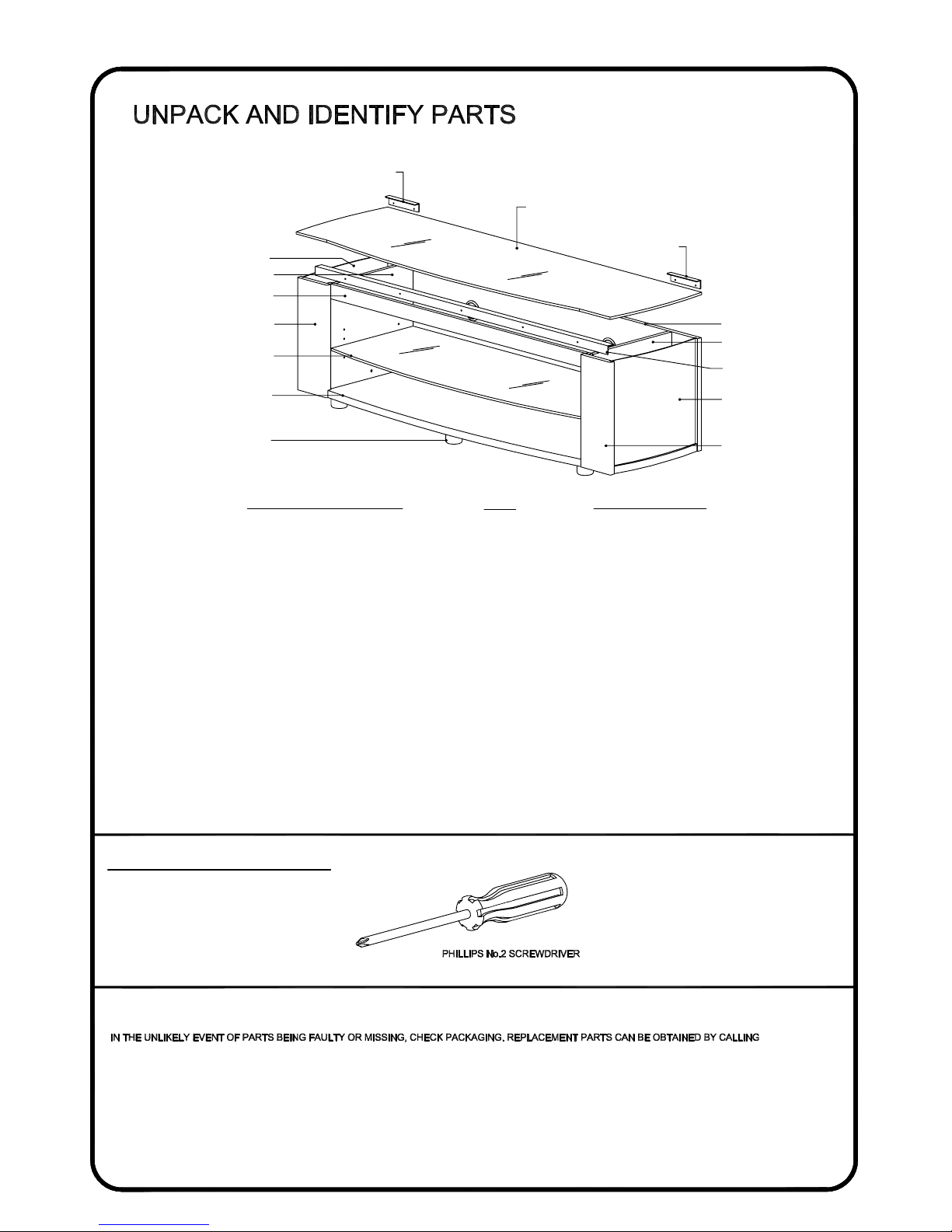

TOOLS REQUIRED:
Steel bracket
Glide (gray / black)
Base
Glass shelf
Left front
Long rail
Left side
Angle bracket
Glass top
Thin side
Back
Right side
PART NUMBER
QTY
PART DESCRIPTION:
Base
Left side
Right side
Thin side
Right front
Left front
Long rail
Back
Glass top
Glass shelf
Steel bracket
Angle bracket
Cable duct
Gray glide
Black glide

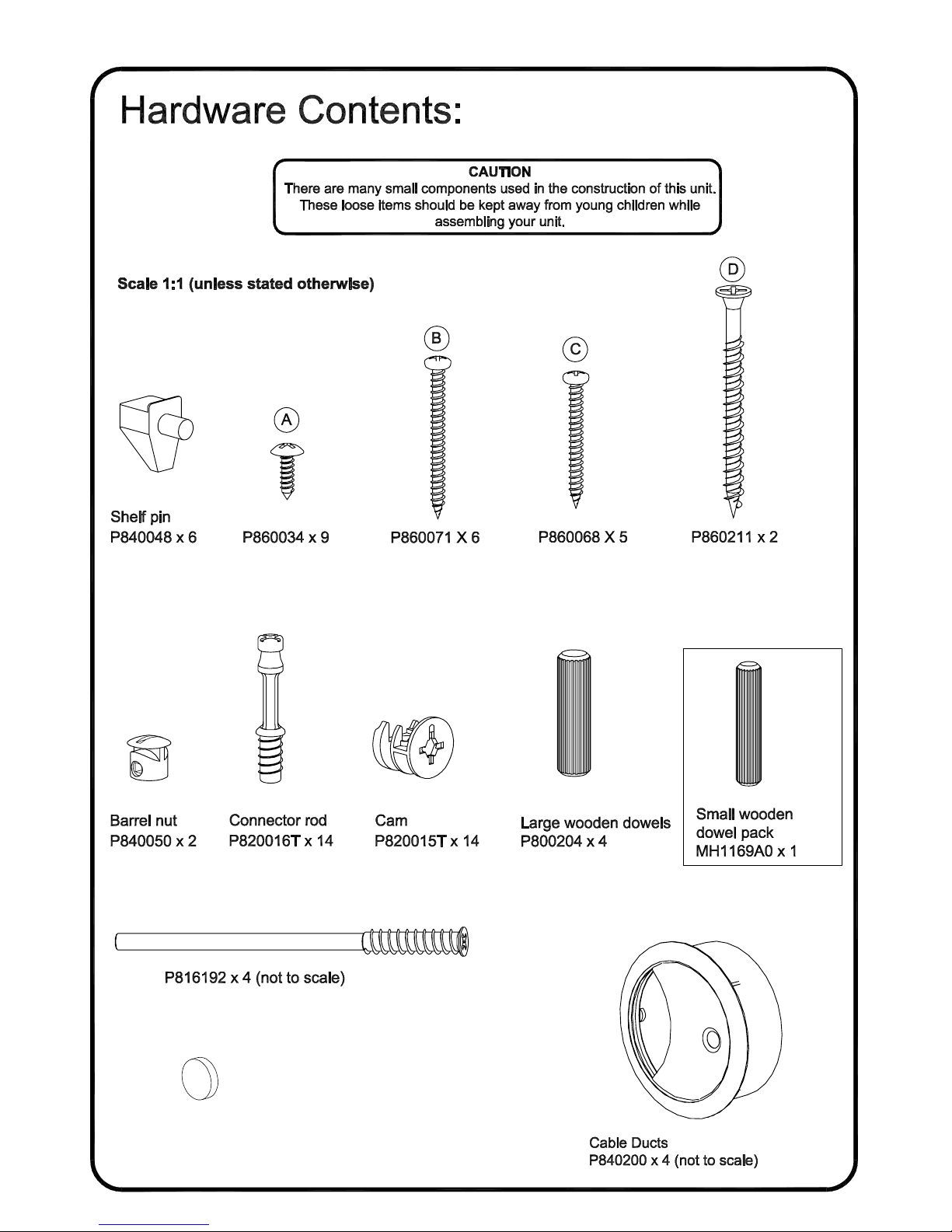

Hardware pack
M20205A1PO
M20206A1ZS
M20207A1ZS
M20208A1ZS
M20209A1ZS
M20210A1ZS
M20211A1ZS
M20212A1PO
M20213A1PO
M20214A1PO
P816190
P816191A
P840200
P815034A
P815034
MH1181A0
1
1
1
2
1
1
1
1
1
1
1
2
4
3
3
1
Right front
Angle bracket
Bump-on
P840022 x 18
Right front panel
Left front panel
Screw 3 connector rods into holes in left and right front panels as indicated above.
Press fit 2 large wooden dowels into large holes in left and right panels as shown.
B
Glide (gray/black)
x6
Large wooden dowels x 4
Base (underside)
x6
Fasten 6 glides to the base as shown.
Note that there are 3 gray and 3 black glides. Use gray glides at front of the base if the stand is going to
be placed on a light colored floor. Use Black glides at the front if the stand is going to be placed on a
dark colored floor.
Front edge
Back edge
Left side panel
Right side panel
Insert cams into large holes in left and right sides as shown.
Make sure arrows on the cams point towards the corresponding cam holes along the edges of the panels.
Press fit small wooden dowels into left and right sides as shown above.
Left side panel Right side panel
x12
Small wooden dowels
x12
Back
Base
Screw 4 connector rods into holes in the base as indicated above.
Insert 2 cams into large holes in the base as shown above.
Screw 4 connector rods into holes indicated in back panel.
x4
x4
x2
Assistance may be needed for this step.
Left side panel
Right side panel
Press fit the sides and back assembly onto the base as shown. Turn the cams clockwise to tighten.
Press fit the sides to the back as shown above. Turn the cams clockwise to tighten.
Press fit 4 cable ducts into large holes in the back as shown.
Cable duct
D
C
Hold the long rail in between the sides as illustrated.
Insert the black barrel nuts into the holes in the long rail.
Ensure the holes in the sides are aligned with the holes in the long rail.
Fasten the sides to the long rail as shown.
Fasten the back to the base as shown above.
x2
x2
x5
Long rail
Assistance may be needed for this step.
Thin side
Adjusting screw x 4
Press fit the front panels to the sides and base as shown.
Turn the cams clockwise to tighten.
Slide thin sides down slots in front panels and back, ensuring silver surfaces face out.
Screw each adjusting screw into sides by half of it's visible threaded length, then once this is
done, tighten all 4 Adjusting screws fully into sides.
A
Once the bracket is adjusted in the sides, fasten it to the long rail using the screws shown above.
It is important that you hold the long rail against the steel bracket as you tighten the screws.
x5
Fit the long steel bracket into the rebate in the long rail and in the grooves in the sides as shown above.
Ensure the bracket is equally distanced from the sides on both ends.
Steel bracket
