Features of This Camera

Specifications

Name and Function of Each Component

Connections

Lens Installation

Lens Adjustment

Viewing Firmware Version

Introduction1

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most

advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you

can operate the camera via the network in an easy-to-use manner.

The camera supports bidirectional audio communications, enabling you to communicate with people at the

camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the

camera.

In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations

where there is no power outlet nearby.

The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.

The camera can deliver full HD H.264 video throughout the network. Connecting a high-definition monitor to

your PC enables full high-definition video monitoring.

Using multi-stream video transmission, it can simultaneously deliver up to four video/ima

e streams. Because

it allows video/image compression format, resolution, and other image conditions to be set as desired for

each stream, you can choose the optimal video/image for your application.

The camera offers the focus assist function that supports focus adjustment at megapixel image resolution,

allowing you to fine-tune the focus in optimal conditions in an easy manner.

The digital PTZ function lets you clip specific areas of the subject in VGA size and perform pan, tilt, and zoom

operations just as when using a PTZ camera.

The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the

construction of a high-level security system.

Installing an SD memory card (optional) lets you record alarm video with the camera.

Installing associated software applications on your PC further extends the capabilities of your surveillance system.

Introduction 2

Image pickup device 1/3" CMOS sensor

Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)

Lowest image

illumination

50IRE: 1.0 lx (at F1.2, color mode, high gain)

50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)

Video S/N ratio 50dB (when AGC is “OFF”)

Lens mount CS mount

Flange back adjustment 12.5±0.5 mm, electrical flange back adjustment (Focus assist function)

Day/Night function Auto, color, black-and-white, alarm input switching

White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,

fluorescent

Backlight compensation Multi-spot evaluative metering, center-weighted evaluative metering, masking, face

detection

Electronic sensitivity

boosting

Auto (32× max) or Off

Electronic shutter VCC-HD2500P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

VCC-HD2500: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)

Electronic iris ON/OFF (Set [SHUTTER] to “EI”.)

Iris control DC iris lens supported

Electronic zoom Max. 16×

Digital PTZ Enables electronic pan, tilt, and zoom operations on clipped subject areas in VGA

size.

Camera settings Selectable between 2 camera setting patterns

AGC gain Normal/Middle/High (Manual gain setting possible at Off)

Gamma correction 0.45, 1, Mode 1, Mode 2

Aperture compensation On/Off (Correction level adjustable)

VIVID COLOR EFFECT ON/OFF

DNR ON/OFF

Mirror H/V/HV/OFF

Privacy mask On/Off, max. 8 mask patterns

Motion sensor On (Motion masking/motion detection area setting, or video analytics)/Off, face

detection function supported

Language selection English, French, German, Spanish, Japanese

Video output Composite output

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

Card slot 1 (SDHC compliant, max. 32 GB supported)

There are recommended SD memory cards.

Alarm input 2 (NO/NC), also serving as Day/Night switching terminal

Alarm output 2 (NO/NC, 16V, 150 mA, open collector)

Audio input/output Microphone input (3.5-mm mini jack)

Line output (3.5-mm mini jack)

Introduction 3

Recording mode Alarm recording, backup recording in event of a network failure

Image/video

compression

H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240

Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360

(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

Audio G.711 (Bidirectional)

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

Operating ambient

temperature/humidity

–10 to +50°C, 90% RH or less (no condensation)

Power source 12 to 15 VDC/24 VAC±10%, 50/60 Hz, PoE

Power consumption 6,8 W

Weight 250 g

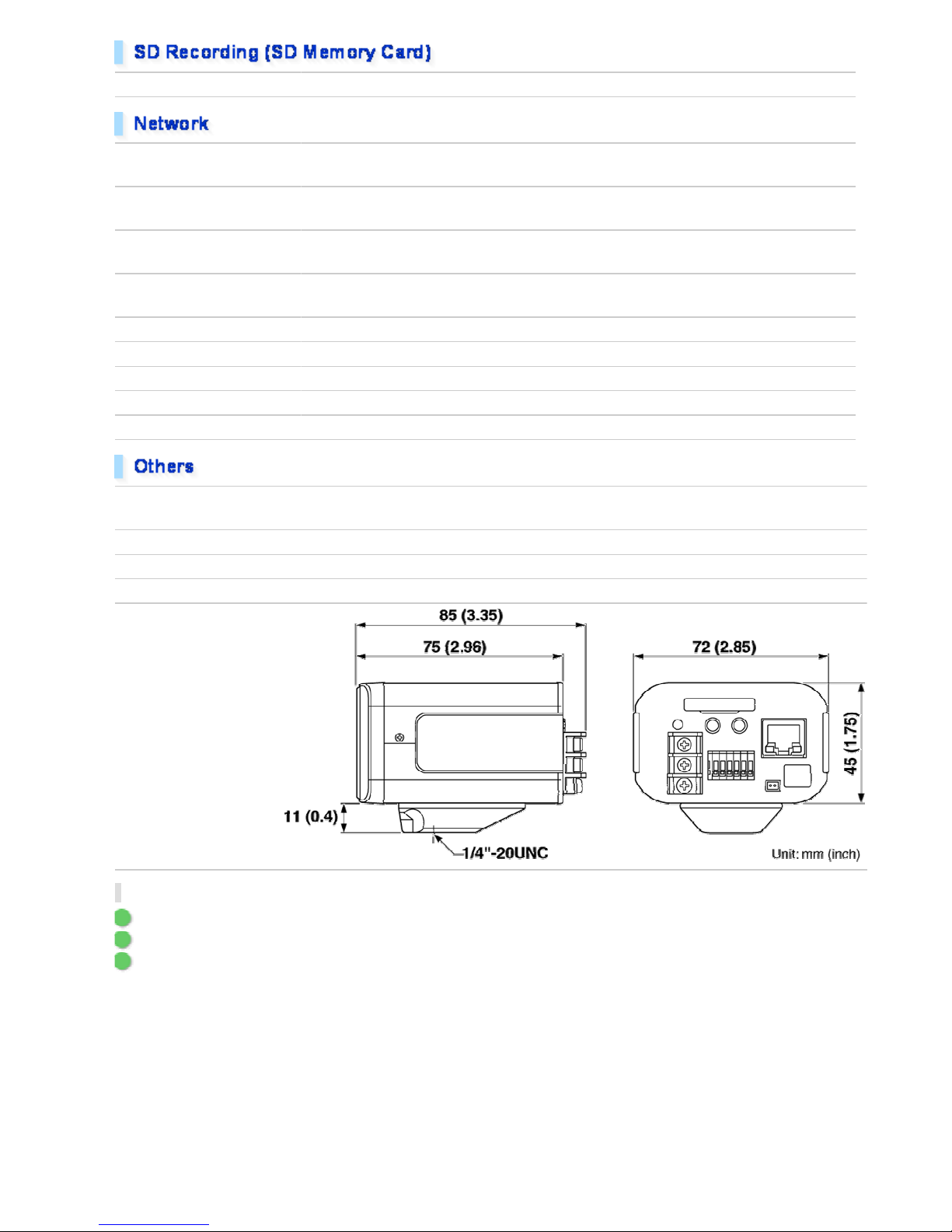

Dimensions

Accessories

1Video cable

2Cable holder for wiring

3CD-ROM

Introduction 4

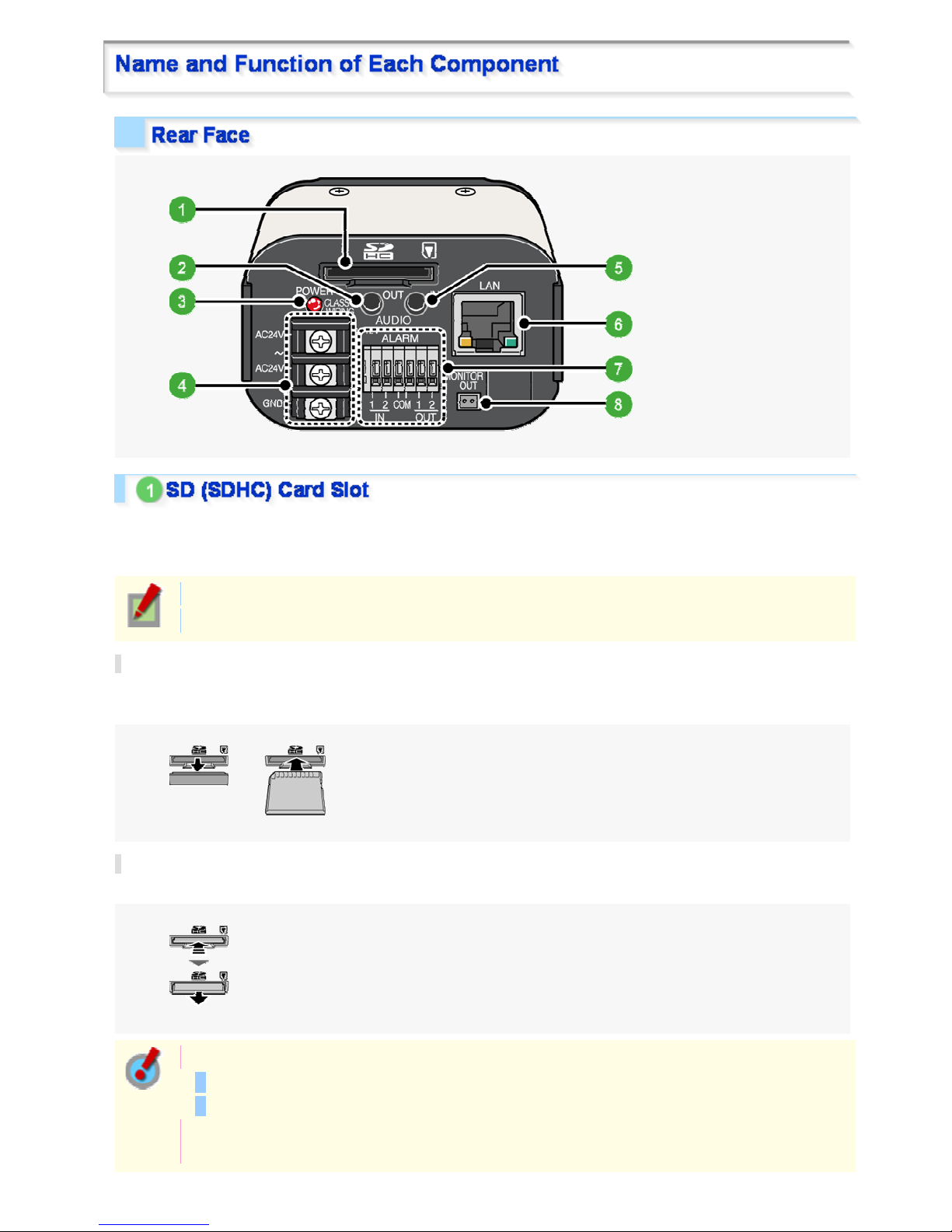

Use this slot to install an SD memory card (a type of SD card containing an SLC chip) for backup purposes.

This enables alarm video, backup video in the event of network failures, log information, and other data to be

stored with the camera.

You can format the SD memory card via network operation on the SD MEMORY CARD screen.

The power indicator will blink if an error occurs on the SD memory card.

How to insert the SD card

Turn off the camera and remove the protective cap. Then, with the label side facing down, insert an SD memory

card until you hear a click.

How to remove the SD card

Push the SD card a bit further into the slot to eject it.

Before removing the SD card, follow one of the steps below.

Set [SD MEMORY CARD] to “NO USE” on the SD MEMORY CARD screen via network operation.

Or, press the NEAR button provided on the left-side face of the camera for 2 seconds or more.

Doing so causes the power indicator to start blinking and then stay lit when the camera is ready for

you to remove the SD memory card.

Introduction 5

Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.

This indicator lights up when the camera is powered on.

When the camera is on, this indicator blinks to indicate the following camera statuses:

Recording to SD memory card stopped

Firmware update in progress

An SD memory card error occurred (Fast blink)

Use these terminals to connect a 24 VAC or 12 VDC power supply. The power indicator li

hts up when the camera

is powered on.

For details, refer to the “Basic Connections” section.

Use this jack to connect an optional external microphone to listen to the sound while monitoring the surveillance

video, or simultaneously record the video and sound.

This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs (the

left channel only for stereo plugs).

Use this socket to connect the camera to your PC to enable network operation.

For details, refer to the “Basic Connections” section.

Right: Link access indicator (Green)

This indicator lights up approx. 3 seconds after power on, if a connection has been established

between the camera and the network.

After that, it will blink when data are being transmitted via the network.

Left: Speed indicator (Orange)

The camera automatically detects the local network transmission speed (10BASE-T or 100BASE-

TX).

This indicator lights up when 100BASE-TX data transmission is in progress; it goes out when

10BASE-T data transmission is in progress.

For the detailed connection procedure, refer to the “Alarm Input/Output Terminal Connections” section.

1Alarm input or Day/Night switching terminals (ALARM IN1/2)

These input terminals can be used for either of the following purposes:

Alarm input

Connecting an external switch, infrared sensor, or other device to these terminals enables the camera to

detect alarm conditions such as the entry of an intruder.

Day/Night switching

Normally, switching the camera between the color and black-and-white video modes is automatically

accomplished by the Day/Night function.

Introduction 6

Using one of these alarm input terminals as the Day/Night switching terminal, however, enables the camera

to be switched between the color and black-and-white video modes when an external control signal is

received.

Using network operation, under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal

you want to use in [EXT ALARM].

Then, in [POLARITY] under [ALARM SETTINGS], select the signal polarity of the alarm input

terminal.

2Alarm output terminals (ALARM OUT1/2)

Connect a buzzer, lamp, or other alarm device to these terminals.

3COM terminal (Earth grounding terminal)

Connect the camera to your monitor via the supplied video cable.

You can perform focus and iris adjustments while monitoring live video on the monitor.

For details, refer to the “Basic Connections” section.

Use this socket to connect an optional auto iris lens.

For details, refer to the “Lens Installation” section.

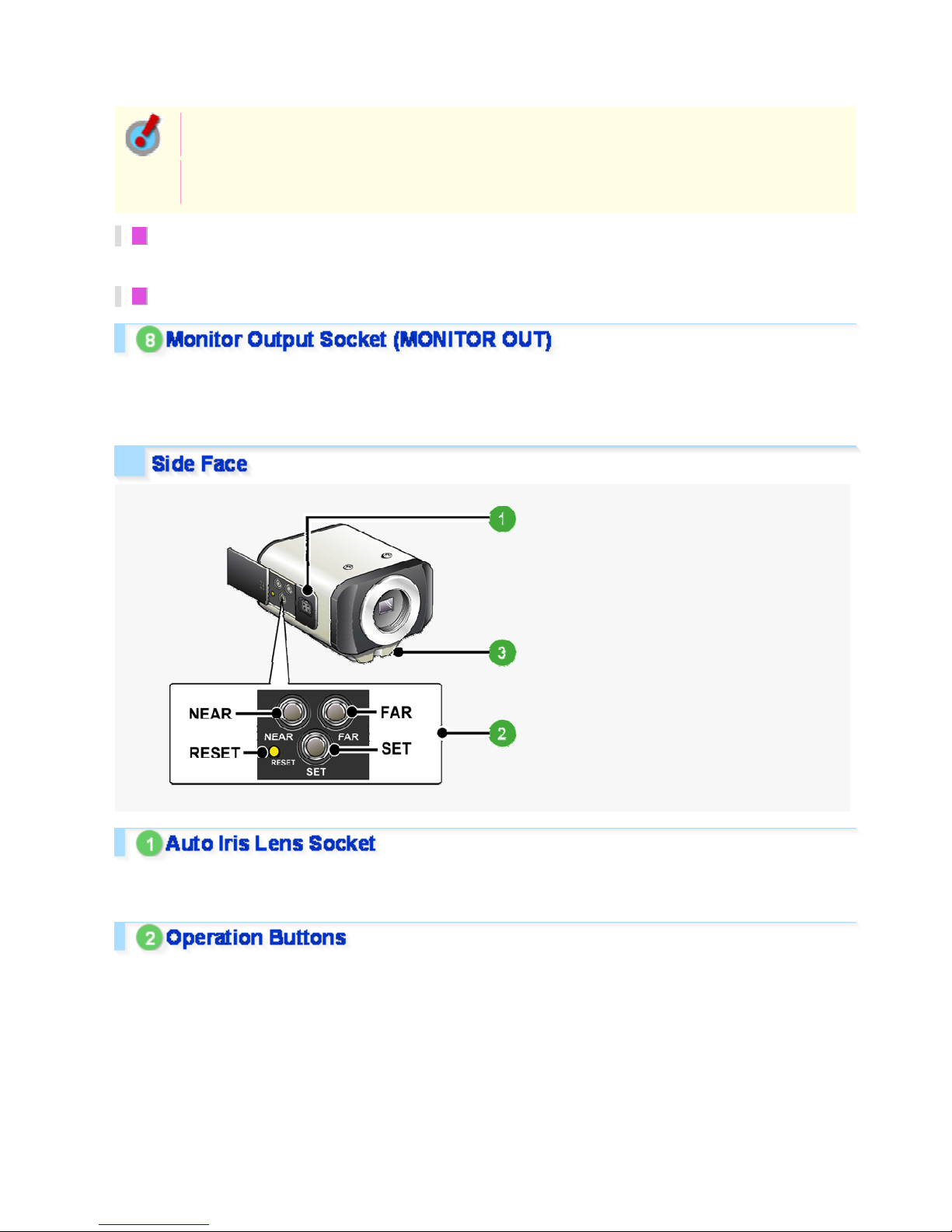

Use the buttons provided on the left-side face of the camera to perform the following operations.

These operations may be performed with the Web browser installed on your PC. For details, refer to the linked

information.

Introduction 7

Operation Associated button and use Equivalent network

operation screen

Restarting camera Press the RESET button. OPTION SETTINGS

(CAMERA REBOOT)

Stopping recording/Removing SD

memory card

Press the NEAR button for 2 seconds or more.

Doing so causes the power indicator to start

blinking and then stay lit when the camera is

ready for you to remove the SD memory card.

SD MEMORY CARD

(SD MEMORY CARD)

Resuming stopped

recording/Having camera

recognize SD memory card

Press the FAR button for 2 seconds or more.

The power indicator starts blinking and then

stays lit when the camera has recognized the

SD memory card.

Restoring factory default settings Press the NEAR and SET buttons

simultaneously. OPTION SETTINGS

(FACTORY DEFAULT)

Restoring factory default back

focus position

Press the NEAR and FAR buttons

simultaneously. CAMERA SETTINGS

(FOCUS ASSIST)

Resetting login password

(for default users only)

Press the FAR and SET buttons

simultaneously. Not supported via

network operation

Adjusting focus For details, refer to the “Lens Adjustment”

section. CAMERA SETTINGS

(FOCUS ASSIST/IRIS

SETTINGS)

Adjusting iris

Viewing Firmware Version For details, refer to the “Viewing Firmware

Version” section. OPTION SETTINGS

(FIRMWARE UPDATE)

Be sure to stop recording once before attempting to restart the camera or restoring the factory default

settings. Performing these operations during recording prevents correct video recording.

This bracket may be attached to either the top or bottom face of the camera depending on the installation

environment.

For bracket installation, be sure to use the longer screws supplied.

Install the camera securely to a durable location, taking into account the total weight of the camera

mount (commercially available) and the camera.

Introduction 8

Perform the following connections according to the installation environment and application of your camera.

Basic Connections

Alarm Input/Output Terminal Connections

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.

AConnection to 24 VAC power supply

Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth

grounding) terminal.

BConnection to 12 VDC power supply

Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.

Incorrect polarity may cause damage to the camera.

Be sure to use an 18AWG or thicker wire power cable.

A voltage drop may occur depending on the thickness of the power cable. If you must use a long

power cable, determine the cable type by ensuring that the voltage at the 24-VAC/12-VDC terminals

is within the operating range of the camera.

When using PoE to power the camera, do not use the camera's power terminals.

This camera is designed so that you can use all of its functions via network operation.

By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and

operate it from the Web browser installed on your PC.

Introduction 9

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.

About the internet connection

Port forwarding for the video port must be enabled on the broadband router.

For details on how to set port forwarding, please refer to your router's Instruction manual.

To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port

numbers that are different from that of the first camera.

Using PoE

This camera supports PoE (Power over Ethernet). This means that you can install the camera in locations where

there is no 24-VAC/12-VDC power outlet nearby.

When using PoE to power the camera, do not use the camera's power terminals.

Do not power the PoE hub or PoE power adapter until you finish connecting the camera.

AConnecting the PC and camera through a switching hub

You can use a PoE-compatible switching hub to extend the transmission distance.

For details on the extendable distance, please refer to the hub performance in the specifications, etc.

BConnecting the PC and camera through a switching hub and a power adapter

Introduction 10

Altri manuali per VCC-HD2500P

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sanyo Telecamera di sicurezza

Sanyo

Sanyo VCC-9000EBCP/EBSP Manuale utente

Sanyo

Sanyo VCC-XZN600P Manuale utente

Sanyo

Sanyo VCC-6975P Manuale utente

Sanyo

Sanyo VCC-6584E - 1/3" Color CCD DSP High-Resolution... Manuale utente

Sanyo

Sanyo VDC-HD3300 - Full HD 1080p Vandal Dome... Manuale utente

Sanyo

Sanyo VCB-3412P Manuale utente

Sanyo

Sanyo VCC-9624 Manuale utente

Sanyo

Sanyo VCB-3442P Manuale utente

Sanyo

Sanyo VDC-HD3100 - Full HD 1080p Vandal Dome... Manuale utente

Sanyo

Sanyo VCC-P7574 - 1/4" Color CCD Indoor Mini Dome... Manuale utente

Sanyo

Sanyo VCC-4312P Manuale utente

Sanyo

Sanyo VCC-HD5400 Manuale utente

Sanyo

Sanyo VDC-DP7584 - 1/4" Color CCD Vandal-Resistant Dome... Manuale utente

Sanyo

Sanyo VDC-HD3500P Manuale utente

Sanyo

Sanyo VCC-3944 - 1/4" Color CCD DSP Camera Manuale utente

Sanyo

Sanyo VCB-3572IRP Manuale utente

Sanyo

Sanyo VCC-HD4600 - Full HD 1080p Day/Night Network... Manuale utente

Sanyo

Sanyo VCC-P7575P Pan-Focus Manuale utente

Sanyo

Sanyo VPC-MZ1E Manuale utente

Sanyo

Sanyo VCC-9800 Manuale utente

Sanyo

Sanyo VCC-4594P Manuale utente

Sanyo

Sanyo VCC-4115P Manuale utente

Sanyo

Sanyo VCC-P9574S - 1/4" CCD Pan-Focus PTZ Dome... Manuale utente

Sanyo

Sanyo THINK GAIA VCC-HD4600 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
