Sartorius PT-10 Manuale utente

98648-010-97

Operating Instructions | Betriebsanleitung | Mode d’emploi |

Instrucciones de funcionamiento | Istruzioni per l'uso

Sartorius

Portable Meter

PT-1 , PT-1 P, PT-1 -P2

Portable pH/mV Meter | Tragbares pH/mV-Meter |

pH-mètre/millivoltmètre portable | medidor pH/mV portátil | pH/mV-metri portatili

English – page 3

In cases involving questions

of interpretation the German-language

version shall prevail.

Deutsch – Seite 25

Im Auslegungsfall ist die

deutsche Sprache maßgeblich.

Français – page 47

En cas de questions concernant

l’interprétation la version

en langue allemande fera autorité.

Español – página 69

En caso de interpretación

la versión en lengua alemana

será determinante.

Italiano – pagina 91

In caso di interpretazione

fa testo la versione

in lingua tedesca.

Contents

16 Operating the Meter: pH Mode

18 Standardizing the Meter

for Millivolt Measurement

19 Operating the Meter:

Toggling between Relative mV

Mode and Absolute mV Modes

20 Temperature Compensation

21 Troubleshooting

22 Overview

22 Specifications

23 Accessories

24 Declaration of Conformity

3Contents

4Intended Use

5Warning and Safety Information

6General View of the Equipment

7Getting Started

7 Equipment Supplied

8 Installing the Battery

9 Connecting the Equipment to

AC Power (Optional)

10 Installing Electrodes

13 Standardizing the Meter

for pH Measurement

16 Operating the Meter:

Measurement

Intended Use

The PT Portable Meters from Sartorius

measure pH mV and temperature within

the following ranges:

– pH range: 0.00 to 14.00

– Measurement range in mV: -1800 to +1800

– Measurement range in °C: -5 to +105

PT portable meters ease your workload and speed

up your routine with the following features:

– Simple operation

– Rugged sturdy construction

– Battery operation using a 9-volt battery

(optional AC adapter available separately)

– Easy to standardize with 1 2 or 3 standardiza-

tion points

– Automatic buffer detection

– Automatic electrode test during standardization

– Automatic temperature compensation

– Clear readout with easy-to-understand symbols

and LCD

Warning and Safety Information

The PT portable meter complies with

the European Council Directives as

well as international regulations and

standards for electrical equipment

electromagnetic compatibility and

the stipulated safety requirements.

Improper use or handling however

can result in damage and/or injury.

§To prevent damage to the equipment

read these operating instructions

thoroughly before using your portable

meter. Keep these instructions in a safe

place. Please observe the following to

ensure safe and reliable operation of

your portable meter:

!Do not use this equipment in hazardous

areas/locations.

!If you use electrical equipment in

installations and under ambient condi-

tions requiring higher safety standards

you must comply with the provisions as

specified in the applicable regulations

for installation in your country.

!If you use an AC adapter make sure

the voltage rating printed on the AC

adapter is identical to your local line

voltage.

– Use Sartorius accessories as these are

optimally designed for use with your

portable meter.

– The buffer solution used for standardi-

zation must match the stored values

exactly.

– Note on installation:

The operator shall be responsible for

any modifications to Sartorius equip-

ment and must check and if necessary

correct these modifications. On request

Sartorius will provide information on

the minimum operating specifications

(in accordance with the Standards listed

above for defined immunity to interfer-

ence).

Industrial protection ratings for the

housing:

– Portable meter: IP67

– AC adapter (optional): IP20

$If you have any problems with your

portable meter:

contact your local Sartorius office

dealer or service center.

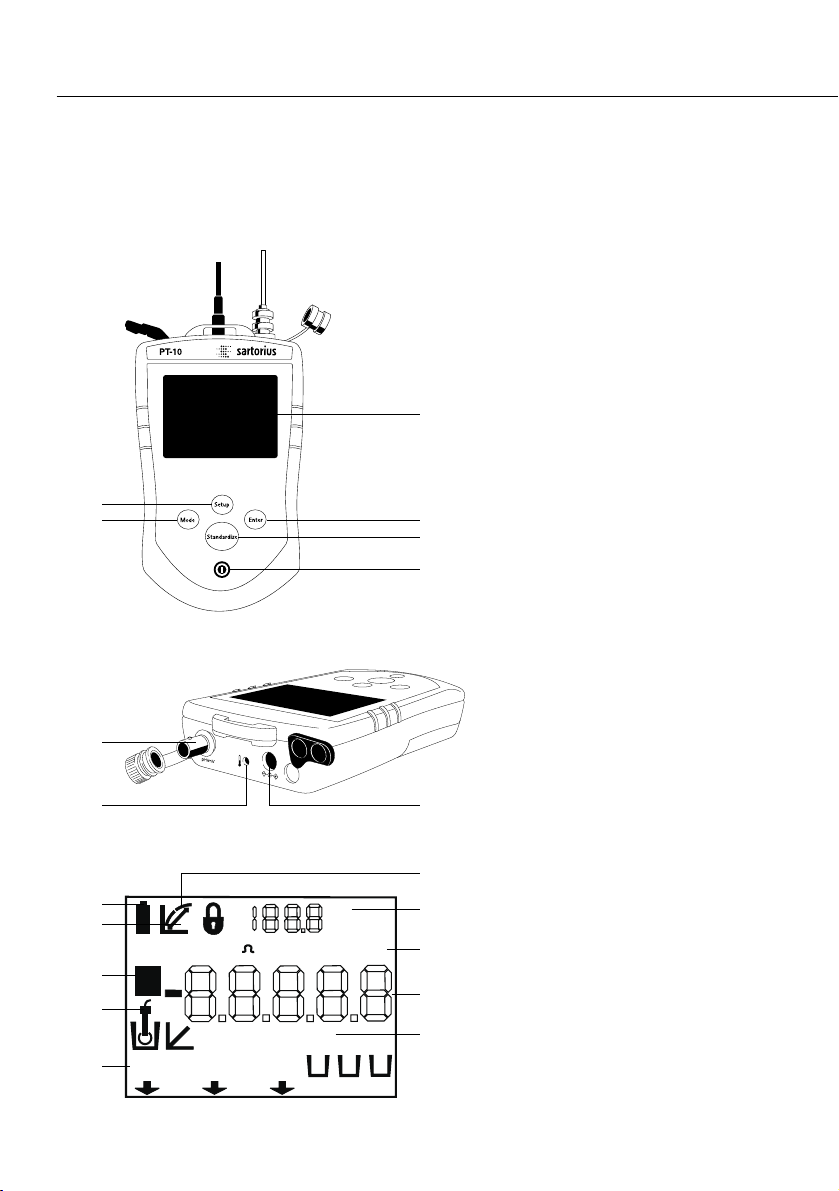

Display and keypad:

Rear view:

Display:

General View of the Equipment

1LC display

2[Enter] key: Select options

3[Standardize] key:

Activate standardization

functions

4On/off

5Jack for

optional AC adapter

6“Measuring” symbol

7Temperature

8Mode

9Result

1 Texts:

settings/error indicators

11 Buffer symbols

12 Symbols: Standardization

in process; slope symbol

13 “Stability” symbol

14 “Standardize” symbol

15 Low-battery indicator

16 Connector for ATC probe

17 BNC connector for

electrode

18 [Mode] key:

Toggle between pH and

mV mode

19 [Setup] key: Activate device

settings (e.g. to delete

standardization data etc.)

1.68 4.01 6.86 9.18 12.46 S1 S2 S3

1%/¡C

Auto

Man

Set

Clear

Error

1234567810101213

Sal

TDS

%DO

mg/L

S/cm cm ion rel mV pH

µK

°C

Getting Started

Storage and Shipping Conditions

Do not expose the portable meter unnecessarily

to extreme temperatures moisture shocks blows

or vibration.

Unpacking the Portable Meter

§After unpacking the portable meter please check

it immediately for any visible damage.

$If any sign of damage is visible proceed as directed

in the chapter entitled “Care and Maintenance ”

under the section on “Safety Inspection”.

It is a good idea to save the box and all parts

of the packaging until you have successfully

installed your portable meter. Only the original

packaging provides the best protection for

shipment. Before packing your portable meter

unplug all connected cables to prevent damage.

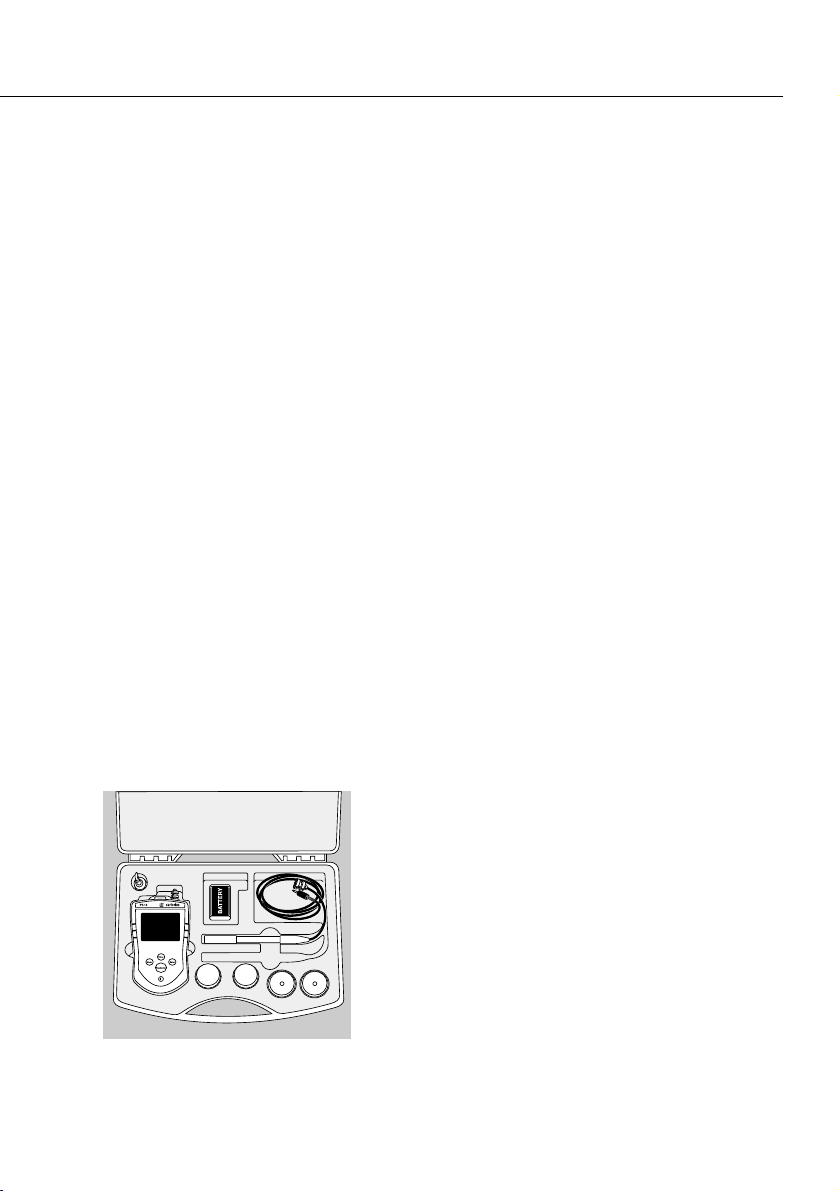

Equipment Supplied

The equipment supplied includes the components

listed below:

PT-10

– pH meter

– 9V battery

PT-10P

– pH meter

– 9V battery

– Gel electrode with temperature sensor (PY-P12)

– Carrying case

– Buffer solution; pH = 4.00 90 ml

– Buffer solution; pH = 7.00 90 ml

– 2 PE bottles 60 ml

PT-10-P20

– pH meter

– 9 V battery

– Gel electrode without temperature sensor

– Carrying case

– Buffer solution; pH = 4.00 90 ml

– Buffer solution; pH = 7.00 90 ml

– 2 PE bottles 60 ml

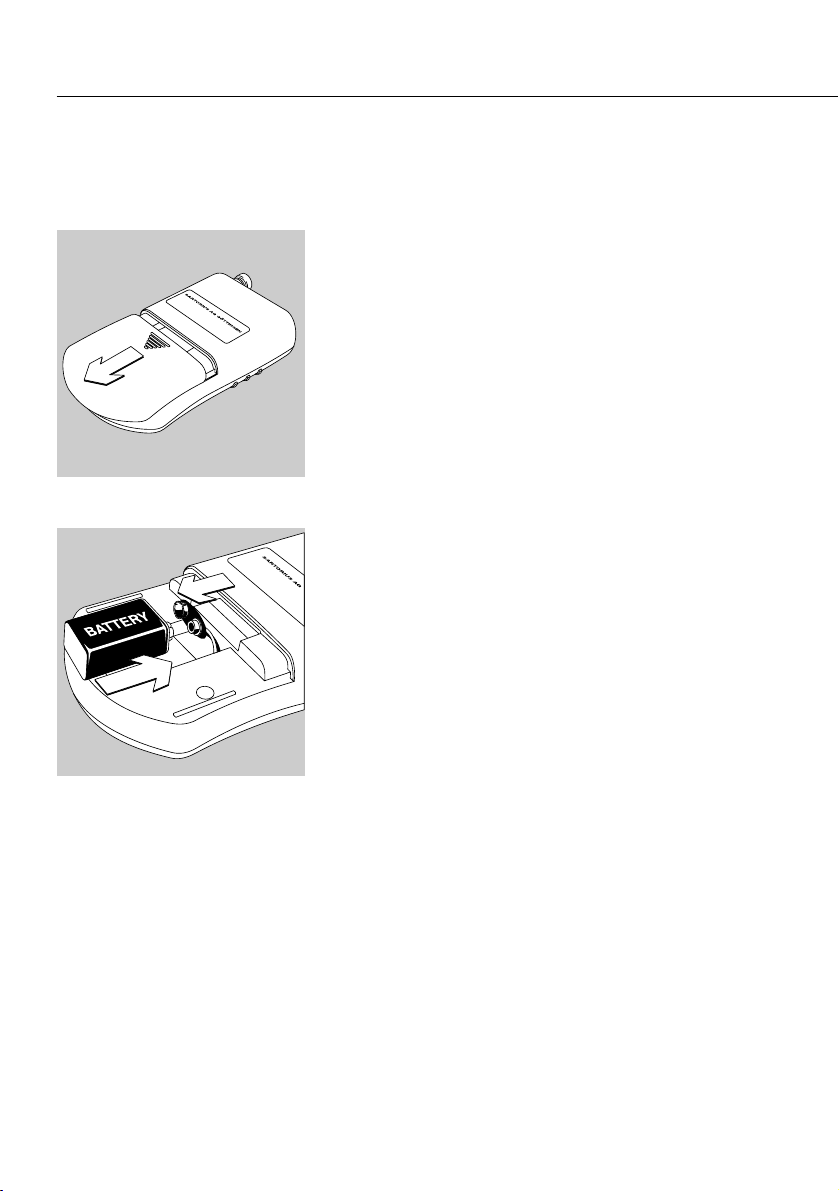

Installing the Battery

$Use only commercially available 9 V batteries. If

desired use a rechargeable battery (not included).

$Rechargeable 9 V batteries are available from

your local electronic supplies dealer.

!If you use a rechargeable battery recharge it with

an external battery charger.

§Lay the portable meter face down.

!Open the battery compartment: Remove the

compartment cover.

§Install the battery in the compartment.

$Make sure the polarity is correct.

!Do not discard used batteries with normal house-

hold waste. Rechargeable batteries contain toxic

materials and must be disposed of in accordance

with local waste disposal regulations.

§Close the battery compartment: Slide the cover

into position until it snaps into place.

Note:

This equipment has been tested and found to

comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection

against harmful interference when the equipment

is operated in a commercial environment. This

equipment generates uses and can radiate radio

frequency energy and if not installed and used in

accordance with the instruction manual may

cause harmful interference to radio communica-

tions. Operation of this equipment in a residen-

tial area is likely to cause harmful interference

in which case the user will be required to correct

the interference at his own expense. Changes or

modifications not expressly approved by Sartorius

AG could void the user’s authority to operate the

equipment.

Connecting the Equipment to AC Power

(Optional)

$Use only original Sartorius equipment;

in Europe:

Power adapters for PT Meters

230 V European plug 102078.1

240 V UK plug 102079.1

100 V Japanese plug 102155.1

230 V Australian plug 102156.1

115 V North American plug 102077.1

This AC power adapter has protection rating IP20

in accordance with the European standard

EN 60529.

§Plug the AC adapter into the wall outlet (mains

supply).

$The pole of the output voltage is connected

to the portable meter housing which can be

grounded for operation.

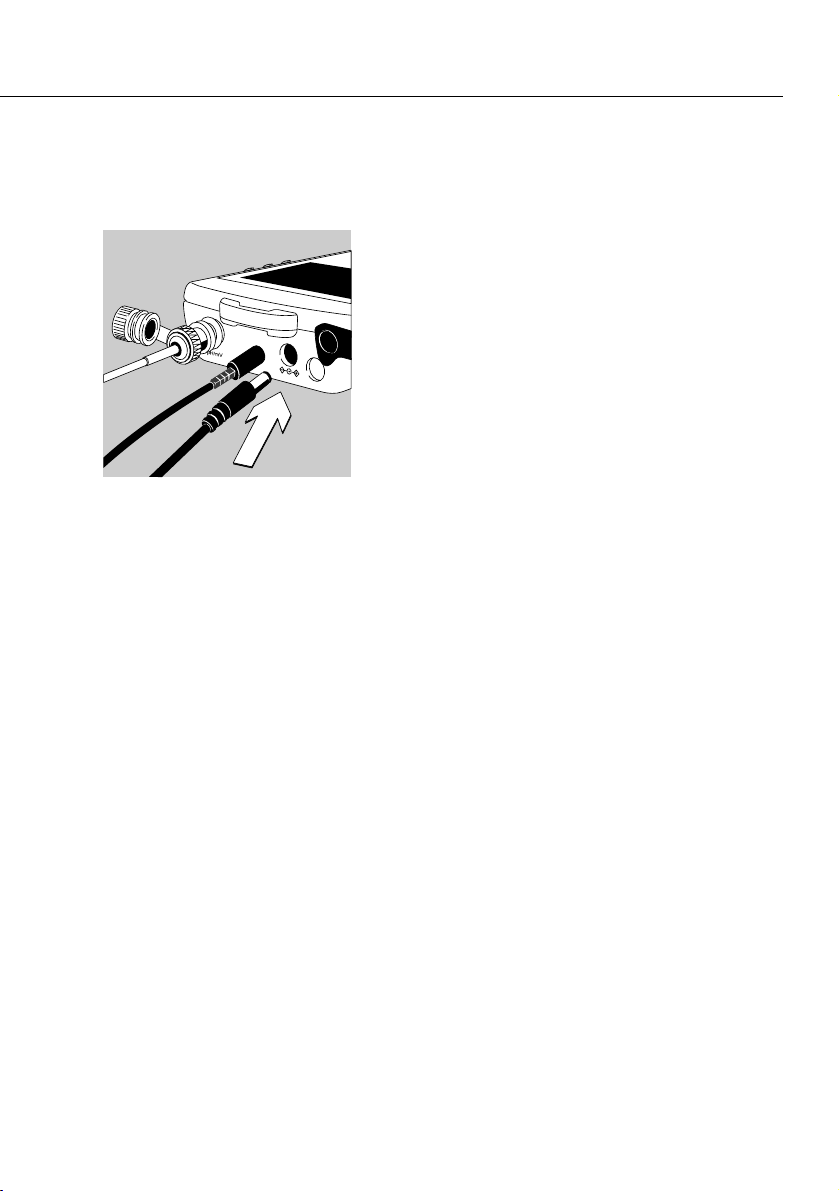

Installing Electrodes

You can use the following electrodes with the

PT portable meter:

– Combination pH electrode with BNC connector

– Separate 2.5 mm phone jack for the ATC probe

– Ion-selective or ORP (redox) electrode with BNC

connector

Installation

1. Remove the protective cover from the electrode.

2. If the pH electrode is dry (e.g. when it is new)

soak it overnight in an electrode filling solution

3-mol/l KCl solution or electrode storage solution

before use.
