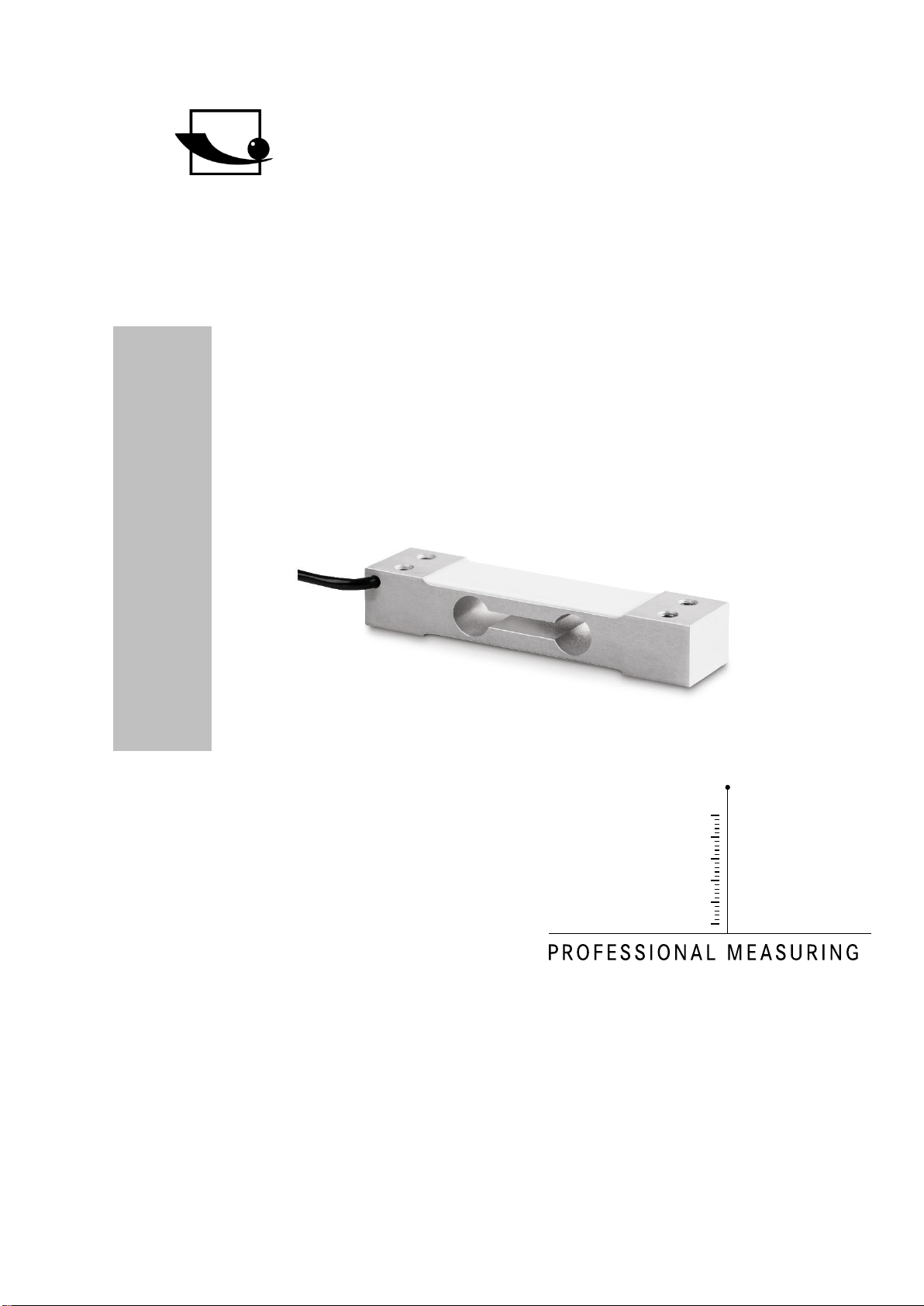

Sauter CP P1 Manuale utente

Sauter GmbH

Ziegelei 1

D-72336 Balingen

E-Mail: [email protected]

Tel.: +49-[0]7433- 9933-0

Fax: +49-[0]7433-9933-149

Internet: www.sauter.eu

Instruction Manual / Data sheet

CP P1

V. 2.0

10/2023

CP P1-BA-e-2320

2 CP P1-BA-e-2320

SAUTER CP P1

V. 1.0 10/2023

Instruction Manual / Data sheet

Summarize:

1Short description........................................................................................... 3

2Available models............................................................................................ 3

3Introduction.................................................................................................... 3

4Warning notes................................................................................................ 3

5Warranty......................................................................................................... 4

6Detailed specifications.................................................................................. 4

7Wiring.............................................................................................................. 5

8Dimensions in mm......................................................................................... 5

9Certificate of Compliance.............................................................................. 5

CP P1-BA-e-2320

1 Short description

•Aluminum-alloy IP65 (acc. to EN 60529) single point load cell.

•Colorless anodized

•Suitable for pricing scales, bench scales, etc.

•Maximum platform size: 250 x 350 mm

•Accuracy OIML R60 C3

•Option on request accuracy C4 / C5

•OIML certificated

•RoHS conform

2 Available models

Capacity

Model

Cable length in m

3kg

CP 3-3P1

0,4

3kg

CP 3-2-3P1

5kg

CP 5-3P1

0,4

6kg

CP 6-3P1

0,4

8kg

CP 8-3P1

0,4

10kg

CP 10-3P1

0,4

10kg

CP 10-3-3P1

15kg

CP 15-3P1

0,4

15kg

CP 15-3-3P1

20kg

CP 20-3P1

0,4

30kg

CP 30-3P1

0,4

35kg

CP 35-3P1

0,4

35kg

CP 35-3-3P1

40kg

CP 40-3P1

0,4

50kg

CP 50-3P1

0,4

50kg

CP 50-2-3P1

3 Introduction

Please pay attention to the notes of the operating manual: read these operating

manual carefully before commissioning, even if you already have experience with

SAUTER measuring cells.

After receiving the measuring cell, it should be checked in advance whether no

transport damage has occurred, whether the outer packaging or other parts or even

the article itself has been damaged. If any damage is evident, please inform

SAUTER GmbH immediately.

4 Warning notes

Observe the national accident prevention regulations.

Not correct executed use of the measuring cell can lead to serious injuries, death,

material damage and personal injuries. Use only by trained and experienced people.

4 CP P1-BA-e-2320

Never load more than the max. capacity to a measuring cell. Overloaded measuring

cells no longer have the required accuracy. Overloaded or deformed measuring cells

are no longer allowed to use and must be changed quickly.

Never step under suspended loads.

Always fasten overload- or break security to your construction.

Pay attention to the allowed static and dynamic loads of the used equipment.

Let the measuring cells calibrate at regular intervals.

Only load the measuring cell in its specified load direction. Avoid lateral forces.

Control the measuring cells to deformations and cracks.

Measuring cells with 4-Conductor cable will change their characteristic value when

shortened or extended the cable length.

5 Warranty

The warranty expires at:

•Disregard of the specifications of the operating manual

•Modification or opening the measuring cell

•Overload

•Mechanical damages

•Damage caused by liquids or media

•Natural loss

•Not correct installation

6 Detailed specifications

Output sensitivity ( = FS )

mV/V

2.0 ± 0.2

Maximum capacity ( Emax )

3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50

Max.number of load cell

intervals

nLC

3000

Ratio of min. LC verification

interval

Y = Emax

/ vmin

10000

Combined Error

%FS

≤± 0.0230

Minimum dead load

Of Emax

Safe overload

of Emax

150 %

Ultimate overload

of Emax

300 %

Zero balance

of FS

< ± 2.0 %

Excitation, recommended

voltage

5 ~ 12

Excitation maximum

Input resistance

409 ± 6

Output resistance

350 ± 3

Insulation resistance

MΩ

≥5000 ( at 50VDC )

Compensated temperature

°C

-10…+40

Operating temperature

°C

-35…+65

Storage temperature

°C

-40…+70

Recommended torque on

fixation bolts

< 30kg: 6 >30kg: 10

> 30kg: 10

CP P1-BA-e-2320

7 Wiring

Shielded, 4 conductor cable. Shield not connected to element.

Cable diameter: Ø3.8mm. Standard cable length: look at available models chapter 2

Cable jacket in PVC.

4-wire diagram

Input(+)

Output(-)

Input (-)

Output(+)

Red

White

Black

Green

8 Dimensions in mm

9 Certificate of Compliance

The Certificate of Compliance can be downloaded from the website www.sauter.eu
